Introduction
The Ingersoll Rand 47704536001 / 24266223 Hydraulic Hose Assembly is a purpose-specific flexible hose for compatible Ingersoll Rand compressor fluid-routing systems.

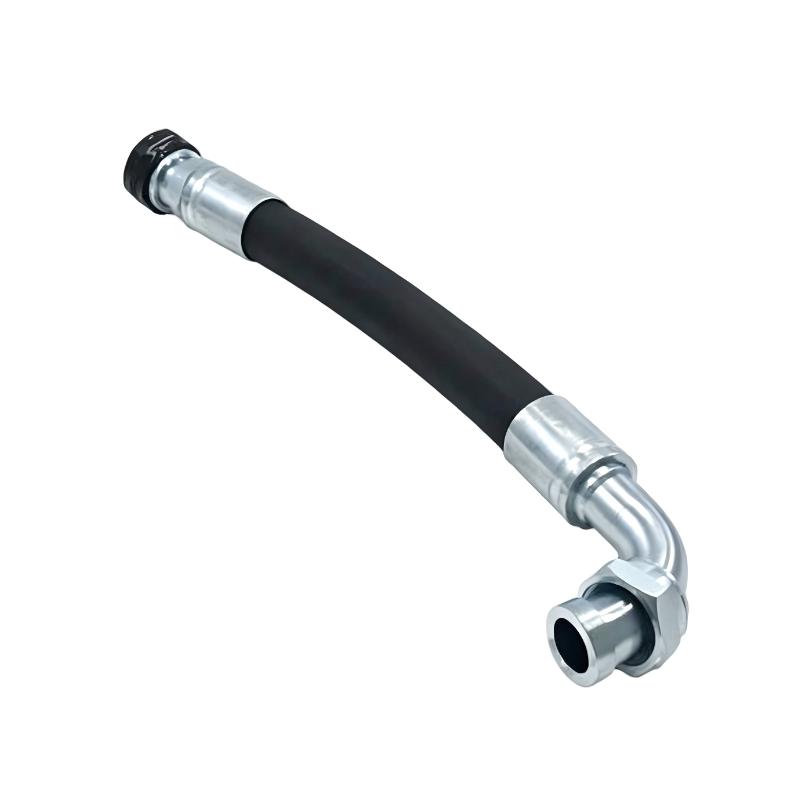

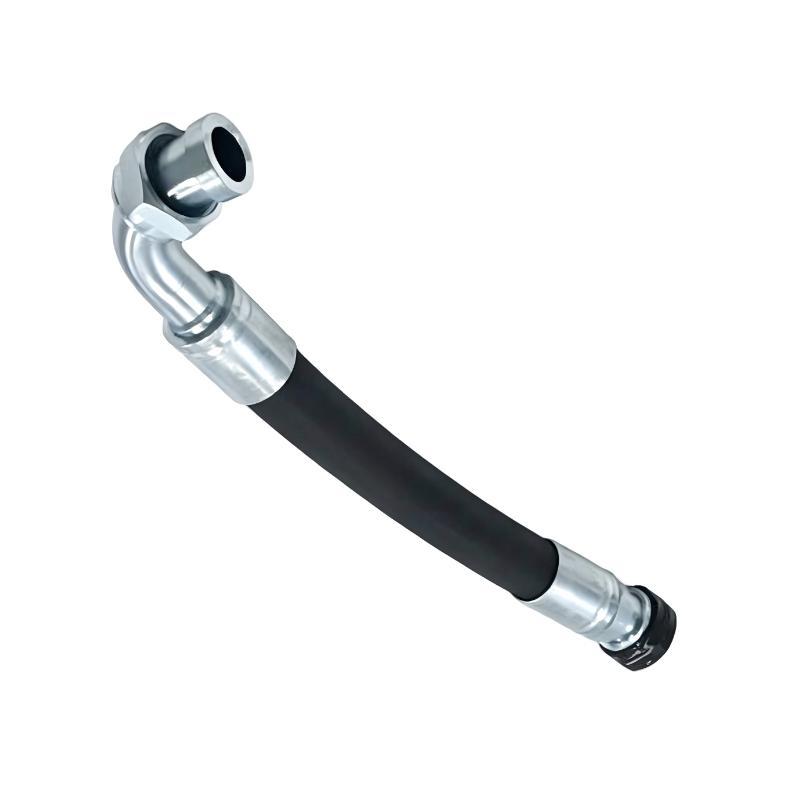

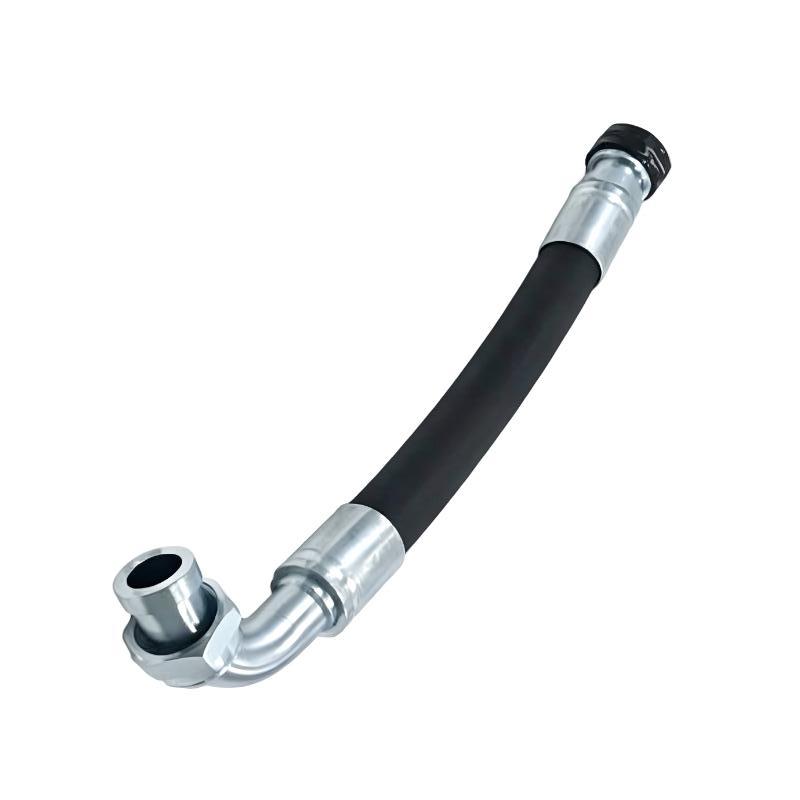

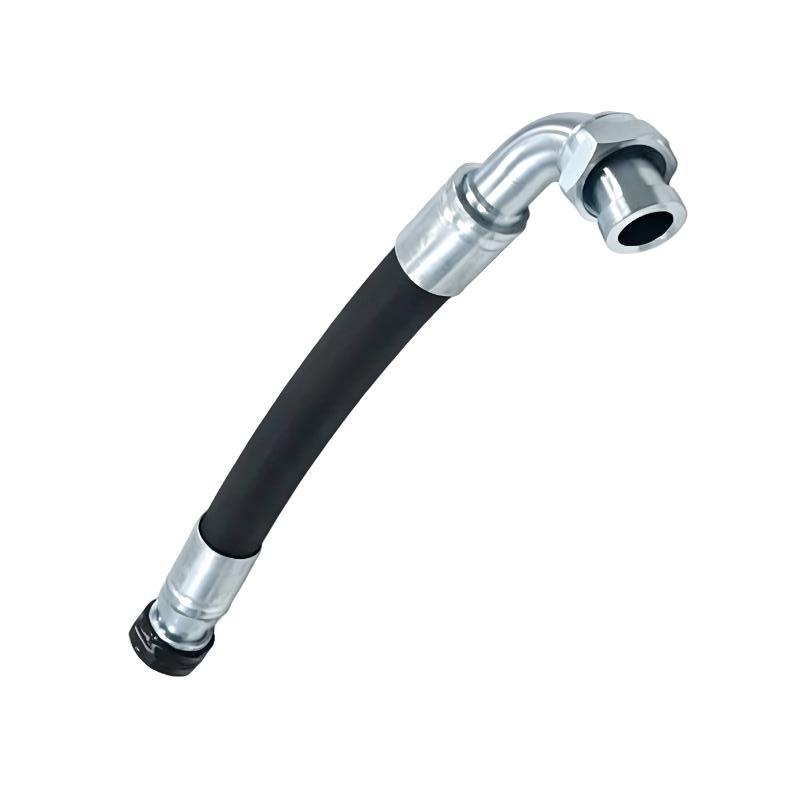

The documented product description identifies 24266223 as “Hose, Hydraulic 1.00 × 44 ORFS Straight × ORFS 90 Degree Elbow.” This establishes the principal dimensional and connection characteristics: a 1-inch hose, 44-inch nominal length, straight ORFS connection, and 90-degree ORFS elbow.
Application documentation provides additional context. In the RS75i parts manual, 24266223 is listed as a hose within the cooler oil tubing assembly, alongside 24260853008, an MPCV valve, flange clamps, O-rings, and rigid tubing.
The same hose reference also appears in a parts list for R45i/R55N/R75N/R55I/R75I equipment as a PTFE hose within the cooler assembly. This makes hose construction an important consideration when selecting a replacement rather than relying only on diameter and length.
The 44-inch length should be maintained because hose length affects installation geometry. A shorter assembly may introduce tension at the fittings, while excessive slack can create unwanted loops or contact with surrounding components.
The 90-degree elbow is equally important. Its orientation determines how the hose approaches the connected component and helps maintain the intended routing path without forcing an unsuitable bend immediately behind the fitting.
During scheduled maintenance, technicians should inspect the hose for abrasion, cracking, deformation, leakage, heat damage, and deterioration around the fittings. ORFS sealing faces and O-rings should also be inspected whenever the connection is disturbed.
Ingersoll Rand's own parts guidance emphasizes using the exact part number and equipment model/serial information when ordering replacement components.
The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24266223, while the relationship between 47704536001 and 24266223 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704536001 |
| Associated Reference | 24266223 |
| Product Type | Hydraulic Hose Assembly |
| Hose Description | Hydraulic Hose 1.00 × 44 ORFS Straight × ORFS 90° Elbow |
| Nominal Hose Size | 1.00 in |
| Hose Length | 44 in |
| Approx. Hose Length | 1117.6 mm |
| Connection 1 | ORFS Straight |
| Connection 2 | ORFS 90° Elbow |
| Sealing System | ORFS / O-Ring Face Seal |
| Hose Construction | PTFE documented for applicable compressor configuration |
| Primary Service | Compressor Fluid Routing |
| Documented Application | Cooler Oil Tubing |
| Documented Equipment Family | Ingersoll Rand RS75i / related R-series configurations |
| Overall Product Dimensions | 44-inch hose-length specification; complete fitting envelope is configuration-specific |
| Net Weight | 1.38 kg according to Edmac's listed net-weight specification. |
| Package Dimensions | 50 × 620 × 330 mm according to Edmac's package data; these are shipping/package dimensions rather than installed product dimensions. |
| Pressure Rating | Not reliably verified from available technical documentation |
| Temperature Rating | Not reliably verified from available technical documentation |
| Compatibility | Model-, serial-number, and circuit-configuration dependent |
The 44-inch length, 1-inch nominal size, and ORFS connection arrangement are the key verified dimensional characteristics. The complete installed envelope depends on the fittings and routing path, so the original assembly should remain the final reference for installation clearance.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 24266215 | Ingersoll Rand Hydraulic Hose, 1.00 × 28 ORFS Straight × ORFS 90° Elbow |
| 24266207 | Ingersoll Rand Hydraulic Hose, 1.00 × 32 ORFS Straight × ORFS 90° Elbow |
| 24260853008 | Ingersoll Rand Hydraulic Hose, 1.00 × 30 ORFS Straight × ORFS 90° Elbow |
| 48662779 | Ingersoll Rand Hydraulic Hose, 1.00 × 44 ORFS Straight × 90° Elbow |
These are closely related Ingersoll Rand hose references. 24266215 and 24266207 are documented as 1-inch hoses with different lengths, while 24260853008 is another 1-inch ORFS hose used in the same RS75i cooler-oil assembly as 24266223.
Frequently Selected Alternatives
| Model | Product Name |
|---|---|
| 24266231 | Ingersoll Rand Hydraulic Hose, 1.00 × 42 ORFS Straight × ORFS 90° Elbow |
| 24266249 | Ingersoll Rand Hydraulic Hose, 1.00 × 19 |
| 24266256 | Ingersoll Rand Hydraulic Hose, 1.00 × 46 |
| 24266272 | Ingersoll Rand Hydraulic Hose, 1.00 × 36 ORFS Straight × ORFS 90° Elbow |
