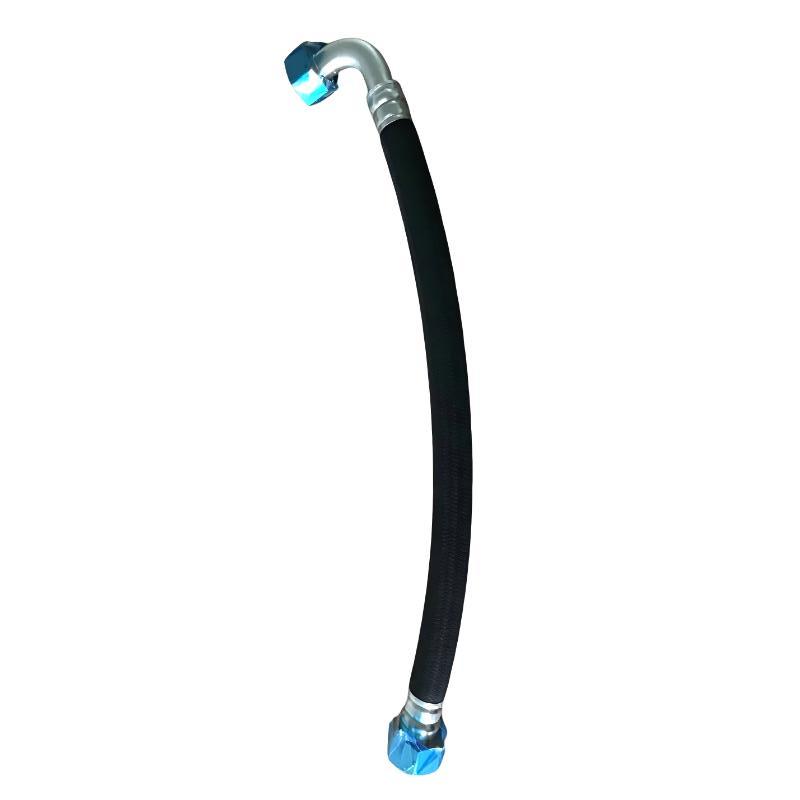

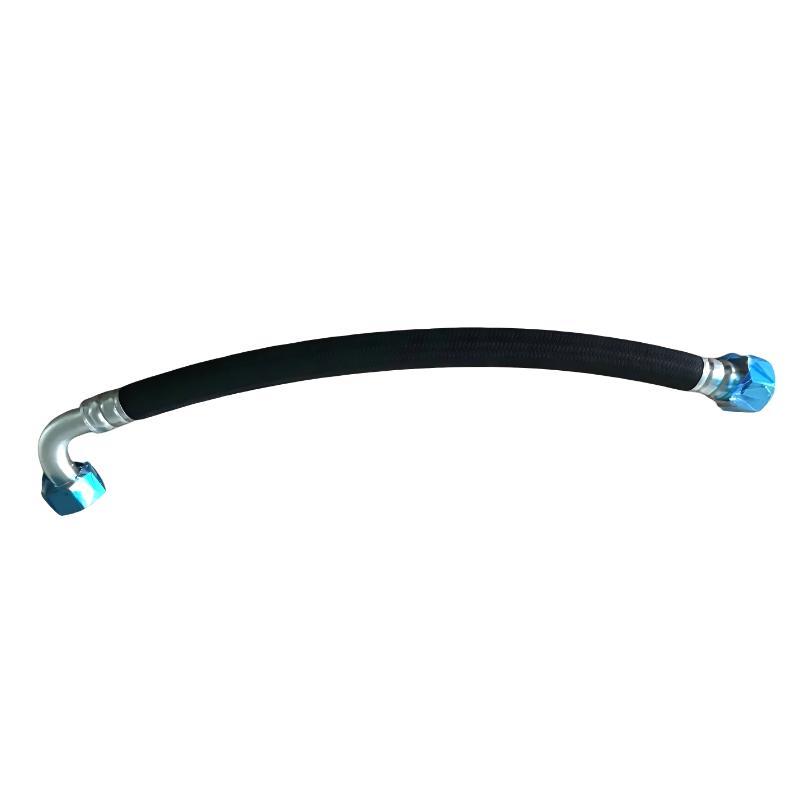

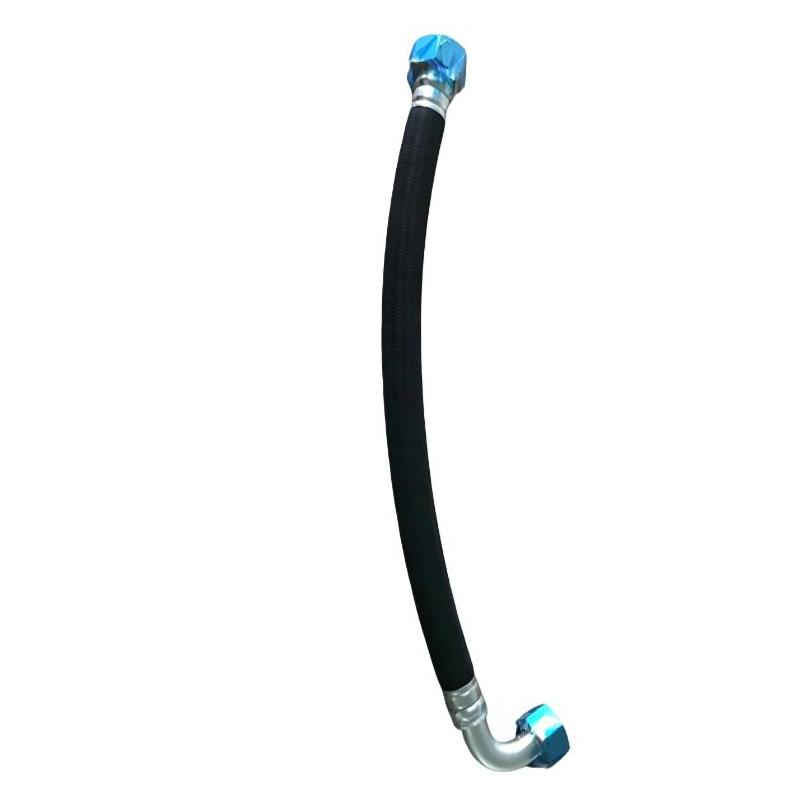

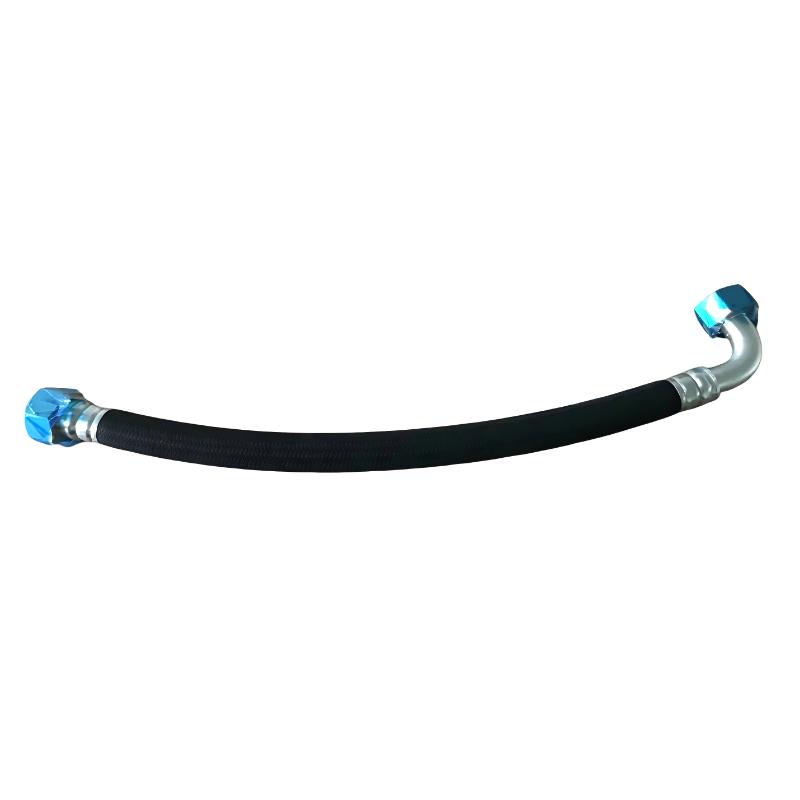

Name: Ingersoll Rand 47704536001 / 24260804013 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18250
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47704536001 / 24260804013 Hydraulic Hose Assembly is a compact flexible hose component intended for compatible Ingersoll Rand compressor equipment.

The directly documented description for 24260804013 is “Hose, Hydraulic .25 X 34 ORFS Straight X ORFS 90 Degree Elbow (PTFE).” This establishes the principal configuration as a 0.25-inch hose with a 34-inch length, an ORFS straight fitting, an ORFS 90-degree elbow, and PTFE construction.

At approximately 863.6 mm, the specified hose length is important for maintaining the original installation geometry. A hose that is too short may impose tension on the fittings, while excessive length can create unnecessary loops or interference with nearby components.

The 90-degree elbow also plays an important role in routing. Rather than forcing a straight connection into an abrupt directional change, the elbow establishes the intended outlet orientation and can reduce unnecessary bending immediately behind the fitting.

The PTFE construction is another defining characteristic. Because the available catalog information specifically identifies this hose as PTFE, replacement selection should preserve that construction rather than relying only on nominal diameter and fitting style.

For maintenance work, technicians should inspect the hose body for abrasion, cuts, deformation, leakage, and signs of thermal or mechanical damage. The ORFS sealing faces and O-rings should also be checked whenever the connection is opened.

Ingersoll Rand's current Parts Finder guidance emphasizes selecting genuine replacement components according to the specific compressor model, helping avoid compatibility problems caused by visually similar but incorrectly configured parts.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260804013, while the relationship between 47704536001 and 24260804013 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704536001
Associated Reference	24260804013
Product Type	Hydraulic Hose Assembly
Hose Description	Hydraulic Hose 0.25 × 34 ORFS Straight × ORFS 90° Elbow, PTFE
Nominal Hose Size	0.25 in
Hose Length	34 in
Approx. Hose Length	863.6 mm
Connection 1	ORFS Straight
Connection 2	ORFS 90° Elbow
Sealing System	ORFS / O-Ring Face Seal
Hose Construction	PTFE
Service Function	Flexible Compressor Fluid Routing
Overall Product Dimensions	34-inch hose-length specification; complete fitting envelope is configuration-specific
Net Weight	Not reliably verified from available technical documentation
Supplier Weight Listing	One supplier lists 5.050000, but the unit and whether this represents actual product mass are not clearly stated.
Package Dimensions	Not reliably verified from available technical documentation
Pressure Rating	Not reliably verified from available technical documentation
Temperature Rating	Not reliably verified from available technical documentation
Compatibility	Model-, serial-number, and circuit-configuration dependent

The 0.25-inch size, 34-inch length, PTFE construction, and ORFS straight-to-90° configuration are the principal verified specifications.

Recommended Companion Models

Model	Product Name
24260804002	Ingersoll Rand Hose, 0.25-Inch ORFS Straight × ORFS Straight, 21 in
24260804011	Ingersoll Rand Hydraulic Hose, 0.25 × 26 ORFS Straight × ORFS Straight
24260804012	Ingersoll Rand Hydraulic Hose, 0.25 × 41 ORFS Straight × ORFS Straight
24260804006	Ingersoll Rand Hydraulic Hose, 0.25 × 53 ORFS Straight × ORFS 90° Elbow, PTFE

These are closely related small-bore Ingersoll Rand hose references. Their lengths and end configurations differ from 24260804013, so they should be selected according to the exact compressor circuit and original installation.

Frequently Selected Alternatives

Model	Product Name
24261299	Ingersoll Rand Hydraulic Hose, 0.25 × 18 ORFS/PTFE Straight × Straight
24260853012	Ingersoll Rand Hydraulic Hose, 1.00 × 49 ORFS Straight × ORFS 90° Elbow
24260861004	Ingersoll Rand Hydraulic Hose, 1.25 × 56 ORFS Straight × ORFS 90° Elbow
24260879009	Ingersoll Rand Hydraulic Hose, 1.50 × 31 ORFS Straight × ORFS 90° Elbow

Where It Excels in Industrial Use

Compressor Fluid Routing: The supplied 47704536001 / 24260804013 references are treated as one product listing. Part 24260804013 is documented as an Ingersoll Rand hydraulic hose measuring 0.25 × 34 inches, with an ORFS straight connection and ORFS 90° elbow, using PTFE hose construction.
Compact Compressor Piping: The 34-inch hose length and 0.25-inch nominal size suit compact fluid-routing paths where a small-bore flexible connection is required.
Defined Fitting Orientation: The straight-to-90° ORFS configuration provides a fixed connection geometry that can help maintain the intended routing around adjacent compressor components.
Maintenance Replacement: The documented dimensions and fitting arrangement make 24260804013 useful when replacing the corresponding original hose assembly after the compressor model and serial number have been verified through the applicable parts documentation. Ingersoll Rand recommends identifying replacement parts by equipment model to ensure compatibility.

Key Strengths at a Glance

Genuine Ingersoll Rand Reference: 24260804013 is listed as a genuine/OEM Ingersoll Rand replacement hose.
Compact 0.25-Inch Size: The documented hose specification is 0.25 inch, making it suitable for smaller-bore compressor circuits.
34-Inch Length: The specified hose length is 34 inches, equivalent to approximately 863.6 mm.
ORFS Straight × 90° Configuration: The assembly uses an ORFS straight connection at one end and an ORFS 90-degree elbow at the other.
PTFE Hose Construction: The published product description specifically identifies the hose as PTFE.
Purpose-Built Compressor Part: The component is cataloged specifically within Ingersoll Rand's replacement-parts ecosystem rather than as a generic industrial hose.

Technical FAQs

1. What is Ingersoll Rand 47704536001 / 24260804013?

The supplied references are treated as one product listing. 24260804013 is an Ingersoll Rand hydraulic hose specified as 0.25 × 34 inches, with an ORFS straight × ORFS 90° elbow configuration and PTFE construction.

2. What is the primary function of 24260804013?

Its primary function is flexible fluid routing within a compatible Ingersoll Rand compressor circuit.

3. What is the nominal hose size?

The documented hose size is 0.25 inch.

4. What is the specified hose length?

The documented length is 34 inches, or approximately 863.6 mm.

5. What fitting configuration does the hose use?

The published configuration is ORFS straight × ORFS 90° elbow.

6. What does ORFS mean?

ORFS means O-Ring Face Seal. The fitting uses an O-ring at the mating face to provide the sealing interface.

7. Is PTFE construction confirmed for 24260804013?

Yes. The product description from multiple listings specifically identifies 24260804013 as a PTFE hose.

8. Can any 0.25-inch ORFS hose replace 24260804013?

No. A suitable replacement must also match the 34-inch length, fitting configuration, hose construction, routing geometry, and service requirements of the original assembly.

9. What installation conditions can affect hose service life?

Excessive bending, twisting, abrasion, fitting misalignment, thermal exposure, and mechanical loading near the connections can reduce service life.

10. What should be checked after installation?

Verify fitting engagement, hose orientation, bend condition, routing clearance, and sealing integrity. The connected circuit should then be inspected for leakage during controlled operation.
