Brand:Schneider PLC Item No.:XBTGT1100 Product Origin:France Product Dimensions:130 x 104 x 41 mm Product Weight:0.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

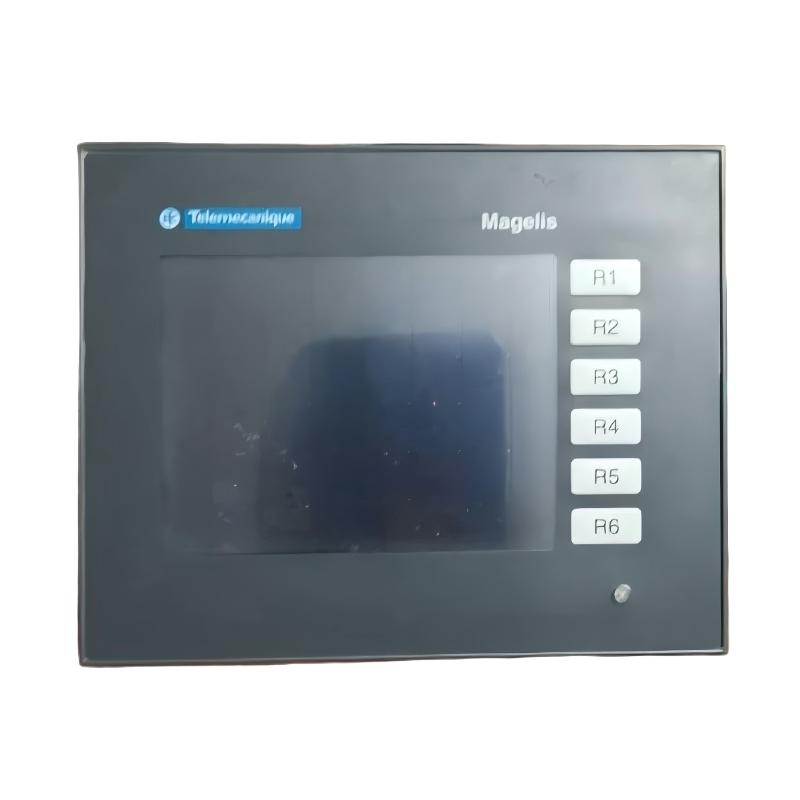

Introduction to Schneider XBTGT1100 Advanced Touchscreen Panel
The Schneider XBTGT1100 Advanced Touchscreen Panel is a compact industrial interface designed to improve operator interaction with automated equipment. It provides essential visualization and control functions while maintaining a small installation footprint.
For machine builders and OEM manufacturers, selecting the right HMI is important for creating efficient and user-friendly equipment. The XBTGT1100 delivers a practical balance between functionality, reliability, and compact design, making it suitable for machine-level automation applications.
With Schneider Electric’s industrial automation expertise behind its design, the XBTGT1100 provides a dependable operator interface solution for small machines and automation systems requiring efficient control access.
Technical Specifications of Schneider XBTGT1100
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
XBTGT1100
Product Type
Advanced Touchscreen Panel
HMI Series
Magelis XBTGT Series
Application
Industrial Human Machine Interface
Function
Machine Visualization and Operator Control
Display Type
Touchscreen Operator Interface
Communication Capability
Industrial Controller Communication
Installation Type
Panel Mount Installation
Application Area
Compact Machinery, OEM Equipment, Automation Systems
Dimensions
130 × 104 × 41 mm
Weight
0.40 kg (0.88 lb)
Recommended Related Models
Model
Product Type
Application
Schneider XBTGT4330
Advanced Touchscreen Panel
Compact machine control
Schneider XBTGT5330
Advanced Touchscreen Panel
Industrial HMI applications
Schneider HMIGTO1300
Touchscreen HMI Terminal
Small automation systems
Schneider HMIGTU Series
Modular HMI Panel
Advanced operator interface
Popular Related Models
Model
Product Type
Schneider XBTGT Series
Advanced Industrial HMI Panels
Schneider XBTOT Series
Operator Touchscreen Panels
Schneider HMIGTO Series
Compact HMI Terminals
Schneider HMIGTU Series
Modular HMI Solutions
Applications in Compact Machine Automation and Operator Control Systems
The Schneider XBTGT1100 Advanced Touchscreen Panel is a compact human-machine interface (HMI) designed for efficient operator interaction in small-scale automation equipment and industrial control applications. It provides a practical solution for displaying machine information, monitoring operating conditions, and performing basic control functions in space-limited installations.
This touchscreen panel is commonly used in compact machinery, OEM equipment, standalone automation systems, packaging devices, and small production units. Its compact form factor allows machine builders to integrate operator interfaces into control panels where installation space is limited while maintaining reliable communication with automation systems.
The Schneider XBTGT1100 helps simplify machine operation by providing a direct connection between operators and industrial controllers, improving usability, process visibility, and overall equipment efficiency.
Advantages and Compact Automation Benefits
Space-Saving Industrial Design
The compact structure allows easy integration into smaller control cabinets and machine panels without compromising operator accessibility.
Simple and Intuitive Operation
The touchscreen interface provides convenient access to machine parameters, status information, and control functions.
Reliable Machine-Level Visualization
The panel supports clear display of operating data, alarms, and basic process information for efficient equipment management.
Ideal for OEM Applications
The XBTGT1100 is suitable for machine builders requiring a practical and cost-effective HMI solution.
Improves Operator Efficiency
By replacing complex manual controls with a visual interface, it helps operators manage equipment more effectively.
Technical FAQs About Schneider XBTGT1100
1. What is the main function of the Schneider XBTGT1100?
The XBTGT1100 provides a touchscreen interface for monitoring and controlling industrial machines.
2. What applications are suitable for this HMI panel?
It is suitable for compact machines, OEM equipment, packaging systems, and small automation applications.
3. How does a compact HMI benefit machine design?
A compact HMI allows manufacturers to provide operator control functions while saving valuable panel space.
4. Can the XBTGT1100 communicate with PLC controllers?
Yes. It is designed to connect with compatible industrial controllers and automation systems.
5. What information can operators view through this HMI?
Operators can view machine status, operating parameters, alarms, and process information.
6. Why are touchscreen panels preferred for machine interfaces?
Touchscreen panels provide intuitive operation and reduce the need for multiple physical switches.
7. What should be checked if the HMI communication fails?
Engineers should verify communication settings, cable connections, controller status, and configuration parameters.
8. How does an HMI improve machine troubleshooting?
It provides diagnostic information and alarm messages that help operators identify equipment conditions.
9. What maintenance is required for an industrial touchscreen panel?
Routine cleaning, connection inspection, and software configuration checks help maintain reliable operation.
10. What factors should be considered before selecting an HMI?
Application requirements, communication compatibility, display needs, and installation environment should be evaluated.
