Brand:Schneider PLC Item No.:XBTORT7340 Product Origin:France Product Dimensions:395 x 294 x 60 mm Product Weight:5.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

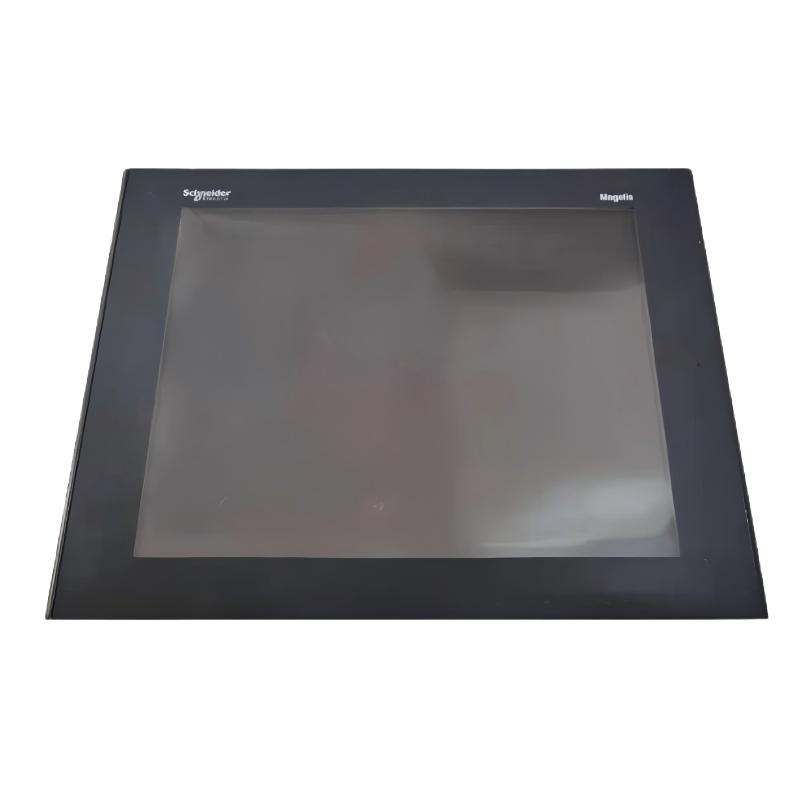

Introduction to Schneider XBTORT7340 Advanced Touchscreen Panel
The Schneider XBTORT7340 Advanced Touchscreen Panel is a high-capability HMI solution designed for industrial applications requiring detailed visualization and reliable machine interaction. It enables operators to efficiently manage complex processes through a clear and user-friendly touchscreen interface.
As automation systems become more advanced, operators need better access to real-time information and machine control functions. The XBTORT7340 supports these requirements by providing an effective platform for process monitoring, equipment control, and operational decision-making.
Suitable for industrial manufacturers, automation integrators, and machine builders, the Schneider XBTORT7340 delivers a professional HMI solution for improving productivity and system usability.
Technical Specifications of Schneider XBTORT7340
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
XBTORT7340
Product Type
Advanced Touchscreen Panel
HMI Series
Magelis XBT Series
Application
Industrial Human Machine Interface
Function
Process Visualization and Operator Control
Display Type
Touchscreen Interface
Communication Capability
Industrial Automation System Communication
Installation Type
Panel Mount Installation
Application Area
Manufacturing, Process Control, Machine Automation
Dimensions
395 × 294 × 60 mm
Weight
5.60 kg (12.35 lb)
Recommended Related Models
Model
Product Type
Application
Schneider XBTGT7340
Advanced Touchscreen Panel
Large machine visualization
Schneider XBTGT6330
Advanced Touchscreen Panel
Industrial HMI control
Schneider XBTGT6340
Advanced Touchscreen Panel
Advanced operator interface
Schneider HMIGTU Series
Modular HMI Panel
Complex automation systems
Popular Related Models
Model
Product Type
Schneider XBTGT Series
Advanced Touchscreen HMI Panels
Schneider XBTOT Series
Industrial Operator Panels
Schneider HMIGTO Series
Compact HMI Terminals
Schneider HMIGTU Series
Modular Advanced HMI Systems
Applications in Advanced Machine Control and Industrial Visualization Systems
The Schneider XBTORT7340 Advanced Touchscreen Panel is a large-format industrial human-machine interface (HMI) designed for demanding automation applications requiring clear visualization, efficient operator control, and comprehensive process monitoring. It provides operators with an intuitive platform to access production data, manage machine parameters, monitor alarms, and interact with complex industrial systems.
This touchscreen panel is widely used in manufacturing plants, process automation facilities, production lines, packaging equipment, and large machine control applications. Its expanded display capability makes it suitable for systems where operators need detailed process information and convenient access to multiple control functions.
Designed for professional automation environments, the Schneider XBTORT7340 helps improve operational visibility, reduce response time, and enhance the efficiency of industrial equipment management.
Advantages and Industrial HMI Performance Features
Large-Scale Process Visualization
The XBTORT7340 provides a spacious interface for displaying complex machine data, process graphics, alarms, and operating parameters.
Enhanced Operator Control Experience
The touchscreen design allows operators to manage equipment functions quickly and intuitively.
Ideal for Complex Automation Systems
The panel supports applications requiring detailed monitoring and multiple operational screens.
Improved Production Efficiency
Clear information presentation helps operators identify equipment conditions and respond to production changes faster.
Reliable Industrial Installation
Designed for machine control environments, the panel supports stable operation in demanding automation applications.
Technical FAQs About Schneider XBTORT7340
1. What is the main purpose of the Schneider XBTORT7340?
The XBTORT7340 provides a graphical interface for monitoring and controlling industrial automation processes.
2. What applications commonly use this touchscreen panel?
It is commonly used in manufacturing systems, process control equipment, production lines, and large machines.
3. How does a large-screen HMI benefit industrial operators?
A larger interface allows more process information, controls, and diagnostic data to be displayed clearly.
4. Can the XBTORT7340 connect with PLC systems?
Yes. It is designed to communicate with compatible industrial controllers and automation systems.
5. What type of information can be displayed on an industrial HMI?
Typical information includes machine status, alarms, trends, operating values, and control functions.
6. How does an HMI improve machine troubleshooting?
It provides operators with diagnostic information and alarm messages that assist in identifying problems.
7. What communication factors should be considered during installation?
Engineers should verify PLC compatibility, communication protocols, network settings, and connection configuration.
8. How can communication faults between HMI and controller be resolved?
Checking wiring, communication parameters, controller status, and software configuration can help identify issues.
9. What maintenance practices are recommended for touchscreen panels?
Regular cleaning, inspection of connections, software backup, and operational testing are recommended.
10. Why are industrial HMIs important in smart manufacturing?
They provide a visual connection between operators and automated systems, improving monitoring and production management.
