Brand:Schneider PLC Item No.:XBTGT2220 Product Origin:France Product Dimensions:167.5 x 135 x 59.5 mm Product Weight:1 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

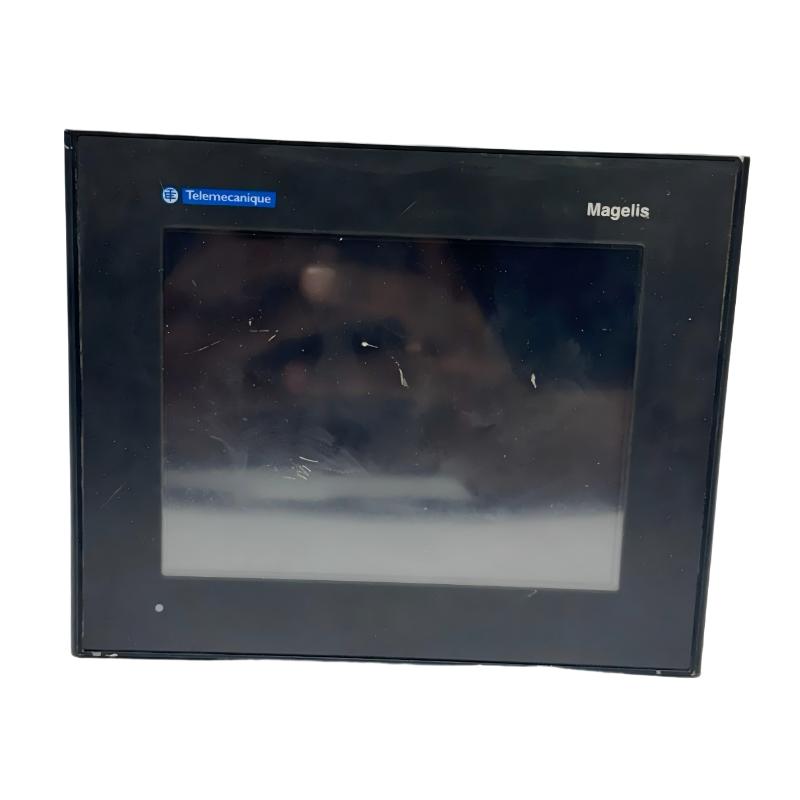

Introduction to Schneider XBTGT2220 Advanced Touchscreen Panel
The Schneider XBTGT2220 Advanced Touchscreen Panel is designed to provide a reliable and efficient interface between operators and industrial automation systems. It combines touchscreen convenience with industrial visualization capabilities, allowing users to monitor processes and control machine functions effectively.
In modern automation applications, a well-designed HMI improves production efficiency by providing operators with immediate access to important equipment information. The XBTGT2220 offers a compact yet capable solution for applications requiring dependable machine interaction.
For OEM manufacturers, system integrators, and industrial users, the Schneider XBTGT2220 provides a practical HMI platform that enhances equipment usability and operational performance.
Technical Specifications of Schneider XBTGT2220
Parameter
Specification
Manufacturer
Schneider Electric
Model Number
XBTGT2220
Product Type
Advanced Touchscreen Panel
HMI Series
Magelis XBTGT Series
Application
Industrial Human Machine Interface
Function
Machine Visualization and Operator Control
Display Type
Touchscreen Operator Interface
Communication Capability
PLC and Industrial Controller Communication
Installation Type
Panel Mount Installation
Application Area
Machine Automation, OEM Equipment, Production Systems
Dimensions
167.5 × 135 × 59.5 mm
Weight
1.00 kg (2.20 lb)
Recommended Related Models
Model
Product Type
Application
Schneider XBTGT1100
Advanced Touchscreen Panel
Compact machine control
Schneider XBTGT4330
Advanced Touchscreen Panel
Industrial HMI applications
Schneider XBTGT5330
Advanced Touchscreen Panel
Machine visualization systems
Schneider HMIGTO1300
Touchscreen HMI Terminal
Compact automation solutions
Popular Related Models
Model
Product Type
Schneider XBTGT Series
Advanced Touchscreen HMI Panels
Schneider XBTOT Series
Industrial Operator Panels
Schneider HMIGTO Series
Compact HMI Terminals
Schneider HMIGTU Series
Modular Industrial HMI Systems
Applications in Machine-Level Automation and Operator Interaction Systems
The Schneider XBTGT2220 Advanced Touchscreen Panel is a compact industrial human-machine interface (HMI) designed for efficient machine monitoring, operator control, and automation system visualization. It provides a practical interface solution for displaying production information, adjusting operating parameters, and improving communication between operators and industrial controllers.
This touchscreen panel is suitable for various machine-level applications, including packaging equipment, assembly systems, small production lines, OEM machinery, and automated control stations. Its compact design allows easy integration into control cabinets where space efficiency and reliable operation are equally important.
The Schneider XBTGT2220 helps manufacturers create user-friendly machine interfaces while improving process visibility, operational efficiency, and equipment management.
Advantages and Industrial Automation Benefits
Compact Design for Machine Integration
The XBTGT2220 provides a space-efficient HMI solution that fits easily into smaller automation panels and machine enclosures.
Clear Operator Visualization
The touchscreen interface allows users to access machine status, operating parameters, alarms, and process information quickly.
Efficient Equipment Control
Operators can interact directly with automation systems, simplifying machine operation and reducing manual control complexity.
Reliable Industrial Performance
Designed for automation environments, the panel supports stable operation in manufacturing and machine control applications.
Ideal for OEM Automation Solutions
The compact format and practical functionality make it suitable for equipment builders developing customized industrial machines.
Technical FAQs About Schneider XBTGT2220
1. What is the primary function of the Schneider XBTGT2220?
The XBTGT2220 provides an operator interface for monitoring and controlling industrial automation equipment.
2. What types of applications are suitable for this HMI panel?
It is commonly used in compact machines, OEM equipment, packaging systems, and small automation projects.
3. Can the XBTGT2220 communicate with PLC controllers?
Yes. It is designed to communicate with compatible PLCs and industrial automation systems.
4. How does an HMI improve machine operation?
An HMI provides visual information and control access, allowing operators to manage equipment more efficiently.
5. What information can be displayed on this touchscreen panel?
It can display machine status, alarms, process values, operating parameters, and diagnostic information.
6. Why are compact HMIs valuable in industrial applications?
Compact HMIs allow machine builders to provide operator control functions while reducing panel space requirements.
7. What should be checked when HMI communication fails?
Engineers should inspect communication settings, wiring, controller status, and network configuration.
8. How does an HMI support troubleshooting?
It displays operational information and alarms that help operators identify machine conditions.
9. What maintenance is recommended for the XBTGT2220?
Regular cleaning, connection inspection, and software configuration checks help maintain reliable operation.
10. What factors affect HMI selection for an automation project?
Display requirements, communication capability, installation space, application complexity, and operator needs should be considered.
