Name: Ingersoll Rand 47704537001 / 24266223 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18261
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

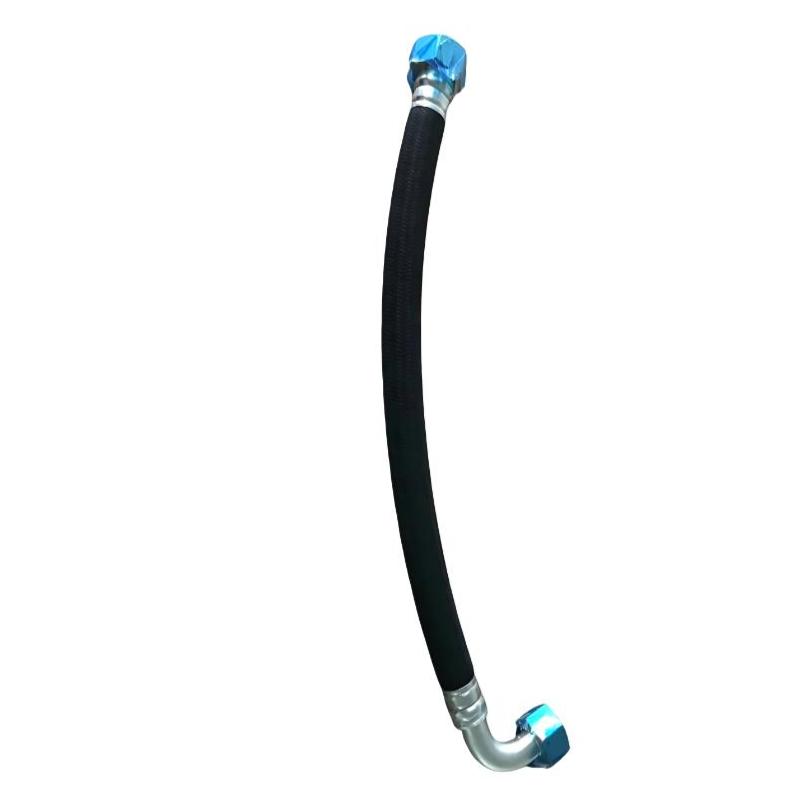

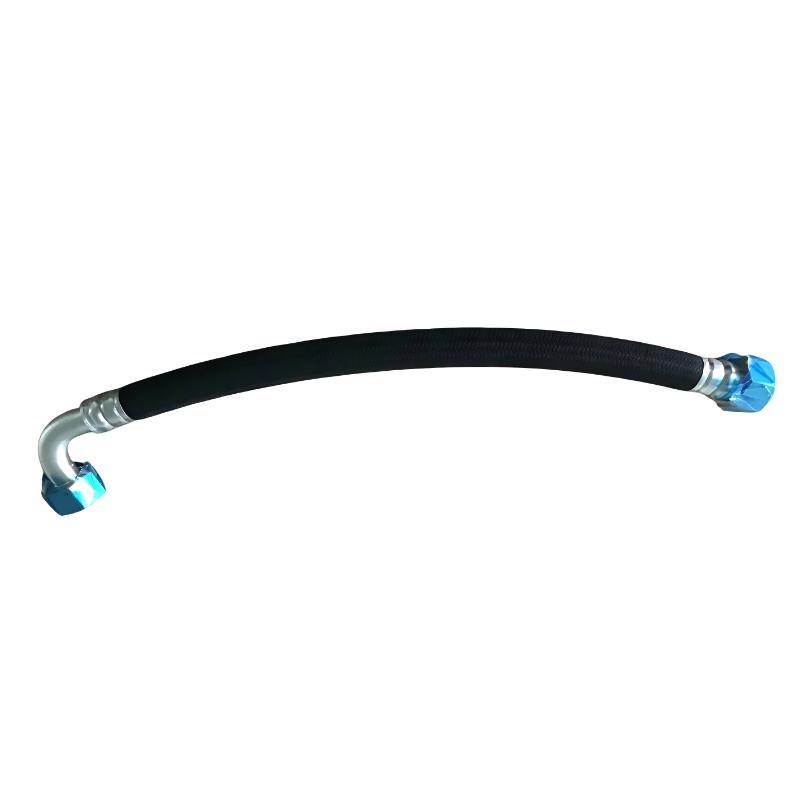

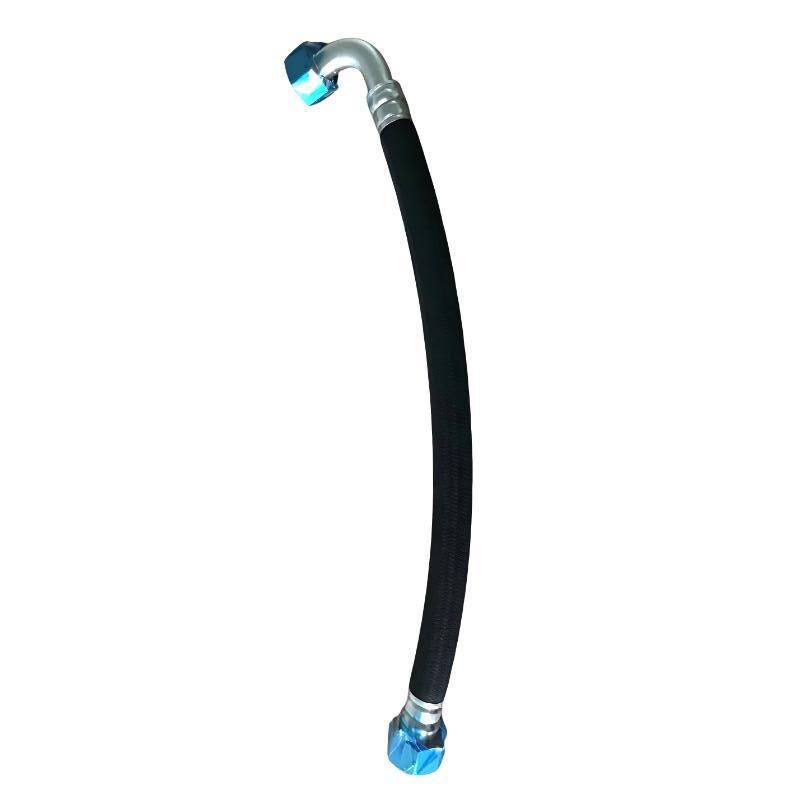

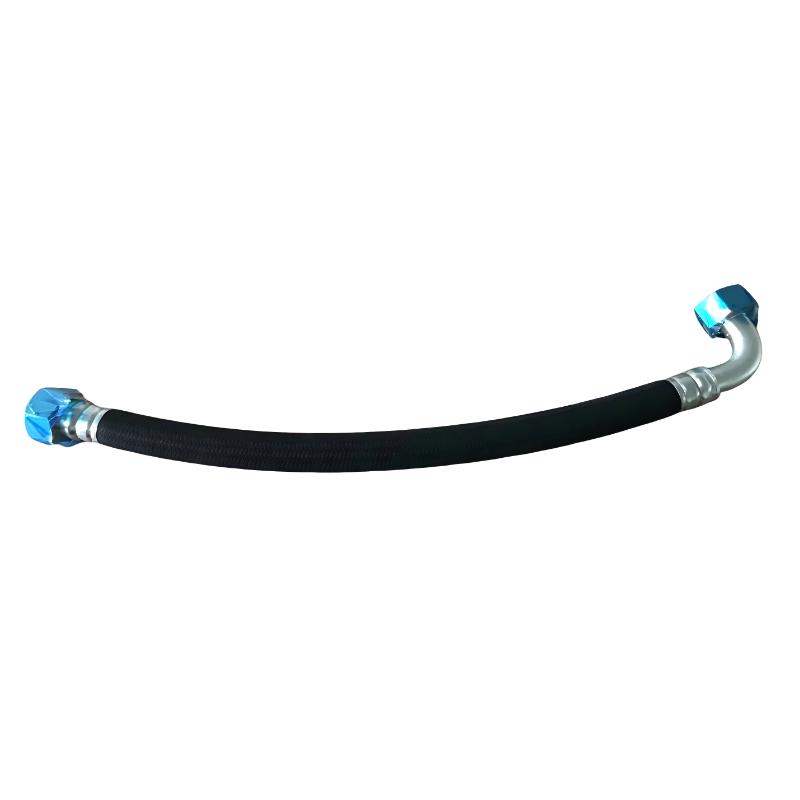

The Ingersoll Rand 47704537001 / 24266223 Hydraulic Hose Assembly is a large-bore flexible hose component intended for compatible Ingersoll Rand compressor systems.

The most detailed available OEM-oriented description identifies 24266223 as “Hose, Hydraulic 1.00 X 44 ORFS Straight X ORFS 90 Degree Elbow.” This establishes the key configuration as a 1-inch hose with a nominal 44-inch length and differently oriented ORFS connections.

A second supplier independently lists 24266223 as a Teflon 1 × 44 hose designed for Ingersoll Rand compressed-air equipment. This provides additional support for the hose's PTFE/Teflon construction.

The 44-inch length, equivalent to approximately 1117.6 mm, is an important installation parameter. Correct hose length helps maintain the original routing geometry and prevents excessive tensile loading, sagging, or interference with neighboring compressor components.

The ORFS connection system is also significant. O-ring face seals provide a defined sealing interface, while the 90-degree elbow establishes the required directional change at one end of the assembly. Maintaining the original fitting orientation is therefore essential when selecting a replacement.

24266223 appears within a broader family of Ingersoll Rand 1-inch hoses. Related references include 24266207 at 32 inches, 24266215 at 28 inches, 24266231 at 42 inches, and 24266272 at 36 inches. Their differing lengths and configurations demonstrate why nominal diameter alone should not be used to determine interchangeability.

For maintenance, the hose should be inspected for abrasion, cracking, deformation, leakage, heat exposure, and damage around the fittings. Any opened ORFS connection should also be checked for sealing-surface condition and O-ring integrity.

Edmac lists a net product weight of 1.38 kg and package dimensions of 50 × 620 × 330 mm. These package dimensions should not be interpreted as the installed hose envelope.

Ingersoll Rand's official Parts Finder advises users to identify the compressor model before selecting replacement parts, reinforcing the importance of model- and serial-number verification for final compatibility.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24266223, while the relationship between 47704537001 and 24266223 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704537001
Associated Reference	24266223
Product Type	Hydraulic Hose Assembly
Hose Description	Hydraulic Hose 1.00 × 44, ORFS Straight × ORFS 90° Elbow
Nominal Hose Size	1.00 in
Nominal Hose Length	44 in
Approx. Hose Length	1117.6 mm
Connection 1	ORFS Straight
Connection 2	ORFS 90° Elbow
Sealing System	ORFS / O-Ring Face Seal
Hose Construction	PTFE/Teflon identified by supplier documentation
Primary Service	Compressor Fluid Routing
Overall Product Dimensions	44-inch hose length; complete fitting envelope is configuration-specific
Net Weight	1.38 kg
Package Dimensions	50 × 620 × 330 mm
Pressure Rating	Not reliably verified from available technical documentation
Temperature Rating	Not reliably verified from available technical documentation
Compatibility	Model-, serial-number, and circuit-configuration dependent

The 1-inch size, 44-inch length, ORFS straight-to-90° configuration, and PTFE/Teflon identification are the principal specifications supported by the available records.

Recommended Companion Models

Model	Product Name
24266207	Ingersoll Rand Teflon 1 × 32 Hose
24266215	Ingersoll Rand Teflon 1 × 28 Hose
24266231	Ingersoll Rand Teflon 1 × 42 Hose
24266272	Ingersoll Rand Teflon 1 × 36 Hose

These references belong to the same general Ingersoll Rand 1-inch hose family and are useful companion references when servicing related compressor hose circuits. Their lengths and connection configurations differ, so they should not be assumed to be direct substitutes for 24266223.

Frequently Selected Alternatives

Model	Product Name
24266256	Ingersoll Rand Teflon 1 × 46 Hose
24260853001	Ingersoll Rand Hydraulic Hose 1 × 51 ORFS
24260853014	Ingersoll Rand Hydraulic Hose 1 × 40 ORFS
24260853015	Ingersoll Rand Hydraulic Hose 1 × 53 ORFS

Where It Excels in Industrial Use

Compressor Fluid Routing: The supplied 47704537001 / 24266223 references are treated as one product listing. Part 24266223 is documented as an Ingersoll Rand hydraulic hose with a 1.00-inch nominal size and 44-inch length, using an ORFS straight-to-90° elbow configuration.
Rotary Screw Compressor Systems: The hose is specifically marketed for Ingersoll Rand compressed-air equipment and is associated with compressor service applications where flexible fluid connections are required.
Flexible Equipment Connections: Its hose construction allows a flexible connection between fixed components, helping accommodate normal vibration and movement while preserving the intended routing path.
OEM Replacement Service: 24266223 is listed as a genuine/OEM Ingersoll Rand component, making accurate part-number and equipment verification important during maintenance.

Key Strengths at a Glance

1-Inch Hose Size: The documented inner diameter is 1 inch, providing the defined flow passage for the applicable compressor circuit.
44-Inch Length: The specified hose length is 44 inches, equivalent to approximately 1117.6 mm.
ORFS Connection Design: The detailed OEM listing identifies the assembly as ORFS straight × ORFS 90° elbow, while another catalog record gives the same hose as ORFS straight × ORFS 90° elbow MD.
PTFE/Teflon Identification: Industrial Air Power identifies 24266223 as a Teflon 1 × 44 hose, supporting PTFE construction for this reference.
Defined Installation Orientation: The 90-degree elbow establishes the outlet direction, helping the hose follow the intended compressor routing without unnecessary sharp bending.
OEM-Specific Engineering: Ingersoll Rand's Parts Finder recommends selecting parts according to the specific compressor model so that the replacement is matched to the intended equipment configuration.

Technical FAQs

1. What is Ingersoll Rand 47704537001 / 24266223?

The supplied references are treated as one product listing. 24266223 is an Ingersoll Rand hydraulic hose specified as 1.00 × 44 inches with an ORFS straight × ORFS 90-degree elbow configuration.

2. What is the primary function of 24266223?

Its primary function is flexible fluid routing within compatible Ingersoll Rand compressor equipment.

3. What is the nominal hose size?

The documented inner diameter is 1 inch.

4. What is the specified hose length?

The cataloged length is 44 inches, or approximately 1117.6 mm.

5. What fitting configuration does the hose use?

The primary OEM description identifies an ORFS straight × ORFS 90° elbow configuration.

6. What does ORFS mean?

ORFS means O-Ring Face Seal. The sealing system uses an O-ring at the fitting face to establish the fluid seal.

7. Is PTFE construction confirmed for 24266223?

The available product listings identify the hose as Teflon, while the OEM-oriented description identifies it as a hydraulic hose. This supports PTFE/Teflon construction, although a complete OEM material specification is not publicly available.

8. Can another 1-inch, 44-inch hose replace 24266223?

Not automatically. The replacement must also match the connection type, fitting orientation, sealing system, construction, routing requirements, and equipment application.

9. Why is the 90-degree elbow important?

The elbow establishes the intended connection direction and reduces the need to force the hose into a sharp bend immediately behind the fitting.

10. What should be checked when installing a replacement hose?

Verify fitting engagement, sealing surfaces, hose orientation, bend condition, clearance from hot or moving components, and the absence of twisting or abrasion before commissioning the compressor.
