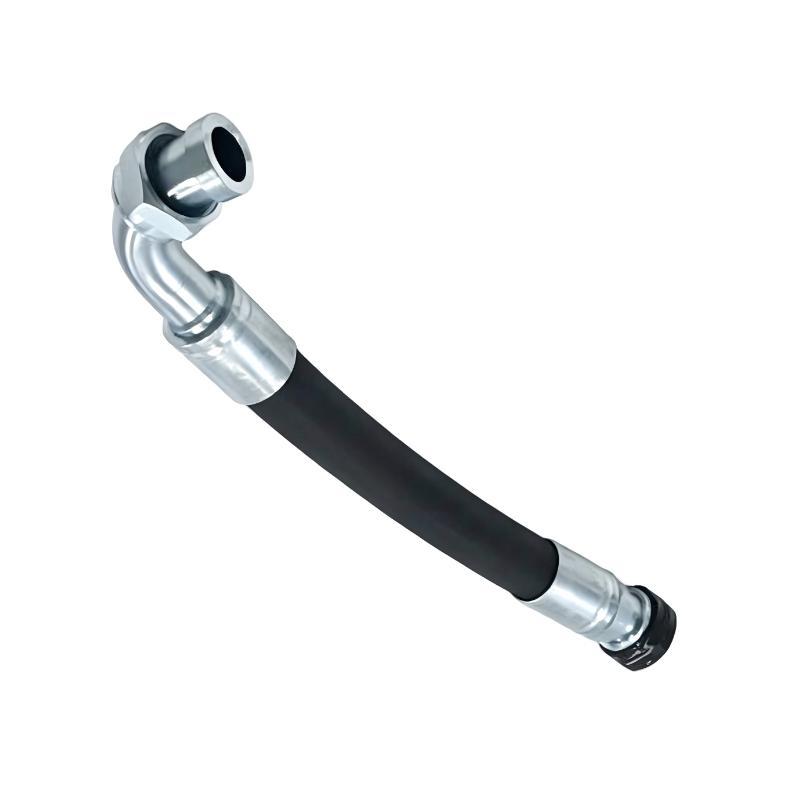

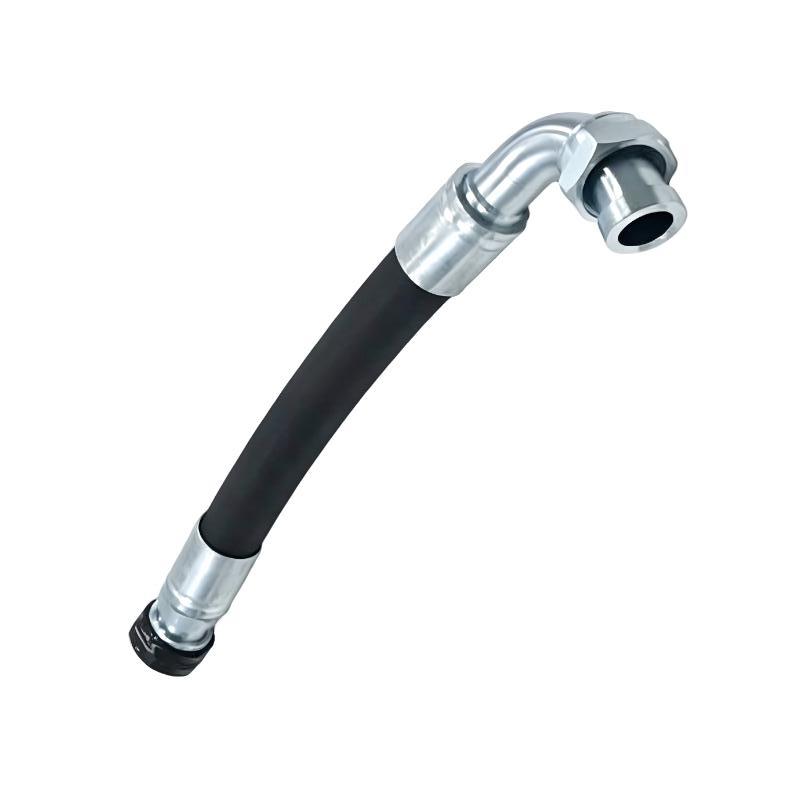

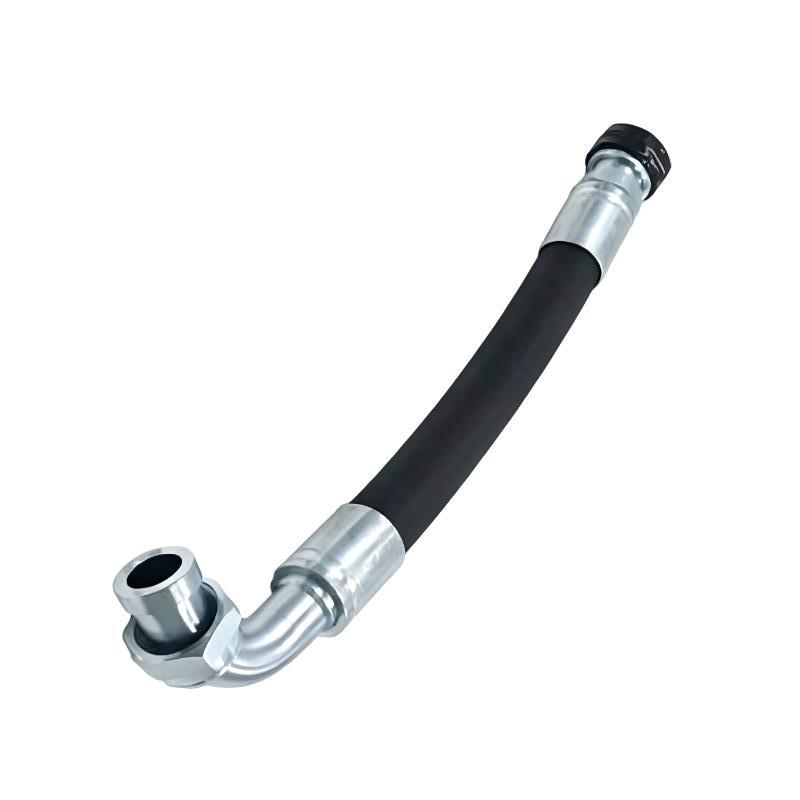

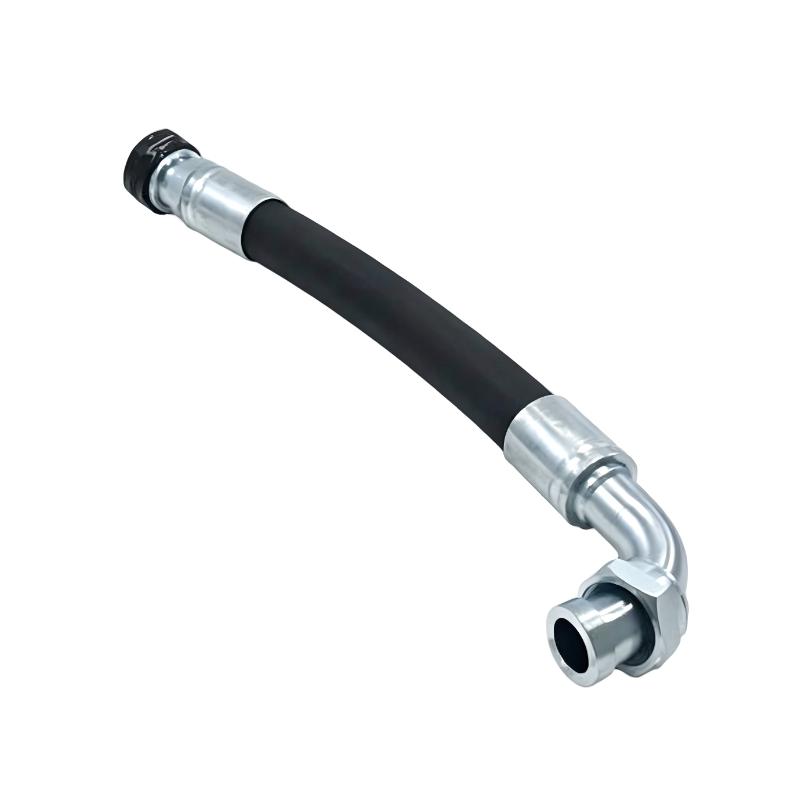

Name: Ingersoll Rand 47704537001 / 85562296 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18263
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47704537001 / 85562296 Hydraulic Hose Assembly is a purpose-built flexible hose component for compatible Ingersoll Rand compressed-air equipment.

The documented description identifies 85562296 as “HOSE, HYD 1.25 X 34.00FM JIC 37 ST / 90 ELB SD.” The detailed supplier record expands this to a 1.25-inch inner diameter, 34-inch hose length, JIC 37° straight connection, and 90-degree short-drop elbow.

The hose is particularly relevant to dryer-system service. In Ingersoll Rand parts documentation for the 30–40 HP / 22–30 kW dryer assembly, 85562296 is shown as item 27, installed with an elbow and alongside other dryer-system components.

The 34-inch length, equivalent to approximately 863.6 mm, is a key installation parameter. Correct length helps maintain the original equipment routing and prevents unnecessary tensile or bending loads at the fittings.

The JIC 37° connection system is equally important. JIC fittings rely on the mating flare geometry, so replacing this hose with an otherwise similar hose using ORFS, NPT, or another connection standard would not constitute a direct substitution.

The 90-degree short-drop elbow provides a defined outlet orientation. This allows the hose to connect around adjacent dryer or compressor components while minimizing the need for an abrupt bend immediately behind the fitting.

The available Edmac OEM listing reports a net weight of 2.20 kg and package dimensions of 50 × 830 × 130 mm. The package dimensions represent shipping/package information rather than the installed hose envelope.

For maintenance, inspect the hose body for abrasion, cracking, deformation, leakage, and heat-related deterioration. The JIC flare surfaces should also be checked whenever the connection is disconnected, and the hose should be installed without twisting.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 85562296, while the relationship between 47704537001 and 85562296 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor/dryer model, serial number, and applicable OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704537001
Associated Reference	85562296
Product Type	Hydraulic Hose Assembly
Nominal Hose Size	1.25 in
Internal Diameter	1.25 in
Hose Length	34 in
Approx. Hose Length	863.6 mm
Connection 1	JIC 37° Straight
Connection 2	JIC 37° 90° Elbow, Short Drop
Fitting Standard	JIC 37°
Primary Service	Flexible Fluid Routing
Documented Application	Dryer Assembly
Associated Equipment	Ingersoll Rand 30–40 HP / 22–30 kW dryer assembly
Overall Product Dimensions	34-inch hose length; complete fitting envelope is configuration-specific
Net Weight	2.20 kg
Package Dimensions	50 × 830 × 130 mm
Hose Material	Exact OEM compound not reliably verified
Pressure Rating	Not reliably verified from available technical documentation
Temperature Rating	Not reliably verified from available technical documentation
Compatibility	Model-, serial-number, and circuit-configuration dependent

The principal verified specifications are the 1.25-inch diameter, 34-inch length, JIC 37° straight connection, and 90-degree short-drop elbow configuration.

Recommended Companion Models

Model	Product Name
85561512	Ingersoll Rand Hydraulic Hose, 1 × 34.00 FM
85561686	Ingersoll Rand Dryer Hose Assembly
85561850	Ingersoll Rand Dryer Hose Assembly
85561975	Ingersoll Rand Hydraulic Hose, 1.25 × 70

These are documented Ingersoll Rand hose references associated with compressor or dryer equipment. 85561686 and 85561850 appear in the same dryer-assembly documentation as 85562296, while 85561512 and 85561975 are listed within the same broader Ingersoll Rand hose family.

Frequently Selected Alternatives

Model	Product Name
85562262	Ingersoll Rand Hydraulic Hose, 1.25 × 28
85562304	Ingersoll Rand Hydraulic Hose, 1.25 × 22.00 FM
85562312	Ingersoll Rand Hydraulic Hose, 1.25 × 16.00 FM
47616133001	Ingersoll Rand Hydraulic Hose, 1.25 × 28

Where It Excels in Industrial Use

Industrial Compressor Fluid Routing: The supplied 47704537001 / 85562296 references are treated as one product listing. Part 85562296 is documented as an Ingersoll Rand hydraulic hose with a 1.25-inch nominal internal diameter and 34-inch length, using a JIC 37° straight × 90° elbow, short-drop configuration.
Refrigerated Dryer Assemblies: Ingersoll Rand parts documentation lists 85562296 as a hose assembly within the 30–40 HP / 22–30 kW dryer assembly, alongside elbows, connectors, tees, valves, and other dryer components.
Flexible Equipment Connections: The hose provides a flexible connection between fixed components, helping accommodate equipment vibration and movement while maintaining the intended routing geometry.
Service and Replacement Applications: The part is cataloged as an Ingersoll Rand OEM component, making the exact hose-end configuration and equipment application important when selecting a replacement.

Key Strengths at a Glance

1.25-Inch Internal Diameter: The documented inner diameter is 1.25 inches, establishing the nominal flow passage of the hose.
34-Inch Hose Length: The specified hose length is 34 inches, equivalent to approximately 863.6 mm.
JIC 37° Straight × 90° Elbow: The end configuration is specifically identified as JIC 37° straight / 90° elbow, short drop.
Defined Elbow Orientation: The 90-degree elbow establishes the required directional change, helping the assembly follow the original equipment routing without forcing an excessive bend.
OEM-Specified Compressor Component: The available documentation identifies 85562296 as a genuine Ingersoll Rand part.
Dryer-System Integration: Its appearance in the Ingersoll Rand dryer assembly parts list confirms that the hose is part of an engineered compressed-air treatment package rather than a generic hose selection.

Technical FAQs

1. What is Ingersoll Rand 47704537001 / 85562296?

The supplied references are treated as one product listing. 85562296 is an Ingersoll Rand hydraulic hose assembly specified as 1.25 × 34 inches, with a JIC 37° straight connection and a 90-degree elbow, short-drop configuration.

2. What is the primary function of 85562296?

It provides a flexible fluid-routing connection within compatible Ingersoll Rand equipment and is documented as part of selected refrigerated dryer assemblies.

3. What is the nominal internal diameter?

The documented inner diameter is 1.25 inches.

4. What is the specified hose length?

The cataloged length is 34 inches, or approximately 863.6 mm.

5. What fitting configuration does 85562296 use?

The documented configuration is JIC 37° straight × 90° elbow, short drop.

6. What does JIC 37° mean?

JIC 37° refers to a flare-type fitting system that seals through the mating 37-degree flare surfaces. It is distinct from ORFS and other hydraulic connection standards.

7. Where is 85562296 documented in Ingersoll Rand equipment?

The available parts documentation places 85562296 in the 30–40 HP / 22–30 kW dryer assembly, where it is identified as a hose assembly.

8. Can another 1.25-inch hose replace 85562296?

Not automatically. The replacement must also match the 34-inch length, JIC 37° connection standard, straight/90-degree orientation, short-drop geometry, and applicable equipment circuit.

9. Why is the short-drop elbow configuration important?

The short-drop geometry determines the position of the hose outlet relative to the mating component. Using a different elbow geometry can alter routing and introduce bending or clearance problems.

10. What should be checked during installation?

Verify fitting compatibility, flare condition, hose orientation, bend radius, clearance from hot or moving components, and the absence of twisting or abrasion before commissioning.
