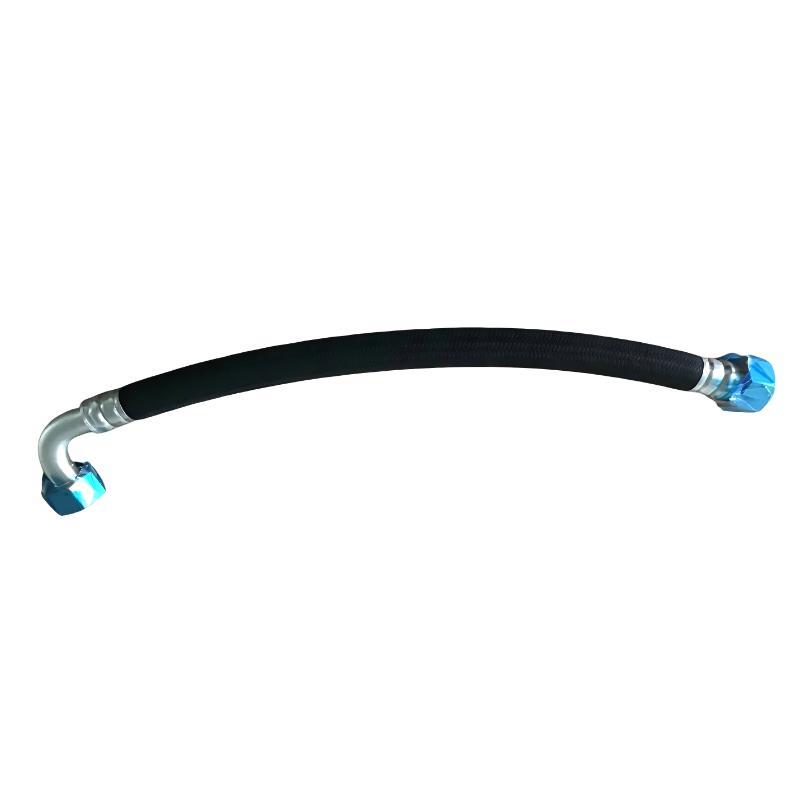

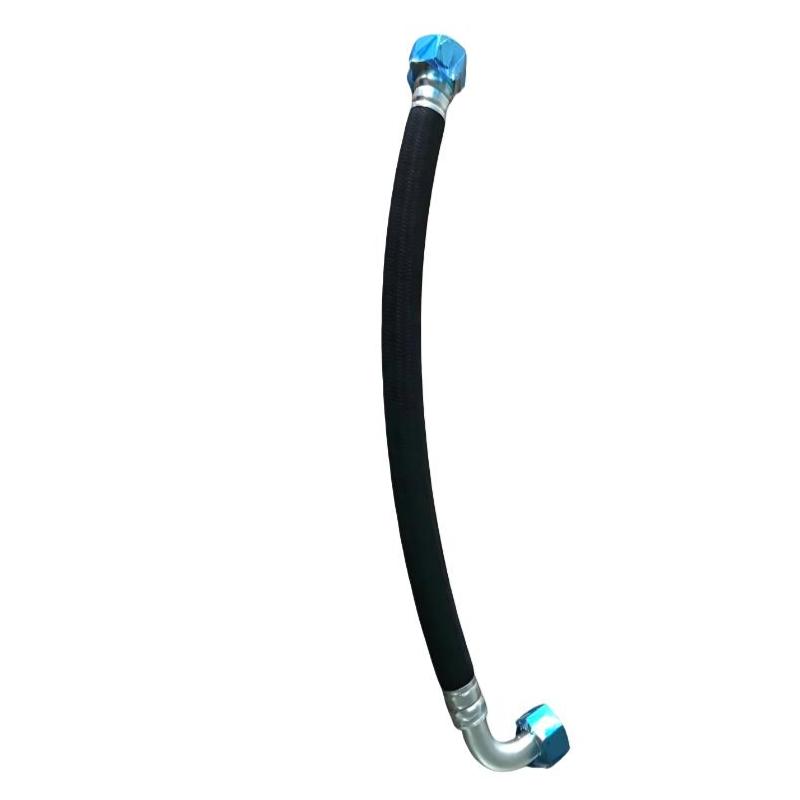

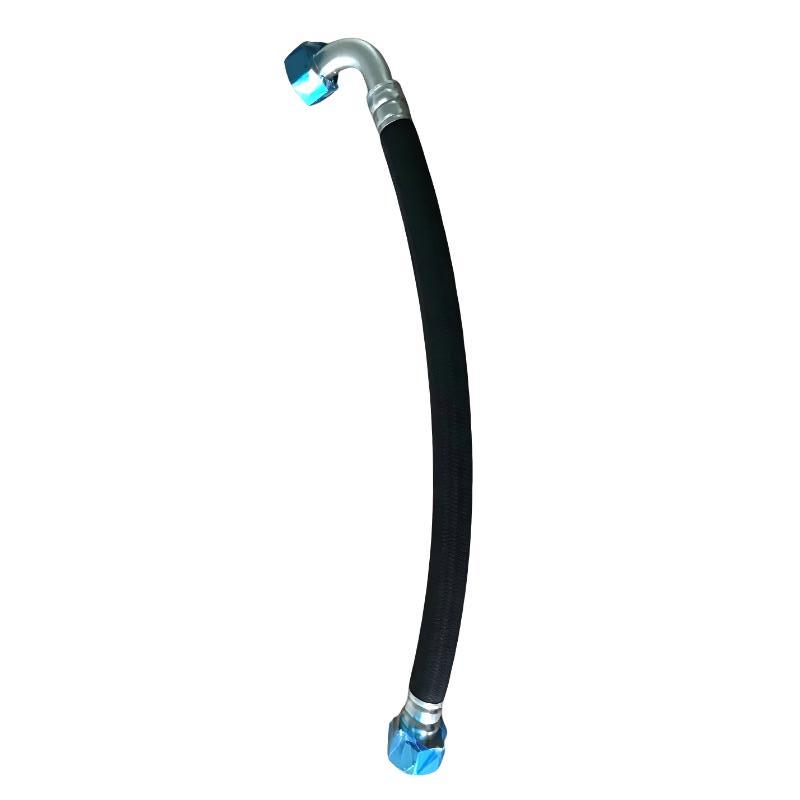

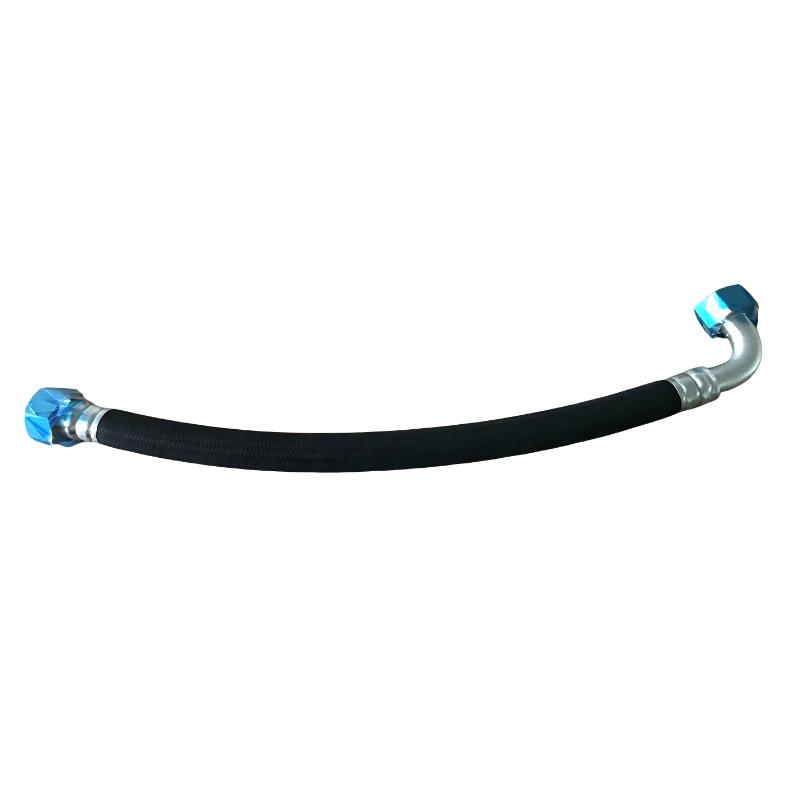

The Ingersoll Rand 47704537001 / 24260853008 Hydraulic Hose Assembly is a purpose-built flexible hose for compatible Ingersoll Rand compressor systems.
The documented OEM description identifies 24260853008 as “Hose, Hydraulic 1.00 X 30 ORFS Straight X ORFS 90 Degree Elbow.” This establishes the principal characteristics of the assembly: a 1-inch hose, 30-inch nominal length, straight ORFS connection, and 90-degree ORFS elbow.
At approximately 762 mm, the 30-inch hose length is an important installation parameter. Correct length helps preserve the original routing geometry and minimizes unnecessary tensile loading, excessive slack, or interference with nearby compressor components.
The ORFS connection system is another defining characteristic. Because the sealing interface depends on the O-ring face seal, the correct fitting family must be maintained during replacement. A hose with the same diameter but a different connection standard should not be considered an automatic substitute.
The 90-degree elbow provides a controlled directional change at one end of the assembly. This is particularly useful where rigid components or adjacent equipment limit the available routing space.
The broader Ingersoll Rand hose family includes closely related 1-inch assemblies with different lengths and elbow configurations. For example, 24260853010 is specified as a 1.00 × 27-inch ORFS straight × ORFS 90° elbow hose, while 24260853012 is a 1.00 × 49-inch ORFS straight × ORFS 90° elbow hose. These differences illustrate why length and end configuration must be verified rather than selecting a replacement based solely on diameter.
Ingersoll Rand's technical documentation recommends using the unit serial number to identify the exact equipment configuration, since published documentation can vary by model and configuration.
For preventive maintenance, inspect the hose body for abrasion, cuts, cracking, deformation, leakage, and heat-related deterioration. The hose should be routed without twisting and kept clear of moving or excessively hot components.
A supplier listing displays a weight field of 5.050000, but the unit is not clearly identified. Therefore, this value should not be presented as a confirmed kilogram weight or definitive OEM mass specification.
The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260853008, while the relationship between 47704537001 and 24260853008 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47704537001 |
| Associated Reference | 24260853008 |
| Product Type | Hydraulic Hose Assembly |
| Hose Size | 1.00 in |
| Nominal Hose Length | 30 in |
| Approx. Hose Length | 762 mm |
| Connection 1 | ORFS Straight |
| Connection 2 | ORFS 90° Elbow |
| Fitting Standard | ORFS |
| Primary Service | Compressor Fluid Routing |
| Overall Product Dimensions | 30-inch hose-length specification; complete fitting envelope is configuration-specific |
| Net Weight | Not reliably verified; available supplier record does not specify the unit for its weight field |
| Package Dimensions | Not reliably verified from available technical documentation |
| Hose Compound | Not reliably verified from available technical documentation |
| Pressure Rating | Not reliably verified from available technical documentation |
| Temperature Rating | Not reliably verified from available technical documentation |
| Compatibility | Model-, serial-number-, and circuit-configuration dependent |
The principal verified specifications are the 1-inch size, 30-inch length, ORFS straight × ORFS 90° elbow configuration, and genuine/OEM designation.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 24260853010 | Ingersoll Rand Hydraulic Hose, 1.00 × 27, ORFS Straight × ORFS 90° Elbow |
| 24260853012 | Ingersoll Rand Hydraulic Hose, 1.00 × 49, ORFS Straight × ORFS 90° Elbow |
| 24260853004 | Ingersoll Rand Hydraulic Hose, 1.00 × 40, ORFS Straight × ORFS 90° Elbow |
| 24260853015 | Ingersoll Rand Hydraulic Hose, 1.00 × 53, ORFS 90° Elbow × ORFS 90° Elbow |
These are closely related 1-inch Ingersoll Rand hose assemblies sharing the ORFS connection family. Their lengths and, in the case of 24260853015, end configurations differ, so they should be selected according to the specific equipment routing and parts documentation.
