Name: Ingersoll Rand 47704537001 / 24260804013 Hydraulic Hose Assembly
Brand: Ingersoll Rand
SKU: 18273
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

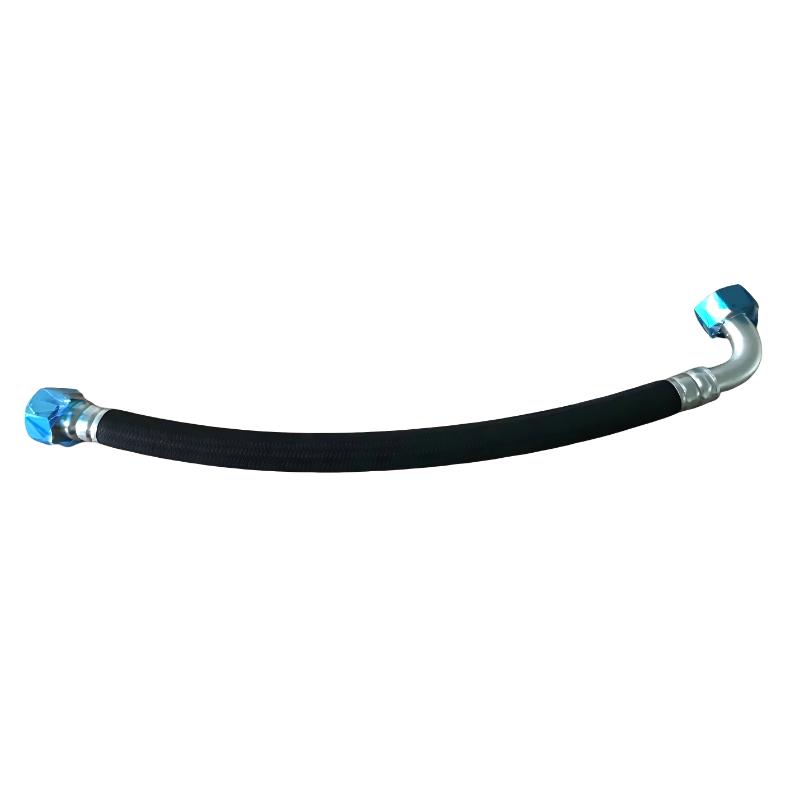

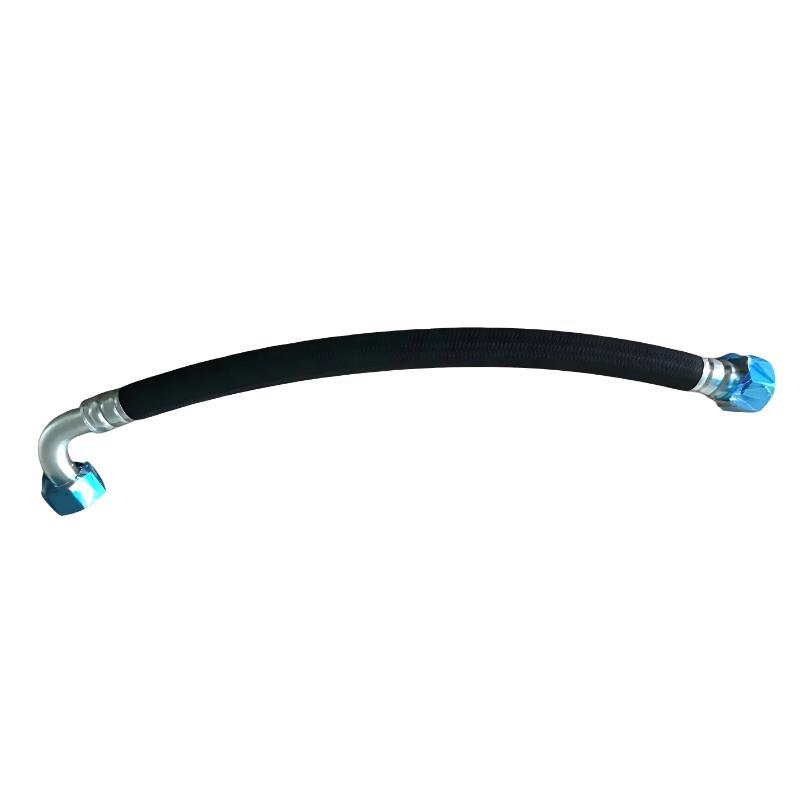

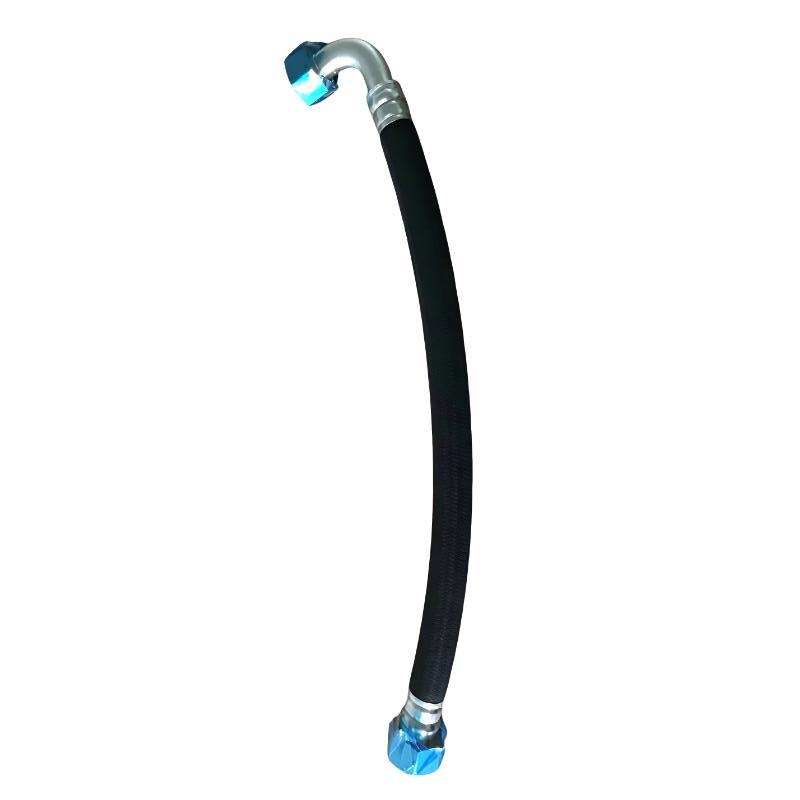

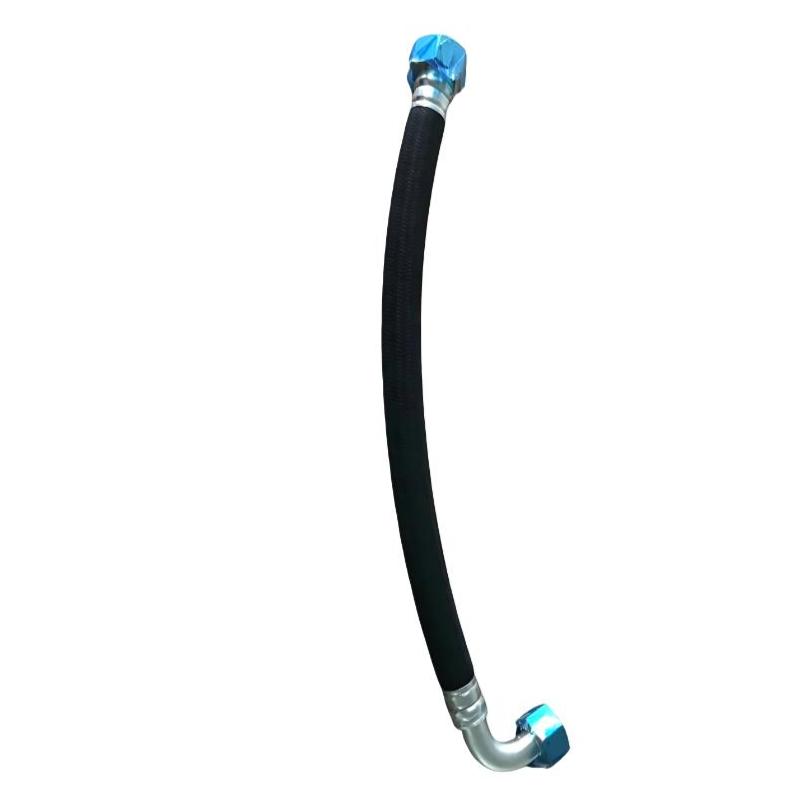

The Ingersoll Rand 47704537001 / 24260804013 Hydraulic Hose Assembly is a compact OEM hose designed for compatible Ingersoll Rand compressor equipment.

The available product documentation describes 24260804013 as “Hose, Hydraulic .25 X 34 ORFS Straight X ORFS 90 Degree Elbow (PTFE)” and identifies it as a genuine/OEM Ingersoll Rand component.

The 0.25-inch (-4) hose size makes this assembly substantially smaller than many of the 1-inch and larger hydraulic hoses used elsewhere in compressor systems. Its compact size is suited to circuits where available installation space and controlled fluid routing are important.

The specified 34-inch length, approximately 863.6 mm, is an important installation parameter. Maintaining the original length helps preserve the intended routing and reduces the possibility of excessive tension, unwanted loops, or mechanical interference.

The end configuration is equally important. The combination of a straight ORFS fitting and a 90-degree ORFS elbow establishes a defined connection geometry. A replacement with the same nominal hose size but different fitting orientation should not be considered a direct substitute.

The PTFE specification provides another important identification characteristic. Since the published description specifically identifies PTFE construction, replacement selection should preserve the required hose construction rather than relying only on size and fitting dimensions.

Related Ingersoll Rand hose references show that this family includes multiple small-bore ORFS assemblies with different lengths and end configurations. For example, 24260804012 is listed as a 0.25 × 41-inch ORFS straight × ORFS straight hose, while 24260804002 is a 0.25-inch ORFS straight × ORFS straight hose with a 21-inch length.

This variation demonstrates why the replacement should be selected from the applicable equipment parts documentation rather than by hose diameter alone. Ingersoll Rand provides compressor parts and service resources for identifying equipment-specific components.

For maintenance, inspect the hose for abrasion, cracking, deformation, leakage, thermal damage, and mechanical stress around the fittings. The ORFS sealing surfaces should also be inspected whenever the connection is disconnected.

A supplier listing displays a 5.050000 weight field, but no clear unit is provided. It therefore should not be presented as a confirmed product weight.

The two supplied references are treated as one product listing as requested. Public documentation directly verifies 24260804013, while the relationship between 47704537001 and 24260804013 is not independently established in the available records. Final compatibility should therefore be confirmed against the compressor model, serial number, and applicable OEM parts documentation.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47704537001
Associated Reference	24260804013
Product Type	Hydraulic Hose Assembly
Hose Size	0.25 in / -4
Nominal Hose Length	34 in
Approx. Hose Length	863.6 mm
Connection 1	ORFS Straight
Connection 2	ORFS 90° Elbow
Fitting Standard	ORFS
Hose Construction	PTFE
Primary Service	Compressor Fluid Routing
Overall Product Dimensions	34-inch hose-length specification; complete fitting envelope is configuration-specific
Net Weight	Not reliably verified; available supplier record does not specify the unit
Package Dimensions	Not reliably verified from available technical documentation
Pressure Rating	Not reliably verified from available technical documentation
Temperature Rating	Not reliably verified from available technical documentation
Compatibility	Model-, serial-number-, and circuit-configuration dependent
OEM Status	Genuine/OEM

The principal verified specifications are the 0.25-inch (-4) size, 34-inch length, PTFE construction, and ORFS straight × ORFS 90-degree elbow configuration.

Recommended Companion Models

Model	Product Name
24260804006	Ingersoll Rand Hydraulic Hose, 0.25 × 53, ORFS Straight × ORFS 90° Elbow, PTFE
24260804011	Ingersoll Rand Hydraulic Hose, 0.25 × 26, ORFS Straight × ORFS Straight
24260804012	Ingersoll Rand Hydraulic Hose, 0.25 × 41, ORFS Straight × ORFS Straight
24260804014	Ingersoll Rand -4 Hose, 0.25 × 22, ORFS Straight × ORFS Straight, Stainless-Braided/PTFE

These are closely related small-bore Ingersoll Rand hose references. 24260804006 shares the ORFS straight-to-90-degree-elbow configuration and PTFE identification, while 24260804011, 24260804012, and 24260804014 use different lengths and/or end configurations.
