Name: Ingersoll Rand 47588562001 / 23561319 Pre-Filter Maintenance Kit
Brand: Ingersoll Rand
SKU: 18296
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47588562001 / 23561319 Pre-Filter Maintenance Kit combines a scheduled-maintenance reference with a specific intake-air pre-filter component.

47588562001 is associated with the 4,000-hour preventive maintenance interval. Ingersoll Rand's current rotary-maintenance program identifies 2,000-, 4,000-, 8,000-, and 16,000-hour maintenance-kit categories and explains that periodic kits cover items such as oil filters, air filters, and other consumable components.

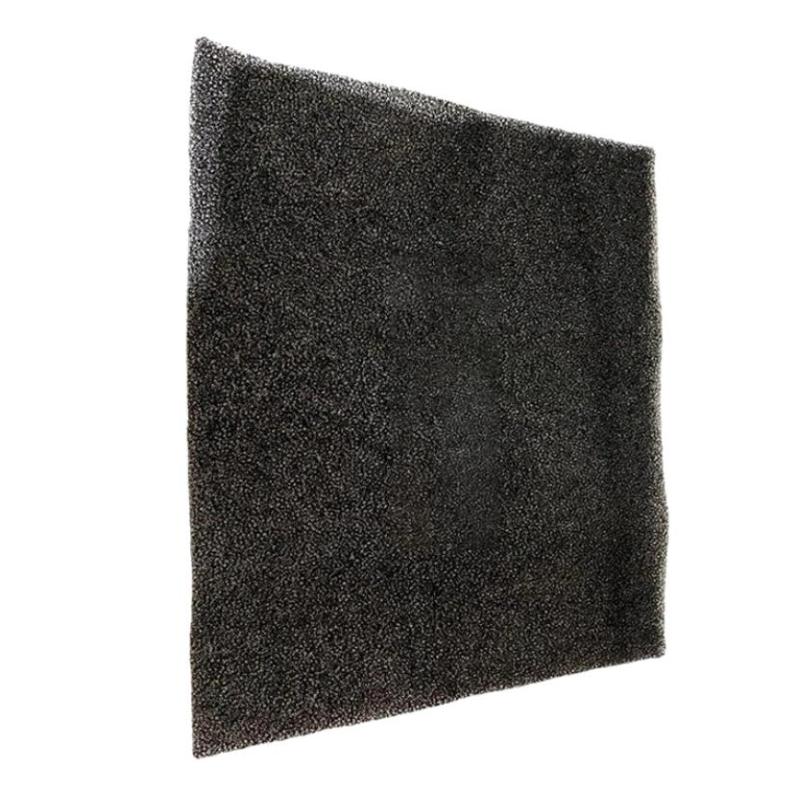

The independently documented 23561319 is a PAD, PRE-FILTER, with the published specification 10 × 549 × 740. This identifies it as a flat pre-filtration component rather than the main cylindrical air-filter element.

The pre-filter is positioned in the intake-air path. Its role is to intercept larger airborne contamination before it reaches the primary air filter. This is particularly useful in industrial environments where dust and other particulate matter can rapidly load compressor intake filtration.

Application records specifically identify 23561319 for R55 and R75 Ingersoll Rand compressor configurations. Because compressor packages can vary by model generation and configuration, the part number should still be checked against the machine's serial-number-specific parts documentation before installation.

The published 10 × 549 × 740 dimensions are an important identification characteristic. The 10 mm thickness and 549 × 740 mm panel dimensions distinguish this pad from other Ingersoll Rand pre-filter references. For example, 23595879 is separately listed as a 10 × 425 × 740 pre-filter pad for a different intake configuration.

This dimensional distinction is important because visually similar filter mats are not necessarily interchangeable. The correct replacement must fit the frame or intake-panel arrangement while providing the required filtration and airflow characteristics.

23561319 is also offered in aftermarket form. Those products are described as replacement filter mats rather than Ingersoll Rand-manufactured components, so OEM and aftermarket status should be distinguished when specifying the replacement.

For maintenance planning, the pre-filter should be inspected for dust loading, deterioration, deformation, moisture contamination, and gaps around the seating area. A damaged or incorrectly fitted pad can compromise the intended intake-filtration path.

The supplied pair is treated as one product listing as requested. Public records independently identify 47588562001 with the 4,000-hour maintenance-kit program and 23561319 as a 10 × 549 × 740 pre-filter pad. The available documentation does not independently establish that 23561319 is the complete contents of 47588562001, so the two references retain their respective technical identities.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47588562001
Associated Part Number	23561319
Product Type	4,000-Hour Preventive Maintenance Kit / Pre-Filter Pad
Component Description	Pad, Pre-Filter
Filter Position	Compressor Intake Pre-Filter
Documented Application	R55 / R75 configurations
Published Pad Dimensions	10 × 549 × 740 mm
Approx. Imperial Dimensions	0.39 × 21.61 × 29.13 in
Thickness	10 mm
Panel Length	740 mm
Panel Width	549 mm
Complete Kit Dimensions	Not reliably verified
Reported Part Weight	Approx. 5.77 lb / 2.62 kg, supplier-reported
Complete Kit Weight	Not reliably verified
Filter Media	Pre-filter mat/pad; exact OEM media specification not publicly verified
Filtration Efficiency	Not reliably verified from available OEM documentation
Airflow Rating	Not reliably verified from available OEM documentation
Maintenance Interval	4,000 hours for the 47588562001 kit reference
OEM Status	23561319 listed as Genuine/OEM by suppliers
Compatibility	Model-, serial-number-, and intake-configuration dependent

The 10 × 549 × 740 mm dimensions are directly supported by product and parts documentation. The approximately 5.77 lb weight is supplier-reported rather than an independently verified OEM engineering specification.

Recommended Companion Models

Model	Product Name
47588561001	Ingersoll Rand 2,000-Hour Preventive Maintenance Kit
47588563001	Ingersoll Rand 8,000-Hour Preventive Maintenance Kit, Water-Cooled
47588564001	Ingersoll Rand 8,000-Hour Preventive Maintenance Kit, Air-Cooled
47588565001	Ingersoll Rand Gearbox Maintenance Package

These references belong to the same Ingersoll Rand maintenance family as 47588562001 and represent different service intervals or maintenance functions rather than direct replacements for 23561319. Ingersoll Rand confirms the broader 2,000-/4,000-/8,000-/16,000-hour rotary maintenance-kit structure.

Frequently Selected Alternatives

Model	Product Name
23595879	Ingersoll Rand Pre-Filter Pad, 10 × 425 × 740
54672530	Ingersoll Rand Standard Air-Filter Element, N55/N75
54672563	Ingersoll Rand High-Dust Primary Air-Filter Element
54672597	Ingersoll Rand High-Dust Secondary Air-Filter Element

Where It Excels in Industrial Use

4,000-Hour Preventive Maintenance: The supplied 47588562001 / 23561319 references are treated as one product listing. 47588562001 is a 4,000-hour preventive maintenance-kit reference, while 23561319 is independently identified as an Ingersoll Rand pre-filter pad. Ingersoll Rand's current rotary-maintenance program includes 2,000-, 4,000-, 8,000-, and 16,000-hour service kits.
Intake-Air Pre-Filtration: 23561319 is specified as PAD, PRE-FILTER (10 × 549 × 740). It provides a preliminary filtration stage ahead of the main compressor air filter.
R55/R75 Compressor Applications: Application listings associate 23561319 with Ingersoll Rand R55 and R75 compressor configurations, making it particularly relevant to these R-series intake assemblies.
Dust-Loaded Industrial Environments: A pre-filter pad intercepts larger airborne contaminants before they reach the primary air-filter element, helping reduce the contamination burden on downstream filtration.
Scheduled Service Programs: Ingersoll Rand describes its rotary maintenance kits as factory-recommended service solutions containing regularly replaced filtration and other consumable components.

Key Strengths at a Glance

Dedicated Pre-Filter Format: 23561319 is specifically identified as a pre-filter pad, rather than a conventional cylindrical primary air-filter element.
Defined Dimensional Format: The published designation is 10 × 549 × 740, providing a useful identification reference when matching the replacement to the intake assembly.
Upstream Filtration: Its position before the primary filter allows the pad to capture coarse particulate contamination before it reaches the main filter.
R55/R75 Compatibility: Parts listings specifically identify 23561319 for R55/R75 equipment, although final compatibility should be confirmed against the machine's serial number.
OEM Reference: 23561319 is listed by suppliers as a Genuine/OEM Ingersoll Rand part, with aftermarket equivalents also available.
Maintenance-System Integration: The component fits naturally into planned intake-filtration service alongside primary air-filter replacement and other scheduled compressor maintenance tasks.

Technical FAQs

1. What is Ingersoll Rand 47588562001 / 23561319?

The supplied references are treated as one product listing. 47588562001 represents the 4,000-hour preventive maintenance-kit reference, while 23561319 is the pre-filter pad component.

2. What is the primary function of 23561319?

Its primary function is preliminary filtration of incoming compressor air, helping capture coarse airborne contamination before the air reaches the primary intake filter.

3. Is 23561319 the primary air-filter element?

No. It is a pre-filter pad and should not be confused with the main cylindrical air-filter element used downstream.

4. Which compressor models are associated with 23561319?

Available application listings specifically associate the part with Ingersoll Rand R55 and R75 compressors.

5. Where is 23561319 installed?

It is installed in the compressor's pre-filter/intake assembly, ahead of the main air-filter element.

6. What does the 10 × 549 × 740 specification indicate?

It is the published dimensional designation for the 23561319 pre-filter pad.

7. Why is a pre-filter used before the main air filter?

The pre-filter captures larger airborne particles first, reducing the contamination load presented to the primary filter and helping maintain the intended intake-filtration arrangement.

8. Can a generic filter mat replace 23561319?

Not automatically. A substitute should match the required dimensions, material, airflow characteristics, filtration function, and intake-assembly design.

9. What can happen if the pre-filter becomes heavily contaminated?

Excessive loading can increase intake restriction and reduce airflow through the pre-filter assembly. The pad should therefore be inspected as part of routine compressor maintenance.

10. What should be verified before installing 23561319?

Verify the compressor model and serial number, intake/pre-filter assembly, part number, dimensional configuration, and applicable Ingersoll Rand parts documentation before installation.
