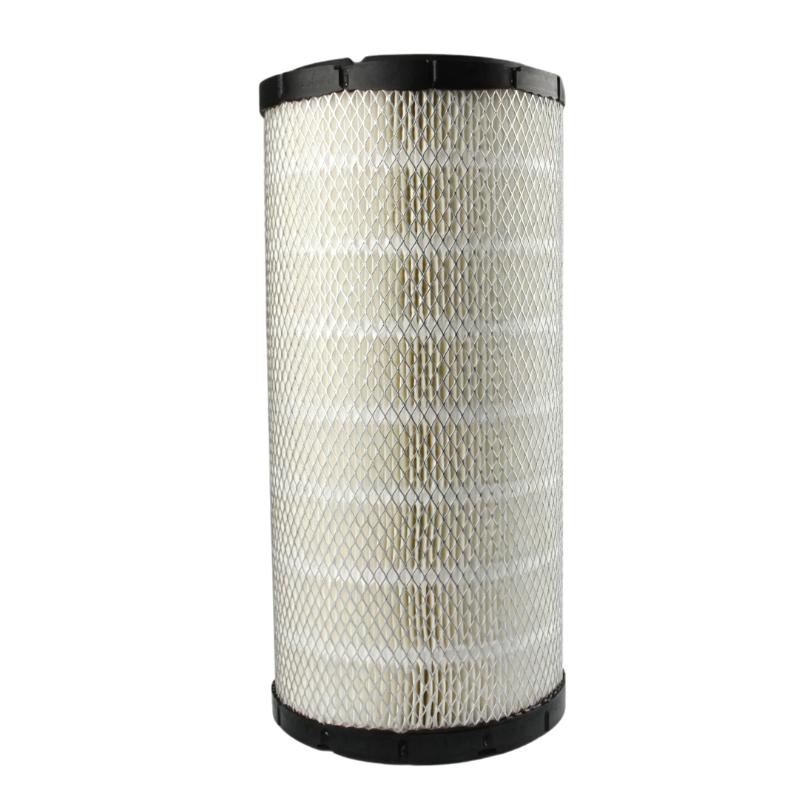

Name: Ingersoll Rand 47588563001 / 54672530 Air Filter Maintenance Kit
Brand: Ingersoll Rand
SKU: 18298
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

The Ingersoll Rand 47588563001 / 54672530 Air Filter Maintenance Kit combines a scheduled-maintenance reference with a specific compressor intake-filtration component.

Ingersoll Rand spare-parts listings identify 47588563001 as an 8,000-hour preventive maintenance kit for water-cooled compressors. It forms part of a broader maintenance family that includes the 2,000-hour, 4,000-hour, and air-cooled 8,000-hour kit references.

The independently documented 54672530 is an air-filter element for the standard N55/N75 configuration. In the N55K/N75K parts documentation, it is installed in the standard filter assembly and is explicitly distinguished from the high-dust filtration components.

The intake filter is the first major filtration barrier for air entering the compressor. Ambient industrial air can contain dust, fibers, and other particles capable of contributing to contamination and wear inside the compressor. Maintaining the intake element therefore forms an important part of compressor preventive maintenance.

The standard configuration should not be confused with the high-dust arrangement. The same N55/N75 documentation identifies 54672563 as the high-dust primary element and 54672597 as the high-dust secondary element. These differences mean that filter selection should be based on the actual compressor configuration rather than physical appearance alone.

Application information also connects 54672530 with certain IRN75 and IRN100 VSD rotary screw compressors, including IRN75H-CC and IRN100H-CC configurations. This broader application history makes the part useful across several Ingersoll Rand platforms, while still requiring serial-number verification before ordering.

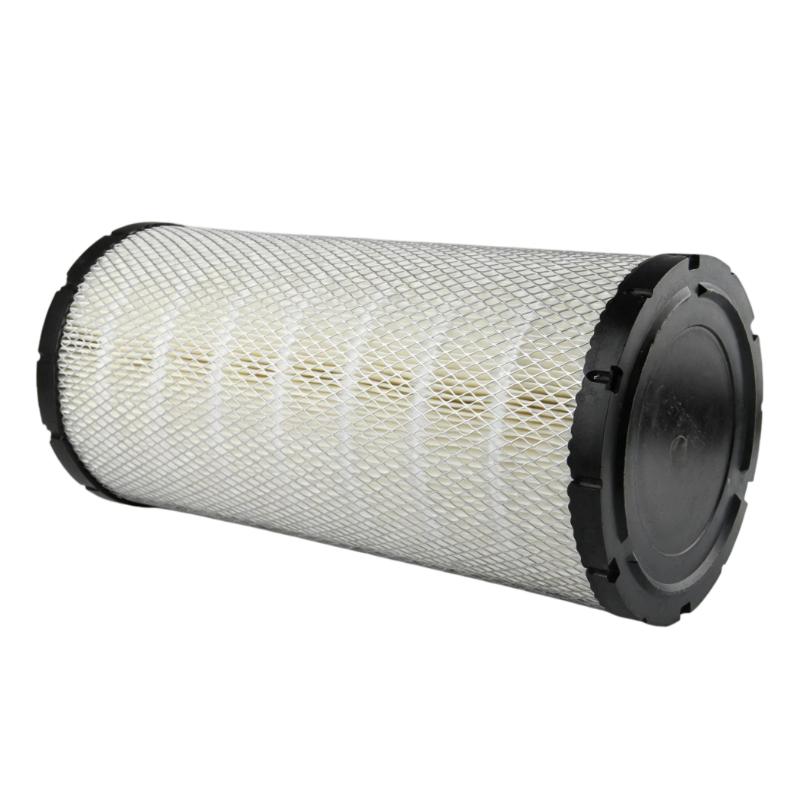

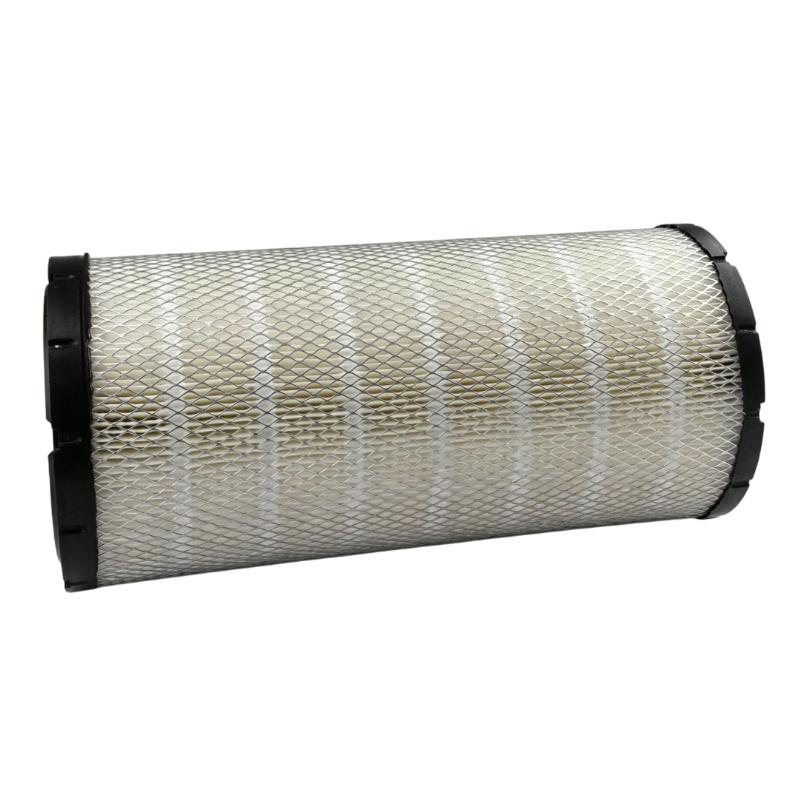

Available dimensional specifications identify 54672530 at approximately 9.690 inches outside diameter, 14.370 inches height, and 5.669 inches inside diameter. These measurements are useful for component identification, but dimensional agreement alone does not establish compressor compatibility.

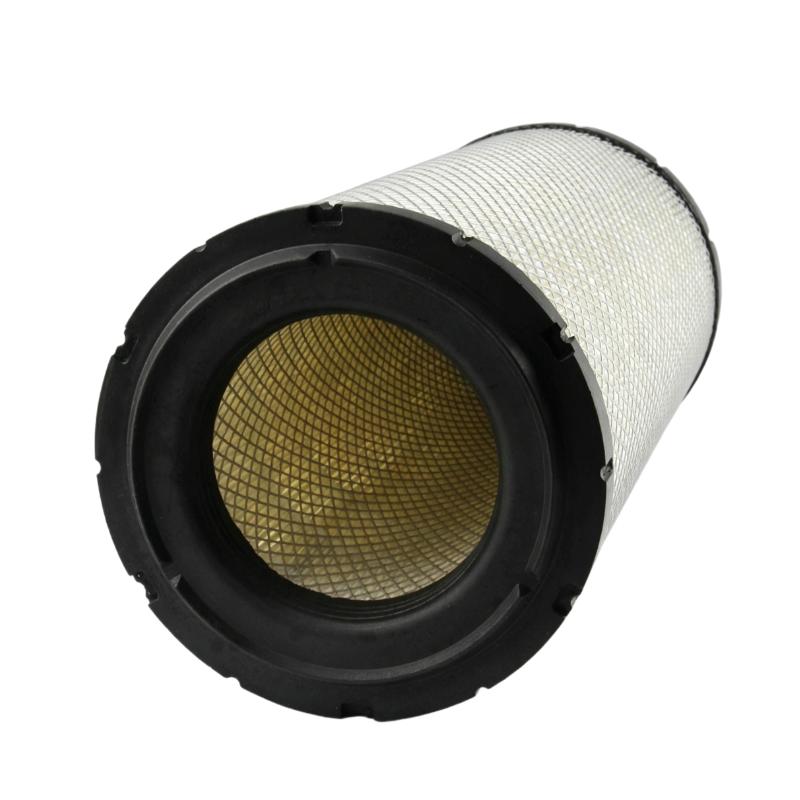

The filter is also identified as a radial-seal design. The sealing interface is important because an improperly seated element can permit unfiltered air to bypass the intended filtration path.

For routine service, the element should be inspected for excessive particulate loading, damaged pleats, deformation, moisture contamination, and deterioration of the sealing surfaces. Operating conditions should also be considered because dusty environments can require more frequent filter replacement than a nominal service interval.

The 47588563001 and 54672530 references have distinct documented identities. 47588563001 identifies the 8,000-hour water-cooled preventive-maintenance kit, while 54672530 identifies the standard air-filter element. The supplied pair is treated as one product listing as requested, but available public documentation does not independently establish the complete bill of materials contained in kit 47588563001.

Technical Specifications

Specification	Details
Brand	Ingersoll Rand
Primary Part Number	47588563001
Associated Part Number	54672530
Product Type	8,000-Hour Preventive Maintenance Kit / Standard Air-Filter Element
Maintenance Kit Type	8,000-Hour Preventive Maintenance Kit, Water-Cooled
Component Description	Element, Air Filter, Standard N55/75
Filter Type	Standard Air Filter
Filter Design	Radial Seal
Installation Position	Compressor Intake
Documented Applications	N55K/N75K and selected IRN75/IRN100 VSD configurations
Outside Diameter	Approx. 9.690 in / 246.1 mm
Inside Diameter	Approx. 5.669 in / 144.0 mm
Filter Height	Approx. 14.370 in / 365.0 mm
Approx. Filter Envelope	246.1 × 365.0 mm OD × H
Filter Weight	Approx. 11 lb / 5.0 kg, supplier-reported
Complete Kit Dimensions	Not reliably verified
Complete Kit Weight	Not reliably verified
Filter Media	Not reliably verified as an OEM specification
Filtration Efficiency	Not reliably verified as an OEM specification
Airflow Rating	Not reliably verified from available OEM documentation
Standard / High-Dust	Standard
Compatibility	Model-, serial-number-, and configuration-dependent

The principal dimensional data are supported by available filter specifications. The approximately 11 lb weight is supplier-reported and should not be treated as a verified complete-kit weight.

Recommended Companion Models

Model	Product Name
47588561001	Ingersoll Rand 2,000-Hour Preventive Maintenance Kit
47588562001	Ingersoll Rand 4,000-Hour Preventive Maintenance Kit
47588564001	Ingersoll Rand 8,000-Hour Preventive Maintenance Kit, Air-Cooled
47588565001	Ingersoll Rand Gearbox Maintenance Package

These references belong to the same Ingersoll Rand preventive-maintenance family as 47588563001 but represent different service intervals or maintenance functions. They are companion service references rather than automatic replacements for 54672530.

Frequently Selected Alternatives

Model	Product Name
54672563	Ingersoll Rand High-Dust Primary Air-Filter Element
54672597	Ingersoll Rand High-Dust Secondary Air-Filter Element
23415805	Ingersoll Rand High-Dust Air-Filter Element
22130223	Ingersoll Rand Air-Filter Element

Where It Excels in Industrial Use

8,000-Hour Water-Cooled Service: The supplied 47588563001 / 54672530 references are treated as one product listing. 47588563001 is documented as an 8,000-hour preventive maintenance kit for water-cooled compressors, while 54672530 is independently identified as the standard air-filter element for compatible Ingersoll Rand compressor configurations.
Standard Intake-Air Filtration: 54672530 is specified as “ELEMENT, AIR FILTER STD N55/75 – STANDARD AIR FILTER.” It protects the compressor intake and airend by filtering contaminants from incoming ambient air.
N55/N75 Compressor Applications: Ingersoll Rand parts documentation lists 54672530 in the standard air-filter assembly for N55K/N75K and related configurations.
IRN75/IRN100 VSD Applications: Application records also identify 54672530 for certain IRN75 and IRN100 VSD rotary screw compressors, including IRN75H-CC and IRN100H-CC configurations.
Extended Service Planning: The 47588563001 reference belongs to Ingersoll Rand's scheduled-maintenance family, allowing major service work to be organized around defined operating-hour intervals.

Key Strengths at a Glance

8,000-Hour Maintenance Reference: 47588563001 is specifically cataloged as an 8,000-hour preventive maintenance kit for water-cooled equipment.
Standard Filter Configuration: 54672530 is the standard rather than high-dust air-filter element. The applicable N55/N75 parts documentation separately identifies 54672563 and 54672597 for high-dust primary and secondary filtration.
Radial-Seal Element: Available filter specifications identify 54672530 as a radial-seal air-filter element, with approximately 9.690 in outside diameter, 14.370 in height, and 5.669 in inside diameter.
Broad Platform Coverage: The same filter reference appears in documentation for N55/N75 and certain IRN75/IRN100 VSD applications.
Intake Protection: Proper air filtration reduces the amount of airborne particulate entering the compressor intake and airend, helping protect internal components from contamination.
Maintenance-Friendly Replacement: 54672530 is a discrete replaceable filter element, allowing the intake filtration stage to be renewed without replacing the complete filter housing.

Technical FAQs

1. What is Ingersoll Rand 47588563001 / 54672530?

The supplied references are treated as one product listing. 47588563001 is the 8,000-hour water-cooled preventive maintenance kit reference, while 54672530 is the standard air-filter element reference.

2. What is the primary function of 54672530?

It filters incoming ambient air before that air enters the compressor intake and airend, reducing particulate contamination in the compression system.

3. Is 54672530 a standard or high-dust filter?

It is the standard air-filter element. The N55/N75 documentation lists 54672563 as the high-dust primary element and 54672597 as the high-dust secondary element.

4. What type of filter element is 54672530?

Available technical listings identify it as a radial-seal air-filter element.

5. Which compressors use 54672530?

The part is documented for N55K/N75K and related configurations, and application records also identify it for certain IRN75 and IRN100 VSD compressors. Exact fitment should be checked against the compressor serial number.

6. Is 54672530 an oil or coolant filter?

No. 54672530 is an air-filter element. Oil filtration uses separate Ingersoll Rand part references such as 54672654 in the applicable N-series configuration.

7. How does a restricted air filter affect compressor operation?

As the filter loads with particulate matter, intake restriction can increase and reduce the airflow available to the compressor. Excessive restriction can adversely affect operating efficiency.

8. When should 54672530 normally be replaced?

An application-specific Ingersoll Rand parts supplier recommends replacing it at 4,000 operating hours or at least annually, with more frequent replacement in heavily contaminated environments. The compressor's applicable maintenance documentation should take precedence.

9. Can 54672530 be replaced by a high-dust filter?

Not automatically. The standard and high-dust configurations use different elements and intake assemblies. The correct filter configuration must be confirmed from the compressor's parts documentation.

10. What should be checked before installing 54672530?

Verify the compressor model, serial number, standard-versus-high-dust configuration, filter housing, sealing arrangement, and OEM part number before installation.
