Introduction

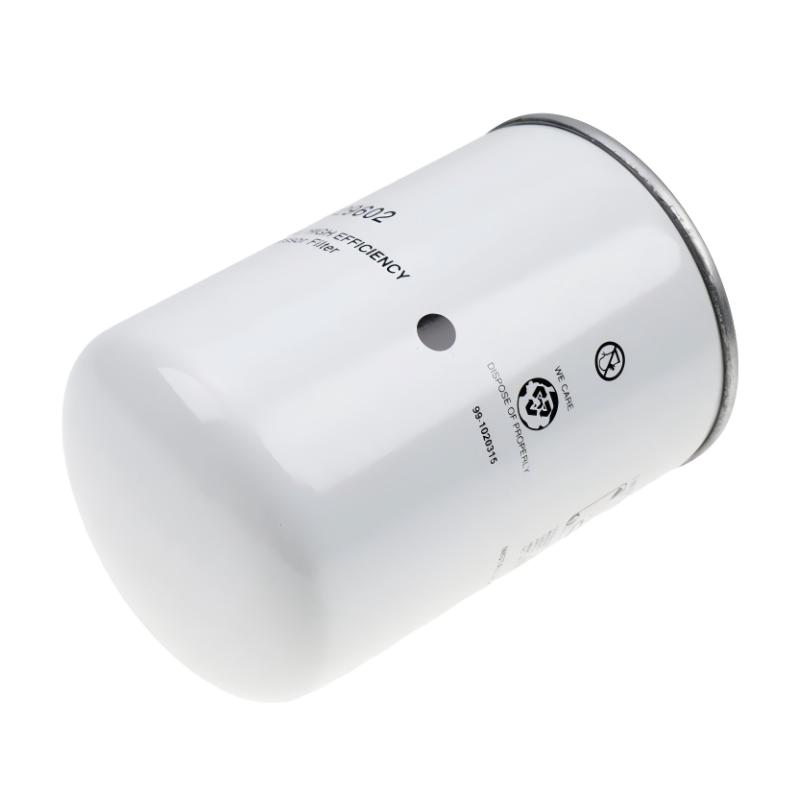

The Ingersoll Rand 47588563001 / 23424922 Oil Filter Maintenance Kit combines an established preventive-maintenance reference with a dedicated compressor oil-filtration component.
47588563001 is cataloged as an 8,000-hour preventive maintenance kit for water-cooled compressors. It belongs to Ingersoll Rand's broader scheduled-maintenance family, which also includes separate 2,000-hour, 4,000-hour, and air-cooled 8,000-hour references.

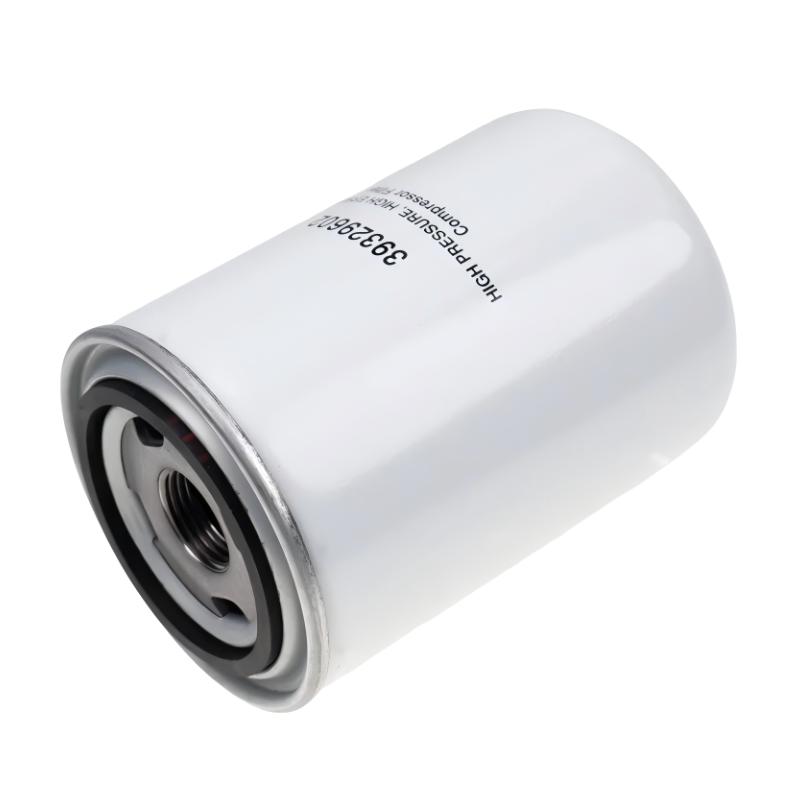

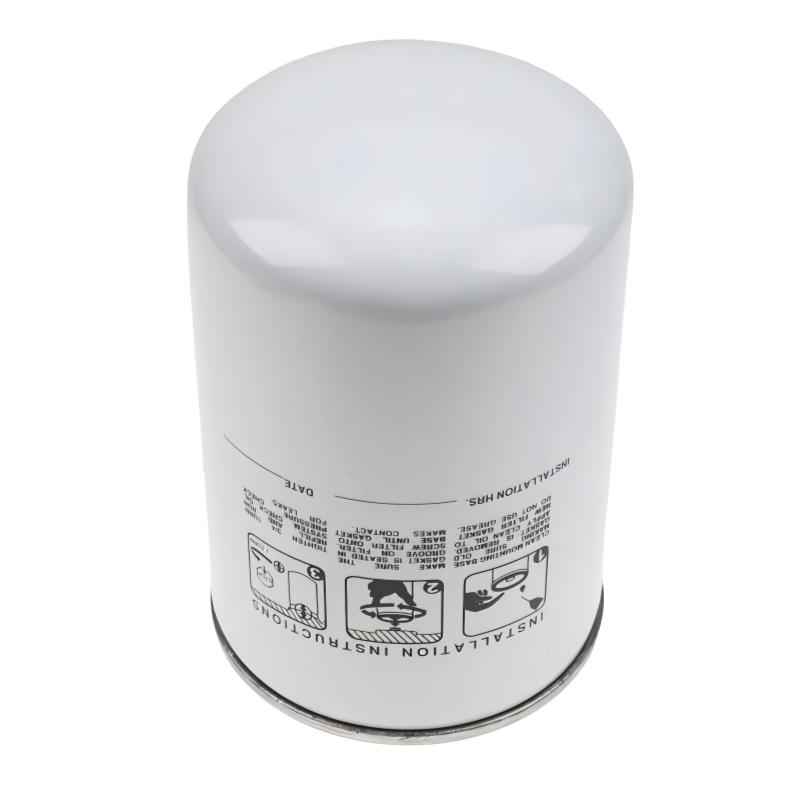

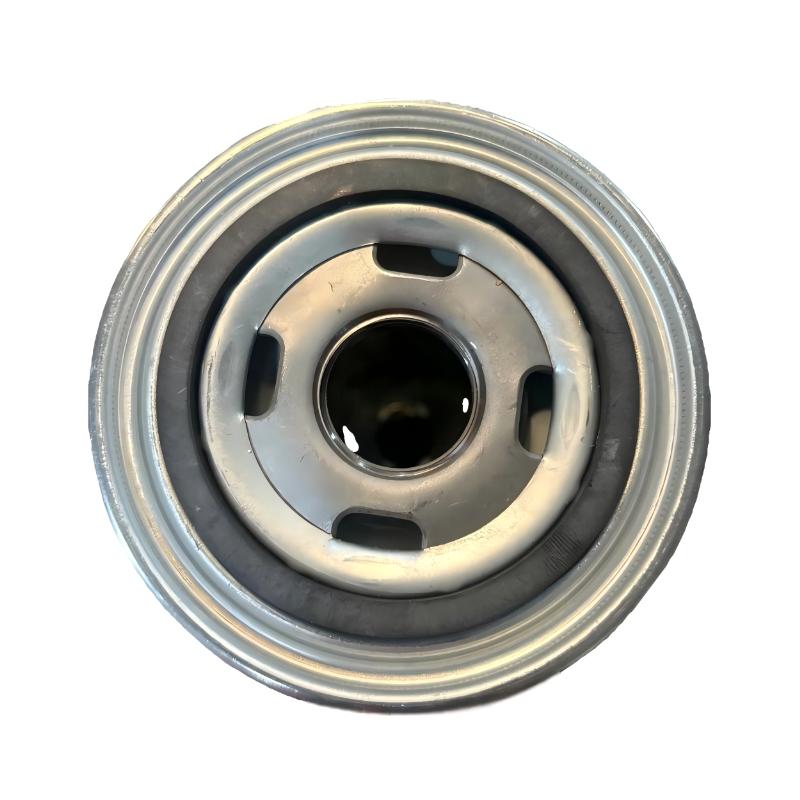

The independently documented 23424922 is a replacement oil-filter element. In the R132N-160N/R132I-160I R-Series parts book, it appears in the consumables section specifically as “REPLACEMENT FILTER ELEMENT (OIL).”
The filter operates within the compressor lubricant circuit rather than the intake-air system. Its job is to remove unwanted particulate contamination from circulating compressor oil before that oil continues through the lubrication system.
Maintaining oil cleanliness is important for rotary screw compressors because bearings, gears, seals, and other lubricated components depend on the oil remaining within the intended cleanliness range. Contaminated oil can contribute to wear and can reduce the effectiveness of the lubrication system over time.
The 23424922 engineering drawing provides important identification information. It gives an estimated element weight of 2.3 kg and identifies the drawing model as 90–160 kW. The drawing also specifies approximately 114.3 mm for the principal outside diameter and 232.2 mm for the principal overall height.
The same Ingersoll Rand drawing is particularly useful for replacement identification because it explicitly states that 23424922 is a replacement element for 23416613, 23700362, and 23523434. This provides stronger technical support for those references than generic aftermarket cross-reference tables.
Application records show 23424922 on R-series compressors including R132–160 configurations, while other parts data associate it with R90–160 variants. Because compressor packages can differ by generation and configuration, the serial number remains essential when confirming the correct filter.
The filter should be replaced using the applicable compressor service procedure. During installation, the mounting surface and sealing interface should be clean and free from old gasket material or contamination. The technician should also inspect the removed filter for unusual metal particles or other debris that could indicate a developing internal compressor problem.
The OEM drawing emphasizes that the specified element is an approved design and that substitutes should not be used without written approval from Ingersoll Rand. This is especially relevant where dimensional similarity alone does not guarantee equivalent filtration performance or pressure-drop characteristics.
The supplied pair is treated as one product listing as requested. Public records independently establish 47588563001 as the 8,000-hour water-cooled preventive-maintenance kit and 23424922 as the oil-filter element. The available documentation does not independently establish that 23424922 is the complete bill of materials contained in 47588563001.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47588563001 |
| Associated Part Number | 23424922 |
| Product Type | 8,000-Hour Preventive Maintenance Kit / Oil-Filter Element |
| Maintenance Kit Type | 8,000-Hour Preventive Maintenance Kit, Water-Cooled |
| Component Description | Replacement Filter Element (Oil) |
| Filtration Position | Compressor Oil/Lubricant Circuit |
| Documented Model Range | 90–160 kW configuration on OEM drawing |
| Documented Applications | Selected R90–R160 and R132–R160 R-Series configurations |
| Outside Diameter | Approx. 114.3 mm |
| Overall Height | Approx. 232.2 mm |
| Approx. Imperial Dimensions | 4.50 in OD × 9.14 in H |
| Drawing-Referenced Weight | 2.3 kg / 5.07 lb |
| Filter Media | Not reliably verified from available OEM documentation |
| Filtration Rating | Not reliably verified from available OEM documentation |
| Dirt-Holding Capacity | 75 g, according to the referenced OEM drawing |
| Media Specification | 10Q media, Beta(10)=200, according to the referenced OEM drawing |
| Complete Kit Dimensions | Not reliably verified |
| Complete Kit Weight | Not reliably verified |
| Operating Pressure Rating | Not reliably verified |
| Operating Temperature Rating | Not reliably verified |
| Compatibility | Model-, serial-number-, and configuration-dependent |
The principal dimensions and 2.3 kg weight are supported by the Ingersoll Rand engineering drawing. The same drawing identifies a 75 g dirt-carrying capacity and 10Q media with Beta(10)=200.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 47588561001 | Ingersoll Rand 2,000-Hour Preventive Maintenance Kit |
| 47588562001 | Ingersoll Rand 4,000-Hour Preventive Maintenance Kit |
| 47588564001 | Ingersoll Rand 8,000-Hour Preventive Maintenance Kit, Air-Cooled |
| 47588565001 | Ingersoll Rand Gearbox Maintenance Package |
These references belong to the same Ingersoll Rand preventive-maintenance family as 47588563001 but represent different service intervals or maintenance functions rather than direct replacements for 23424922.
