Introduction

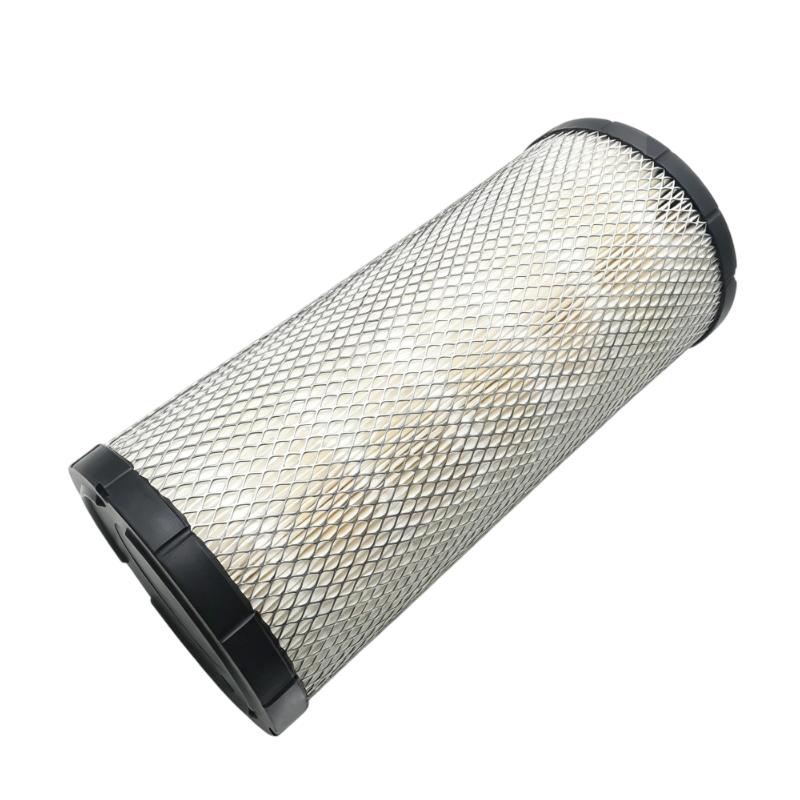

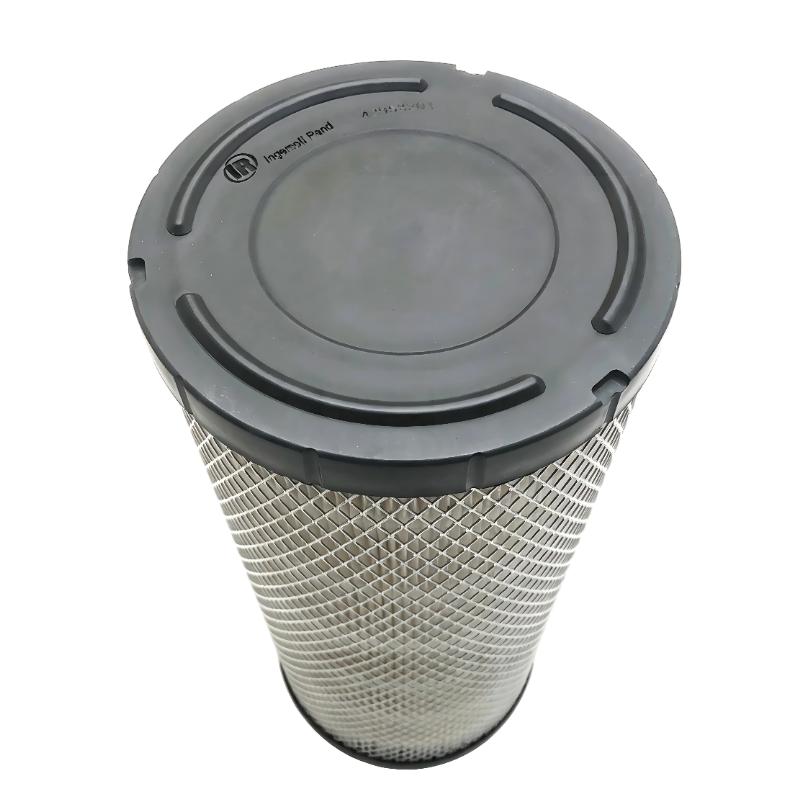

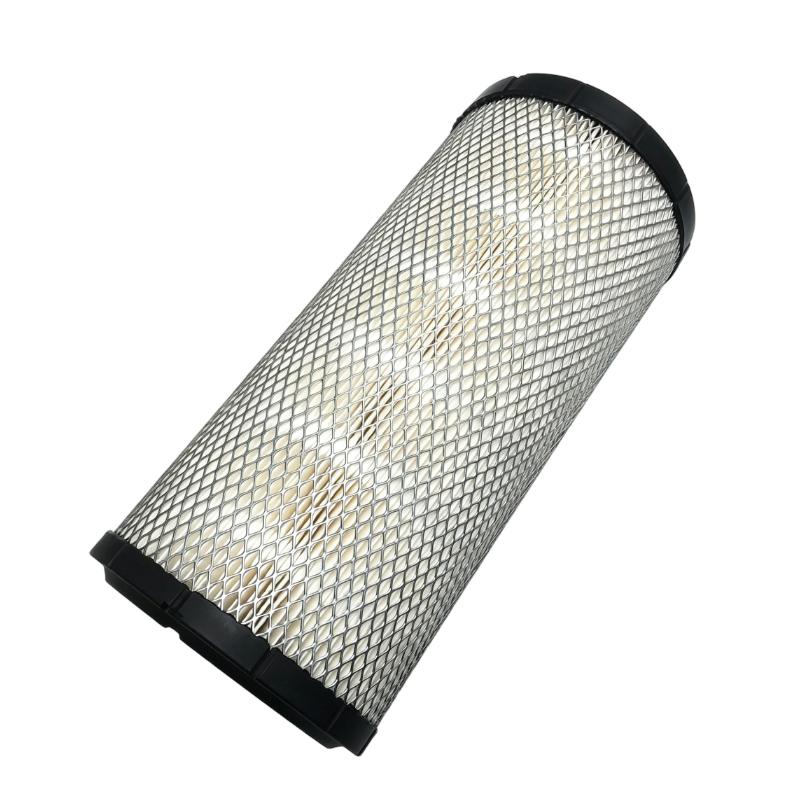

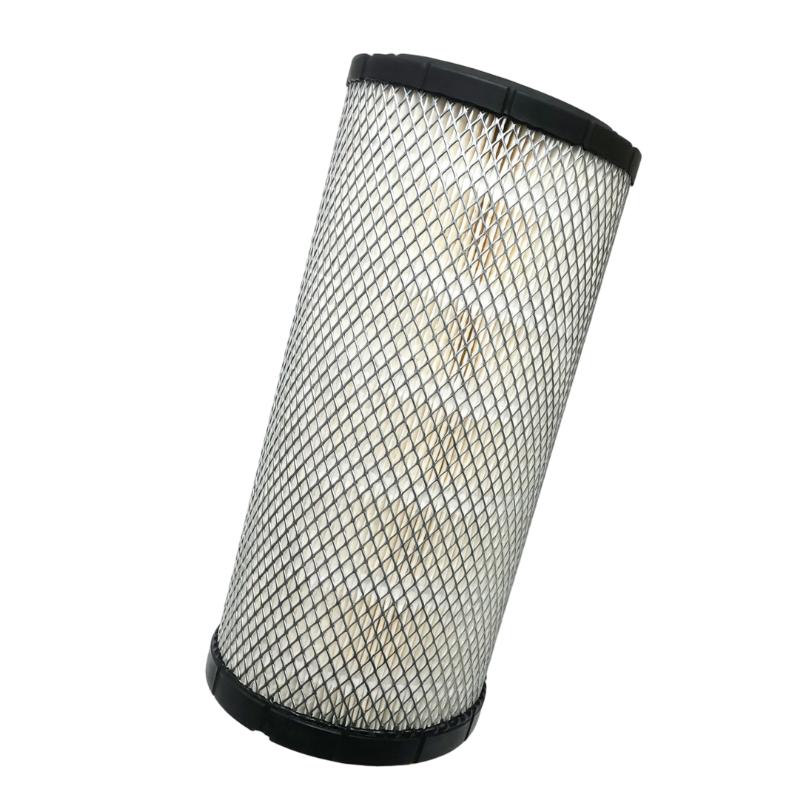

The Ingersoll Rand 47588564001 / 54672530 Air Filter Maintenance Kit combines an air-cooled preventive-maintenance reference with a standard compressor intake-air filter element.
47588564001 is listed within Ingersoll Rand's preventive-maintenance family as an 8,000-hour preventive maintenance kit for air-cooled compressors. The same parts family includes a water-cooled 8,000-hour kit, 4,000-hour and 2,000-hour service references, and other dedicated maintenance packages.
The independently documented 54672530 is identified as ELEMENT, AIR FILTER STD N55/75 – STANDARD AIR FILTER. This establishes its primary function as intake-air filtration rather than oil filtration or air/oil separation.
In a rotary screw compressor, the intake-air filter is positioned upstream of the airend. Atmospheric air can contain dust, fibers, moisture-associated contaminants, and other particles. Without effective inlet filtration, these contaminants can enter the compression system and contribute to fouling and abrasive wear.
The filter therefore performs an important protective function while maintaining the airflow required by the compressor. As the filter loads with particulate matter, the pressure differential across the element can increase. Regular inspection and replacement help maintain appropriate inlet conditions.
Available compressor parts documentation associates 54672530 with the N55K, N75H, N75K, and N100H family in certain configurations. A separate current parts listing identifies it as the standard filter for N55/N75 applications. Because Ingersoll Rand has used multiple filtration arrangements, the exact compressor configuration should be verified before ordering.
The standard filter should also be distinguished from high-dust filtration components. The same parts documentation lists 54672563 as a primary high-dust air-filter element and 54672597 as a secondary high-dust element. These different configurations are intended for different filtration arrangements and should not be substituted casually.
Available supplier specifications report a physical envelope of approximately 9.69 inches outside diameter, 14.37 inches height, and 5.669 inches inside diameter for 54672530. Another supplier reports metric dimensions of approximately 365 mm high, 247 mm maximum width, and 150 mm internal depth. Differences in measurement conventions or filter construction mean the compressor parts manual should remain the final fitment reference.
Air-filter replacement should include inspection of the filter housing and sealing interface. Dirt accumulation around the housing, damaged sealing surfaces, or improper installation can permit unfiltered air to bypass the element.
Operating environment is also important. Compressors operating in dusty plants, workshops, construction environments, or other high-particulate locations can load their filters faster than equipment operating in cleaner indoor environments. In such conditions, differential-pressure monitoring and inspection can be more useful than relying on operating hours alone.
The supplied pair is treated as one product listing as requested. Public records independently establish 47588564001 as the 8,000-hour air-cooled preventive-maintenance kit and 54672530 as the standard N55/N75 air-filter element. The available documentation does not independently establish that 54672530 is the complete bill of materials contained in 47588564001.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Primary Part Number | 47588564001 |
| Associated Part Number | 54672530 |
| Product Type | 8,000-Hour Preventive Maintenance Kit / Standard Air-Filter Element |
| Maintenance Kit Type | 8,000-Hour Preventive Maintenance Kit, Air-Cooled |
| Filter Type | Standard Air Filter |
| Filter Description | Element, Air Filter STD N55/75 |
| Filter Configuration | Radial-Seal, Round |
| Primary Function | Intake-Air Filtration |
| Documented Application | N55/N75 and selected N55K/N75H/N75K/N100H configurations |
| Reported Outside Diameter | Approx. 9.69 in / 247 mm |
| Reported Height | Approx. 14.37 in / 365 mm |
| Reported Inside Diameter | Approx. 5.67 in / 144 mm |
| Alternate Reported ID | Approx. 150 mm |
| Filter Media | Not reliably verified from OEM documentation |
| Filtration Efficiency | Not reliably verified as an OEM specification |
| Maximum Differential Pressure | Not reliably verified |
| Complete Kit Dimensions | Not reliably verified |
| Complete Kit Weight | Not reliably verified |
| Filter Element Weight | Supplier-specific; not reliably verified as an OEM value |
| Maintenance Reference | 8,000 hours for 47588564001 |
| Compatibility | Model-, serial-number-, and filter-housing dependent |
The reported filter dimensions come from independent supplier specifications and are useful for identification, but they should not override the compressor's applicable parts manual.
Recommended Companion Models
| Model | Product Name |
|---|---|
| 54672654 | Ingersoll Rand Ultra Coolant Filter Element |
| 38008587 | Ingersoll Rand Separator Element Kit |
| 54672563 | Ingersoll Rand Primary Air-Filter Element, High-Dust |
| 54672597 | Ingersoll Rand Secondary Air-Filter Element, High-Dust |
These are related filtration or compressor-maintenance references documented alongside 54672530 in N55K/N75H/N75K/N100H parts information. They serve different filtration functions and are not automatic replacements for 54672530.
Frequently Selected Alternatives
| Model | Product Name |
|---|---|
| 22130223 | Ingersoll Rand Standard Air-Filter Element, N75–160 |
| 54689773 | Ingersoll Rand SOE Air-Filter Element |
| 54672563 | Ingersoll Rand Primary Air-Filter Element, High-Dust |
| 54672597 | Ingersoll Rand Secondary Air-Filter Element, High-Dust |
