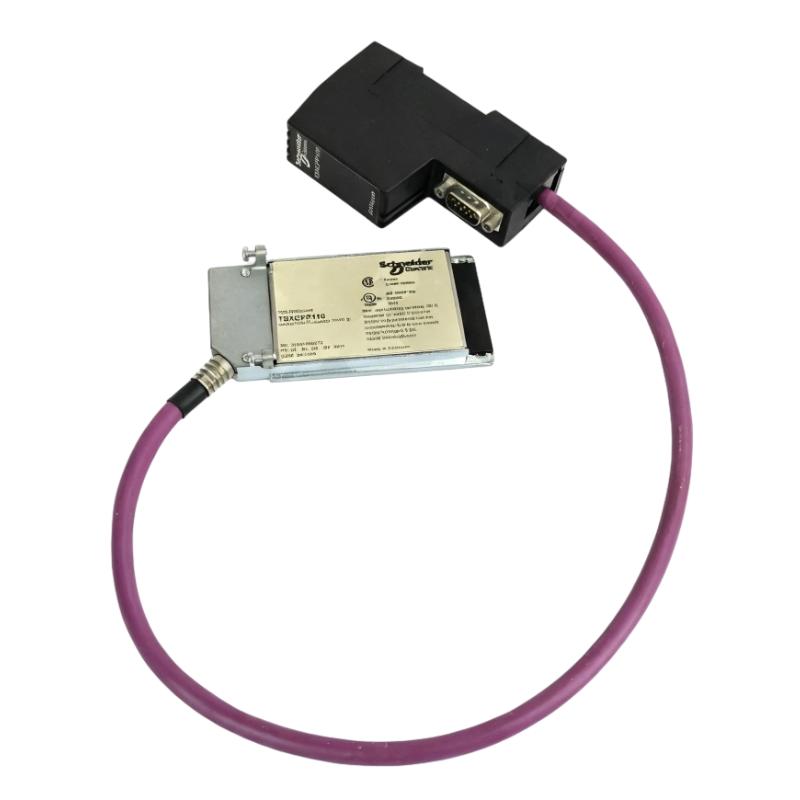

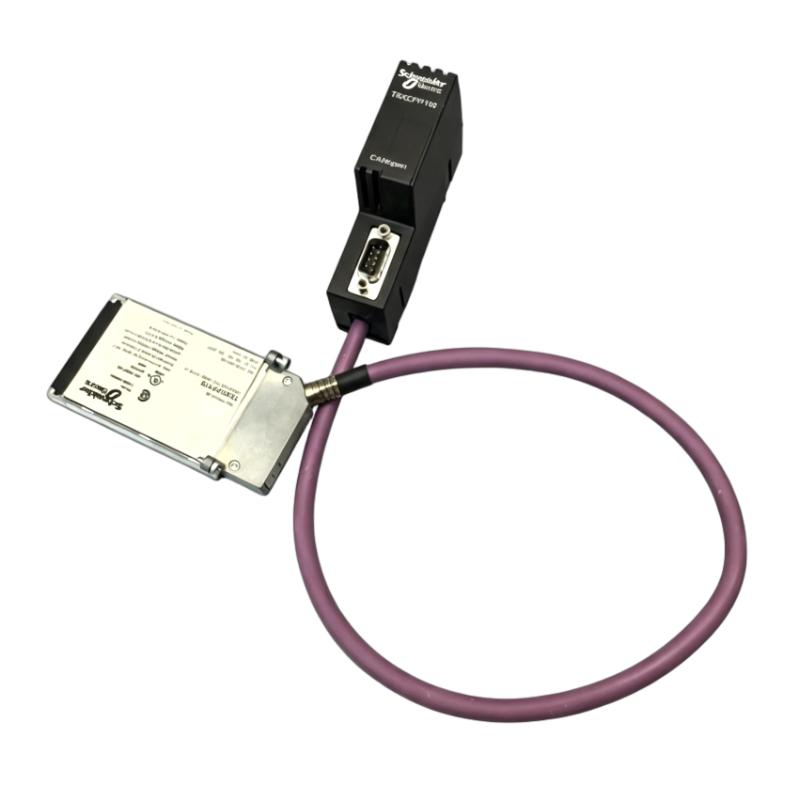

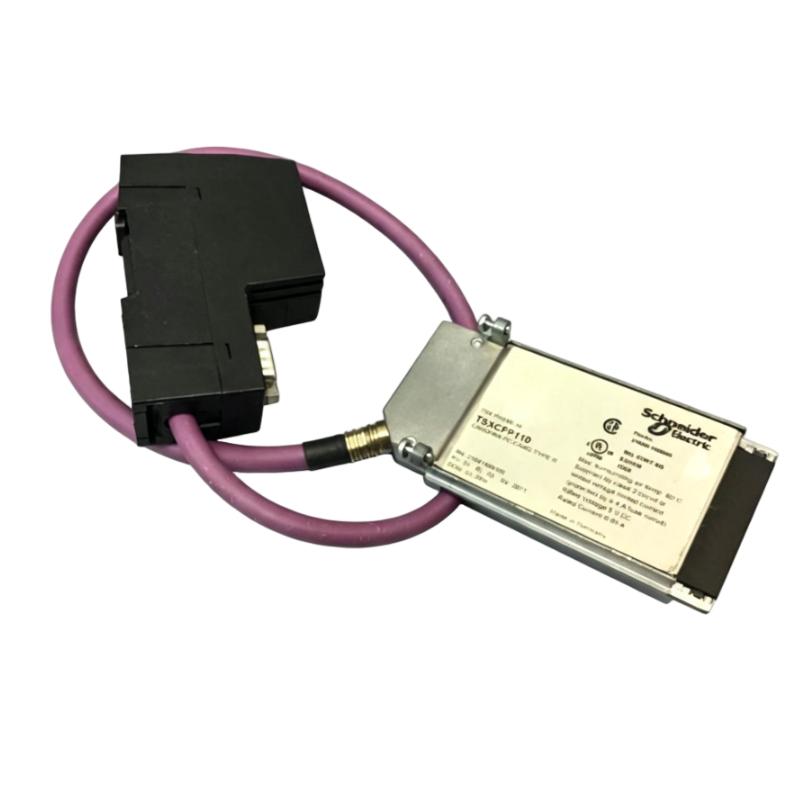

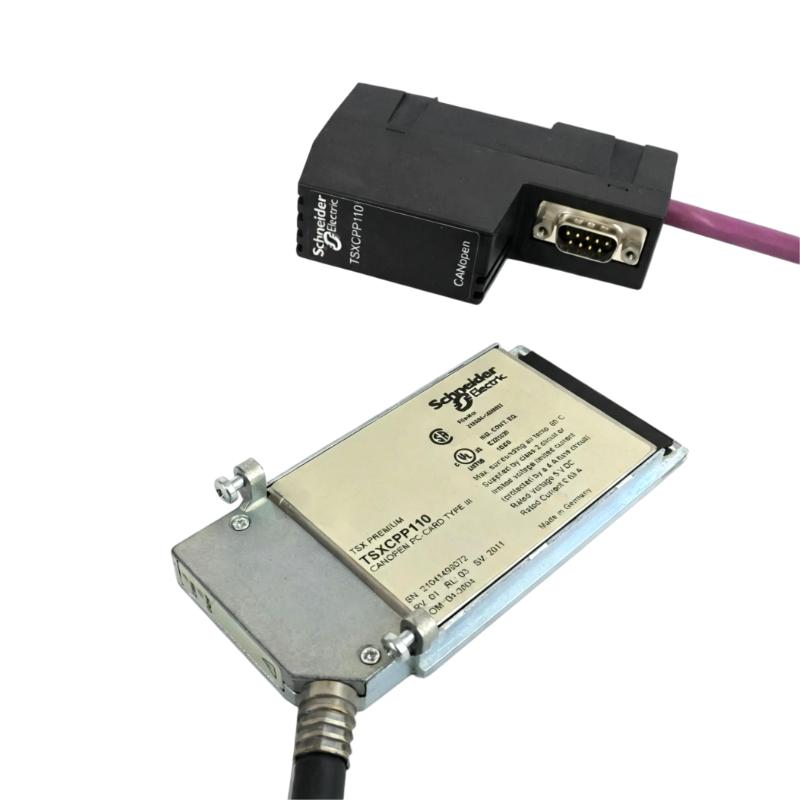

Schneider TSXCPP110 CANopen Bus Master PCMCIA Card
Schneider TSXCPP110 CANopen Bus Master PCMCIA Card
0.0
Points
Brand:Schneider PLC Item No.:TSXCPP110 Product Origin:France Product Dimensions:110 × 35 × 80 mm Product Weight:0.23 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Introduction to Schneider TSXCPP110 CANopen Bus Master PCMCIA Card
The Schneider TSXCPP110 CANopen Bus Master PCMCIA Card is designed to provide reliable CANopen communication functionality for industrial PC-based automation systems. It enables computers and control platforms to manage communication with distributed field devices, improving system connectivity and flexibility.
Modern automation applications increasingly require efficient communication between multiple intelligent devices. A reliable fieldbus interface helps ensure accurate data exchange and better coordination between controllers, drives, and remote equipment.
With its compact design and professional industrial communication capability, the TSXCPP110 is a valuable solution for engineers developing or upgrading CANopen-based automation systems.
Technical Specifications of Schneider TSXCPP110 CANopen Bus Master PCMCIA Card
Parameter
Specification
Brand
Schneider Electric
Model
TSXCPP110
Product Type
CANopen Bus Master PCMCIA Card
Communication Protocol
CANopen
Application
Industrial PC Communication Expansion
Function
CANopen Master Interface
Installation Type
PCMCIA Slot Installation
Dimensions
110 × 35 × 80 mm
Weight
0.23 kg (0.51 lb)
Recommended Related Models
Model
Product Type
Application
Schneider TSXCPP100
CANopen PCMCIA Card
Industrial communication expansion
Schneider TSXCPP110M
CANopen Communication Module
CANopen network integration
Schneider TSXCANCA
CANopen Cable Accessory
CANopen network wiring
Schneider TSXCANTDM4
CANopen Tap Junction Box
Fieldbus connection applications
Popular Related Models
Model
Product Type
Schneider TSXCPP100
CANopen Bus Master Card
Schneider TSXCPP110
CANopen Communication Interface
Schneider TSXCANCD100
CANopen Connection Cable
Schneider TSXCUSB485
USB Communication Interface
Schneider BMXNOC0401
Ethernet Communication Module
Applications and CANopen Communication Integration
The Schneider TSXCPP110 CANopen Bus Master PCMCIA Card is a specialized communication interface designed to enable CANopen network connectivity between industrial computers and automation systems. It provides reliable communication capabilities for applications requiring efficient data exchange between controllers, field devices, and intelligent automation components.
Designed for industrial control environments, the TSXCPP110 allows PC-based systems to act as CANopen bus masters, supporting configuration, monitoring, and communication management across distributed automation networks.
Typical applications include:
Industrial PC automation systems
CANopen fieldbus networks
Machine control applications
Motion control systems
Distributed I/O architectures
Industrial equipment communication upgrades
The Schneider TSXCPP110 provides engineers with a practical communication expansion solution for integrating CANopen devices into advanced automation systems.
Advantages and Communication Performance Features
The Schneider TSXCPP110 CANopen Bus Master PCMCIA Card combines reliable fieldbus communication with compact integration, making it suitable for industrial automation applications requiring flexible network connectivity.
Reliable CANopen Network Management
The card enables PC-based control systems to communicate effectively with CANopen devices, supporting stable field-level data exchange.
Efficient Industrial Data Transmission
The TSXCPP110 provides dependable communication performance for automation applications requiring consistent and accurate data transfer.
Compact PCMCIA Integration
Its compact form factor allows convenient installation in compatible industrial computers and control platforms.
Flexible Device Connectivity
The card supports integration with various CANopen-compatible devices, improving system expansion flexibility.
Enhanced Automation System Capability
By adding CANopen master functionality, the module helps extend the communication capabilities of industrial PCs.
Simplified Network Diagnostics
The interface supports easier monitoring and troubleshooting of connected CANopen networks during commissioning and maintenance.
Technical FAQs – Schneider TSXCPP110 CANopen Bus Master PCMCIA Card
1. What is the main function of the Schneider TSXCPP110?
The TSXCPP110 provides CANopen bus master communication capability for compatible industrial PC systems.
2. What is CANopen communication used for in automation systems?
CANopen is commonly used for communication between controllers, sensors, drives, and distributed field devices in industrial networks.
3. Which devices can communicate through the TSXCPP110?
Compatible CANopen slave devices, including I/O modules, drives, and intelligent field devices, can communicate through the interface.
4. How does the TSXCPP110 improve automation system flexibility?
It allows industrial computers to connect with CANopen networks, expanding communication options for distributed control systems.
5. What configuration is required when commissioning the CANopen card?
Configuration typically includes network parameters, node addressing, communication settings, and device mapping.
6. What are common causes of CANopen communication faults?
Typical causes include incorrect node settings, wiring problems, communication parameter mismatches, or network interference.
7. How can technicians troubleshoot CANopen network problems?
Technicians should check node addresses, communication parameters, cable connections, network status, and diagnostic information.
8. Can the TSXCPP110 support industrial machine control applications?
Yes, it is suitable for machine automation systems requiring CANopen communication between control devices and field components.
9. What maintenance practices are recommended for CANopen communication modules?
Regular inspection of communication settings, network connections, and device diagnostics helps maintain stable operation.
10. Why is CANopen important in industrial automation?
CANopen provides a standardized communication method that improves interoperability and simplifies integration of automation devices.
