Brand:Ingersoll Rand Item No.: 47647275001 AT020610 Product Origin:USA Product Dimensions:109 × 64 × 58 mm Product Weight:0.08 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

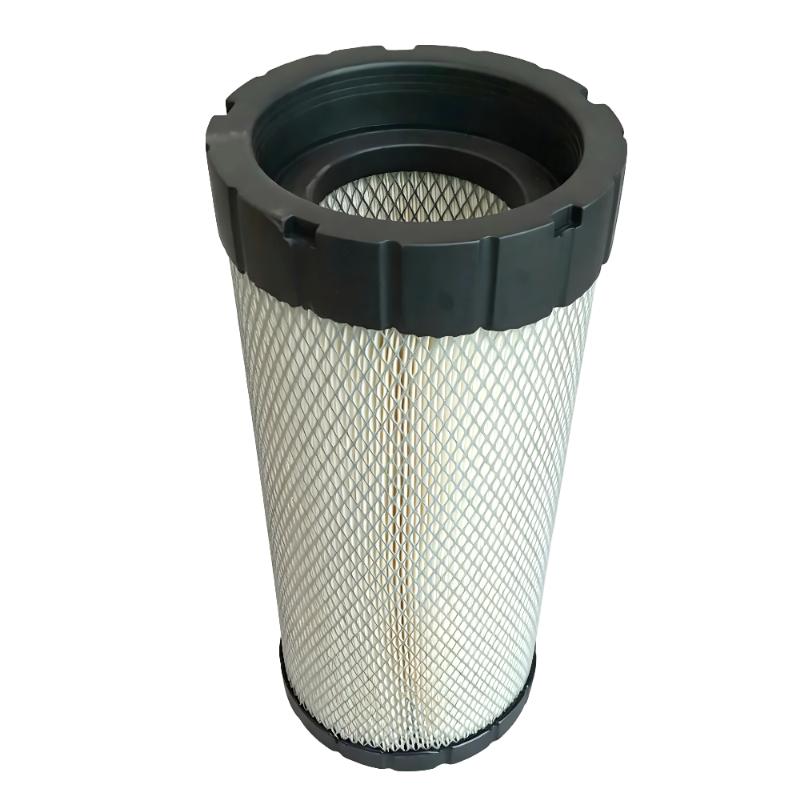

The Ingersoll Rand 47647275001 AT020610 Air Filter combines a scheduled maintenance reference with a dedicated compressor intake-filtration component. Ingersoll Rand parts listings identify 47647275001 as a 2000-hour preventive maintenance package for the ML55 crane air compressor, while AT020610 is separately identified as an air filter.
Clean intake air is essential to reliable screw-compressor operation. Dust and airborne particles entering through the intake can contaminate internal surfaces and contribute to wear over time. A properly maintained air filter therefore serves as an important protective barrier between the operating environment and the compressor's internal components.
AT020610 is documented with an approximate overall height of 410 mm, outer diameter of 257 mm, and inner diameter of 172 mm, providing useful reference information when checking physical fit.
For maintenance teams, filter replacement should be treated as part of the broader intake-system inspection rather than as an isolated component change. Checking the housing, seals, ducting, and connections at the same time helps prevent unfiltered-air bypass and ensures the replacement filter can perform as intended.
Used with the correct compressor configuration and service procedure, AT020610 provides a practical solution for maintaining intake-air cleanliness and supporting dependable compressor operation in demanding industrial environments.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Maintenance Package Number
47647275001
Component Number
AT020610
Product Type
Air Filter
Component Category
Compressor Intake Air Filter
Primary Function
Intake-air filtration
Application
Compatible Ingersoll Rand screw compressors
Associated Maintenance Package
2000-hour preventive maintenance package
Associated Compressor
ML55 Crane Air Compressor
Overall Height
Approx. 410 mm
Secondary Height
Approx. 400 mm
Outer Diameter
Approx. 257 mm
Inner Diameter 1
Approx. 172 mm
Inner Diameter 2
Approx. 15 mm
Installation
Compressor air-intake housing
Filter Media
Application-specific filter media
Weight
Application-specific; verify current manufacturer documentation
Compatibility
Confirm compressor model, serial number, and current parts documentation before installation
Scheduled Compressor Maintenance: AT020610 is an Ingersoll Rand air filter used in compatible screw compressor applications, making it suitable for planned intake-filtration service.
ML55 Crane Compressor Service: 47647275001 is identified as the 2000-hour preventive maintenance package for the Ingersoll Rand ML55 crane air compressor.
Air Intake Protection: The filter helps capture airborne dust and particulate contamination before it enters the compressor intake system.
Filter Replacement Programs: AT020610 is suitable for scheduled replacement when the existing intake filter becomes contaminated or develops excessive airflow restriction.
Key Strengths at a Glance
Dedicated Ingersoll Rand Air Filter: AT020610 is identified as an Ingersoll Rand air-filter component.
High Filtration Capacity: The element is designed to remove airborne contaminants from compressor intake air while maintaining the airflow required by the machine.
Documented Physical Dimensions: Published specifications list approximately 410 mm overall height, 257 mm outer diameter, and 172 mm inner diameter.
Maintenance-Friendly Design: The filter is suited to routine compressor service and replacement operations.
AT020610 is an Ingersoll Rand air filter used in compatible screw compressor applications. Parts catalogs identify it specifically as an air-filter component.
2. What is 47647275001?
47647275001 is identified as a 2000-hour preventive maintenance package for the Ingersoll Rand ML55 crane air compressor.
3. What is the relationship between 47647275001 and AT020610?
47647275001 identifies the applicable maintenance package, while AT020610 identifies an air-filter component used in Ingersoll Rand compressor equipment. The exact contents of a maintenance package should be verified against the compressor's current parts documentation.
4. What function does AT020610 perform?
AT020610 filters the air entering the compressor, removing airborne particles that could otherwise enter the compression system and contribute to internal contamination and wear.
5. What happens when an intake air filter becomes restricted?
A heavily loaded filter increases intake resistance and can reduce the airflow available to the compressor. Excessive restriction may negatively affect compressor performance and operating efficiency.
6. How can a damaged air filter affect compressor operation?
A damaged element or compromised seal can allow unfiltered air to bypass the filtration media. Contaminants entering through the intake can accelerate wear of internal compressor components.
7. When should AT020610 be replaced?
Replacement should follow the applicable Ingersoll Rand maintenance schedule and inspection criteria. The element should also be replaced earlier if it is damaged, excessively contaminated, or presents abnormal airflow restriction.
8. Can another air filter be substituted for AT020610?
Substitution should only be made after confirming physical fit, filtration efficiency, airflow capacity, pressure-drop characteristics, and sealing configuration. Similar dimensions alone do not establish interchangeability.
9. What should be inspected during AT020610 replacement?
The filter housing, sealing surfaces, intake ducting, clamps, and downstream intake passages should be checked for damage, contamination, and air leakage before installing the replacement element.
10. Why is correct air-filter selection important?
The correct filter maintains the intended balance between filtration performance and airflow resistance. Using the specified application-compatible element helps protect the compressor while supporting stable intake conditions.
