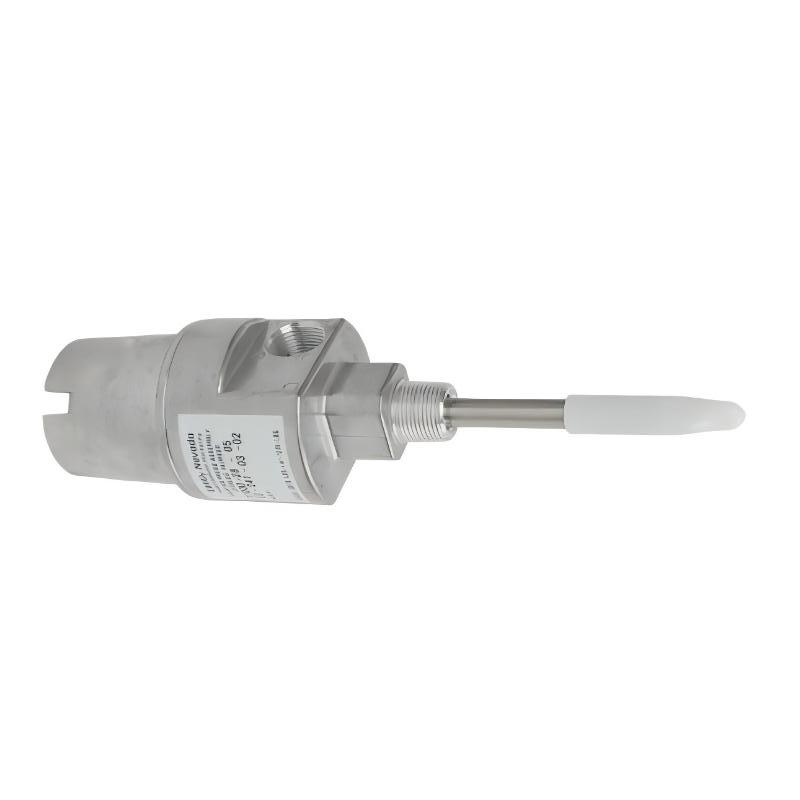

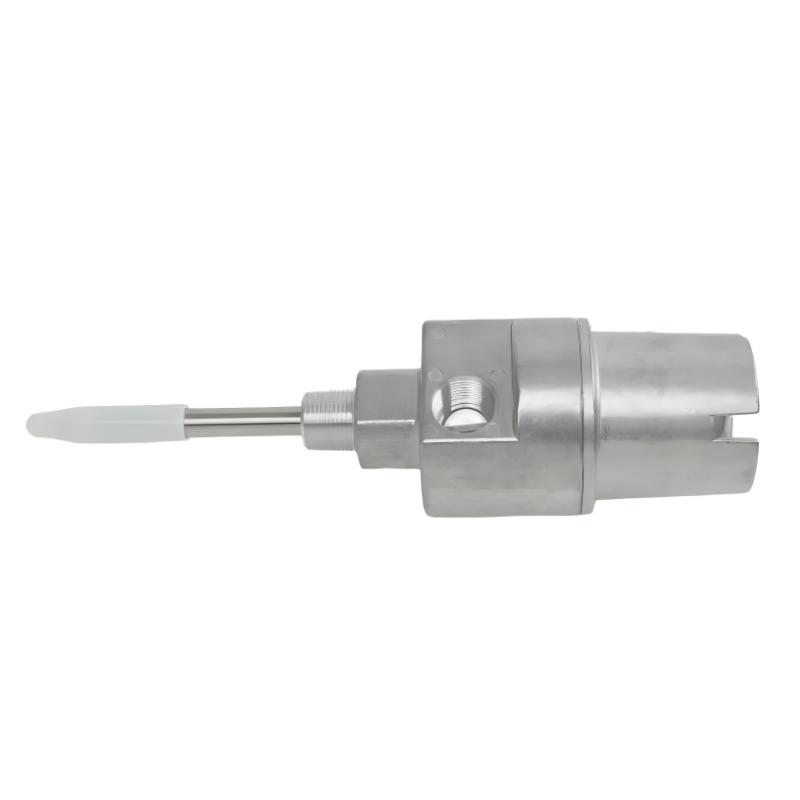

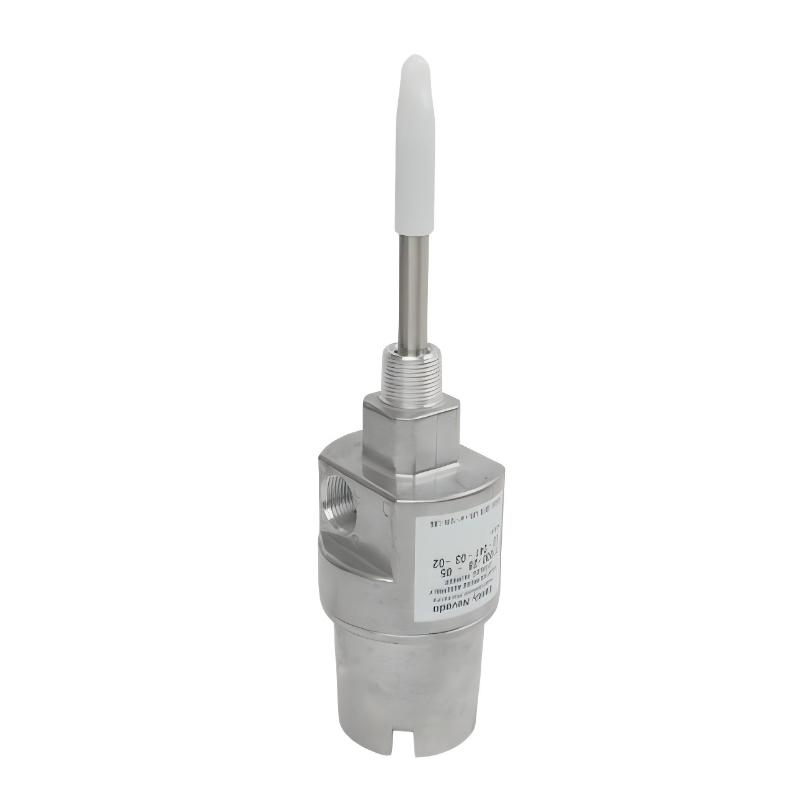

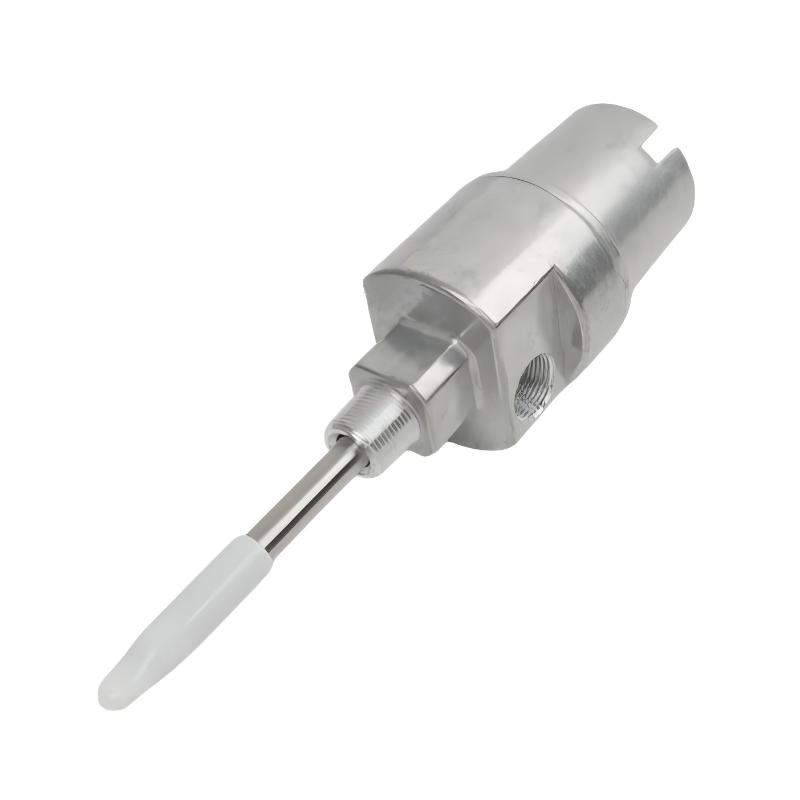

Bently Nevada 21000-28-05-00-045-04-02 Proximity Probe Housing Assembly (3300XL)

Applications and Industrial Usage

The Bently Nevada 21000-28-05-00-045-04-02 Proximity Probe Housing Assembly is a precision mechanical mounting component designed for use with the Bently Nevada 3300 XL proximity probe system. It provides secure installation and environmental protection for proximity probes used in critical rotating machinery monitoring applications.

This housing assembly is commonly applied in industrial facilities where accurate shaft displacement measurement and reliable vibration monitoring are required. It supports stable probe positioning in demanding operating conditions, helping maintain measurement accuracy and long-term system reliability.

Typical applications include:

• Steam turbine shaft vibration monitoring
• Gas turbine displacement measurement systems
• Compressor protection applications
• Rotating machinery condition monitoring
• Industrial equipment predictive maintenance systems
• Bently Nevada 3300 XL proximity probe installations

The assembly helps protect the proximity probe from mechanical impact, contamination, and installation-related issues, providing a dependable mounting solution for machinery protection systems.

Advantages and Engineering Benefits

The Bently Nevada 21000-28-05-00-045-04-02 Proximity Probe Housing Assembly delivers reliable mechanical support and improved installation stability for high-performance proximity measurement systems.

Main advantages include:

• Precision probe positioning
  The housing design maintains accurate probe alignment, helping ensure consistent shaft displacement measurements.
• Enhanced mechanical protection
  Provides additional protection for the installed proximity probe in industrial operating environments.
• Optimized for 3300 XL systems
  Designed to work with Bently Nevada 3300 XL proximity monitoring solutions for critical machinery applications.
• Improved installation reliability
  Helps reduce measurement errors caused by unstable probe mounting or improper positioning.
• Durable industrial construction
  Suitable for applications requiring long-term operation under mechanical and environmental stress.
• Simplified maintenance procedures
  The assembly supports easier inspection, replacement, and servicing of proximity probe installations.

Technical FAQs – Engineering Questions & Answers

1. What is the purpose of the Bently Nevada 21000-28-05-00-045-04-02 assembly?
The assembly provides mechanical housing and mounting support for compatible proximity probes used in machinery monitoring systems.

2. Which probe systems are compatible with this housing assembly?
This housing assembly is designed for use with Bently Nevada 3300 XL proximity probe applications.

3. How does the housing affect proximity measurement accuracy?
Proper probe mounting helps maintain correct probe position relative to the shaft, improving measurement stability and repeatability.

4. What installation factors should be considered when using this assembly?
Engineers should consider probe alignment, mounting location, mechanical clearance, and environmental conditions during installation.

5. What problems can occur if the probe housing is installed incorrectly?
Incorrect installation may cause unstable readings, incorrect gap positioning, or reduced reliability of vibration monitoring signals.

6. Can this housing assembly be used in turbine monitoring applications?
Yes. It is suitable for rotating equipment applications such as turbines, compressors, and other critical machinery.

7. How should the assembly be inspected during maintenance?
Maintenance personnel should check mounting integrity, mechanical damage, contamination, and probe positioning.

8. Does the housing assembly affect the electrical performance of the proximity probe?
The housing primarily provides mechanical support; correct installation helps ensure the probe operates within its designed conditions.

9. What causes inaccurate shaft displacement readings after installation?
Possible causes include incorrect probe gap adjustment, mechanical movement, improper alignment, or damaged components.

10. Why is proper probe housing selection important in machinery protection systems?
A suitable housing ensures reliable probe installation, helping maintain accurate monitoring signals for equipment protection.
