Brand:Ingersoll Rand Item No.:47642697001 89292445 Product Origin:USA Product Dimensions:110 × 66.8 × 50 mm Product Weight:0.30 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

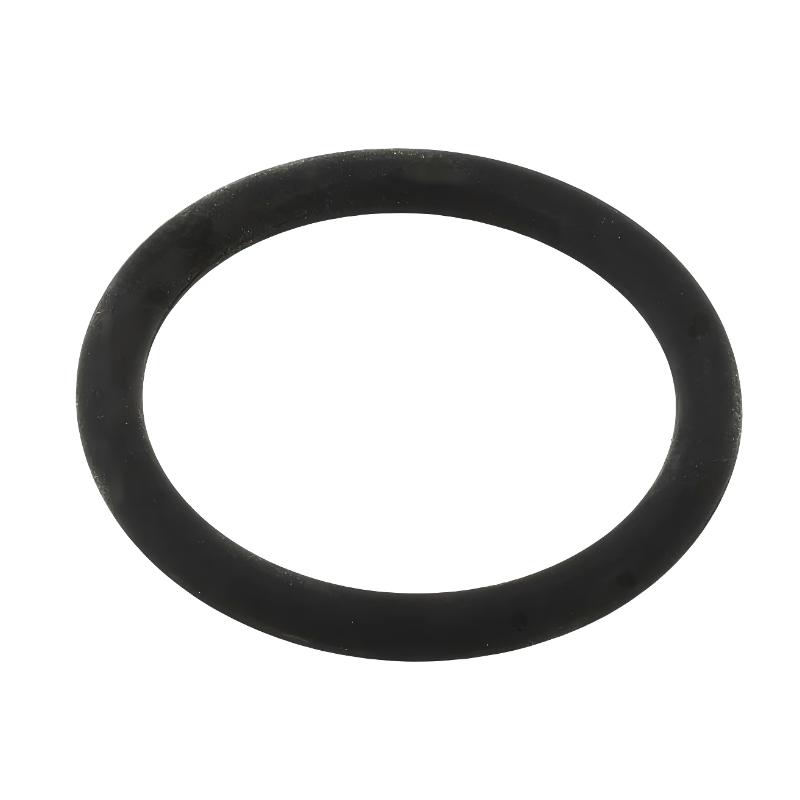

The Ingersoll Rand 47642697001 89292445 Shaft Seal is a precision sealing component associated with gearbox and motor-drive maintenance on compatible rotary screw compressors. 47642697001 is identified as a gearbox maintenance kit for older Cobra M90-160 compressors, while 89292445 is documented as a high-pressure shaft seal for the larger M132-160 configuration.
The shaft seal plays an important role in maintaining the integrity of the compressor's lubricated drive assembly. As the shaft rotates continuously, the sealing interface must control lubricant movement while accommodating shaft rotation and the operating conditions surrounding the gearcase.
89292445 is particularly associated with the larger 200 HP / 132 kW / 160 kW configuration in the R90-160 IU motor assembly documentation. The same parts list identifies 89244024 for the lower 125 HP, 150 HP, 90 kW, and 110 kW configurations, demonstrating why correct part-number verification is important when servicing this family of compressors.
A worn shaft seal can contribute to lubricant leakage around the drive assembly. Replacing the seal during appropriate gearbox maintenance can help restore the intended sealing condition and reduce the risk of continued leakage, contamination, and unnecessary maintenance interruptions.
The relationship between 47642697001 and 89292445 should be treated as a maintenance association rather than confirmation of kit contents. The first number identifies the gearbox maintenance kit, whereas the second identifies a specific shaft seal. The applicable compressor bill of materials should therefore be checked before assuming that 89292445 is supplied with the complete kit.
For maintenance teams, correct seal selection is especially important because visually similar Ingersoll Rand shaft seals can serve different compressor configurations. Matching the seal to the compressor model, power rating, shaft arrangement, and serial number helps avoid installation errors and supports dependable gearbox performance.
Technical Specifications
Specification
Details
Brand
Ingersoll Rand
Maintenance Kit Number
47642697001
Maintenance Kit Type
Gearbox Maintenance Kit
Maintenance Kit Application
Older Cobra M90-160 compressor family
Component Number
89292445
Product Type
Shaft Seal
Seal Description
High-Pressure Shaft Seal / Three-Lip Shaft Seal Assembly
Associated Configuration
M132-160 / 200 HP, 132 kW, 160 kW reference
Primary Function
Rotating-shaft lubrication containment
Seal Design
Three-lip reference
Installation Location
Motor/gearcase shaft sealing arrangement
Mating Components
Application-specific; verify applicable parts documentation
Seal Material
Application-specific
Pressure Rating
Application-specific
Temperature Rating
Application-specific
Shaft Diameter
Application-specific; verify applicable parts documentation
Outside Diameter
Application-specific; verify applicable parts documentation
Overall Height
Application-specific; verify applicable parts documentation
Dimensions
Application-specific; verify applicable parts documentation
Weight
Application-specific; verify applicable parts documentation
Installation
Follow applicable Ingersoll Rand shaft-seal service procedure
Compatibility
Verify compressor model, power configuration, and serial number
Package Contents
Verify against the applicable gearbox maintenance-kit bill of materials
Recommended Companion Models
Model
Product Name
89292460
Shaft Sleeve
22880744
Seal Housing
95023388
O-Ring
39454558
Motor-to-Gearcase Gasket
Frequently Selected Alternatives
Model
Product Name
89244024
High-Pressure Shaft Seal
88142450
Three-Lip Shaft Seal
88142450
Shaft Seal, Ring-Type Oil Seal
89542409
Oil Seal, Single Lip
Where It Excels in Industrial Use
Gearbox Maintenance: 47642697001 is identified as a gearbox maintenance kit for older Cobra M90-160 compressor applications.
Motor-Shaft Sealing: 89292445 is identified as a high-pressure shaft seal for the M132-160 range and as a three-lip shaft seal assembly in Ingersoll Rand parts references.
Gearcase Service: The seal is used within the motor/gearcase sealing arrangement, helping retain lubricant and isolate the rotating shaft interface.
Leak Prevention: A correctly selected shaft seal helps reduce oil leakage around the rotating shaft and supports cleaner, more reliable gearbox operation.
Planned Overhaul Work: The component is particularly relevant when the gearbox or drive assembly is opened for inspection, repair, or scheduled maintenance.
Key Strengths at a Glance
Three-Lip Shaft Seal Design: 89292445 is listed as a three-lip shaft seal assembly, providing multiple sealing interfaces around the shaft.
High-Pressure Shaft-Seal Reference: Ingersoll Rand parts documentation identifies 89292445 as a high-pressure shaft seal for the 200 HP / 132 kW / 160 kW configuration within the R90-160 IU motor assembly.
Application-Specific Construction: The seal is designed around the geometry and operating conditions of the compatible compressor drive arrangement.
Supports Gearcase Integrity: Effective shaft sealing helps retain lubricant within the gearcase and limits contamination entering through the rotating-shaft interface.
OEM Reference Traceability: 89292445 is consistently identified as an Ingersoll Rand shaft-seal reference across compressor parts catalogues and supplier records.
Technical FAQs
1. What is Ingersoll Rand 89292445?
89292445 is an Ingersoll Rand shaft seal, identified in parts documentation as a high-pressure shaft seal and, in broader catalogues, as a three-lip shaft seal assembly.
2. What is 47642697001?
47642697001 is identified as a gearbox maintenance kit for older Cobra M90-160 compressors.
3. What is the relationship between 47642697001 and 89292445?
47642697001 identifies the gearbox maintenance kit, while 89292445 identifies an individual shaft seal. The two numbers alone do not prove that 89292445 is included in every 47642697001 kit.
4. What does the shaft seal do?
The shaft seal forms a controlled sealing interface around the rotating shaft, helping retain lubricant and prevent unwanted leakage through the shaft opening.
5. Why is the three-lip design important?
Multiple sealing lips provide several contact interfaces around the shaft, supporting separation between the lubricated gearcase environment and the surrounding area.
6. Which compressor configuration is associated with 89292445?
In an Ingersoll Rand R90-160 IU motor assembly parts list, 89292445 is specified for the 200 HP, 132 kW, and 160 kW configuration, while 89244024 is listed for the 125 HP, 150 HP, 90 kW, and 110 kW configuration.
7. Can 89292445 be replaced by 89244024?
Not automatically. The parts list distinguishes the two seals by compressor power/configuration, so the compressor model and serial number must be verified before substitution.
8. What should be inspected when replacing 89292445?
The shaft surface, seal housing, sleeve, O-ring, retaining components, and surrounding gearcase should be inspected for wear, scoring, contamination, or damage before reassembly.
9. Can a leaking shaft seal be reused after removal?
No. Once a shaft seal has been removed from its installed sealing position, replacement with a new correctly matched seal is the safer maintenance practice unless the applicable service procedure specifically states otherwise.
10. What is important when installing a new shaft seal?
The shaft and housing should be clean and undamaged, the seal should be oriented correctly, and installation should follow the applicable Ingersoll Rand procedure to avoid damaging the sealing lips or distorting the seal.
