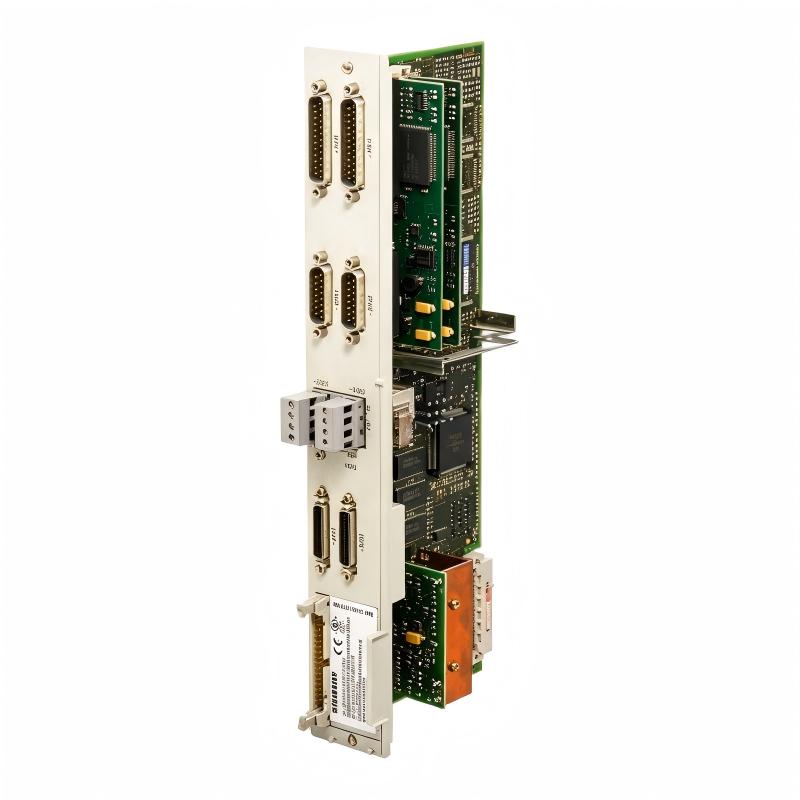

Siemens 6SN1118-0DH21-0AA1 Dual-Axis Plug-in Closed-Loop Performance Control Unit

Applications and Multi-Axis Motion Control Deployment

The Siemens 6SN1118-0DH21-0AA1 Dual-Axis Plug-in Closed-Loop Performance Control Unit is an advanced motion control component designed for precise dual-axis servo regulation in Siemens CNC and automation systems. It provides closed-loop performance management for two motion axes, enabling accurate feedback processing, improved synchronization, and stable machine operation.

In high-performance manufacturing environments, coordinated multi-axis movement is essential for achieving precision machining, faster production cycles, and consistent product quality. The 6SN1118-0DH21-0AA1 supports reliable communication between controllers, servo drives, and feedback devices to maintain accurate axis control.

Typical application areas include:

• CNC machining centers
• Siemens SINUMERIK numerical control systems
• SIMODRIVE servo drive platforms
• Precision manufacturing equipment
• Multi-axis automation machinery
• Industrial robotics applications
• Automated production lines

This dual-axis closed-loop control unit provides engineers with a dependable solution for maintaining accurate motion performance and improving the reliability of existing Siemens automation systems.

Advantages and Engineering Benefits

The Siemens 6SN1118-0DH21-0AA1 Dual-Axis Plug-in Closed-Loop Performance Control Unit combines precise feedback control with efficient dual-axis management, making it suitable for demanding industrial motion applications.

Key advantages include:

• Dual-axis closed-loop regulation
  Provides accurate control of two servo axes through continuous feedback monitoring.
• Improved synchronization capability
  Helps maintain coordinated movement between multiple axes for precise machine operation.
• Enhanced positioning accuracy
  Supports correction of motion deviations for improved repeatability.
• Reliable Siemens system integration
  Designed for compatibility with Siemens CNC and SIMODRIVE motion architectures.
• Efficient plug-in installation design
  Allows convenient integration and replacement within existing control systems.
• Stable industrial performance
  Supports long-term operation in demanding automation environments.

Technical FAQs – Engineering Questions & Answers

1. What is the main function of the Siemens 6SN1118-0DH21-0AA1?
The unit provides closed-loop performance control for two servo axes within Siemens motion systems.

2. Why is closed-loop control important for dual-axis applications?
It enables continuous position monitoring and correction, improving motion accuracy and synchronization.

3. Which Siemens platforms support this control unit?
It is designed for compatible Siemens SINUMERIK and SIMODRIVE automation systems.

4. What are common symptoms of a faulty dual-axis control unit?
Typical symptoms include axis synchronization errors, servo alarms, unstable movement, or feedback failures.

5. How should engineers troubleshoot dual-axis motion faults?
They should check diagnostic messages, feedback signals, wiring, parameters, and connected servo components.

6. What factors can reduce dual-axis positioning accuracy?
Incorrect tuning, mechanical backlash, feedback issues, and configuration errors may affect performance.

7. What should be verified before replacing this control unit?
Engineers should confirm hardware compatibility, parameter settings, system configuration, and wiring connections.

8. How does feedback improve servo axis performance?
Feedback allows the control system to compare actual movement with target values and make corrections.

9. Is commissioning required after installing this module?
Yes. Axis parameters and motion performance should be verified before returning equipment to operation.

10. How can the reliability of the control unit be maintained?
Regular inspection of connectors, cabinet conditions, cooling performance, and system diagnostics is recommended.
