Introduction

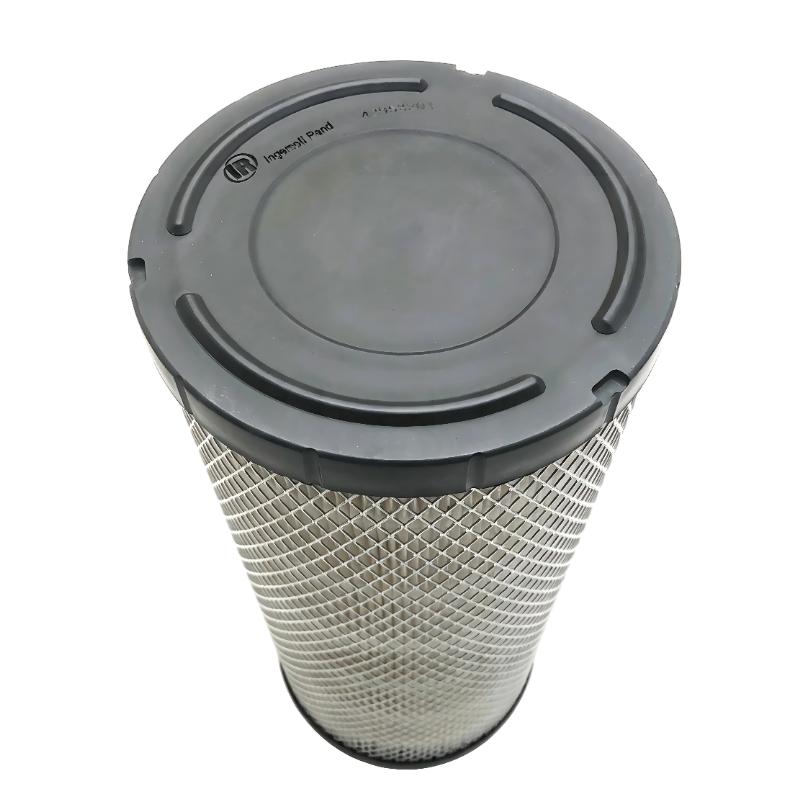

The Ingersoll Rand 47545144001 24172215 Air Filter Element combines a defined preventive-maintenance reference with a dedicated compressor intake filtration component. Ingersoll Rand parts listings identify 47545144001 as a 4,000-hour preventive maintenance kit, while 24172215 is listed as an air filter element associated with the M90-160 compressor family.
Effective intake filtration is fundamental to reliable rotary screw compressor operation. Ambient air can contain dust, dirt, moisture, and other suspended contaminants, and allowing excessive contamination into the compressor can increase the load on internal components and contribute to maintenance requirements. A properly selected air filter helps establish a cleaner inlet-air path.
The 24172215 reference is particularly relevant to M90-160 service because catalogue information explicitly identifies it as an M90-160 air filter. Additional supplier data describes the element as an air compressor intake filter and provides reference filtration characteristics.
Published dimensional information is also available for maintenance planning. One specialist filter catalogue lists the 24172215 configuration at approximately 320 × 150 × 382 mm. Because supplier dimensions can represent a replacement configuration rather than a current OEM drawing, these values should be treated as reference information and confirmed before final procurement.
The relationship between the two supplied numbers should be handled with the same care. 47545144001 is the 4,000-hour maintenance-kit reference, whereas 24172215 is an individual air filter element. The available catalogue listing confirms the maintenance-kit identity but does not provide a complete bill of materials proving that every 47545144001 package contains 24172215.
For maintenance teams, using the correct intake filter supports a straightforward preventive-maintenance strategy. Replacing a loaded or damaged element at the appropriate service interval can help preserve airflow, reduce contamination entering the compressor, and maintain stable operating conditions.
The dedicated 24172215 reference also simplifies purchasing and parts identification. Rather than selecting a generic filter based only on dimensions, maintenance personnel can verify the OEM reference against the machine configuration and current parts documentation.
For final fitment, compressor model and serial number verification remains essential. Air-filter elements that appear similar may differ in sealing geometry, airflow characteristics, filtration performance, or housing compatibility. Matching the complete application is therefore the best way to achieve dependable replacement performance.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Maintenance Kit Number | 47545144001 |
| Maintenance Kit Type | 4,000-Hour Preventive Maintenance Kit |
| Maintenance Kit Application | New Cobra 90-160 / M90-160 family |
| Component Number | 24172215 |
| Product Type | Air Filter Element |
| Primary Function | Compressor intake-air filtration |
| Application Reference | M90-160 |
| Published Reference Dimensions | Approx. 320 × 150 × 382 mm |
| Outer Diameter | Approx. 320 mm, supplier reference |
| Secondary Diameter | Approx. 150 mm, supplier reference |
| Height | Approx. 382 mm, supplier reference |
| Filtration Media | Application-specific filter media |
| Filtration Accuracy | Supplier-specific; verify current OEM specification |
| Filtration Efficiency | Application-specific |
| Service Interval | Application-specific; maintenance schedule governs |
| Operating Temperature | Application-specific |
| Pressure Differential Limit | Application-specific |
| Net Weight | 4.32 kg, supplier listing |
| Package Dimensions | 440 × 330 × 330 mm, supplier listing; package dimensions are not product dimensions |
| Installation Location | Compressor intake / suction system |
| Installation | Follow the applicable Ingersoll Rand service procedure |
| Compatibility | Verify compressor model, serial number, and filter-housing configuration |
| Package Contents | Verify against the applicable 47545144001 bill of materials |
The 4.32 kg net weight and 440 × 330 × 330 mm package dimensions are published supplier data; they should not be interpreted as guaranteed product dimensions for every supplied configuration.
Recommended Companion Models
| Model | Product Name |
| 39911631 | Oil Filter Element |
| 54601513 | Air/Oil Separator Element |
| 24172215 | Air Filter Element |
| 47545145001 | 8,000-Hour Preventive Maintenance Kit |
These references represent related filtration and maintenance components associated with Ingersoll Rand compressor service. They are useful for broader maintenance planning but are not automatically included with 47545144001 or interchangeable with 24172215.
