Introduction

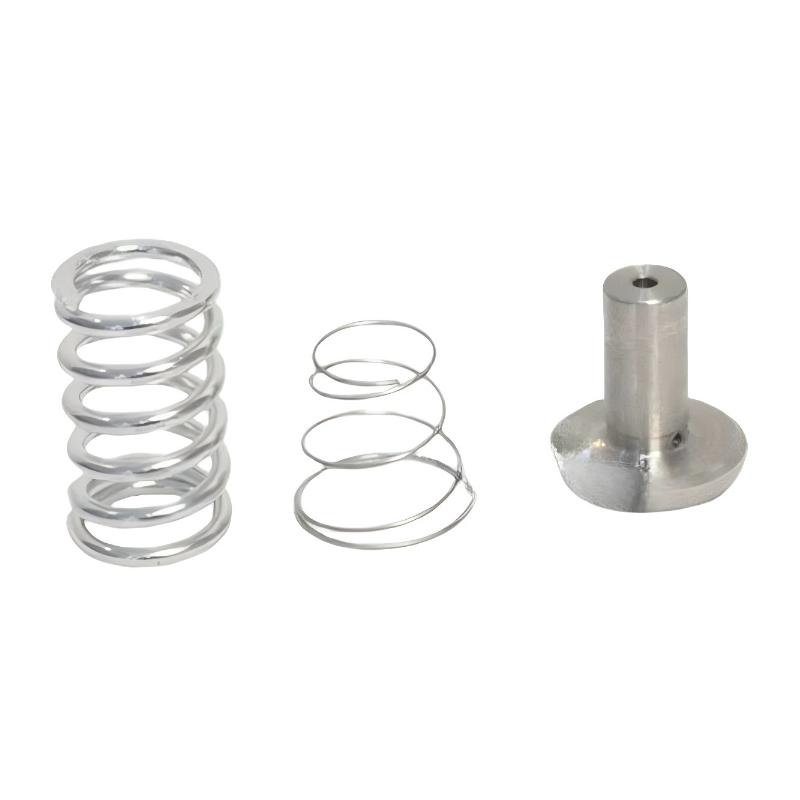

The Ingersoll Rand 47545138001 24553299 Inlet Valve Control Block Repair Kit combination is intended for compressor maintenance involving the inlet-air control system. 47545138001 is identified as an inlet valve service kit with modification for New Cobra M90–160 compressors, while 24553299 is listed as an intake-valve control-block repair kit.
In a rotary screw compressor, the inlet valve is a critical control point between atmospheric air and the compression system. Its position and response influence how the compressor reacts to load demand, unload commands, and changing operating conditions. The control block is part of the mechanism that enables the inlet valve to respond appropriately to the compressor's control system.
The 47545138001 reference is particularly relevant to planned maintenance because it identifies a modified inlet-valve service configuration for the New Cobra M90–160 range. Current parts listings also distinguish this reference from the separate 47548442001 intake-valve maintenance kit used for the same general compressor family.
The modification designation should receive particular attention during procurement. Inlet-valve configurations can change during product updates or field modifications, and a service reference intended for one configuration may not be suitable for another.
The 24553299 reference provides a more specific control-system repair reference. Supplier listings describe it as an Ingersoll Rand control-block repair kit for an intake valve. This makes it relevant when troubleshooting or servicing the control portion of an inlet-valve assembly rather than automatically replacing the complete valve.
A control-block issue can affect compressor behavior in several ways. If the control path does not transmit the intended pneumatic signal, the inlet valve may fail to open, close, or modulate as expected. This can contribute to abnormal loading, unloading, pressure behavior, or capacity response.
However, inlet-valve symptoms should not automatically be attributed to the control block. Blocked pneumatic passages, faulty solenoid valves, damaged control tubing, incorrect pressure signals, actuator problems, and controller faults can create similar operating symptoms. A systematic diagnostic procedure is therefore recommended.
During maintenance, technicians should inspect the control block and associated connections for contamination, leakage, damaged sealing elements, and abnormal wear. Pneumatic passages should be kept clean, and components should be installed according to the applicable compressor service procedure.
The 47545138001 service kit is part of a broader maintenance structure for the New Cobra M90–160 platform. Other associated service references include 47545136001 for temperature-sensing valve maintenance, 47545140001 for air-cooling hose service, 47545143001 for water-cooler seal maintenance, and 47545142001 for gearbox maintenance. These references address different compressor systems and should not be treated as interchangeable.
The distinction between 47545138001 and 24553299 is also important for purchasing. The first identifies a broader modified inlet-valve service requirement, while the second identifies a specific control-block repair-kit reference. The current machine bill of materials should determine whether both are required for a particular maintenance procedure.
Other Ingersoll Rand inlet-valve references are present in compressor parts databases, including 47548442001, 47553880001, 47553881001, and 23531593. Their presence demonstrates the importance of application-specific selection when dealing with inlet-valve components.
For maintenance teams, maintaining accurate records of the installed inlet-valve configuration can significantly simplify future parts selection. Recording the compressor model, serial number, modification status, and installed control-block reference provides a stronger basis for repeat procurement.
Exact internal contents of 24553299, the specific components included in 47545138001, control-block dimensions, materials, pressure characteristics, package dimensions, and weight were not sufficiently verified from authoritative documentation. These values are therefore intentionally not estimated.
For industrial compressor operators and service professionals, accurate control-block identification supports more efficient troubleshooting and maintenance. Matching 47545138001 and 24553299 to the correct compressor configuration helps reduce incorrect-part risk while supporting dependable inlet-valve control and stable compressor operation.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Ingersoll Rand |
| Service Kit Reference | 47545138001 |
| Control-Block Reference | 24553299 |
| 47545138001 Product Type | Inlet Valve Service Kit with Modification |
| 24553299 Product Type | Intake Valve Control Block Repair Kit |
| Primary System | Compressor air-inlet control |
| Primary Function | Inlet-valve control and service |
| Primary Application | New Cobra M90–160 for 47545138001 |
| Configuration | Modified inlet-valve service application |
| Control Function | Supports pneumatic inlet-valve operation |
| Internal Kit Contents | Verify current bill of materials |
| Control-Block Dimensions | Application-specific; verify applicable parts documentation |
| Material | Application-specific; verify current parts documentation |
| Operating Pressure | Application-specific; verify applicable specification |
| Temperature Rating | Application-specific; verify applicable specification |
| Connection Details | Verify compressor-specific configuration |
| Kit Dimensions | Application-specific; verify applicable parts documentation |
| Weight | Packaging-specific; verify supplied product |
| Installation | Follow applicable Ingersoll Rand service documentation |
| Compatibility | Confirm compressor model, serial number, and inlet-valve configuration before ordering |
Available listings identify 24553299 as an intake-valve control-block repair kit and 47545138001 as a modified inlet-valve service kit.
Recommended Companion Models
| Model | Product Name |
| 47545141001 | 16,000-Hour Water-Cooled Preventive Maintenance Kit |
| 47545136001 | Temperature-Sensing Valve Maintenance Kit |
| 47545140001 | Air Cooling Hose Service Kit |
| 47545142001 | Gearbox Maintenance Kit |
These references represent complementary maintenance requirements for compatible New Cobra M90–160 compressor systems and are not direct substitutes for 24553299.
Frequently Selected Alternatives
| Model | Product Name |
| 47548442001 | Intake Valve Maintenance Kit |
| 47553880001 | Intake Valve Service Kit |
| 47553881001 | Intake Valve Service Kit with Modification |
| 23531593 | Intake Valve Service Kit |
