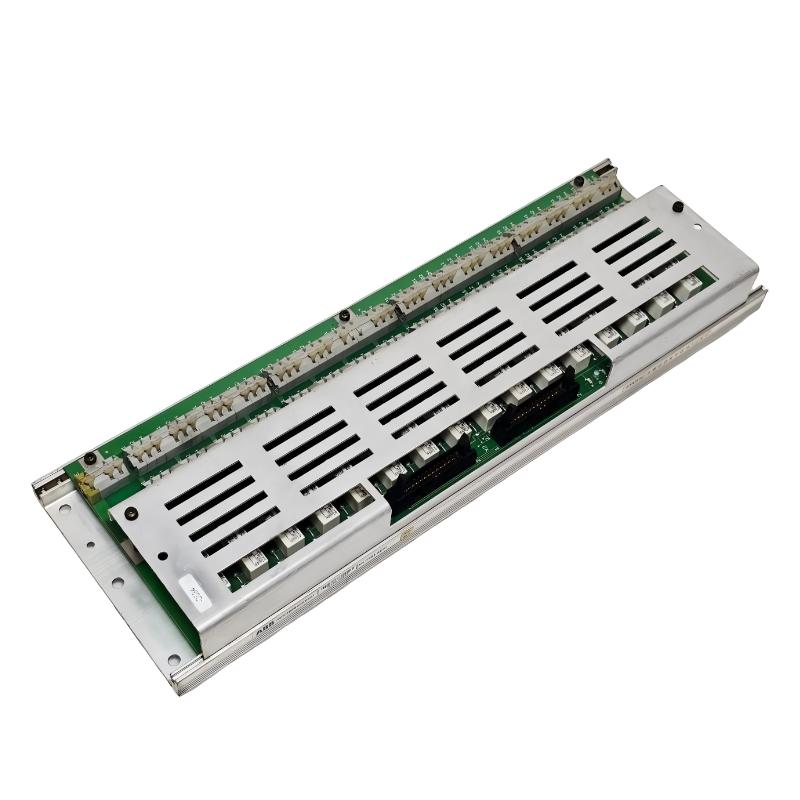

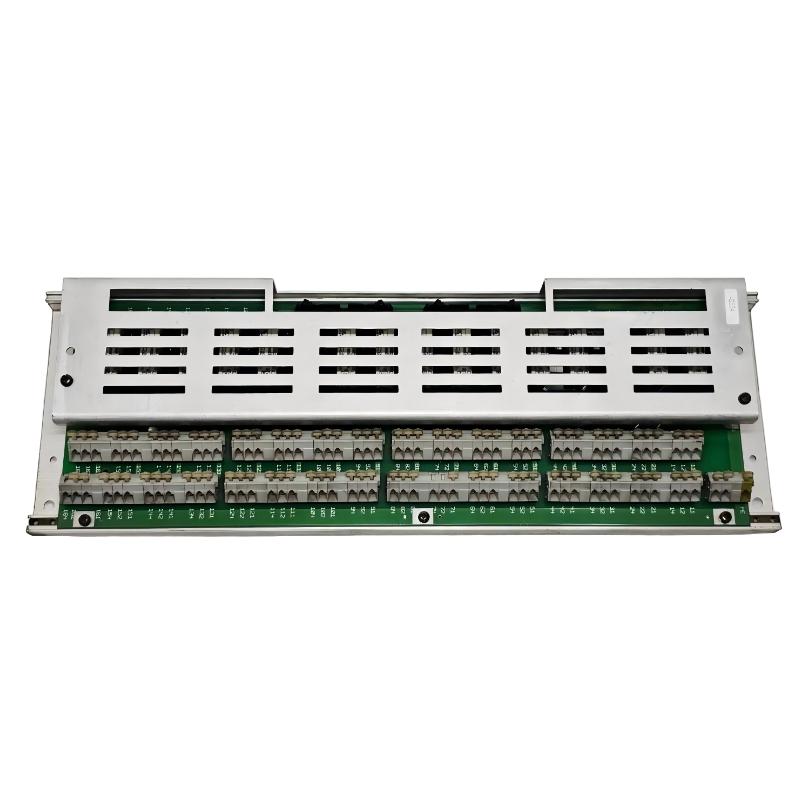

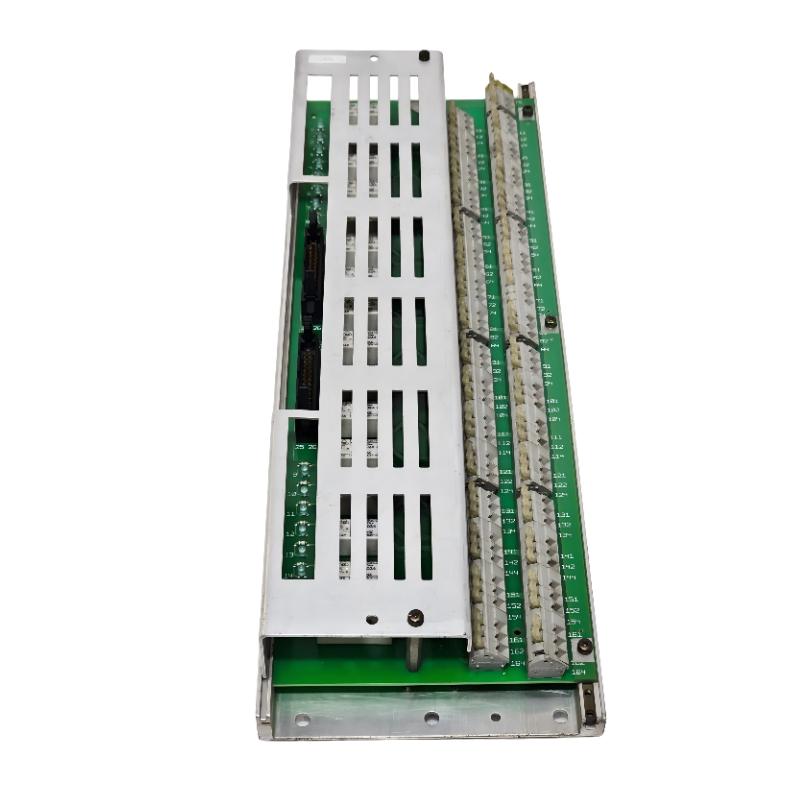

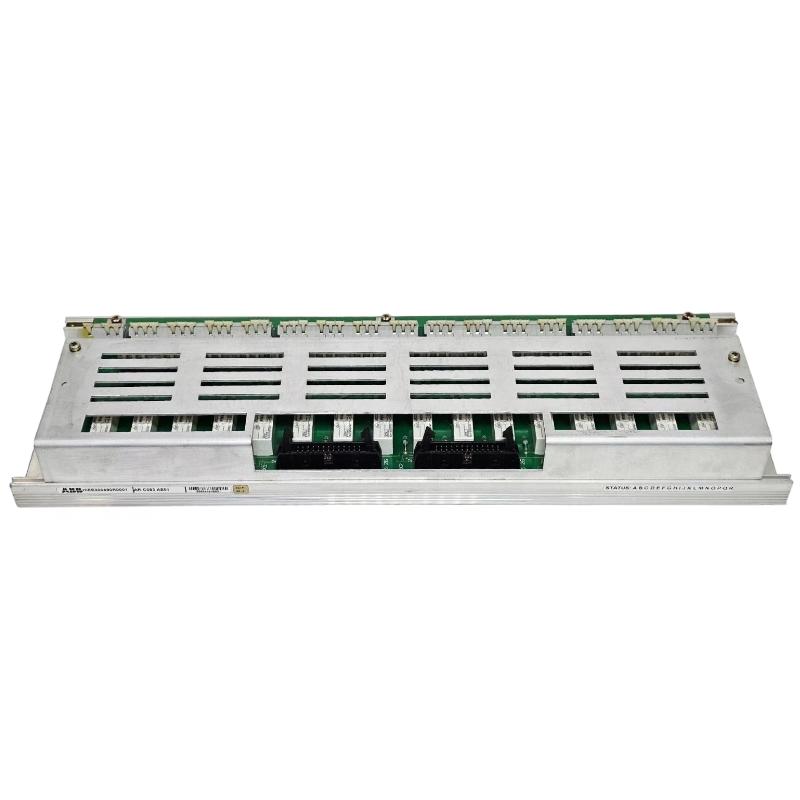

ABB AR C093 AE01 HIEE300690R0001 Relay Output Card

Applications

The ABB AR C093 AE01 HIEE300690R0001 Relay Output Card is an industrial automation output component designed to provide relay-based switching interfaces between a control system and external field devices. It is suitable for applications where control signals need to be electrically isolated or switched through relay contacts before reaching actuators, alarms, contactors, or auxiliary control circuits.

Typical applications include:

• Industrial PLC control systems
• DCS and process-control installations
• Motor control circuits
• Alarm and annunciator systems
• Contactors and interposing relay circuits
• Industrial machinery
• Process equipment
• Remote equipment control
• Control-panel signal distribution
• Legacy ABB automation system maintenance

The relay output architecture makes this type of card particularly useful when the control system needs to interface with field circuits operating at different electrical characteristics. It can serve as an important switching layer between electronic control logic and external equipment.

Advantages

The ABB AR C093 AE01 provides a practical relay-based interface for industrial control systems where dependable signal switching is required. Its role is especially valuable in applications involving mixed control voltages, electrically separated circuits, or field devices that cannot be driven directly from a standard electronic output.

Reliable Relay Switching
Relay contacts provide a straightforward method for switching external control circuits. This makes the output card suitable for contactors, alarms, solenoids, and other compatible field devices.

Electrical Interface Between Systems
The relay output can act as an interposing interface between control electronics and external circuits, helping separate the control-system side from the field-side switching circuit.

Broad Industrial Use
Relay outputs are widely used in process control, machinery, utilities, and factory automation because they can interface with a variety of external devices.

Useful for Legacy-System Maintenance
The HIEE300690R0001 part number is particularly relevant when maintaining established ABB automation equipment. Using the correct replacement card can help preserve an existing control architecture.

Practical Control-Circuit Integration
Relay contacts can be incorporated into permissive circuits, alarm circuits, start/stop commands, interlocks, and other discrete control applications where the contact rating is appropriate.

Compact Module Format
With a specified weight of 0.76 kg (1.68 lb), the card is relatively lightweight for maintenance handling and replacement work.

Technical FAQs

1. What is the ABB AR C093 AE01 HIEE300690R0001 used for?
It is a Relay Output Card used to provide relay-based switching signals from an industrial control system to external circuits and field devices.

2. What types of equipment can a relay output control?
Depending on the contact ratings and circuit requirements, relay outputs can be used with contactors, alarms, indicator circuits, solenoids, interposing relays, and other compatible discrete control loads.

3. Why would a relay output be used instead of a transistor output?
Relay outputs provide physical electrical contacts and can interface with different circuit characteristics. They are often selected when electrical isolation or switching flexibility is important.

4. Can the relay output card be connected directly to a motor?
A relay output should generally not be used to switch a motor's power circuit directly. For motor applications, the relay output is normally used to control an appropriately rated contactor, starter, or other motor-control device.

5. Can the output card be used for alarm circuits?
Yes. Relay outputs are commonly used to activate external alarm circuits, annunciators, indicator lamps, or supervisory inputs when the relevant control condition occurs.

6. What should be checked if a relay output does not switch?
Check the control command, card seating, wiring, relay contact condition, external circuit voltage, connected load, and control-system diagnostics. If the command reaches the card but the contact does not change state, the output channel and associated hardware should be investigated.

7. What can cause repeated relay contact failure?
Excessive current, unsuitable load characteristics, high inrush current, inductive loads, electrical arcing, or switching beyond the specified contact capability can reduce relay life. External suppression may be required for certain inductive loads.

8. Can the output card interface with a PLC or DCS?
Yes, where the card is part of a compatible control-system architecture. The relay output can provide discrete switching information to external control equipment when the electrical interface is correctly matched.

9. What should be verified before replacing the HIEE300690R0001 card?
Verify the exact part number, system position, channel configuration, terminal wiring, connected load characteristics, and control-system compatibility. The replacement should match the original hardware configuration.

10. How should a relay output card be tested after installation?
Verify card installation and wiring first. Then command each required output through the control system and confirm the corresponding relay contact changes state. The downstream device should also be checked to ensure it responds correctly to the output command.
