Introduction

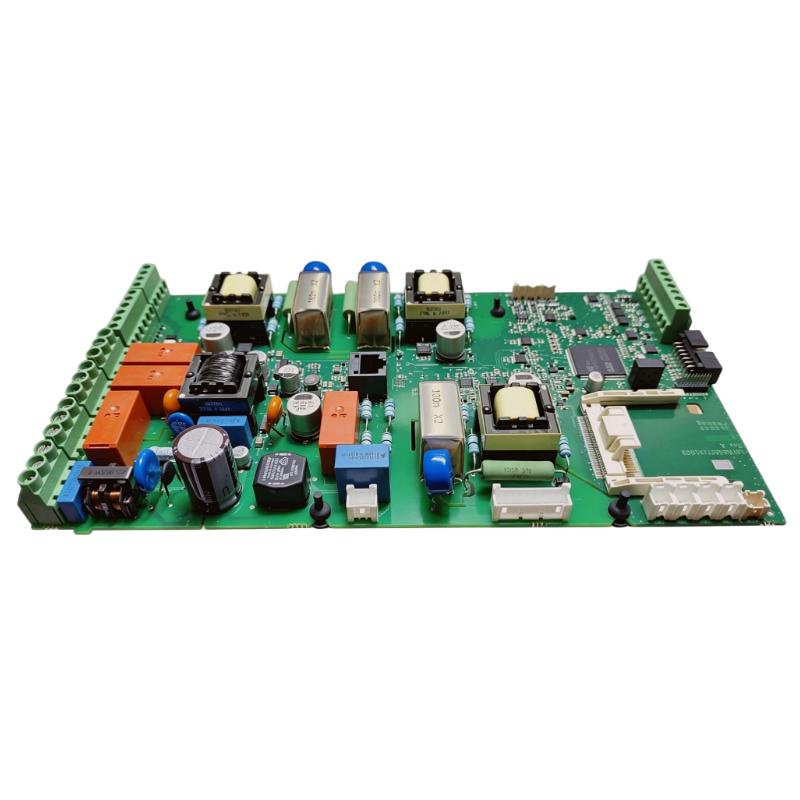

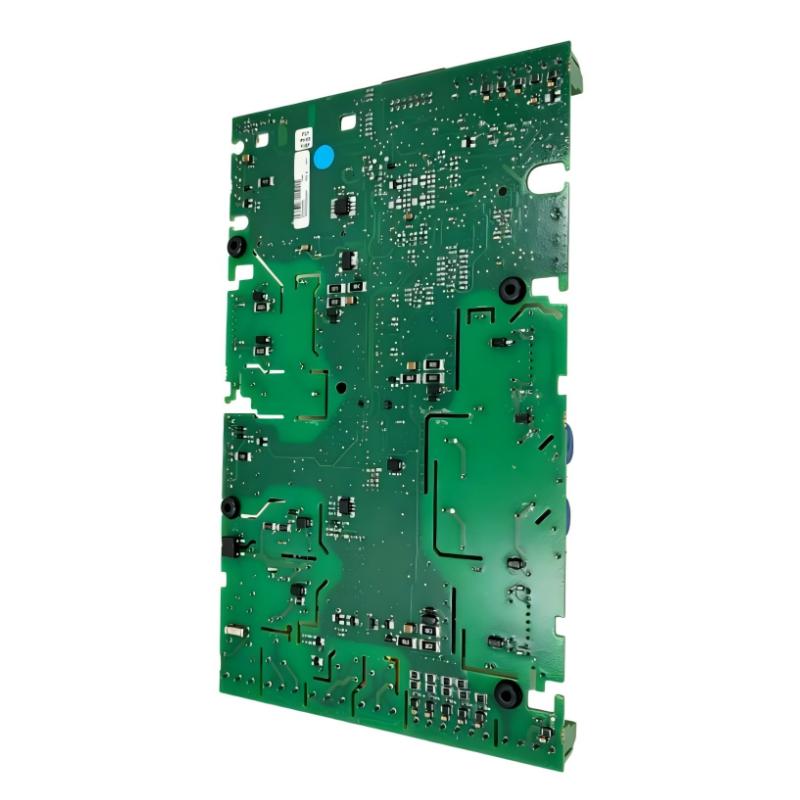

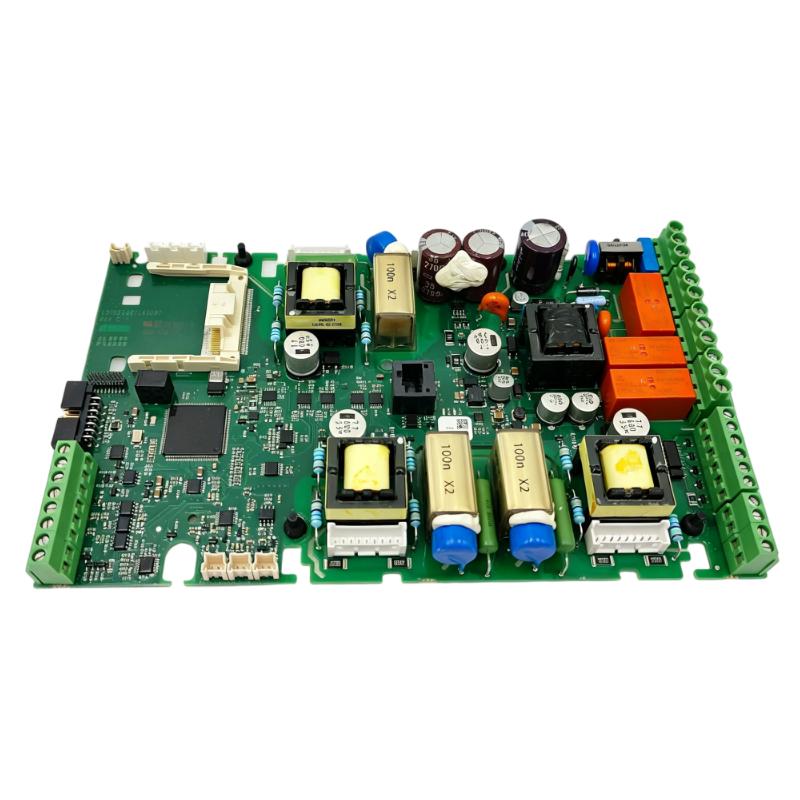

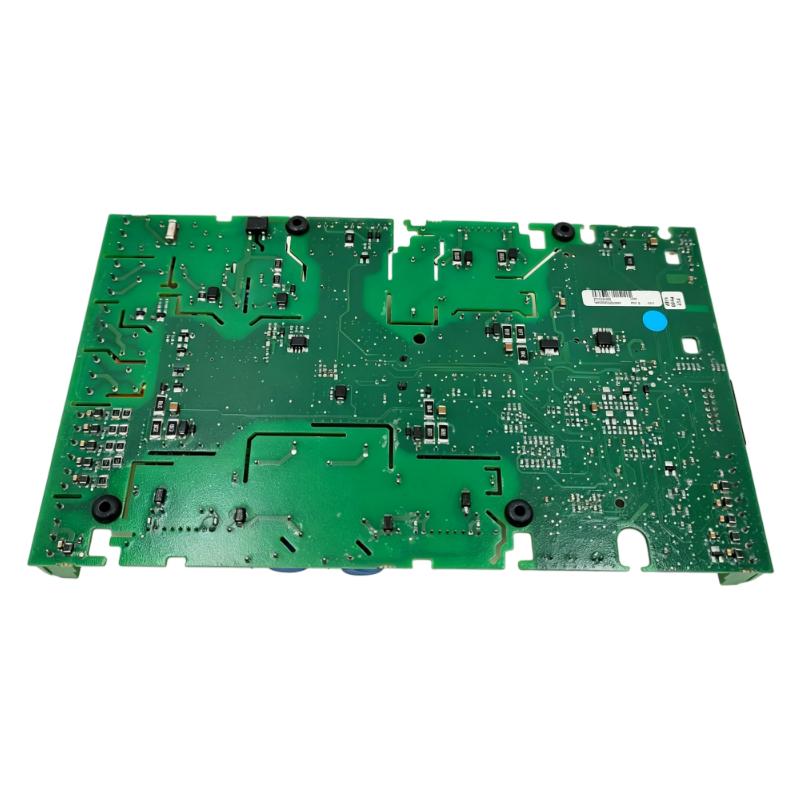

The ABB 1SFB536271A1009 Soft Start Control Board is a dedicated control component for soft-starter equipment. In a motor-control system, the control board serves as the electronic coordination point between operator commands, monitoring functions, protection logic, and the soft starter's power-control circuitry.

Traditional direct-on-line motor starting can produce a significant inrush current and an abrupt mechanical torque response. For larger motors or sensitive mechanical systems, this can place unnecessary stress on the electrical supply and driven equipment. A soft starter addresses this problem by controlling the motor's starting process.

The control board is therefore a critical part of the overall soft-start architecture. If the board develops a fault, the soft starter may be unable to interpret commands correctly, may generate unexpected alarms, or may fail to execute the required starting sequence.

For maintenance teams, the 1SFB536271A1009 can be an important replacement component when servicing compatible ABB soft-starter equipment. Before installation, technicians should document the existing wiring and connector positions and verify that the replacement board corresponds exactly to the installed soft-starter configuration.

After installation, functional testing should be carried out carefully. A controlled startup should confirm that the soft starter responds correctly to commands and that the motor accelerates smoothly without unexpected trips.

Technical Specifications

Parameter	Specification
Brand	ABB
Part Number	1SFB536271A1009
Product Type	Soft Start Control Board
Application	Soft Starter Control
Primary Function	Motor Starting Control
Typical Equipment	Industrial Soft Starters
Typical Applications	Pumps, Fans, Compressors, Conveyors and Industrial Motors
Control Application	Motor Acceleration and Soft-Start Management
Dimensions	280 × 40 × 100 mm
Weight	0.60 kg (1.32 lb)

The 280 × 40 × 100 mm form factor allows the board to be integrated into the corresponding soft-starter assembly without occupying excessive space. Its 0.60 kg (1.32 lb) weight also makes it manageable for field replacement and maintenance work.

Because control boards are closely associated with the hardware and firmware configuration of the host soft starter, replacement should always be based on the complete part number and equipment compatibility rather than physical appearance alone.

Recommended Related Models

Model	Product Type	Typical Application
ABB PSTX	Soft Starter	Advanced industrial motor starting
ABB PSTB	Soft Starter	Heavy-duty motor starting
ABB PSE	Soft Starter	Compact motor starting
ABB PSS	Soft Starter	Industrial soft-start applications
ABB PSR	Soft Starter	Compact motor control

These ABB soft-starter families are relevant when evaluating compatible motor-starting equipment or planning modernization projects. The appropriate choice depends on motor rating, supply conditions, starting requirements, control method, and application characteristics.

Popular Related Models

Model	Product Type	Application
ABB PSTX	Soft Starter	Advanced motor control
ABB PSTB	Soft Starter	Heavy-duty industrial motors
ABB PSE	Soft Starter	General industrial motor starting
ABB PSS	Soft Starter	Industrial soft-start systems
ABB PSR	Soft Starter	Compact motor starting

For replacement projects, the control board should be matched to the exact soft-starter assembly. Checking the starter model, hardware revision, connector arrangement, control configuration, and application requirements before installation can significantly reduce commissioning problems.

Applications

The ABB 1SFB536271A1009 Soft Start Control Board is designed for soft-starter control applications where controlled motor acceleration and deceleration are required. As a control component within a soft-start system, the board supports the electronic control functions needed to manage motor starting behavior and coordinate the operation of the soft starter.

Typical applications include:

Industrial motor starting systems
Pumps and water-handling equipment
Fans and ventilation systems
Compressors
Conveyors and material-handling machinery
HVAC motor systems
Industrial production machines
Process equipment
Motor-control panels
Soft-starter maintenance and replacement projects

Soft-start technology is particularly valuable for motors that would otherwise create high starting currents or excessive mechanical stress during direct-on-line starting. A properly functioning control board helps the soft starter manage the transition from standstill to normal motor operation in a controlled manner.

Advantages

The ABB 1SFB536271A1009 provides the control intelligence required within a soft-start arrangement, making it an important component for reliable motor starting applications.

Controlled Motor Acceleration
A soft-start control system can gradually increase motor voltage during startup, helping reduce the electrical and mechanical stress associated with direct starting.

Reduced Starting Stress
Controlled acceleration can help reduce mechanical shock in connected equipment such as pumps, conveyors, fans, and compressors.

Improved Motor-System Operation
A correctly functioning control board allows the soft starter to execute its intended starting sequence and respond appropriately to control commands and monitored conditions.

Useful for Industrial Motor Applications
Soft starters are widely used in applications where motors are frequently started or where the driven machine requires a smoother acceleration profile.

Maintenance-Friendly Replacement
For ABB soft-starter systems, replacing a failed control board can be considerably more practical than replacing the complete soft starter, provided the board is correctly identified and compatible with the existing assembly.

Compact Construction
The board measures 280 × 40 × 100 mm and weighs 0.60 kg (1.32 lb), making it relatively easy to handle during service and replacement operations.

Technical FAQs

1. What is the ABB 1SFB536271A1009 used for?
It is a Soft Start Control Board intended for ABB soft-starter applications. The board provides control functions required for managing motor starting and related soft-starter operations.

2. Why is a control board important in a soft starter?
The control board coordinates the electronic functions that allow the soft starter to respond to start and stop commands, regulate the starting process, and monitor relevant operating conditions.

3. What types of motors can use a soft starter?
Soft starters are commonly used with three-phase induction motors in applications such as pumps, fans, compressors, conveyors, and industrial machinery, provided the motor and soft starter are correctly matched.

4. Can a soft starter eliminate motor starting current completely?
No. A soft starter controls the motor's starting process but does not eliminate starting current. The objective is to reduce and manage the current compared with an uncontrolled direct-on-line starting condition.

5. Why might a motor fail to start after replacing the control board?
Possible causes include incorrect board installation, incompatible hardware, incorrect control wiring, missing enable signals, configuration problems, protection trips, or faults elsewhere in the soft starter or motor circuit.

6. What should be checked if the soft starter immediately trips during startup?
Check the motor supply, phase connections, motor condition, starting parameters, current limit, acceleration settings, protection status, and any fault indication generated by the soft starter.

7. Can a control-board fault cause an abnormal motor starting sequence?
Yes. If the control board cannot correctly process commands or control the soft-starter power section, the motor may fail to accelerate normally or the unit may enter a protective state.

8. What should be verified before installing a replacement control board?
Verify the exact part number, soft-starter model, board position, connectors, wiring, configuration requirements, and revision compatibility. The power section and control board must be matched correctly.

9. How can a control-board problem be distinguished from a power-section problem?
Start by checking control power, diagnostic indications, command signals, connector integrity, and configuration. If the control functions appear normal but the expected power-stage behavior is absent, further testing of the power section may be required.

10. What commissioning checks should be performed after replacing the board?
Verify all connectors and wiring, confirm the control configuration, check motor and supply connections, review protection settings, and perform a controlled start test. The motor should be monitored for current, acceleration behavior, abnormal noise, and fault indications.
