Introduction

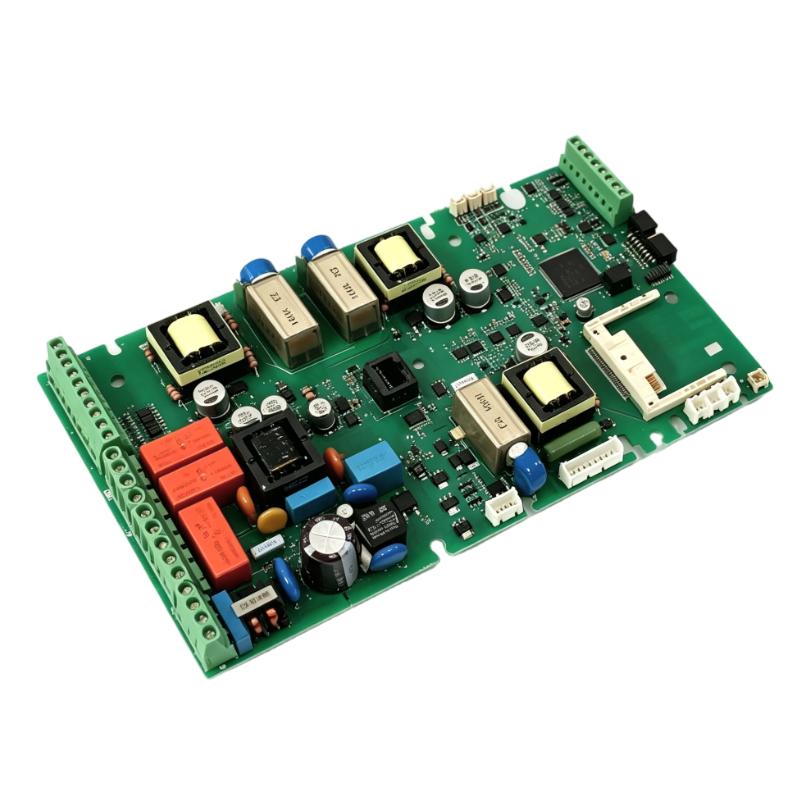

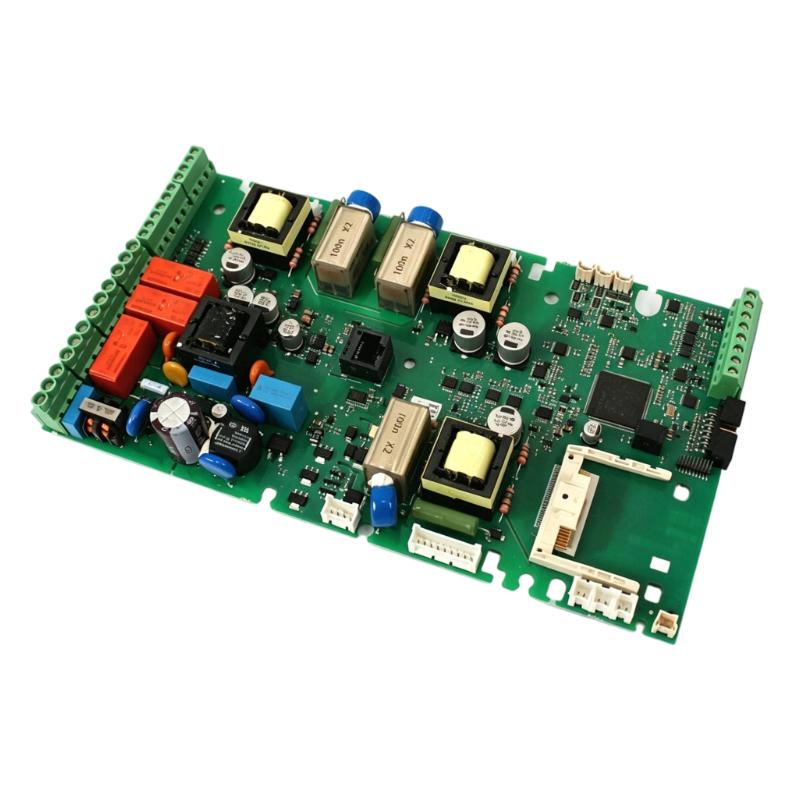

The ABB 1SFB536268D1008 Soft Start Control Board is a specialized electronic component used within compatible ABB soft-starter equipment. In an industrial motor-control system, the soft starter's control electronics are responsible for coordinating commands and monitoring functions with the power-control section that manages the motor's starting process.

A soft starter is often selected when direct-on-line starting produces excessive current or mechanical shock. Instead of applying full motor voltage immediately, the starter manages the starting sequence to provide a smoother transition toward normal operating conditions.

The control board is an essential part of this architecture. It interprets the required operating commands, coordinates the starter's control functions, and participates in monitoring and protective actions. If the control board becomes defective, the soft starter may fail to start the motor, produce unexpected fault indications, or operate incorrectly.

The 1SFB536268D1008 is therefore a valuable maintenance component for compatible ABB soft-starter systems. When replacing it, technicians should first document the existing board installation, connector locations, control wiring, and equipment configuration. This helps reduce the risk of incorrect installation.

After replacement, commissioning should be performed in stages. Control functionality should be verified before applying a normal motor-start command, followed by a controlled test of acceleration and stopping behavior.

Technical Specifications

Parameter	Specification
Brand	ABB

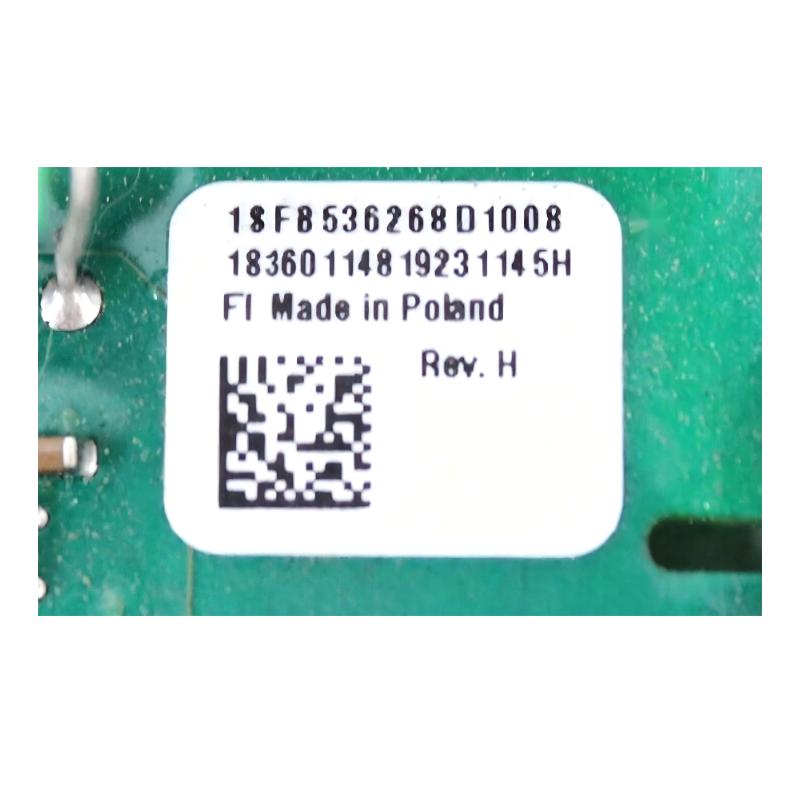

Part Number	1SFB536268D1008
Product Type	Soft Start Control Board
Application	Industrial Soft Starter
Primary Function	Soft-Starter Control
Typical Equipment	ABB Soft-Starter Systems
Typical Applications	Pumps, Fans, Compressors, Conveyors and Industrial Machinery
Control Role	Start/Stop Control, Monitoring and Protection Coordination
Dimensions	280 × 40 × 100 mm
Weight	0.60 kg (1.32 lb)

The board measures 280 × 40 × 100 mm and weighs 0.60 kg (1.32 lb). Its compact construction is suitable for installation within the corresponding soft-starter assembly.

When sourcing this component, the complete 1SFB536268D1008 identifier should be used. Physical similarity between electronic boards does not guarantee electrical or functional compatibility, so the host soft-starter model and board configuration should also be confirmed.

Recommended Related Models

Model	Product Type	Typical Application
ABB PSR	Soft Starter	Compact industrial motor starting
ABB PSS	Soft Starter	General industrial soft-start systems
ABB PSE	Soft Starter	Motor starting and control
ABB PSTB	Soft Starter	Heavy-duty motor applications
ABB PSTX	Soft Starter	Advanced motor starting and control

These products belong to ABB's broader soft-starter portfolio and may be considered for related motor-control applications. The appropriate solution depends on motor rating, starting characteristics, supply conditions, control requirements, and application environment.

Popular Related Models

Model	Product Type	Typical Use
ABB PSR	Soft Starter	Compact motor starting
ABB PSS	Soft Starter	Industrial motor-control applications
ABB PSE	Soft Starter	Standard soft-start applications
ABB PSTB	Soft Starter	Heavy-duty motor starting
ABB PSTX	Soft Starter	Advanced industrial motor control

For maintenance and refurbishment work, the correct control board should always be selected according to the exact soft-starter configuration. Verifying the complete part number, equipment model, connector arrangement, control parameters, and application requirements before installation can help ensure a smooth return to service.

Applications

The ABB 1SFB536268D1008 Soft Start Control Board is designed for use within compatible ABB soft-starter systems, providing the electronic control functions required for controlled motor starting and stopping. As a dedicated control component, it works with the soft starter's power section to manage operating commands, monitoring functions, and protective responses.

The board can be applied in industrial motor-control environments where smooth acceleration and controlled starting performance are important.

Typical applications include:

Industrial pump stations
Water and wastewater pumping systems
Fans and ventilation equipment
Air and process compressors
Conveyors and material-handling equipment
HVAC motor systems
Industrial production machinery
Process-control equipment
Large motor-control panels
Soft-starter repair and replacement projects

The control board is particularly relevant where the soft starter must coordinate electrical control functions with the motor and connected mechanical equipment. A properly functioning control assembly helps ensure that the starter follows its configured operating sequence.

Advantages

The ABB 1SFB536268D1008 provides a dedicated electronic control platform for compatible soft-starter assemblies. For maintenance engineers, its primary value is the ability to restore the control functionality of an existing soft starter without necessarily replacing the complete unit.

Controlled Motor Starting
The control architecture supports the soft starter's ability to manage motor acceleration instead of applying full starting conditions immediately.

Reduced Mechanical Shock
A controlled acceleration profile can reduce sudden torque transmission to couplings, gearboxes, pumps, conveyors, and other driven machinery.

Better Starting Management
The control board coordinates operating commands and monitoring functions so that the soft starter can respond appropriately to normal and abnormal operating conditions.

Suitable for Industrial Applications
The board is intended for industrial soft-starter assemblies and can support motor-control applications across manufacturing, utilities, HVAC, and process industries when matched with compatible equipment.

Practical Repair Component
When the control electronics are defective but the remaining soft-starter hardware is serviceable, replacing the control board can be a more efficient maintenance approach than changing the complete starter.

Compact Form Factor
The 280 × 40 × 100 mm dimensions allow the board to fit within its corresponding soft-starter assembly, while the 0.60 kg (1.32 lb) weight makes it manageable during maintenance.

Technical FAQs

1. What is the ABB 1SFB536268D1008 Soft Start Control Board?
It is a dedicated control board for compatible ABB soft-starter equipment. The board provides electronic control functions associated with motor starting, operating commands, monitoring, and protection coordination.

2. What is the purpose of a soft-start control board?
The board coordinates the control functions that allow the soft starter to regulate motor starting and stopping. It also processes relevant control and monitoring information within the starter.

3. Why is controlled motor acceleration beneficial?
Controlled acceleration can reduce high starting stress and sudden torque changes. This can be particularly valuable for pumps, compressors, conveyors, fans, and other mechanically coupled equipment.

4. Is the 1SFB536268D1008 interchangeable with every ABB soft-start control board?
No. Control boards are designed for specific equipment configurations. The exact part number and compatible soft-starter assembly must be verified before replacement.

5. What symptoms could indicate a control-board problem?
Possible symptoms include failure to recognize start commands, abnormal diagnostic indications, unexpected trips, incorrect control responses, or failure to coordinate the soft starter's power section. Similar symptoms can also result from external wiring or power-stage faults.

6. What should be checked before replacing the control board?
Check the soft-starter model, incoming power, control supply, wiring, connectors, fault indications, command signals, and power-stage condition. These checks can help confirm whether the control board is actually the source of the problem.

7. Can a damaged connector cause control-board faults?
Yes. Poor connector engagement, contamination, damaged pins, or loose connections can interrupt control signals and produce symptoms that resemble an electronic board failure.

8. What should be done if the motor does not start after board replacement?
Check the control wiring, start command, motor supply, protection settings, configuration parameters, and soft-starter diagnostic status. The motor and power section should also be tested if the control signals appear normal.

9. How should the board be handled during replacement?
The board should be handled using appropriate electrostatic-discharge precautions and installed only after the equipment has been safely isolated. Connectors and mounting points should be checked carefully before energizing the starter.

10. What commissioning tests are recommended after installation?
Verify all connectors and wiring, confirm the configured control parameters, check protection settings, and perform a controlled motor-start test. The motor current, acceleration behavior, fault status, and stopping response should be monitored.
