Introduction

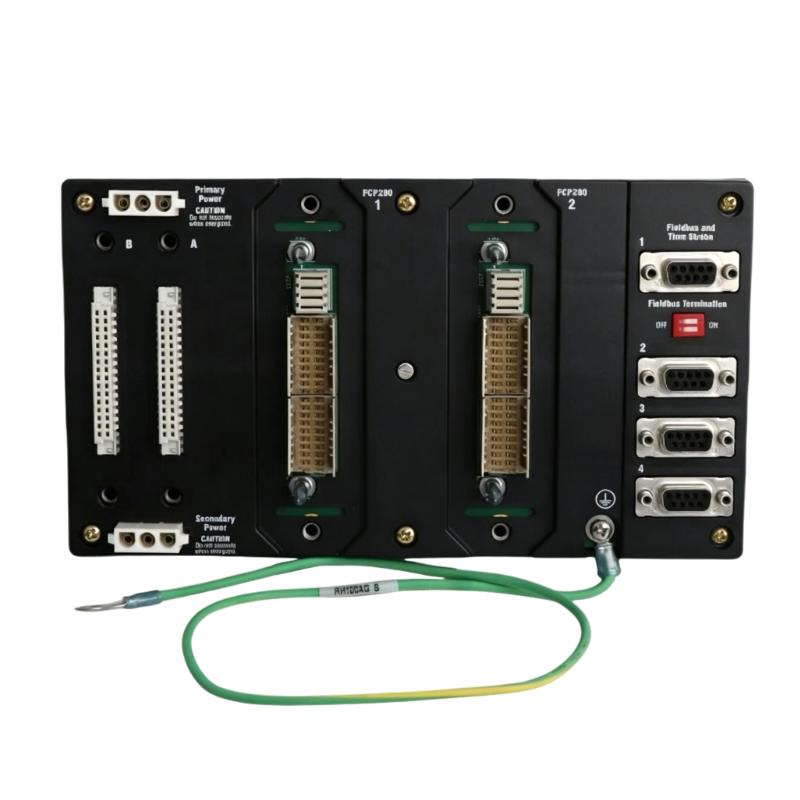

The Foxboro FCP280 RH924YF Vertical Mounting Base Plate is a mechanical support component associated with Foxboro control-system installations. While control-system performance is often discussed in terms of processors, I/O modules, networks, and software, the physical mounting system is equally important to long-term equipment reliability.

Industrial control cabinets can contain a high density of electronic equipment and wiring. A correctly designed mounting arrangement keeps equipment securely positioned and provides predictable access for installation and maintenance.

The RH924YF is intended for a vertical mounting arrangement, allowing compatible equipment to be positioned in the required orientation. This can be particularly useful in control cabinets where available panel space and equipment orientation are important considerations.

A mounting base should provide more than simple physical support. Proper alignment can reduce mechanical stress on connectors and cables while making maintenance procedures easier. Loose or incorrectly positioned mounting hardware may eventually result in movement, connector strain, or difficult-to-diagnose intermittent faults.

During replacement, technicians should inspect the mounting area before installing the new base plate. The cabinet structure, mounting holes, fasteners, and adjacent equipment should all be checked for damage or deformation.

Once installed, the base plate should be securely fastened and aligned with the associated equipment. Cable routing should avoid placing unnecessary mechanical tension on connectors.

The specified dimensions of the Foxboro FCP280 RH924YF are 150 × 35 × 110 mm, and its weight is 0.35 kg (0.77 lb). Its compact format makes it practical for control-panel applications where efficient use of cabinet space is required.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	FCP280 RH924YF
Product Type	Vertical Mounting Base Plate
Application	Control System Mechanical Mounting
Compatible Platform	Foxboro FCP280 System
Mounting Orientation	Vertical
Primary Function	Equipment Support and Alignment
Typical Installation	Industrial Control Cabinet
Dimensions	150 × 35 × 110 mm
Weight	0.35 kg (0.77 lb)

The Foxboro FCP280 RH924YF measures 150 × 35 × 110 mm and weighs 0.35 kg (0.77 lb).

The base plate should be installed on a structurally suitable mounting surface using the appropriate fastening method. The mounting assembly should remain secure under the expected vibration and environmental conditions of the control cabinet.

Recommended Related Models

Model / Series	Product Type	Typical Application
Foxboro FCP280	Field Control Processor	Distributed process control
Foxboro FCP280 Mounting Accessories	Mounting Hardware	Control cabinet installation
Foxboro FCP280 I/O Modules	I/O Module	Process signal interface
Foxboro FCP280 Communication Components	Communication Hardware	Control-system networking
Foxboro Control System Power Modules	Power Supply Hardware	Control-system power

These related components support different aspects of a Foxboro control installation, from processing and I/O to mechanical mounting and power distribution. Compatibility should always be confirmed against the specific system configuration.

Popular Related Models

Model / Series	Product Type	Typical Use
Foxboro FCP280	Field Control Processor	Process automation
Foxboro FCP280 I/O Series	I/O Modules	Field signal processing
Foxboro FCP280 Communication Series	Communication Hardware	Control networking
Foxboro FCP280 Mounting Accessories	Mounting Components	Cabinet installation
Foxboro Control System Power Modules	Power Supply	System power distribution

For replacement work, verify the complete FCP280 RH924YF designation and mounting orientation before installation. The mounting location, equipment alignment, fastening arrangement, cabinet structure, and cable routing should all be checked to ensure the base plate provides secure and reliable mechanical support.

Applications

The Foxboro FCP280 RH924YF Vertical Mounting Base Plate is a mechanical mounting component designed to support vertical installation arrangements within compatible Foxboro control system assemblies. Its primary role is to provide a stable physical interface between the control hardware and the mounting structure.

Typical applications include:

Foxboro distributed control systems
Industrial process automation
Chemical processing plants
Oil and gas facilities
Refining applications
Power-generation facilities
Water and wastewater treatment
Pharmaceutical production
Manufacturing automation
Control cabinet installations

A properly installed mounting base is important for maintaining equipment alignment, cable routing, connector accessibility, and mechanical stability. In a control cabinet, even a relatively simple mounting component can influence the reliability and maintainability of the complete installation.

Advantages

The FCP280 RH924YF provides a dedicated mechanical solution for vertical mounting applications within compatible Foxboro control architectures.

Designed for Vertical Installation
The base plate supports a vertical mounting arrangement, helping maintain the intended orientation of compatible control equipment.

Stable Mechanical Support
A rigid mounting interface helps reduce unwanted movement and mechanical stress on connected equipment and wiring.

Improved Cabinet Organization
The dedicated mounting format can help engineers maintain a more structured control-panel layout.

Supports Connector Alignment
Correct positioning of the mounting hardware can help keep associated modules and connectors properly aligned.

Maintenance-Friendly Arrangement
A defined mounting point can make inspection and replacement work more predictable for maintenance personnel.

Compact Physical Format
The base plate measures 150 × 35 × 110 mm, making it suitable for installations where cabinet space must be used efficiently.

Lightweight Component
The specified weight is only 0.35 kg (0.77 lb), allowing easy handling during panel assembly and service operations.

Technical FAQs

1. What is the Foxboro FCP280 RH924YF used for?
It is a vertical mounting base plate intended to provide mechanical support for compatible Foxboro FCP280-related control equipment.

2. Why is correct mounting important for control-system hardware?
Proper mounting maintains mechanical stability, equipment alignment, connector positioning, and appropriate cable routing, reducing the risk of installation-related problems.

3. Can the RH924YF be installed horizontally?
It should be used according to the mounting arrangement for which the part is designed. The specified application is vertical mounting, so an alternative orientation should not be assumed to be equivalent.

4. What can happen if the mounting base is loose?
Excessive movement can place stress on connectors, cables, mounting hardware, and associated modules. Over time, this may contribute to intermittent faults or mechanical damage.

5. What should be checked if a mounted module appears misaligned?
Inspect the base plate, mounting hardware, equipment seating, enclosure structure, and mounting holes. Verify that no mechanical deformation or foreign material is preventing proper seating.

6. Can the base plate affect electrical performance?
The base plate itself is primarily a mechanical component, but poor mounting can indirectly affect electrical reliability if it causes connector strain, cable movement, grounding problems, or inadequate equipment seating.

7. What should be checked before installing a replacement base plate?
Verify the complete part number, mounting orientation, hole pattern, compatible equipment, cabinet arrangement, and required mounting hardware.

8. How can mechanical vibration affect a mounting assembly?
Persistent vibration can loosen fasteners and place repeated mechanical stress on connectors and cables. Appropriate fastening and installation practices are therefore important in industrial environments.

9. Should the base plate be inspected during preventive maintenance?
Yes. Technicians should check for loose fasteners, deformation, corrosion, cracks, unusual movement, and signs of mechanical stress.

10. What should be verified after installing the RH924YF?
Confirm that the base plate is securely fastened, correctly oriented, and properly aligned with the associated control equipment. Cable routing and connector seating should also be checked before returning the system to operation.
