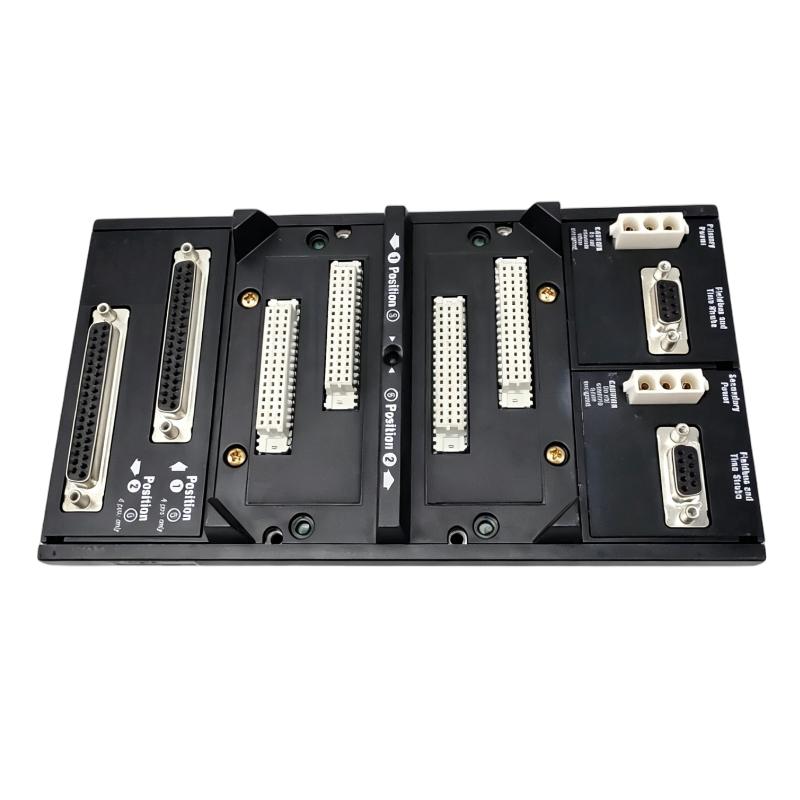

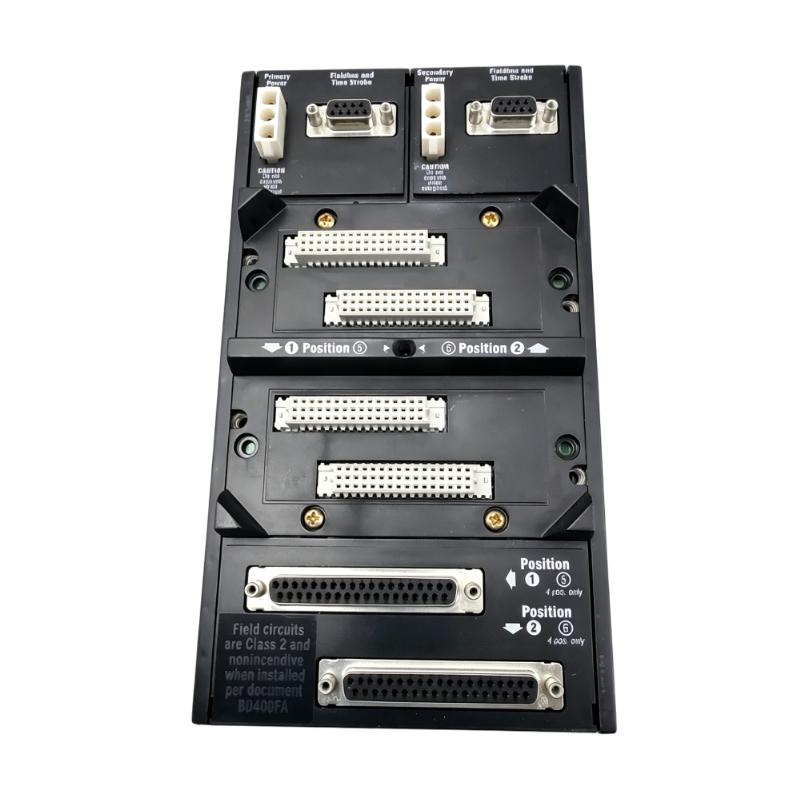

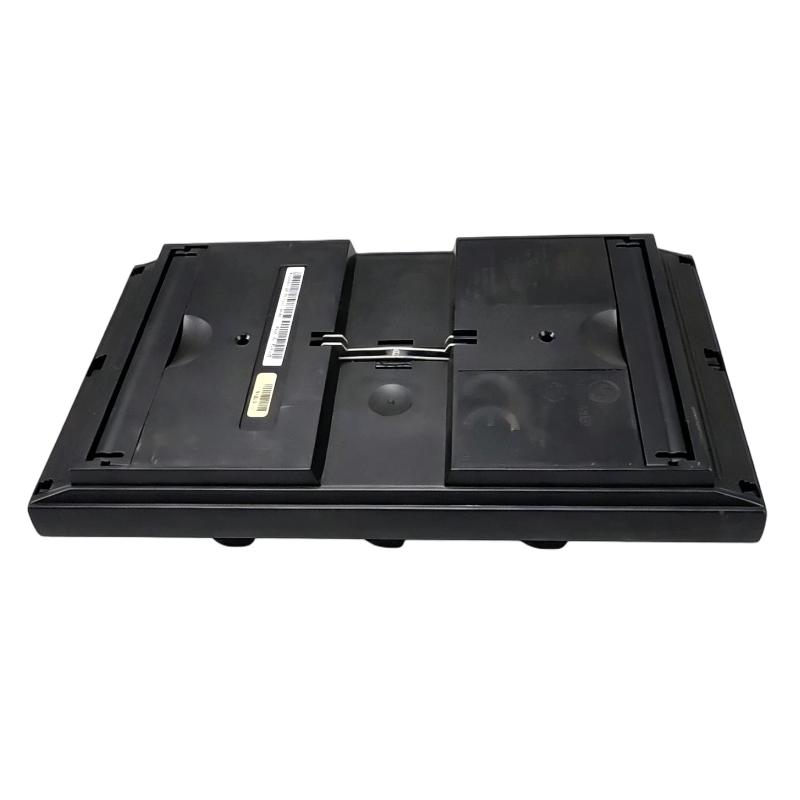

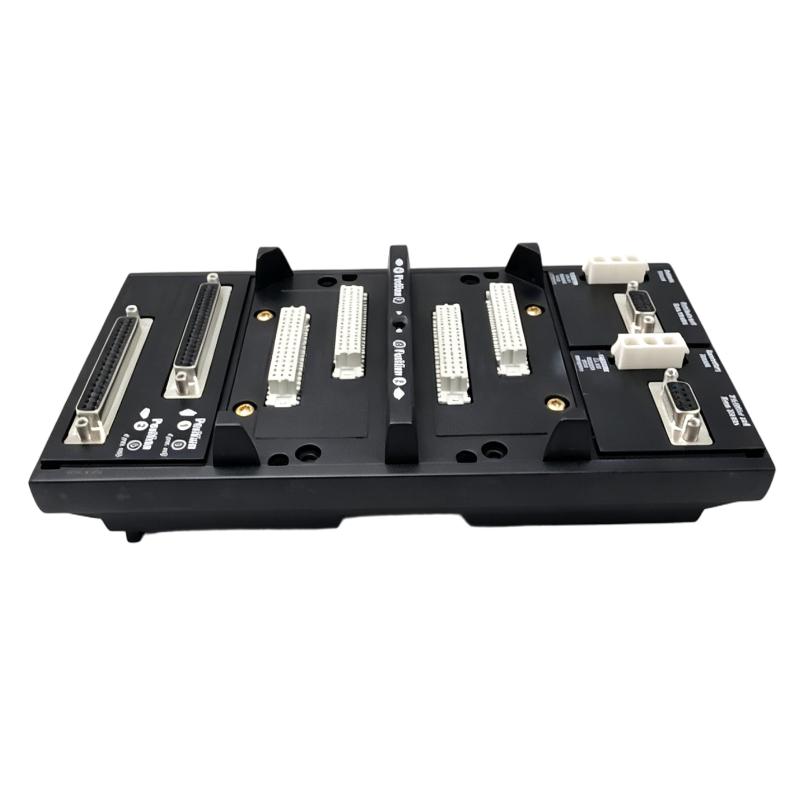

Foxboro P0926KH Vertical DIN Rail Mounting Modular Base Plate
Foxboro P0926KH Vertical DIN Rail Mounting Modular Base Plate
0.0
Points
Brand:Foxboro Module Item No.:P0926KH Product Origin:USA Product Dimensions:216 x 27.1 x 120.3 mm Product Weight:0.39 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Foxboro P0926KH Vertical DIN Rail Mounting Modular Base Plate provides a mechanical foundation for modular control-system installations. In industrial automation, the reliability of electronic hardware depends not only on electrical and software design but also on a stable and properly organized physical installation.
DIN rail mounting is widely used because it allows automation equipment to be arranged in a structured manner inside control cabinets. Modules can be positioned consistently, wiring can be routed through defined cabinet areas, and maintenance personnel can more easily identify individual components.
The P0926KH is specified for a vertical DIN rail mounting arrangement. This orientation can be useful in cabinets where available space, cable routing, module alignment, or ventilation requirements favor vertical installation.
Mechanical stability is particularly important when modular equipment is connected by plugs, terminal blocks, or other interfaces. A poorly secured base can allow movement that transfers stress to these connections. Over time, this may result in loose connections or intermittent system behavior.
During installation, technicians should verify that the DIN rail itself is securely attached to the cabinet structure. The base plate should engage correctly with the rail and remain firmly positioned after installation.
For replacement work, inspect the surrounding modules and mounting hardware as well. If the original base plate has become loose or damaged, adjacent equipment may have experienced mechanical stress and should be checked before the new component is installed.
The P0926KH measures 216 × 27.1 × 120.3 mm and weighs 0.39 kg (0.86 lb). Its modular form factor makes it suitable for organized control-panel construction.
Technical Specifications
Parameter
Specification
Brand
Foxboro
Model
P0926KH
Product Type
Vertical DIN Rail Mounting Modular Base Plate
Application
Industrial Control-System Mounting
Mounting Method
DIN Rail
Mounting Orientation
Vertical
Primary Function
Mechanical Support for Modular Equipment
Typical Installation
Industrial Control Cabinet
Dimensions
216 × 27.1 × 120.3 mm
Weight
0.39 kg (0.86 lb)
The Foxboro P0926KH measures 216 × 27.1 × 120.3 mm and weighs 0.39 kg (0.86 lb).
The base plate should be installed on a suitable DIN rail with adequate structural support. After mounting, the locking mechanism and associated equipment seating should be checked to ensure the assembly remains secure.
Recommended Related Models
Model / Series
Product Type
Typical Application
Foxboro P0926KH
Vertical DIN Rail Mounting Base Plate
Modular control installation
Foxboro FCP280
Field Control Processor
Distributed process control
Foxboro FCP280 RH924UQ
Process Controller
Process-control applications
Foxboro FCP280 RH924WA
Fiber Optic Network Adapter
Industrial network communication
Foxboro Modular I/O Series
I/O Modules
Field signal interface
These products cover mounting, processing, networking, and I/O functions within Foxboro control environments. The base plate and installed modules should be selected according to the specific system architecture.
Popular Related Models
Model / Series
Product Type
Typical Use
Foxboro P0926KH
DIN Rail Mounting Modular Base Plate
Control cabinet mounting
Foxboro FCP280
Field Control Processor
Process automation
Foxboro FCP280 RH924UQ
Process Controller
Distributed process control
Foxboro FCP280 RH924WA
Fiber Optic Network Adapter
Control-system networking
Foxboro Modular I/O Series
I/O Modules
Process signal acquisition
For replacement applications, confirm the complete Foxboro P0926KH part number and the required vertical DIN rail arrangement before installation. The DIN rail, base plate locking mechanism, cabinet structure, supported module, and cable routing should be checked together to ensure a secure and maintainable installation.
Applications
The Foxboro P0926KH Vertical DIN Rail Mounting Modular Base Plate is a mechanical installation component designed to provide a secure mounting foundation for compatible Foxboro modular control equipment. Its vertical DIN rail mounting arrangement is particularly useful in control cabinets where standardized rail installation and efficient use of panel space are priorities.
Typical applications include:
Distributed control systems
Process automation cabinets
Industrial I/O installations
Oil and gas facilities
Chemical processing plants
Refinery automation
Power-generation systems
Water and wastewater control
Manufacturing automation
Industrial instrumentation panels
The base plate provides the physical foundation for associated modules, helping maintain equipment positioning while supporting organized cabinet construction.
Advantages
The P0926KH is a practical mounting solution for modular Foxboro installations where secure DIN rail integration and efficient cabinet organization are required.
Vertical DIN Rail Installation
The design supports vertical mounting on a compatible DIN rail arrangement, providing a structured method for installing modular automation hardware.
Stable Mechanical Foundation
A correctly secured base plate helps prevent unwanted movement of connected equipment during normal plant operation.
Efficient Cabinet Utilization
DIN rail mounting can simplify panel layout and make it easier to arrange control modules, wiring, and adjacent equipment within a limited enclosure.
Modular System Construction
The base plate can support modular control architectures where individual components need to be installed and serviced in an organized manner.
Improved Maintenance Access
A standardized mounting arrangement allows technicians to identify and access individual hardware more efficiently during inspection or replacement.
Reduced Mechanical Stress
Properly mounted equipment is less likely to transfer excessive mechanical loads to connectors and field wiring.
Lightweight Construction
The specified weight is 0.39 kg (0.86 lb), making the component convenient to handle during panel assembly and maintenance.
Technical FAQs
1. What is the Foxboro P0926KH used for?
The P0926KH is a vertical DIN rail mounting modular base plate intended to provide mechanical support for compatible Foxboro modular control equipment.
2. Why use DIN rail mounting in an industrial control cabinet?
DIN rail systems provide a standardized and organized method of mounting automation hardware, making panel construction, expansion, and maintenance more efficient.
3. Why is the mounting orientation important?
The specified vertical orientation can affect equipment alignment, cable routing, ventilation, and the mechanical arrangement of the complete modular system.
4. What can happen if the base plate is not firmly secured?
Movement or vibration can place mechanical stress on modules, connectors, and wiring and may eventually contribute to intermittent electrical faults.
5. What should be checked if an installed module is not sitting correctly?
Inspect the DIN rail, mounting base, locking mechanism, mounting hardware, and module seating. Check for deformation, damaged mounting points, or foreign material preventing proper engagement.
6. Can excessive vibration affect a DIN rail mounting assembly?
Yes. Persistent vibration may loosen mounting hardware or affect mechanical connections. The mounting system should therefore be installed using appropriate fastening and cabinet practices.
7. What should be verified before replacing the P0926KH?
Confirm the exact part number, DIN rail arrangement, mounting orientation, compatible modules, cabinet dimensions, and required installation hardware.
8. Does the base plate require electrical configuration?
The P0926KH is primarily a mechanical mounting component. Any electrical functions associated with the installed modules should be verified separately according to the complete system configuration.
9. How can maintenance personnel inspect the mounting base?
Check for loose fasteners, deformation, cracks, corrosion, excessive movement, damaged locking features, and evidence of mechanical stress around the mounted equipment.
10. What should be verified after installation?
Confirm that the base plate is securely mounted to the DIN rail, the associated module is correctly seated, and cables and connectors are routed without excessive mechanical tension.
