Introduction

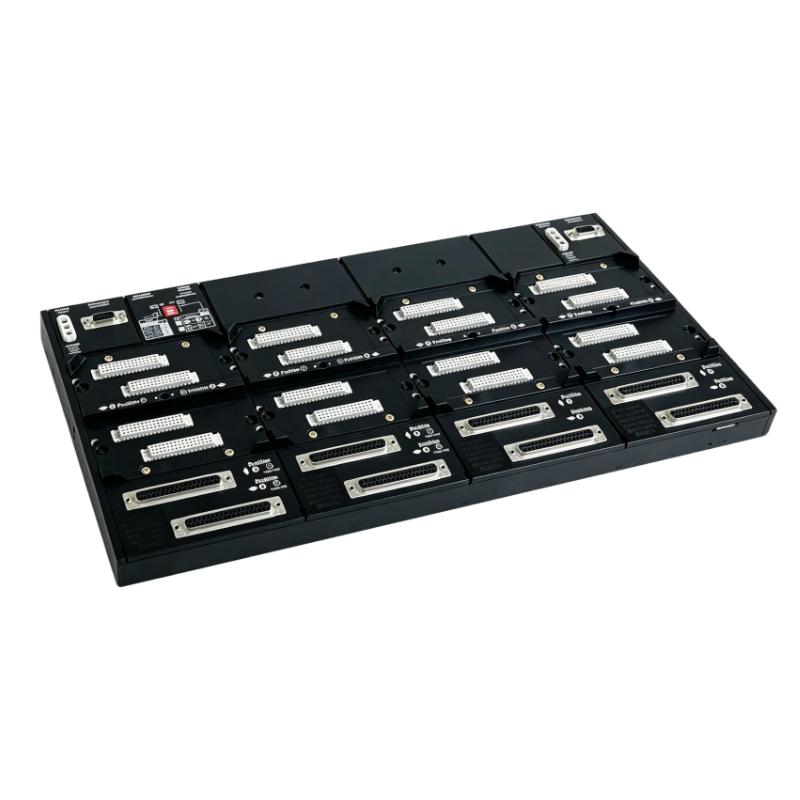

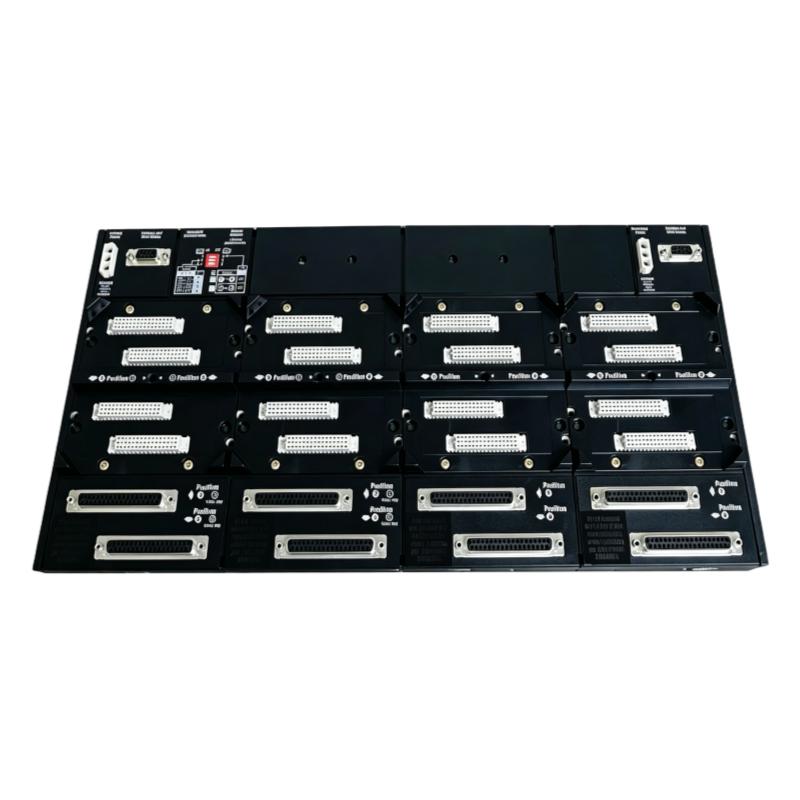

The Foxboro RH926JM 8-Slot Vertical Base Plate is a mechanical platform intended for modular control-system installations. Its eight-slot arrangement provides a structured method for installing multiple compatible components while maintaining a clean and serviceable cabinet layout.

In industrial control systems, mounting hardware plays an important supporting role. Process controllers, I/O modules, communication equipment, and other electronic components must remain mechanically stable throughout continuous operation. Poor mechanical installation can introduce connector stress, cable movement, and intermittent problems that may be difficult to distinguish from electronic faults.

The RH926JM is designed around an eight-slot vertical configuration, making it suitable for installations where several modules need to be grouped in a defined arrangement. This can be particularly valuable in larger control cabinets where systematic module placement improves both engineering and maintenance efficiency.

During installation, the cabinet structure and mounting points should be checked before the base plate is secured. The base should be properly aligned so that modules can be installed without excessive force. A module that requires unusual pressure to seat may indicate a mechanical alignment problem rather than a problem with the module itself.

The eight-slot format also helps maintenance personnel identify equipment positions. When a particular module requires replacement, a clearly structured mounting arrangement can reduce the possibility of disturbing unrelated hardware.

The RH926JM measures 453 × 27.1 × 216 mm and weighs 0.91 kg (2.01 lb). Its relatively broad footprint should be considered when planning cabinet clearance, cable routing, and access for service work.

For replacement applications, inspect the complete mounting assembly rather than simply installing the new base plate. If the previous assembly was exposed to excessive vibration or mechanical stress, adjacent modules, connectors, and cabinet hardware should also be checked.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	RH926JM
Product Type	8-Slot Vertical Base Plate
Application	Modular Control-System Mounting
Slot Configuration	8-Slot
Mounting Orientation	Vertical
Primary Function	Module Support and Positioning
Typical Installation	Industrial Control Cabinet
Dimensions	453 × 27.1 × 216 mm
Weight	0.91 kg (2.01 lb)

The Foxboro RH926JM measures 453 × 27.1 × 216 mm and weighs 0.91 kg (2.01 lb).

The eight-slot mounting structure should be installed on a suitable cabinet or mounting framework with sufficient mechanical rigidity. Adequate clearance should be maintained around the assembly for module installation, cable routing, inspection, and future maintenance.

Recommended Related Models

Model / Series	Product Type	Typical Application
Foxboro RH926JM	8-Slot Vertical Base Plate	Multi-module mounting
Foxboro P0926JM	DIN Rail Mounting Modular Base Plate	Modular cabinet installation
Foxboro P0926KH	Vertical DIN Rail Mounting Modular Base Plate	Vertical modular installation
Foxboro FCP280 RH924UQ	Process Controller	Distributed process control
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Control-system networking

These components address different physical and functional requirements within Foxboro automation architectures. The appropriate mounting solution should be selected according to module arrangement, cabinet design, and system configuration.

Popular Related Models

Model / Series	Product Type	Typical Use
Foxboro RH926JM	8-Slot Vertical Base Plate	Multi-module control installation
Foxboro P0926JM	DIN Rail Mounting Modular Base Plate	Modular cabinet mounting
Foxboro P0926KH	Vertical DIN Rail Mounting Base Plate	Vertical equipment installation
Foxboro FCP280 RH924UQ	Process Controller	Process automation
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Industrial communication

For replacement work, verify the complete Foxboro RH926JM model designation, eight-slot configuration, mounting orientation, and compatible module arrangement before installation. The cabinet structure, fastening points, module alignment, connector access, and cable routing should be evaluated together to achieve a secure and maintainable control-system assembly.

Applications

The Foxboro RH926JM 8-Slot Vertical Base Plate is a modular mounting component designed to provide a stable physical foundation for compatible Foxboro control-system hardware. Its eight-slot configuration is particularly useful where multiple modules need to be arranged within a single organized mounting assembly.

The base plate can be used in industrial automation environments such as:

Distributed control systems
Chemical processing plants
Oil and gas facilities
Refining and petrochemical operations
Power-generation plants
Water and wastewater treatment
Industrial manufacturing
Process instrumentation systems
Utility control systems
Large control cabinets

An eight-slot arrangement provides a practical way to organize multiple compatible modules while maintaining consistent positioning and service access. For system builders and maintenance teams, a dedicated base plate can also simplify module replacement and cabinet organization.

Advantages

The RH926JM combines an eight-slot modular arrangement with a robust installation platform for Foxboro control-system applications.

Eight-Slot Modular Arrangement
The eight-slot configuration provides space for multiple compatible modules within a single structured mounting assembly.

Vertical Installation
Its vertical mounting orientation supports cabinet layouts where equipment needs to be arranged in a vertical configuration.

Organized Hardware Placement
A defined slot structure helps maintain consistent module positioning and makes individual hardware easier to identify during maintenance.

Stable Mechanical Support
A properly installed base plate minimizes unwanted movement and helps protect module interfaces from unnecessary mechanical stress.

Efficient Cabinet Layout
The modular design can help engineers make better use of control-panel space while keeping related equipment grouped together.

Maintenance-Friendly Design
Individual modules can be accessed within a clearly defined mounting structure, helping technicians work more efficiently during inspections and replacement.

Suitable for Industrial Environments
The RH926JM is well suited to control cabinets used in demanding process and automation applications.

Manageable Weight
The base plate weighs 0.91 kg (2.01 lb), allowing practical handling during installation and scheduled maintenance.

Technical FAQs

1. What is the Foxboro RH926JM used for?
The RH926JM is an 8-slot vertical base plate designed to provide mechanical mounting and positioning for compatible Foxboro modular control equipment.

2. What does the 8-slot configuration provide?
It provides a structured mounting arrangement for multiple compatible modules, allowing them to be installed as part of a common modular assembly.

3. Why is vertical mounting useful in a control cabinet?
Vertical mounting can help optimize cabinet space, organize wiring, and maintain a consistent equipment layout in systems designed around vertically arranged modules.

4. What can cause a module to sit incorrectly in a slot?
Potential causes include mounting-base misalignment, damaged mechanical interfaces, foreign material, incorrect module positioning, or deformation of the mounting assembly.

5. Can vibration affect an eight-slot base plate?
Yes. Continuous vibration can gradually affect mounting hardware and module interfaces. The base and cabinet structure should therefore be securely installed and periodically inspected.

6. What should be checked if several modules experience intermittent faults?
If multiple modules show similar symptoms, inspect common elements first, including the base assembly, power distribution, shared connections, grounding, and communication infrastructure.

7. What should be verified before replacing the RH926JM?
Confirm the complete part number, eight-slot configuration, vertical mounting requirement, compatible modules, cabinet space, and mounting hardware.

8. Does the base plate itself process control signals?
No. The RH926JM is primarily a mechanical mounting component. Signal processing and control functions are performed by the modules installed within the associated system.

9. How should the base plate be inspected during preventive maintenance?
Check for loose fasteners, deformation, cracks, corrosion, excessive movement, damaged mounting features, and signs of mechanical stress around the installed modules.

10. What should be verified after installation?
Confirm that the base plate is securely mounted, correctly oriented, and properly aligned. Verify that each installed module is seated correctly and that connected wiring is free from excessive mechanical tension.
