Introduction

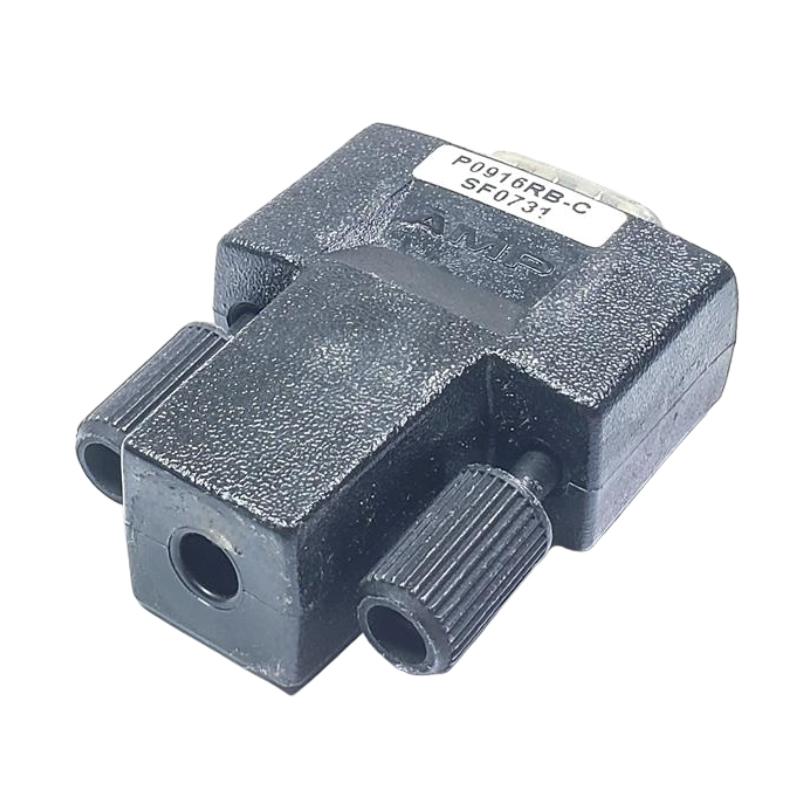

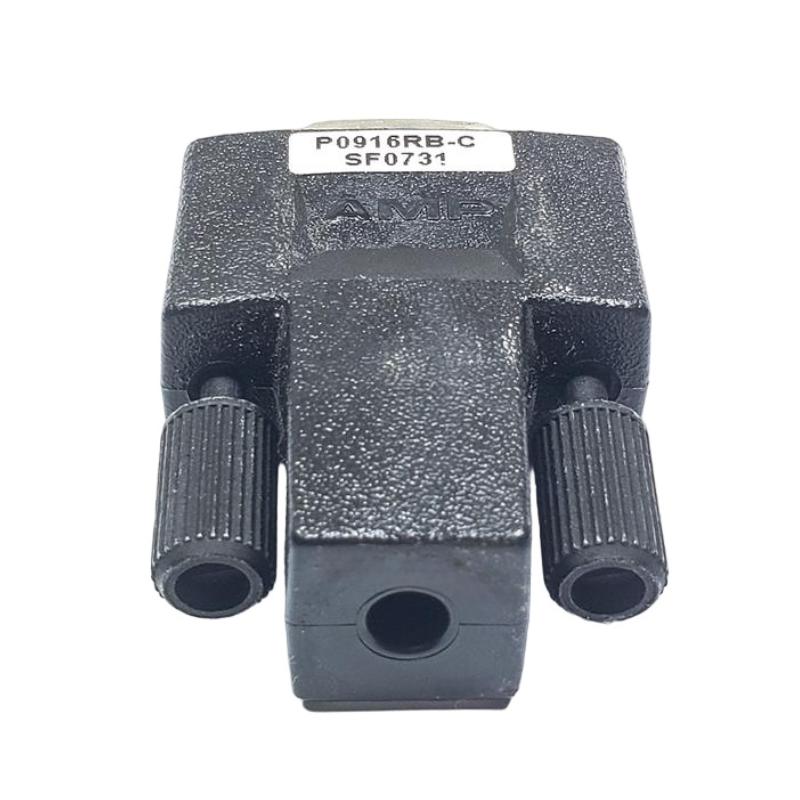

The Foxboro P0916RB Fieldbus Backplane Terminal Connector is a small but important connection component used within compatible Foxboro control-system architectures. Although connectors are physically simple compared with controllers and communication modules, their condition can have a direct effect on system reliability.

Fieldbus networks depend on continuous electrical communication between control equipment and connected field devices. A poor connection can introduce intermittent faults that may appear as communication failures, module dropouts, unstable diagnostics, or unexplained signal problems.

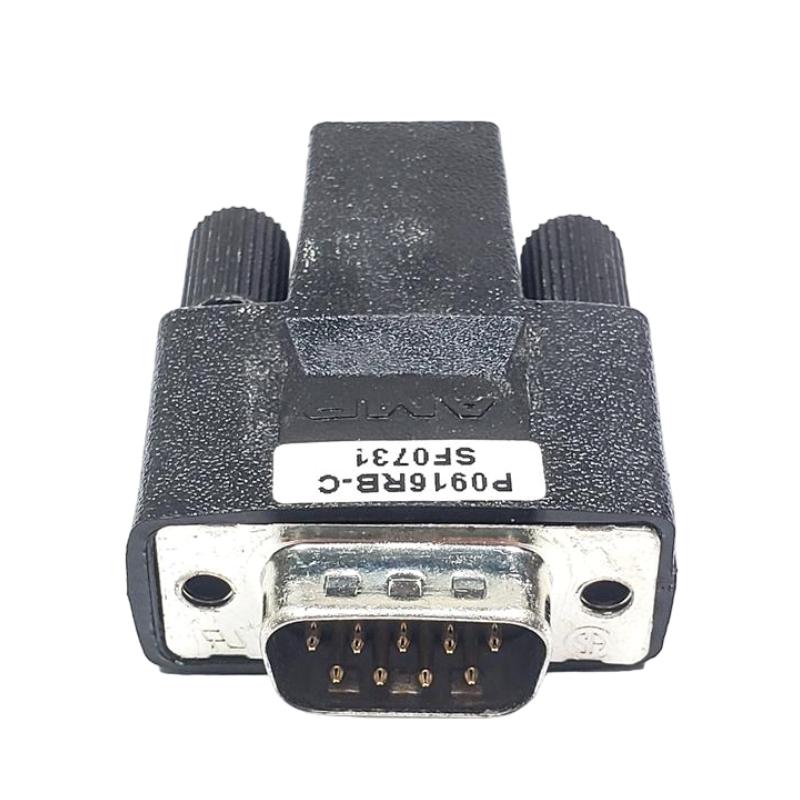

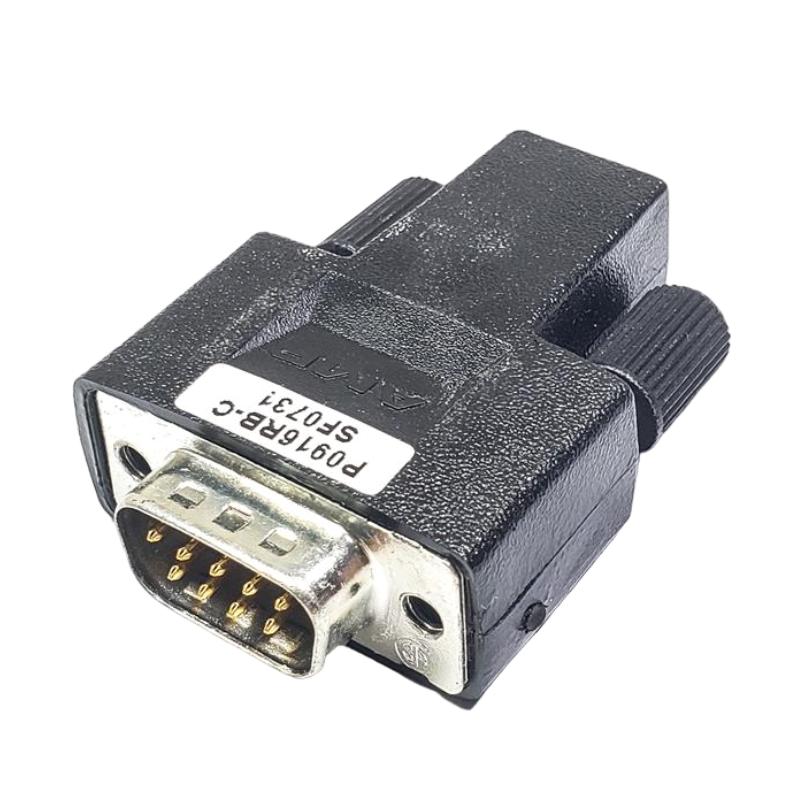

The P0916RB uses a 9-pin connection arrangement. The individual pin assignments should always be confirmed against the applicable Foxboro system documentation and wiring design rather than assumed from the number of pins alone.

During installation, technicians should inspect both the connector and its mating interface. Contacts should be clean and undamaged, and the connector should be fully seated without excessive force.

When troubleshooting a fieldbus problem, it is useful to start with the physical connection before moving into more complex network diagnostics. Check connector seating, cable condition, termination, power, and backplane interfaces. If the physical layer is healthy, then investigate configuration and communication parameters.

The connector's specified weight is 0.10 kg (0.22 lb), making it convenient to handle during replacement work. Despite its small size, it should be treated as an important part of the communication path.

A replacement should be installed carefully to avoid bending contacts or damaging the mating interface. After installation, the affected fieldbus segment should be checked for stable communication before the system is returned to normal operation.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	P0916RB
Product Type	Fieldbus Backplane Terminal Connector
Application	Fieldbus Communication
Connection Type	9-Pin
Primary Function	Backplane / Terminal Connection
Typical System	Foxboro Control System
Typical Installation	Industrial Control Cabinet
Pin Count	9 Pin
Weight	0.10 kg (0.22 lb)

The Foxboro P0916RB is a 9-pin Fieldbus Backplane Terminal Connector with a specified weight of 0.10 kg (0.22 lb).

As a connection component, its physical dimensions were not provided in the supplied specification. Installation should therefore be based on the correct mating interface and the compatible Foxboro system configuration.

Recommended Related Models

Model / Series	Product Type	Typical Application
Foxboro P0916RB	Fieldbus Backplane Terminal Connector	Fieldbus connection
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Control-system communication
Foxboro FCP280 RH924UQ	Process Controller	Distributed process control
Foxboro RH926JM	8-Slot Vertical Base Plate	Modular hardware mounting
Foxboro P0926JM	DIN Rail Mounting Modular Base Plate	Cabinet installation

These related components cover communication, control processing, and mechanical installation functions within Foxboro automation environments.

Popular Related Models

Model / Series	Product Type	Typical Use
Foxboro P0916RB	Fieldbus Backplane Terminal Connector	Fieldbus interface
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Industrial networking
Foxboro FCP280 RH924UQ	Process Controller	Process automation
Foxboro RH926JM	8-Slot Vertical Base Plate	Modular control installation
Foxboro FPS400-24 P0922YU	DIN Rail Mounted Power Supply	Control-system power

For replacement applications, verify the complete Foxboro P0916RB model designation, 9-pin interface, mating hardware, and fieldbus wiring arrangement before installation. Connector orientation, contact condition, cable integrity, and network diagnostics should be checked together to ensure a dependable communication connection.

Applications

The Foxboro P0916RB Fieldbus Backplane Terminal Connector is a connection component intended for compatible Foxboro fieldbus and control-system assemblies. Its 9-pin configuration provides a defined electrical interface for connecting fieldbus-related hardware to the associated backplane or terminal arrangement.

In industrial automation, reliable connectors are essential because communication and control signals must pass between modules with minimal interruption. A correctly installed terminal connector helps maintain signal continuity while supporting orderly cabinet wiring and maintenance.

Typical applications include:

Foxboro distributed control systems
Fieldbus-based process automation
Industrial communication networks
Process instrumentation
Oil and gas facilities
Chemical and petrochemical plants
Refinery automation
Power-generation control systems
Water and wastewater plants
Industrial control cabinets

The P0916RB is particularly useful in installations where modular fieldbus equipment requires a dedicated backplane connection point.

Advantages

The Foxboro P0916RB offers a straightforward connection solution for compatible fieldbus backplane installations.

Dedicated Fieldbus Interface
The connector provides a defined interface between compatible fieldbus hardware and the associated backplane or terminal system.

9-Pin Configuration
Its nine-pin arrangement provides an organized connection format for the intended system interface.

Reliable Signal Connection
A correctly seated connector helps maintain electrical continuity between the connected hardware and backplane.

Simplified Cabinet Wiring
A dedicated connector reduces unnecessary wiring complexity and helps keep communication connections organized.

Maintenance-Friendly Design
A defined connector interface makes inspection and replacement more straightforward during scheduled maintenance.

Supports Modular Architectures
The component is suitable for control systems where fieldbus hardware is arranged in modular assemblies.

Lightweight Construction
The specified weight is 0.10 kg (0.22 lb), making the connector easy to handle during installation and service work.

Technical FAQs

1. What is the Foxboro P0916RB used for?
The P0916RB is a fieldbus backplane terminal connector intended to provide the appropriate connection interface for compatible Foxboro fieldbus hardware.

2. What does the 9-pin specification indicate?
It identifies the connector's pin configuration. The actual function of individual pins depends on the compatible Foxboro system and its wiring arrangement.

3. What can cause intermittent fieldbus communication?
Loose connections, damaged contacts, contamination, wiring faults, incorrect termination, network configuration problems, and defective connected hardware can all contribute to intermittent communication.

4. How can a connector problem be distinguished from a fieldbus module fault?
Inspect the connector physically, verify continuity and seating where appropriate, and compare network behavior with known-good connections or hardware under controlled maintenance conditions.

5. Why is connector seating important?
Incomplete seating can create increased contact resistance or intermittent electrical continuity, potentially resulting in communication errors or unstable fieldbus operation.

6. Can contamination affect the P0916RB connection?
Yes. Dust, oxidation, moisture, or other contamination can affect electrical contact quality and should be prevented through appropriate cabinet and maintenance practices.

7. What should be checked if the fieldbus network suddenly goes offline?
Check the affected connector, backplane connections, fieldbus cables, termination, power to associated equipment, communication diagnostics, and other common network components.

8. Should the connector be replaced if its contacts are damaged?
A connector with damaged or severely worn contacts should not be relied upon for critical industrial communication. Replacement should follow the approved maintenance procedure.

9. What precautions should be taken before disconnecting the connector?
Follow the applicable plant maintenance procedure, place affected equipment in a safe state, isolate power where required, and protect electronic interfaces against electrostatic discharge.

10. What should be verified after installing a replacement P0916RB?
Confirm correct connector orientation and seating, inspect associated wiring, verify communication status, and check the fieldbus network for normal data exchange and diagnostics.
