Introduction

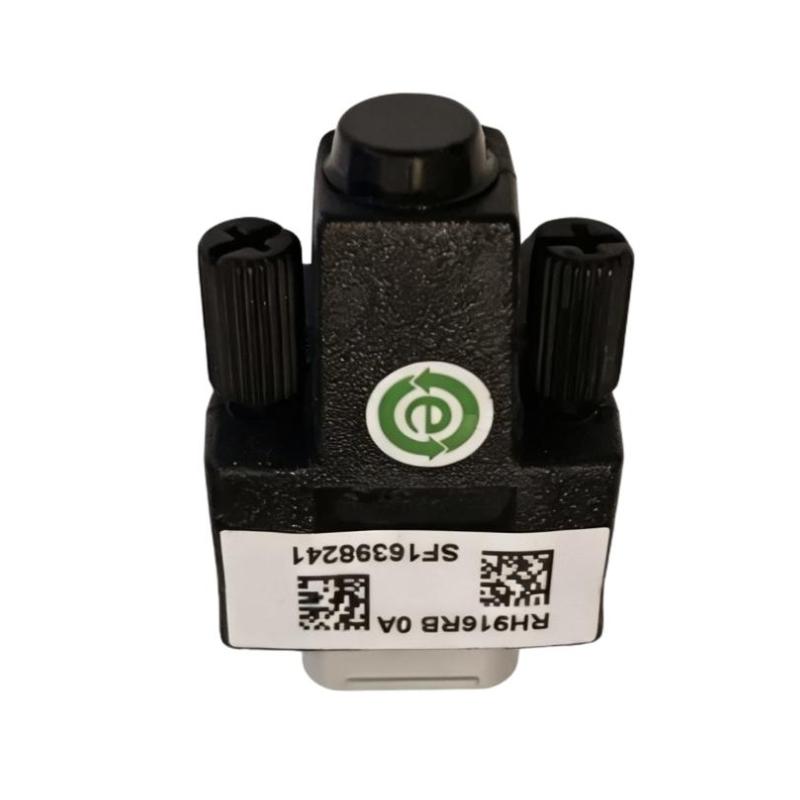

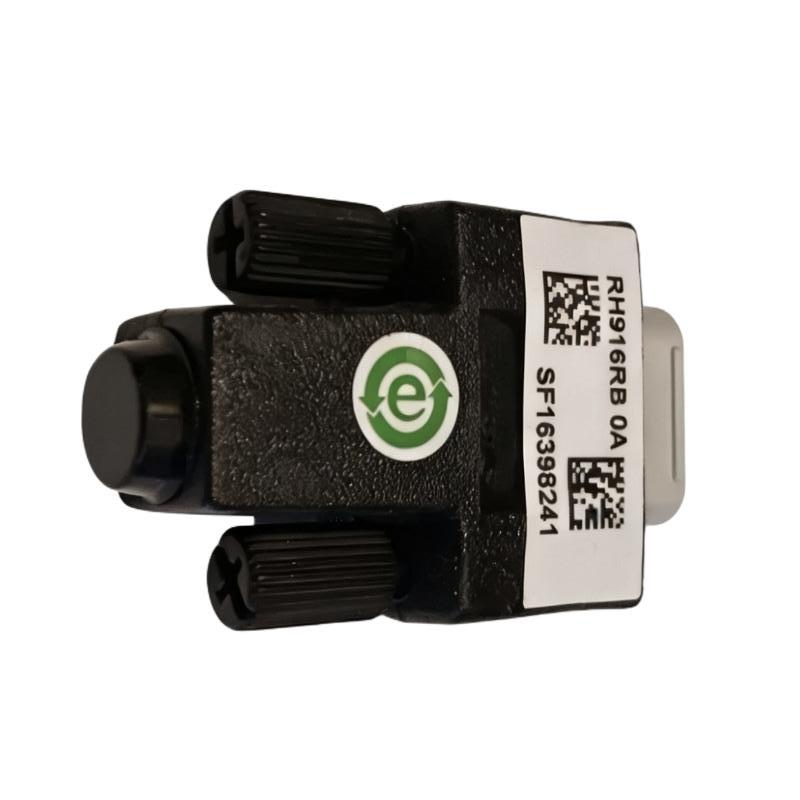

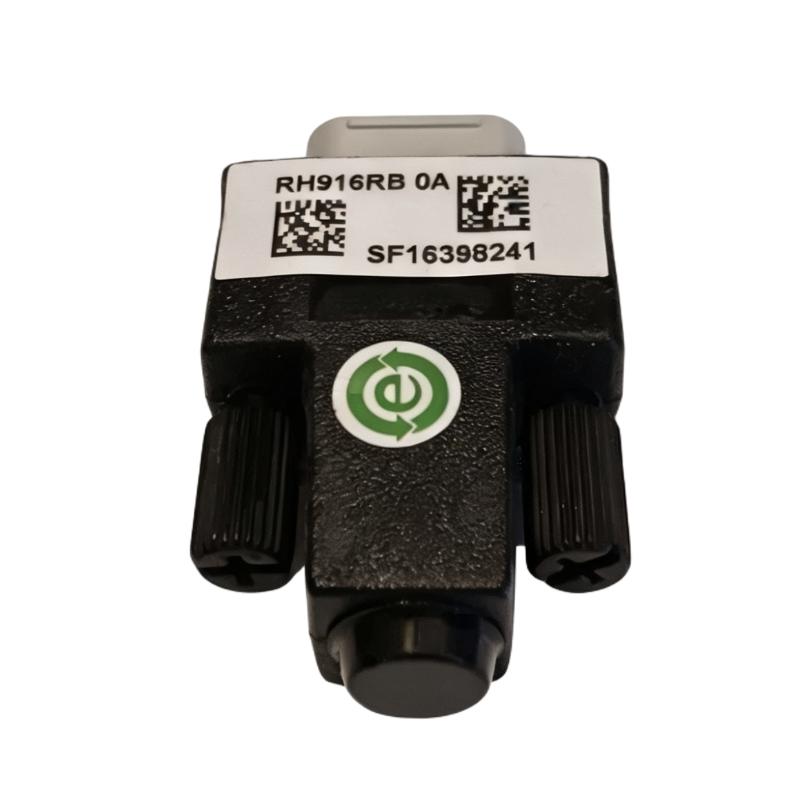

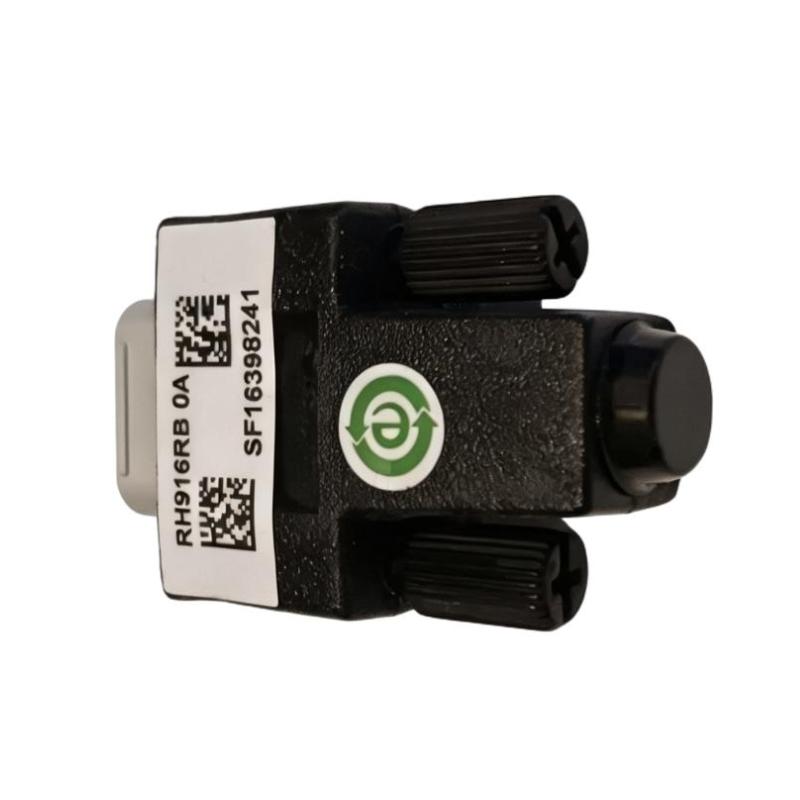

The Foxboro RH916RB Fieldbus Backplane Terminal Connector is a specialized connection component for compatible Foxboro control-system architectures. Although it is considerably smaller than a process controller or I/O module, the connector occupies an important position in the physical communication path.

Fieldbus-based automation depends on reliable signal transmission between control equipment and connected devices. A single poor connection can introduce communication errors that may be difficult to distinguish from faults in network hardware or field devices.

The RH916RB features a 9-pin interface, providing a defined connection arrangement for the intended system. Pin functions should not be inferred solely from the connector format; technicians should follow the applicable system wiring design when installing or troubleshooting the component.

Connector condition is especially important in industrial environments. Vibration, repeated maintenance, contamination, moisture, and cable tension can gradually affect electrical contact quality. A connector that appears physically intact can still create intermittent communication if its contacts are not making reliable electrical contact.

For this reason, troubleshooting should begin with a careful physical inspection. Verify that the connector is fully seated, the contacts are clean and undamaged, and the connected cable is not pulling against the interface.

When replacing the RH916RB, technicians should document the existing connection arrangement before removal. The replacement should be installed without forcing the interface, followed by a check of fieldbus diagnostics and communication status.

The specified weight of the RH916RB is 0.10 kg (0.22 lb). Its lightweight construction makes it convenient to handle during planned maintenance and replacement activities.

Technical Specifications

Parameter	Specification
Brand	Foxboro
Model	RH916RB
Product Type	Fieldbus Backplane Terminal Connector
Application	Fieldbus Communication
Connection Type	9-Pin
Primary Function	Backplane / Terminal Connection
Typical System	Foxboro Control System
Typical Installation	Industrial Control Cabinet
Pin Count	9 Pin
Weight	0.10 kg (0.22 lb)

The Foxboro RH916RB is a 9-pin Fieldbus Backplane Terminal Connector with a specified weight of 0.10 kg (0.22 lb).

No physical dimensions were provided for this connector in the supplied specification. Installation should therefore be based on the correct mating interface, mounting arrangement, and compatible Foxboro system configuration.

Recommended Related Models

Model / Series	Product Type	Typical Application
Foxboro RH916RB	Fieldbus Backplane Terminal Connector	Fieldbus interface
Foxboro P0916RB	Fieldbus Backplane Terminal Connector	Fieldbus connection
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Control-system networking
Foxboro FCP280 RH924UQ	Process Controller	Distributed process control
Foxboro RH926JM	8-Slot Vertical Base Plate	Modular hardware mounting

These related components cover fieldbus connectivity, network communication, process control, and modular mounting functions within Foxboro automation environments.

Popular Related Models

Model / Series	Product Type	Typical Use
Foxboro RH916RB	Fieldbus Backplane Terminal Connector	Fieldbus communication
Foxboro P0916RB	Fieldbus Backplane Terminal Connector	Backplane connection
Foxboro FCP280 RH924WA	Fiber Optic Network Adapter	Industrial network communication
Foxboro FCP280 RH924UQ	Process Controller	Process automation
Foxboro FPS400-24 P0922YU	DIN Rail Mounted Power Supply	Control-system power

For replacement applications, verify the complete Foxboro RH916RB part number, 9-pin interface, mating connection, and fieldbus wiring arrangement before installation. Check connector seating, contact condition, cable integrity, and fieldbus diagnostics together to ensure stable communication throughout the control system.

Applications

The Foxboro RH916RB Fieldbus Backplane Terminal Connector is a connection component intended for compatible Foxboro fieldbus and control-system hardware. Its 9-pin interface provides a defined connection point for fieldbus-related equipment within a modular backplane or terminal assembly.

In process automation, the quality of physical network connections directly affects communication stability. A correctly installed connector helps maintain signal continuity between fieldbus equipment and the associated control-system hardware.

Typical applications include:

Distributed control systems
Fieldbus process networks
Industrial instrumentation
Chemical processing
Oil and gas automation
Refinery control systems
Power-generation facilities
Water and wastewater plants
Process manufacturing
Industrial control cabinets

The RH916RB is particularly relevant to modular control architectures where fieldbus connections must remain organized, accessible, and mechanically secure.

Advantages

The RH916RB provides a compact connection solution for compatible Foxboro fieldbus backplane installations, with an emphasis on organized wiring and dependable physical connectivity.

Dedicated Fieldbus Connection
The connector is designed to provide an appropriate interface between compatible fieldbus equipment and the associated backplane or terminal arrangement.

9-Pin Interface
The 9-pin configuration provides a structured connection format for the intended Foxboro hardware.

Reliable Electrical Contact
When correctly installed, a secure connector interface helps maintain stable electrical continuity across the fieldbus connection.

Supports Modular Control Architecture
The connector can form part of a structured backplane arrangement where multiple control-system components are installed in an organized configuration.

Easy to Inspect
A defined connector interface allows maintenance personnel to inspect the connection for loose seating, contamination, or physical damage.

Efficient Cabinet Wiring
The connector helps keep fieldbus-related connections organized within the control cabinet, reducing unnecessary cable routing complexity.

Lightweight Component
The RH916RB weighs 0.10 kg (0.22 lb), allowing convenient handling during installation and replacement.

Technical FAQs

1. What is the Foxboro RH916RB used for?
The RH916RB is a fieldbus backplane terminal connector intended to provide a physical connection interface for compatible Foxboro fieldbus equipment.

2. What does the 9-pin specification refer to?
It refers to the connector's pin configuration. Individual pin functions must be determined from the applicable Foxboro system wiring and connection design.

3. What symptoms can indicate a poor connector connection?
Intermittent communication, fieldbus errors, device dropouts, unstable diagnostics, or complete communication loss can occur when a connection is not electrically or mechanically sound.

4. Can a loose connector cause intermittent fieldbus faults?
Yes. Mechanical movement can cause unstable contact and may result in communication interruptions that appear and disappear depending on vibration or cable movement.

5. What should be inspected before installing the connector?
Inspect the connector body, contacts, mating interface, associated wiring, and mounting arrangement for damage, contamination, corrosion, or deformation.

6. Why should connector contacts be kept clean?
Contamination or oxidation can increase contact resistance and reduce connection reliability, particularly in industrial environments with dust, moisture, or corrosive substances.

7. What should be checked when a fieldbus segment loses communication?
Start with the physical layer: inspect the RH916RB, mating connections, fieldbus cables, termination, and associated power. Network configuration and diagnostics should then be checked.

8. Should excessive force be used when installing the connector?
No. A connector should engage correctly with its mating interface. Excessive force may damage contacts or the mechanical interface.

9. What precautions should be taken during replacement?
Follow the approved maintenance procedure, place affected equipment in a safe condition, isolate power where required, and use appropriate ESD handling practices.

10. How should the connection be verified after replacement?
Confirm correct seating and orientation, inspect the associated wiring, then verify fieldbus link status, communication diagnostics, and normal data exchange.
