Introduction

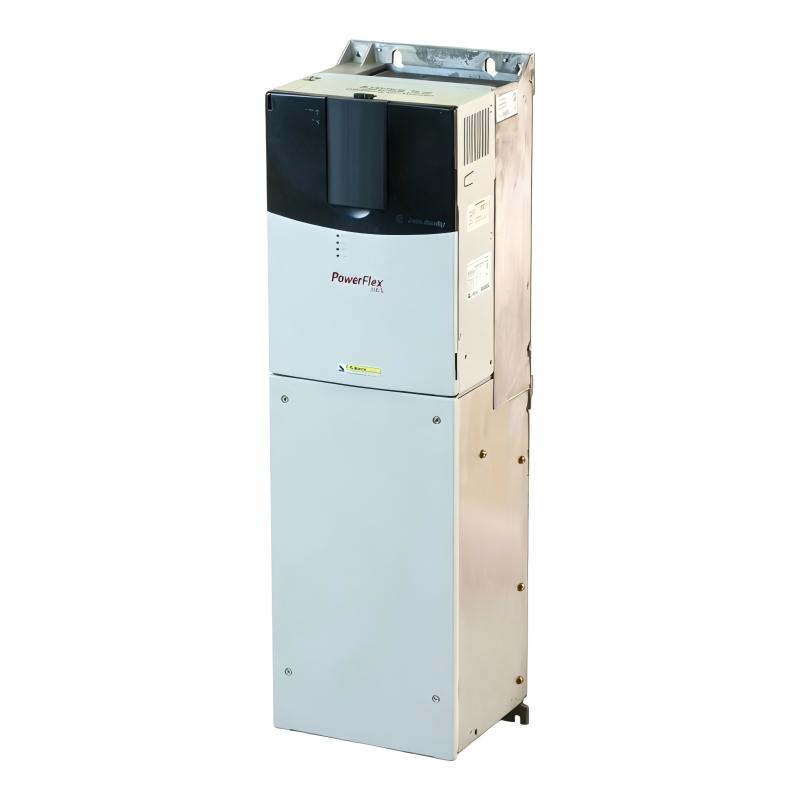

The Allen Bradley 20BC085A0NNNANC0 PowerFlex 700 AC Drive is a high-performance motor-control solution designed for industrial applications requiring accurate speed management, reliable operation, and flexible automation integration.

In modern manufacturing and process environments, motors are among the most widely used sources of mechanical power. However, operating motors at fixed speed regardless of process demand can lead to unnecessary energy consumption and reduced equipment efficiency. Variable frequency drives address this challenge by controlling motor speed according to operating requirements.

The PowerFlex 700 series is designed for applications where dependable motor control and system integration are important. The drive can support industrial processes that require controlled acceleration, precise speed adjustment, equipment protection, and operational monitoring.

Proper installation is essential for long-term performance. Before commissioning, technicians should verify incoming power, motor connections, grounding, control wiring, and environmental conditions. Incorrect wiring or unsuitable parameters can lead to faults, unstable operation, or reduced motor performance.

When troubleshooting drive-related problems, the fault history should be reviewed first. Drive alarms can provide valuable information, but technicians should also examine external factors such as motor condition, mechanical load, power quality, and control-system commands.

During replacement, existing parameter settings should be recorded before removing the original drive. The replacement unit should be configured according to the motor specifications and application requirements before returning equipment to production.

The Allen Bradley 20BC085A0NNNANC0 measures 758.8 × 201.7 × 220 mm and weighs 24.49 kg (54.00 lb). Its industrial enclosure design supports installation in properly prepared control cabinets or equipment assemblies.

After installation, commissioning should include parameter verification, motor testing, communication checks, and controlled operation monitoring to ensure reliable system performance.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	20BC085A0NNNANC0
Product Type	PowerFlex 700 AC Drive
Application	Variable Speed Motor Control
Drive Family	PowerFlex 700
Primary Function	AC Motor Speed and Torque Control
Typical Industries	Manufacturing, Process Automation, Utilities, Material Handling
Installation Type	Industrial Control Cabinet
Dimensions	758.8 × 201.7 × 220 mm
Weight	24.49 kg (54.00 lb)

The Allen Bradley 20BC085A0NNNANC0 PowerFlex 700 AC Drive measures 758.8 × 201.7 × 220 mm and weighs 24.49 kg (54.00 lb).

The drive should be installed with proper ventilation, electrical protection, grounding, and sufficient clearance for cooling and maintenance access. Motor wiring, incoming power connections, and control interfaces should be verified before commissioning.

Recommended Related Models

Model / Series	Product Type	Typical Application
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley PowerFlex 700 Series	AC Drive Family	Variable speed applications
Allen Bradley PowerFlex 70 Series	AC Drive	Machine and process control
Allen Bradley ControlLogix Series	Automation Controller	Industrial control integration
Allen Bradley CompactLogix Series	Programmable Automation Controller	Machine automation

These related products support different levels of automation, from motor control and drive management to controller-based system integration.

Popular Related Models

Model / Series	Product Type	Typical Use
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	Heavy-duty motor applications
Allen Bradley PowerFlex 700 Series	Variable Frequency Drive	Industrial automation
Allen Bradley 20AD Series	PowerFlex AC Drive	Machine control
Allen Bradley ControlLogix Controllers	PLC Controller	Advanced automation systems
Allen Bradley CompactLogix Controllers	PLC Controller	Compact industrial control

For replacement applications, verify the complete Allen Bradley 20BC085A0NNNANC0 part number, motor requirements, input power specifications, communication configuration, and application parameters before installation. Proper setup and commissioning are essential to achieve stable motor control and reliable long-term operation.

Applications

The Allen Bradley 20BC085A0NNNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications requiring reliable speed regulation, efficient motor operation, and flexible automation integration. As part of the PowerFlex 700 drive family, it provides adjustable frequency control for AC motors used in a wide range of industrial processes.

Typical applications include:

Industrial conveyor systems
Pumps and fan control
Material handling equipment
Manufacturing production lines
Packaging machinery
Process automation systems
HVAC and utility equipment
Water treatment systems
Mining and heavy industrial equipment
Machine automation applications

Variable frequency drives play an important role in modern automation by controlling motor speed, torque, and operating efficiency. The 20BC085A0NNNANC0 allows engineers to optimize motor performance while improving process control and reducing unnecessary energy consumption.

Advantages

The Allen Bradley PowerFlex 700 20BC085A0NNNANC0 combines advanced motor-control capability with industrial-grade reliability for demanding automation environments.

Flexible AC Motor Control
The drive provides adjustable speed control for AC motors, allowing equipment operation to be matched with actual process requirements.

Improved Energy Efficiency
By adjusting motor speed according to load demand, the drive can help reduce energy consumption in applications such as pumps and fans.

Industrial Automation Integration
The PowerFlex 700 platform is designed for integration into automation systems where communication, diagnostics, and coordinated control are required.

Enhanced Motor Protection
Built-in monitoring and protection functions help safeguard motors and connected equipment from abnormal operating conditions.

Reliable Process Operation
Stable speed and torque control help maintain consistent machine performance in production and process applications.

Maintenance-Friendly Diagnostics
Drive status information and fault monitoring features help technicians identify operating problems more efficiently.

Compact Industrial Design
With dimensions of 758.8 × 201.7 × 220 mm, the drive provides a practical solution for applications requiring powerful motor control in a structured enclosure.

Manageable Installation Weight
The specified weight is 24.49 kg (54.00 lb), allowing installation with standard industrial handling procedures.

Technical FAQs

1. What is the Allen Bradley 20BC085A0NNNANC0 used for?
It is a PowerFlex 700 AC drive designed to control the speed and operation of AC motors in industrial automation applications.

2. What can cause an AC drive to trip during operation?
Common causes include overcurrent, overload conditions, motor problems, incorrect parameters, insufficient cooling, power-quality issues, or mechanical problems in the driven equipment.

3. Why is motor parameter configuration important?
Correct motor data allows the drive to apply appropriate control algorithms, improving performance, protection, and operating stability.

4. What should be checked if the motor does not start?
Verify incoming power, drive status, control commands, start permissive signals, parameter settings, motor wiring, and active fault messages.

5. What causes excessive motor current when using a variable frequency drive?
Possible causes include mechanical overload, incorrect motor data, acceleration settings that are too aggressive, motor wiring problems, or a damaged motor.

6. How can communication faults be diagnosed on a PowerFlex 700 drive?
Check network connections, communication module status, addressing, configuration parameters, controller status, and drive diagnostics.

7. Why can a drive overheat during normal operation?
Potential causes include blocked airflow, high ambient temperature, excessive load, incorrect installation clearance, cooling fan problems, or frequent acceleration cycles.

8. What precautions should be taken before replacing the drive?
Follow electrical safety procedures, disconnect and verify isolation of power sources, discharge stored energy, and use appropriate installation practices.

9. What should be checked after restoring drive parameters?
Verify motor data, control mode, acceleration and deceleration settings, protection parameters, communication settings, and application-specific configuration.

10. How should a replacement PowerFlex 700 drive be commissioned?
Confirm wiring, apply the correct configuration, verify motor rotation, test control commands, monitor operating values, and validate the drive under controlled operating conditions.
