Introduction

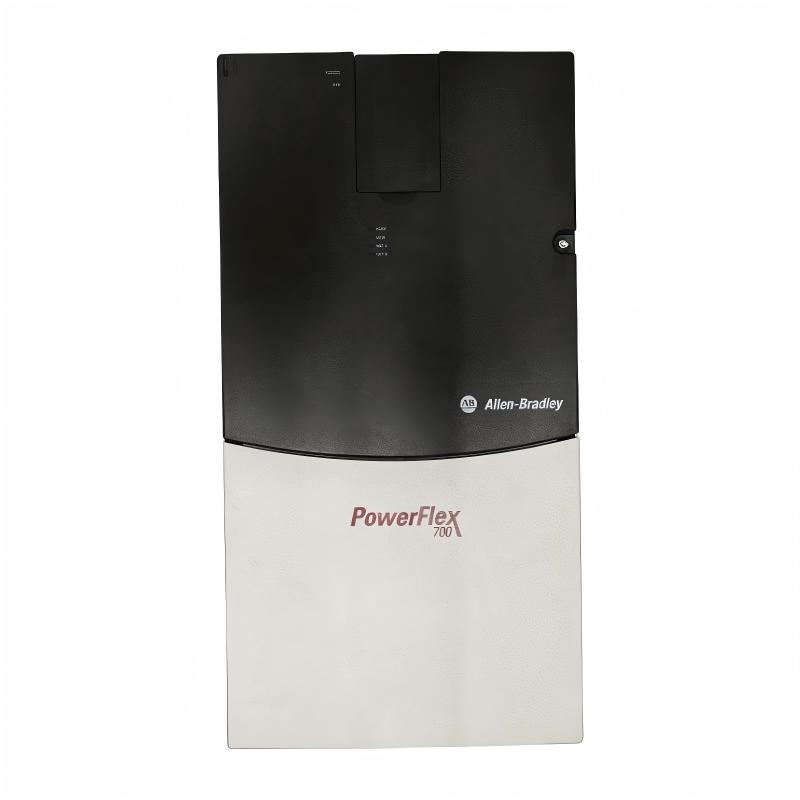

The Allen Bradley 20BC105A0NNNANC0 PowerFlex 700 AC Drive is intended for industrial motor-control applications where reliable speed regulation and coordinated machine operation are important.

Variable-frequency drive technology allows an AC motor to operate at a speed appropriate to the process rather than remaining at a fixed line frequency. This capability is particularly useful for equipment such as conveyors, pumps, fans, and production machinery, where process requirements may change throughout the operating cycle.

The PowerFlex 700 platform is commonly used as part of a larger automation architecture. A drive may receive commands from a PLC or other controller while simultaneously monitoring motor and drive operating conditions. This makes correct parameterization especially important: the drive must understand the motor characteristics and respond correctly to the external control strategy.

Installation should begin with a review of the electrical and mechanical requirements of the application. Incoming power, motor cabling, grounding, control wiring, cabinet ventilation, and available mounting space should all be considered before energizing the unit.

For commissioning, technicians should avoid immediately applying full production load. A controlled initial test makes it easier to verify motor rotation, acceleration, deceleration, speed reference behavior, and fault response.

Troubleshooting should follow a similar structured approach. A displayed drive fault is an important diagnostic clue, but it does not necessarily mean the drive itself has failed. For example, an overcurrent condition can originate from a shorted motor cable, excessive mechanical load, incorrect acceleration parameters, or a damaged motor.

The 20BC105A0NNNANC0 has a specified weight of 37.19 kg (81.99 lb). Because of its substantial weight, appropriate lifting and mechanical support procedures should be used during installation and replacement.

When replacing an existing unit, copying settings without checking the application can introduce problems. Motor data, control mode, reference source, protection settings, and communication parameters should be reviewed against the actual machine requirements.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	20BC105A0NNNANC0
Product Type	PowerFlex 700 AC Drive
Drive Family	PowerFlex 700
Primary Function	AC Motor Speed and Torque Control
Application	Industrial Variable-Speed Motor Control
Typical Installation	Industrial Control Cabinet
Typical Applications	Conveyors, Pumps, Fans, Machinery and Process Equipment
Dimensions	689.6 × 308.9 × 275.4 mm
Weight	37.19 kg (81.99 lb)

The Allen Bradley 20BC105A0NNNANC0 measures 689.6 × 308.9 × 275.4 mm and weighs 37.19 kg (81.99 lb).

Because of the drive's physical size and weight, the mounting structure should be capable of supporting the complete assembly. Adequate ventilation and service clearance should also be provided to support reliable operation and maintenance access.

Recommended Related Models

Model / Series	Product Type	Typical Application
Allen Bradley 20BC105A0NNNANC0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	Variable-speed motor control
Allen Bradley PowerFlex 700 Series	AC Drive	Industrial automation
Allen Bradley ControlLogix Series	Programmable Automation Controller	Machine and process control
Allen Bradley CompactLogix Series	Programmable Automation Controller	Compact automation systems

These related products can be used across different layers of an Allen Bradley automation architecture. Drive selection should always be based on the motor, load, power system, application duty, and control requirements.

Popular Related Models

Model / Series	Product Type	Typical Use
Allen Bradley 20BC105A0NNNANC0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	Variable-speed applications
Allen Bradley PowerFlex 700 Series	AC Drive Family	Process and machine automation
Allen Bradley PowerFlex 70 Series	AC Drive	General industrial motor control
Allen Bradley ControlLogix Series	PLC / Automation Controller	Advanced industrial automation

For replacement projects, confirm the complete Allen Bradley 20BC105A0NNNANC0 catalog number before installation. Motor ratings, incoming power, control architecture, application parameters, communication settings, and mechanical installation requirements should all be verified to ensure the replacement drive is correctly matched to the existing system.

Applications

The Allen Bradley 20BC105A0NNNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for applications where controlled AC motor speed, torque management, and dependable process operation are required.

Its PowerFlex 700 platform makes it suitable for demanding automation environments in which motor behavior must be coordinated with production equipment, process controllers, and other industrial devices.

Common applications include:

Conveyors and material-handling systems
Pumps and centrifugal equipment
Fans and ventilation systems
Packaging machinery
Production lines
Process skids
Machine tools
Water and wastewater equipment
Industrial utility systems
General-purpose motor-driven machinery

For equipment builders and plant operators, a properly configured drive can provide more than basic speed adjustment. It can help match motor performance to changing process demand, improve operating consistency, and provide useful diagnostic information when abnormal conditions occur.

Advantages

The 20BC105A0NNNANC0 offers the practical benefits expected from the PowerFlex 700 family while providing a robust platform for industrial AC motor applications.

Controlled Motor Performance
The drive regulates motor operation according to the configured speed and control requirements, helping maintain consistent machine performance.

Flexible Industrial Application
Its application range covers production machinery, process equipment, material handling, and other motor-driven systems.

Drive-Based Protection
Monitoring of operating conditions can help identify abnormal motor and drive behavior before a minor issue develops into a larger equipment problem.

Useful Fault Diagnostics
Drive fault information provides technicians with a starting point for investigating electrical, motor, load, and configuration-related problems.

Automation System Integration
The PowerFlex 700 platform can be incorporated into broader Allen Bradley control architectures for coordinated machine and process operation.

Controlled Acceleration and Deceleration
Configurable ramp characteristics can reduce mechanical shock and help improve the starting and stopping behavior of connected equipment.

Industrial Construction
The drive is designed for installation as part of an appropriately engineered industrial control system.

Solid Physical Construction
The supplied specification lists dimensions of 689.6 × 308.9 × 275.4 mm and a weight of 37.19 kg (81.99 lb), reflecting a substantial industrial drive assembly.

Technical FAQs

1. What is the Allen Bradley 20BC105A0NNNANC0 used for?
It is a PowerFlex 700 AC drive used to control AC motor operation in industrial automation and motor-driven equipment.

2. What should be checked when the drive reports an overcurrent fault?
Inspect motor wiring, motor condition, mechanical load, acceleration settings, and configured motor data. A short circuit or mechanically overloaded machine should also be considered.

3. Why might a motor fail to accelerate correctly?
Possible causes include excessive load, unsuitable acceleration parameters, incorrect motor configuration, inadequate power conditions, or a motor or cable fault.

4. What can cause repeated drive overload faults?
A continuous mechanical overload, excessive operating current, insufficient motor capacity, incorrect drive settings, poor cooling, or abnormal machine friction can cause repeated overload conditions.

5. What should be investigated when the motor runs but speed is unstable?
Check the selected control method, motor feedback if applicable, speed reference signal, parameter configuration, motor condition, and external control commands.

6. Why can a drive trip when the mechanical machine appears normal?
Electrical conditions can produce faults even when the mechanical system appears healthy. Incoming power quality, motor insulation, cable condition, grounding, and drive configuration should be examined.

7. What should be checked if the drive loses its control command?
Verify the control source, digital inputs, analog or network reference, communication status, controller logic, and any active interlocks or permissive conditions.

8. How can excessive drive temperature be investigated?
Check cabinet ventilation, ambient temperature, cooling airflow, load level, installation clearance, and fan operation. Dust accumulation can also restrict heat dissipation.

9. What information should be recorded before replacing the drive?
Record the drive identification, motor nameplate information, application parameters, control source, speed references, protection settings, and communication configuration.

10. What should be done after installing a replacement drive?
Verify all wiring and configuration parameters, perform controlled motor testing, confirm correct rotation and speed response, check communication if used, and monitor the drive under normal load.
