Introduction

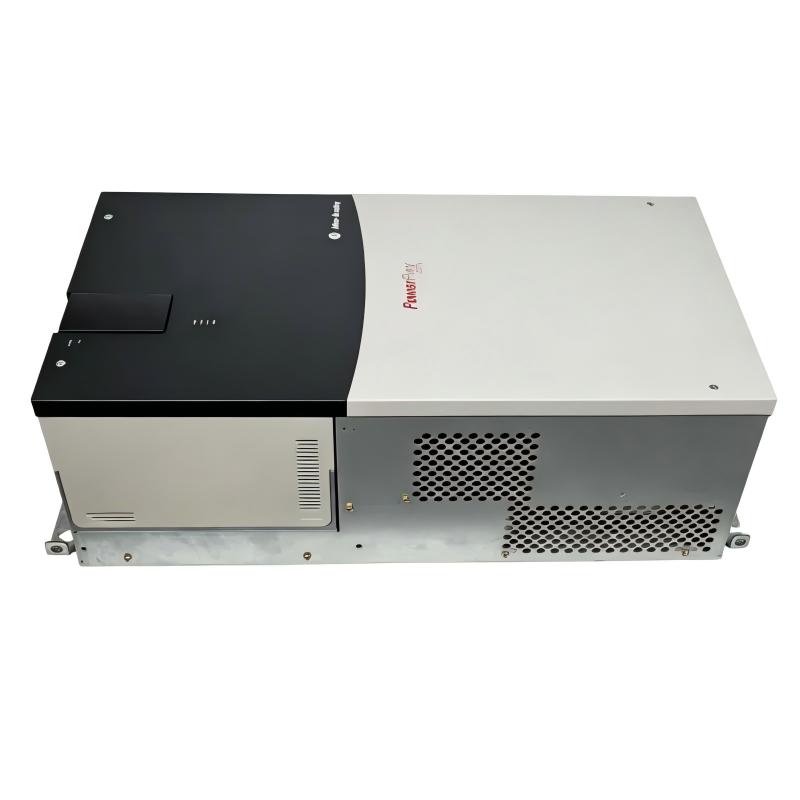

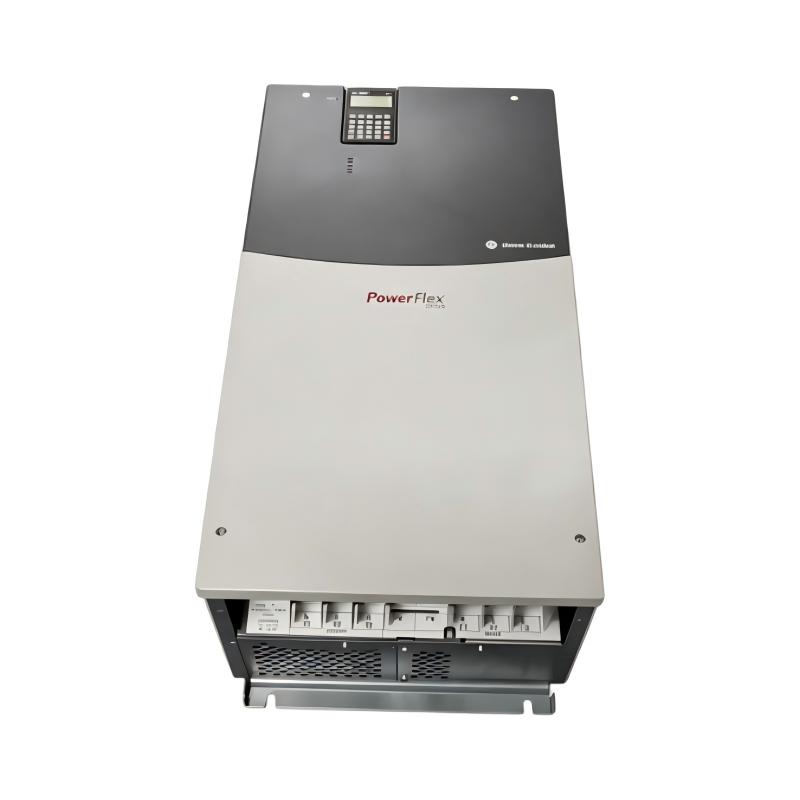

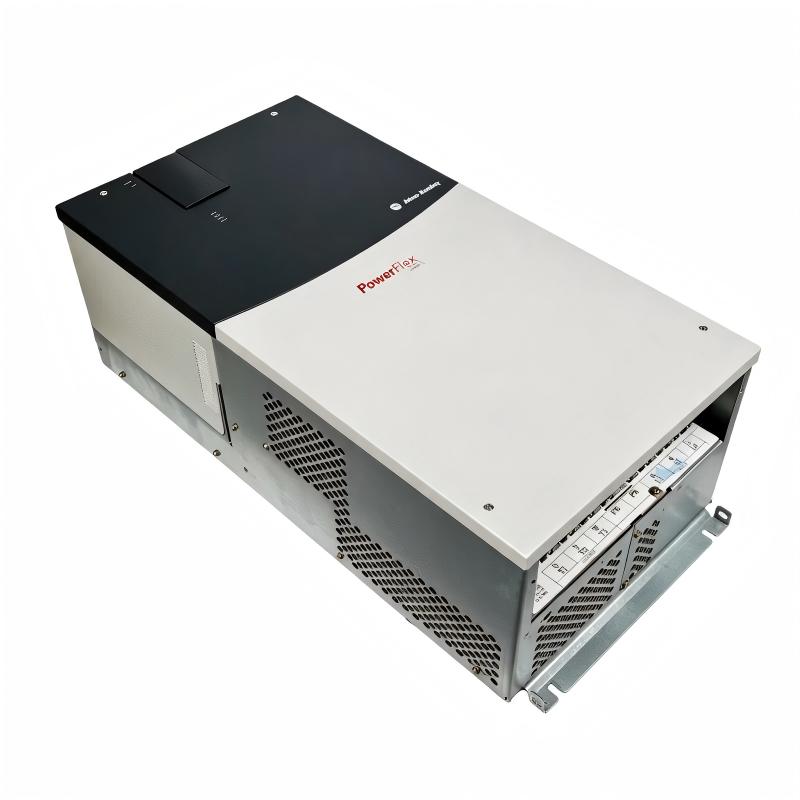

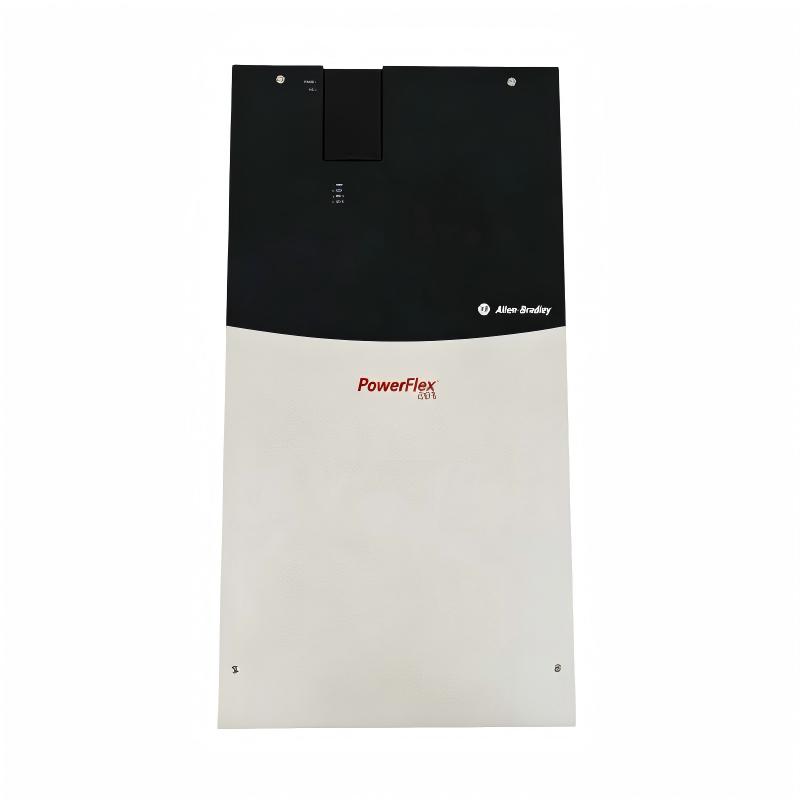

The Allen Bradley 20BC205A0NNNANC0 PowerFlex 700 AC Drive is intended for industrial motor applications where variable-speed operation provides a practical advantage over fixed-speed control.

Motor-driven equipment often operates under changing process conditions. A pump may need different flow rates, a conveyor may require multiple production speeds, and a manufacturing machine may need controlled acceleration and deceleration. A variable-frequency drive allows the motor to respond to these requirements while maintaining a coordinated relationship with the rest of the automation system.

The PowerFlex 700 family is designed for integration into industrial control environments. The drive can form part of a larger system involving PLCs, operator interfaces, communication networks, sensors, and machine safety equipment.

Correct setup is essential. Motor nameplate information should be entered accurately, while speed references, acceleration and deceleration parameters, protection settings, and control sources should be matched to the actual application.

During initial commissioning, the motor should be tested under controlled conditions. Confirm that the drive responds correctly to the start and stop commands, verify motor rotation, and observe current and speed behavior before applying the complete process load.

Fault diagnosis should always consider the entire motor system. An overcurrent fault may originate from a motor cable or mechanical load, while a communication fault may be caused by the network or controller rather than the drive itself.

Thermal conditions also deserve attention. The drive should have sufficient airflow and appropriate cabinet clearance. Excessive ambient temperature or restricted ventilation can reduce reliability and contribute to nuisance trips.

The 20BC205A0NNNANC0 has a specified weight of 37.19 kg (81.99 lb) and dimensions of 689.6 × 308.9 × 275.4 mm. Its installation should therefore include adequate structural support and safe handling procedures.

For replacement applications, technicians should preserve the original configuration wherever appropriate, but the replacement unit should still be checked against the motor and machine requirements. A catalog-number match alone does not guarantee that every application parameter is correct.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model	20BC205A0NNNANC0
Product Type	PowerFlex 700 AC Drive
Drive Family	PowerFlex 700
Primary Function	AC Motor Speed and Torque Control
Application	Industrial Variable-Speed Motor Control
Typical Installation	Industrial Control Cabinet
Typical Applications	Conveyors, Pumps, Fans, Machinery and Process Equipment
Dimensions	689.6 × 308.9 × 275.4 mm
Weight	37.19 kg (81.99 lb)

The Allen Bradley 20BC205A0NNNANC0 measures 689.6 × 308.9 × 275.4 mm and weighs 37.19 kg (81.99 lb).

The mounting structure should be capable of safely supporting the drive. Adequate ventilation and service clearance should also be maintained around the enclosure to support cooling and future maintenance.

Recommended Related Models

Model / Series	Product Type	Typical Application
Allen Bradley 20BC205A0NNNANC0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley 20BC170A0NNNANC0	PowerFlex 700 AC Drive	Heavy-duty motor applications
Allen Bradley 20BC125A0NNNANN0	PowerFlex 700 AC Drive	Variable-speed motor control
Allen Bradley 20BC105A0NNNANC0	PowerFlex 700 AC Drive	Industrial AC motor applications
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	Variable-speed machinery

These related PowerFlex models provide alternatives within the same general drive family. Selection should be based on the motor rating, load characteristics, electrical supply, application duty, and required control functions.

Popular Related Models

Model / Series	Product Type	Typical Use
Allen Bradley 20BC205A0NNNANC0	PowerFlex 700 AC Drive	Industrial variable-speed control
Allen Bradley 20BC170A0NNNANC0	PowerFlex 700 AC Drive	Heavy-duty motor control
Allen Bradley 20BC125A0NNNANN0	PowerFlex 700 AC Drive	Industrial motor applications
Allen Bradley 20BC105A0NNNANC0	PowerFlex 700 AC Drive	Process and machine control
Allen Bradley 20BC085A0NNNANC0	PowerFlex 700 AC Drive	General industrial motor control

For replacement projects, verify the complete Allen Bradley 20BC205A0NNNANC0 catalog number before installation. Confirm motor data, incoming power, application duty, control architecture, communication settings, cabinet ventilation, and mounting requirements to ensure the replacement drive is correctly matched to the existing system.

Applications

The Allen Bradley 20BC205A0NNNANC0 PowerFlex 700 AC Drive is an industrial variable-frequency drive intended for applications that require dependable AC motor control, adjustable operating speed, and coordinated machine performance.

It can be incorporated into automation systems where motor speed needs to respond to changing production requirements. The PowerFlex 700 platform is suitable for applications ranging from continuous process equipment to large machine systems.

Typical applications include:

Industrial conveyor systems
Pumps and pumping stations
Fans and blowers
Material handling equipment
Manufacturing machinery
Packaging and processing lines
Water and wastewater equipment
Process skids
Industrial utility systems
General-purpose AC motor applications

A properly configured drive can help improve process consistency by providing controlled motor acceleration, deceleration, and speed regulation.

Advantages

The 20BC205A0NNNANC0 provides a practical PowerFlex 700 solution for industrial motor-control applications where dependable operation and flexible speed management are important.

Adjustable Motor Speed
The drive enables motor operation to be adapted to the actual process requirement, making it useful for machinery with variable operating conditions.

Controlled Acceleration and Deceleration
Adjustable ramp profiles help reduce abrupt changes in motor speed and can limit unnecessary mechanical stress on connected equipment.

Industrial Automation Integration
The PowerFlex 700 platform can be integrated into Allen Bradley control architectures for coordinated operation with PLCs and other automation equipment.

Motor Protection and Monitoring
Drive monitoring functions provide useful operating information and can identify abnormal electrical or thermal conditions.

Practical Fault Diagnostics
Drive status and fault information give maintenance technicians a starting point for troubleshooting motor, load, wiring, and configuration problems.

Flexible Application Range
The drive can be applied to conveyors, pumps, fans, process equipment, and other industrial machinery requiring variable-speed AC motor control.

Reliable Cabinet Integration
The specified dimensions of 689.6 × 308.9 × 275.4 mm allow the unit to be incorporated into appropriately engineered industrial control equipment.

Manageable Service Handling
The specified weight is 37.19 kg (81.99 lb), requiring suitable mechanical support during installation and replacement.

Technical FAQs

1. What is the Allen Bradley 20BC205A0NNNANC0 used for?
It is a PowerFlex 700 AC drive used to regulate AC motor operation in industrial automation and process applications.

2. What should be checked when the drive produces an overcurrent fault?
Check motor wiring, insulation, mechanical loading, acceleration settings, motor data, and the driven machine for binding or abnormal resistance.

3. Why does a drive sometimes trip during acceleration?
A short acceleration time, high mechanical load, incorrect motor parameters, or a motor/cable problem can cause current to rise beyond the configured limit.

4. What can cause an overvoltage fault during deceleration?
Rapid deceleration can return regenerative energy from the motor to the drive. Load inertia and deceleration settings should be evaluated when investigating this condition.

5. Why might the motor run below the commanded speed?
Possible causes include excessive load, current limiting, an incorrect speed reference, unsuitable motor parameters, or an active protection function.

6. What should be investigated if the drive repeatedly reports overload?
Measure operating current and inspect the mechanical load, motor condition, acceleration frequency, cooling, and drive configuration. Repeated overloads normally indicate an underlying operating condition that needs correction.

7. What can cause a PowerFlex 700 drive to lose communication with a controller?
Network wiring faults, incorrect addressing, communication configuration errors, controller problems, or a malfunctioning communication interface can interrupt communication.

8. What should be checked when the drive runs unusually hot?
Inspect cabinet ventilation, ambient temperature, airflow, drive loading, cooling-fan operation, and installation clearance. Contamination around cooling paths should also be removed.

9. What information should be saved before replacing the drive?
Record the complete catalog number, motor nameplate information, application parameters, reference source, control method, protection settings, communication configuration, and recent fault information.

10. How should the replacement drive be commissioned?
Verify mechanical installation and wiring, enter the correct configuration, test motor rotation and speed response, verify external commands and communication, then gradually introduce the normal machine load.
