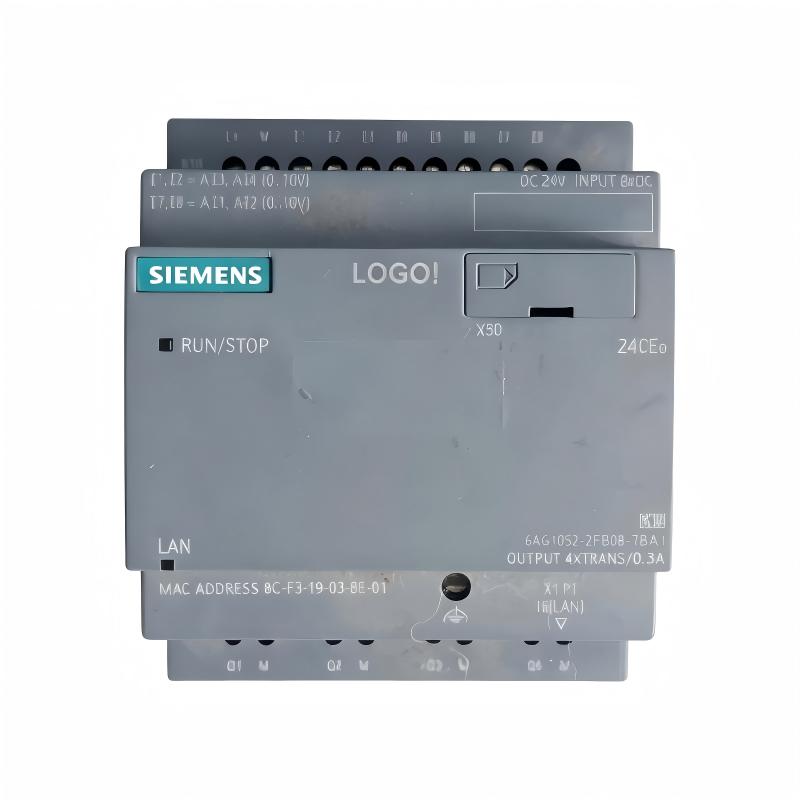

Siemens 6AG1052-2FB08-7BA1 Logic Module

Industrial Applications and Control Scenarios

The Siemens 6AG1052-2FB08-7BA1 SIPLUS LOGO! Logic Module is a compact programmable control solution designed for decentralized automation tasks where reliable logic processing and flexible configuration are required. Built on the Siemens LOGO! platform, this module provides efficient control functions for small machines, facility systems, and industrial equipment.

This logic module is suitable for a wide range of applications, including:

• Automated equipment control
• Building management systems
• Pump and motor control applications
• HVAC and energy management systems
• Conveyor monitoring and control
• Small production machines
• Intelligent switching and timing applications

The SIPLUS design enhances the module’s suitability for industrial environments by providing improved resistance against demanding operating conditions. It allows engineers to deploy compact automation solutions in locations where standard control components may not provide sufficient durability.

Product Advantages and Engineering Value

The Siemens 6AG1052-2FB08-7BA1 delivers dependable control performance through a combination of compact hardware design, flexible programming capability, and enhanced industrial reliability.

Space-Saving Automation Design
The compact form factor allows efficient installation in control cabinets with limited space while still providing essential PLC-style control functions.

Flexible Logic Programming
The module supports customized automation sequences, enabling users to replace traditional relay-based control systems with programmable solutions.

Reliable SIPLUS Industrial Performance
Designed with Siemens SIPLUS technology, the module provides improved durability for applications exposed to environmental challenges.

Fast Commissioning Process
The user-friendly LOGO! programming environment helps engineers create, modify, and maintain automation programs efficiently.

Cost-Effective Control Architecture
For smaller automation projects, the module provides a practical balance between functionality, reliability, and system investment.

Technical FAQs and Engineering Answers

Q1: What type of applications is the Siemens 6AG1052-2FB08-7BA1 designed for?
A: The module is designed for compact automation tasks such as machine control, facility automation, monitoring systems, and intelligent switching applications.

Q2: Is this module programmable like a PLC?
A: Yes. It provides programmable logic functions and can be configured according to specific automation requirements.

Q3: Which engineering software is used to program this logic module?
A: Siemens LOGO! Soft Comfort software is used for creating, editing, and transferring user programs.

Q4: Can this module be expanded with additional hardware?
A: Yes. Compatible LOGO! expansion modules can be connected to extend system functions and I/O capability.

Q5: What are the advantages of using a logic module instead of relay control?
A: A logic module provides easier modification, reduced wiring complexity, improved diagnostics, and greater application flexibility.

Q6: How should users handle program backup before replacement?
A: The existing user program should be saved and verified before replacing the module to ensure quick system recovery.

Q7: What factors may cause the logic module to operate incorrectly?
A: Incorrect programming, unstable power supply, wiring errors, or incompatible expansion components may affect operation.

Q8: Can this module be integrated into a larger automation system?
A: Yes. With suitable communication and expansion options, it can work as part of a broader industrial control architecture.

Q9: What maintenance steps are recommended for this module?
A: Regular inspection of wiring connections, program backups, system status information, and operating conditions is recommended.

Q10: Is firmware compatibility important when replacing this module?
A: Yes. Engineers should verify hardware and firmware compatibility to ensure reliable operation after replacement.
