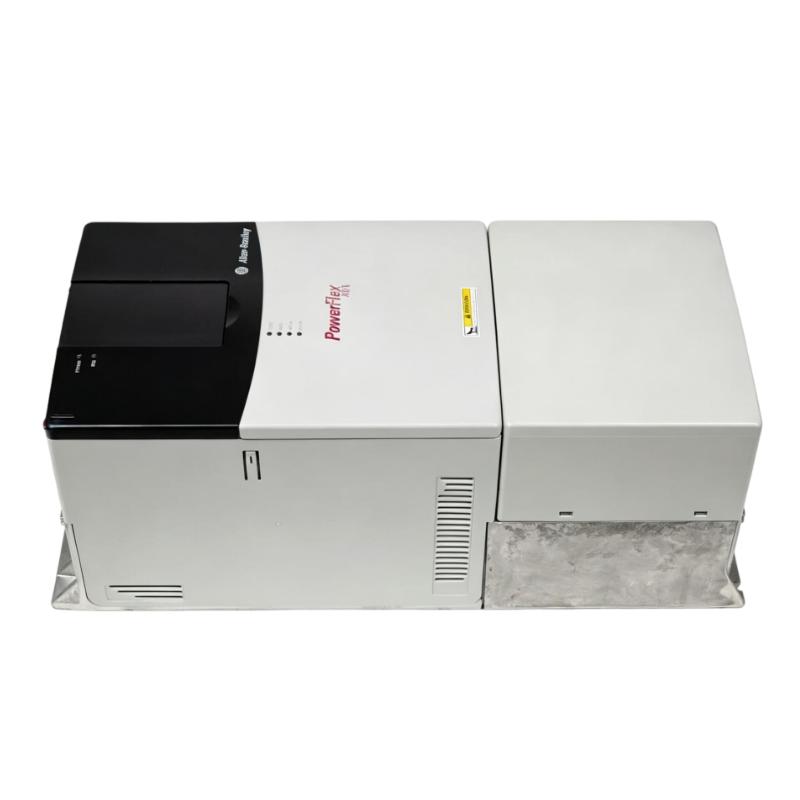

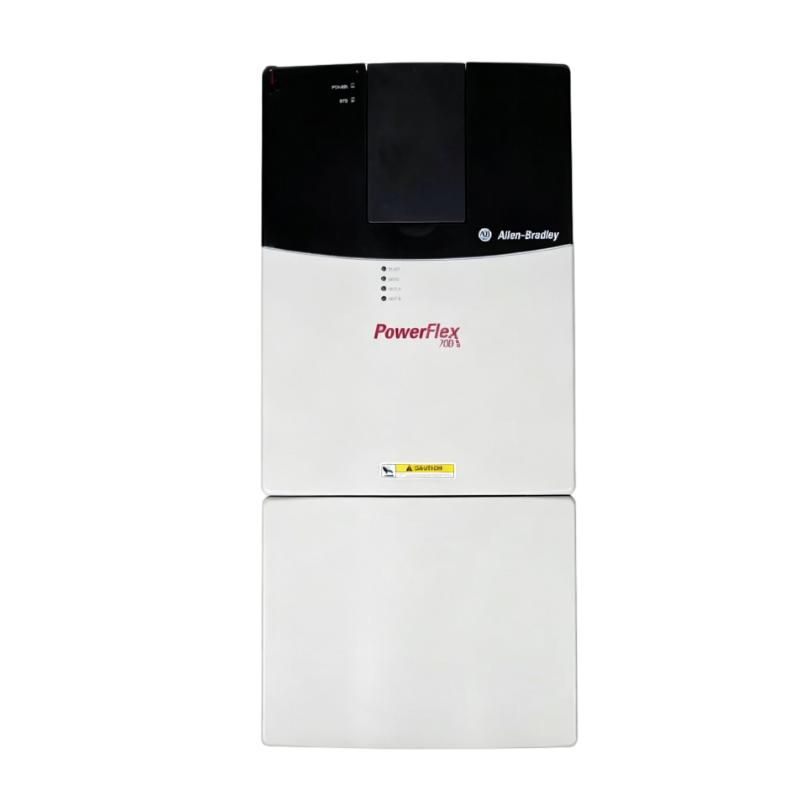

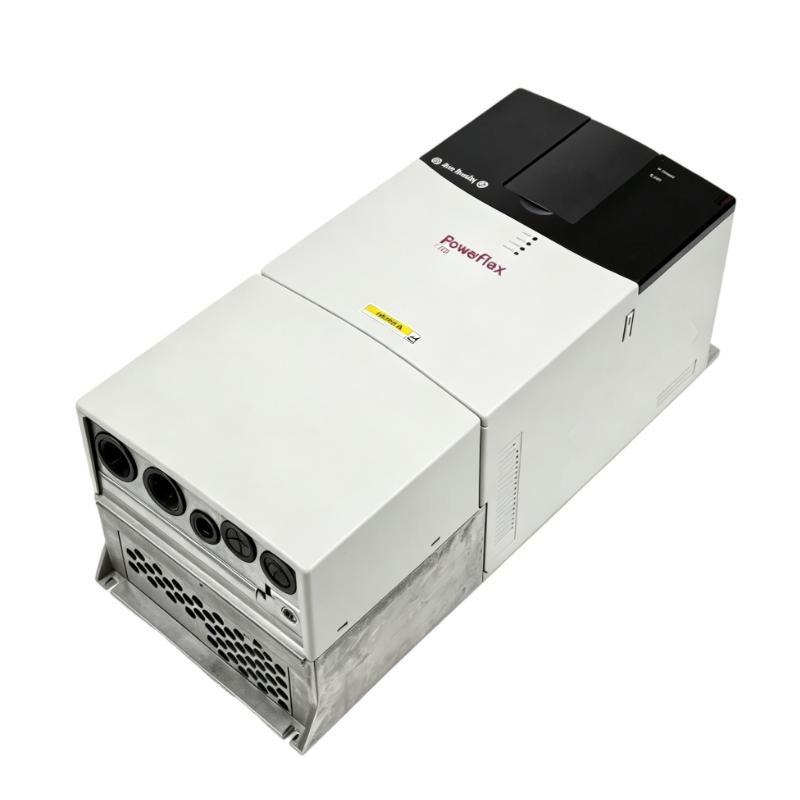

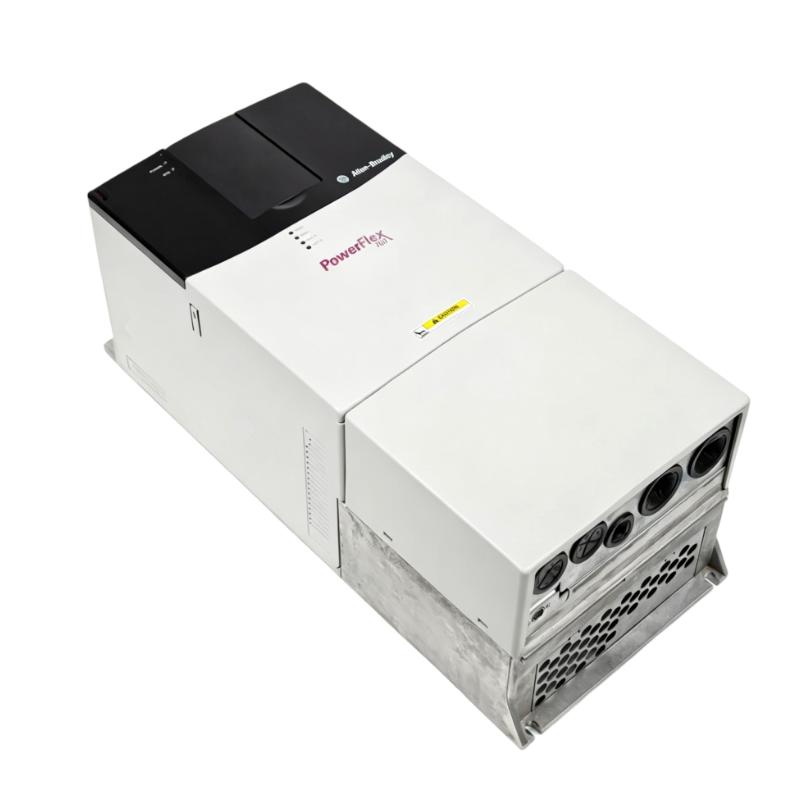

Allen Bradley 20BH875N0NNNNNC0 PowerFlex 700 AC Drive

Industrial Applications and High-Power Drive Deployment

The Allen Bradley 20BH875N0NNNNNC0 PowerFlex 700 AC Drive is a high-capacity variable frequency drive designed for large industrial motor applications that require reliable speed control, powerful performance, and continuous operation. As part of the PowerFlex 700 family, this drive provides a robust platform for managing demanding motor-driven equipment in complex automation environments.

This high-performance AC drive is widely used in:

• Heavy manufacturing equipment
• Large conveyor and material handling systems
• Mining and mineral processing machinery
• Industrial pumping stations
• Large ventilation and fan systems
• Process automation plants
• High-power mechanical drive applications

The PowerFlex 700 series provides engineers with advanced motor control capabilities for applications where operational stability, precise speed adjustment, and reduced downtime are critical. Its heavy-duty architecture supports demanding industrial environments while helping improve overall equipment efficiency.

Core Advantages and Technical Performance

The Allen Bradley 20BH875N0NNNNNC0 PowerFlex 700 AC Drive delivers powerful motor management capabilities combined with flexible automation integration, making it suitable for large-scale industrial operations.

Heavy-Duty Motor Control Capability
Designed for high-power applications, the drive provides stable control performance for large motors used in demanding industrial processes.

Reliable Speed and Torque Regulation
Advanced control functions help maintain consistent motor performance during changing load conditions.

Improved Process Efficiency
The drive enables variable-speed operation, allowing equipment to operate according to actual production requirements and improving energy utilization.

Industrial Network Compatibility
The PowerFlex 700 platform supports integration into automation systems, enabling coordinated control between drives, PLCs, and supervisory systems.

Enhanced Maintenance Support
Diagnostic and monitoring functions help maintenance teams identify operational issues quickly and reduce machine downtime.

Technical FAQs and Engineering Answers

Q1: What is the main application of the Allen Bradley 20BH875N0NNNNNC0?
A: This PowerFlex 700 AC Drive is designed for controlling large industrial motors in heavy-duty automation applications.

Q2: What types of equipment can use this drive?
A: It can be applied to conveyors, pumps, fans, processing machinery, and other large motor-driven systems.

Q3: How should this drive be commissioned before operation?
A: Engineers should configure motor data, control parameters, protection settings, acceleration/deceleration values, and application functions.

Q4: Can this drive communicate with industrial control systems?
A: Yes. The PowerFlex 700 platform supports integration with automation networks through compatible communication interfaces.

Q5: What causes excessive current faults during operation?
A: Possible causes include motor overload, incorrect parameter settings, mechanical obstruction, or improper acceleration configuration.

Q6: How does variable frequency control benefit industrial motors?
A: It allows motors to operate at optimized speeds, improving process control and reducing unnecessary energy consumption.

Q7: What should be checked when the drive reports a fault?
A: Engineers should review fault codes, operating conditions, motor connections, and drive configuration parameters.

Q8: Can this PowerFlex 700 drive support demanding continuous-duty applications?
A: Yes. It is designed for industrial environments requiring reliable long-term motor operation.

Q9: What maintenance procedures are recommended for this AC drive?
A: Regular inspection of cooling systems, electrical connections, operating data, and fault history is recommended.

Q10: What information is needed before replacing another drive with this model?
A: Verify motor requirements, power specifications, application conditions, control architecture, and communication settings.
