Brand:Foxboro Module Item No.:FBM206 P0916CQ Product Origin:USA Product Dimensions:114 x 45 x 104 mm Product Weight:0.284 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

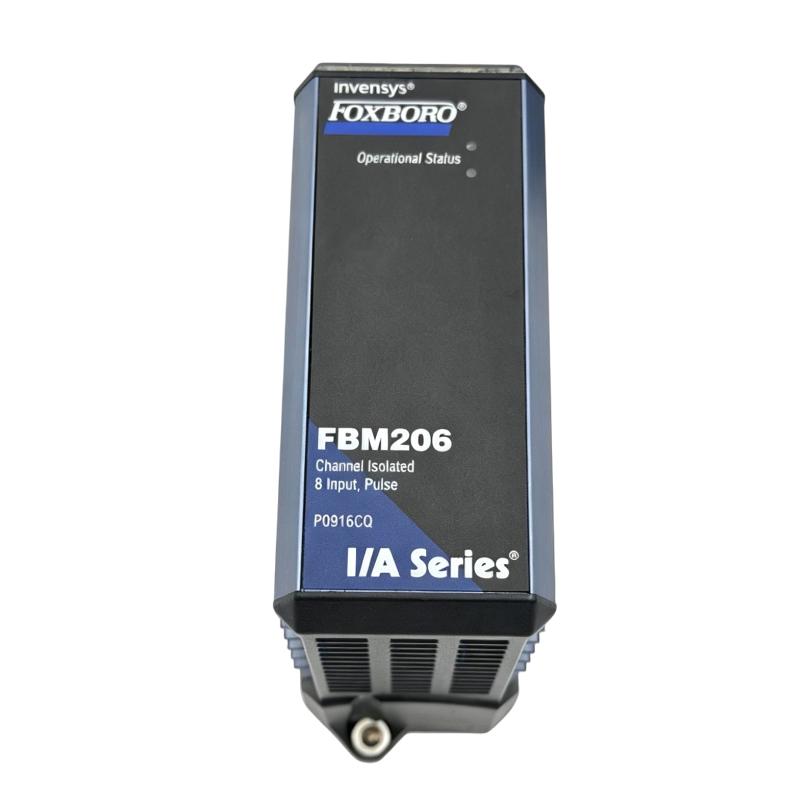

Pulse signals provide a simple but powerful way to transfer operating information from field equipment to an industrial control system. A flowmeter can generate pulses corresponding to fluid movement, a speed sensor can produce pulses related to shaft rotation, and a counting device can use pulses to represent discrete events. The Foxboro FBM206 P0916CQ Isolation Pulse Input Module is designed for this type of field signal integration.
Its isolation capability is particularly valuable in industrial installations where field equipment and control electronics may operate under different electrical conditions. By providing an isolated pulse-input interface, the module helps establish a more controlled connection between field instrumentation and the process-control system.
The FBM206 P0916CQ is therefore a useful component for applications requiring dependable pulse acquisition without introducing unnecessary complexity into the overall control architecture. It can support both new installations and maintenance work involving compatible Foxboro systems.
For plant engineers, the key advantage is straightforward: a properly selected pulse input module gives the control system access to valuable speed, counting, flow, and metering information while maintaining a structured field-interface solution.
Technical Specifications
Specification
Details
Brand
Foxboro
Model
FBM206 P0916CQ
Product Type
Isolation Pulse Input Module
Module Family
FBM206
Input Type
Pulse Input
Main Function
Isolated Pulse Signal Acquisition
Primary Application
Industrial Process Automation
Typical System
Foxboro Distributed Control System
Installation
Industrial Control Cabinet
Typical Signals
Pulse / Frequency-Based Field Signals
Applications
Flow, Speed, Counting, Metering
Dimensions
114 × 45 × 104 mm
Weight
0.28 kg (0.63 lb)
Recommended Related Models
Model
Product Type
Application
Foxboro FBM201
Fieldbus Module
Process I/O applications
Foxboro FBM202
Fieldbus Module
Distributed process control
Foxboro FBM203
Fieldbus Module
Field signal interfacing
Foxboro FBM204
Isolated I/O Module
Isolated process signal applications
Foxboro FBM205
Isolated I/O Module
Industrial process I/O
These models are relevant when evaluating associated Foxboro I/O hardware for process-control installations. The FBM206 P0916CQ should be selected when the application specifically requires a compatible pulse-input interface.
Popular Related Models
Model
Product Type
Typical Application
Foxboro FBM201
Fieldbus Module
Process monitoring and control
Foxboro FBM202
Fieldbus Module
Distributed I/O
Foxboro FBM203
Fieldbus Module
Industrial field interfacing
Foxboro FBM204
Isolated I/O Module
Isolated field signal handling
Foxboro FBM205
Isolated I/O Module
Process automation
For replacement projects, always verify the complete FBM206 P0916CQ part number and the actual field signal requirements. Pulse-input hardware should be matched to the connected instrument and the existing Foxboro control-system configuration to ensure reliable operation.
Applications
The Foxboro FBM206 P0916CQ Isolation Pulse Input Module is designed for industrial automation systems that need to acquire pulse-based signals from field devices while maintaining electrical isolation within the I/O interface. It is well suited to applications where pulse information must be reliably transferred into a compatible Foxboro process-control architecture.
Typical applications include flow measurement, equipment speed monitoring, metering, counting, rotating machinery supervision, and other process applications where the frequency or number of incoming pulses represents useful operating information.
In large process facilities, reliable pulse acquisition can provide the control system with important information about equipment operation and process conditions. The FBM206 P0916CQ offers a practical hardware solution for integrating these field signals into an established automation environment.
Advantages
Dedicated pulse signal acquisition — Designed for applications where pulse inputs represent process or equipment operating information.
Electrical isolation — Helps separate field-side pulse circuits from the control-system interface.
Reliable field interfacing — Provides a structured connection between pulse-producing field devices and compatible control hardware.
Suitable for measurement applications — Useful for flow, speed, counting, metering, and frequency-related monitoring.
Compact module design — Makes efficient use of available control cabinet space.
Industrial process compatibility — Suitable for demanding automation environments where dependable signal acquisition is essential.
Maintenance-friendly architecture — Simplifies replacement and troubleshooting when the correct module configuration is used.
Supports established Foxboro systems — Provides a practical option for compatible system maintenance and I/O modernization projects.
Technical FAQs
1. What is the Foxboro FBM206 P0916CQ used for?
The FBM206 P0916CQ is an isolation pulse input module designed to receive pulse-type signals from compatible field devices and interface them with a Foxboro industrial control system.
2. What types of signals are commonly associated with a pulse input module?
Pulse inputs can represent events, frequency, rotational speed, flow-related measurements, or other process values that are transmitted as discrete electrical pulses.
3. Why is isolation important for pulse inputs?
Electrical isolation helps separate the field signal circuit from the control-system electronics. This can reduce unwanted electrical interaction and improve signal-interface robustness in industrial environments.
4. Can the FBM206 P0916CQ be used for equipment speed monitoring?
Pulse signals generated by suitable speed-sensing devices can be used for rotational-speed monitoring when the field device and system configuration are compatible with the module's input requirements.
5. Is this module suitable for flow measurement applications?
It can be used in pulse-based flow measurement systems where a compatible flowmeter provides a pulse output representing flow information.
6. Does the FBM206 P0916CQ perform the complete process-control strategy?
No. The module provides the field pulse input interface. Processing, scaling, alarming, control logic, and operator-level functions are handled by the associated Foxboro control-system architecture.
7. What should be verified before connecting a pulse-generating field device?
Engineers should verify the field device output type, signal characteristics, wiring polarity, isolation requirements, applicable input specifications, and the corresponding control-system configuration.
8. What can cause an unstable or missing pulse signal?
Possible causes include incorrect wiring, an unsuitable field-device output, excessive electrical interference, damaged cables, loose terminals, an incorrect configuration, or a malfunctioning pulse source.
9. How can a technician troubleshoot a missing pulse input?
First verify that the field instrument is generating the expected pulse signal. Then inspect wiring and termination, check the module's diagnostic information, and verify that the control system is configured for the intended input.
10. Can a standard analog input module be substituted for the FBM206 P0916CQ?
Not necessarily. Pulse signals and analog process signals have different interface requirements. A replacement should be selected according to the actual signal type and the control-system architecture rather than simply matching the physical module format.
