Brand:Foxboro Module Item No.:FBM207 Product Origin:USA Product Dimensions:127 x 80 x 125 mm Product Weight:0.272 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

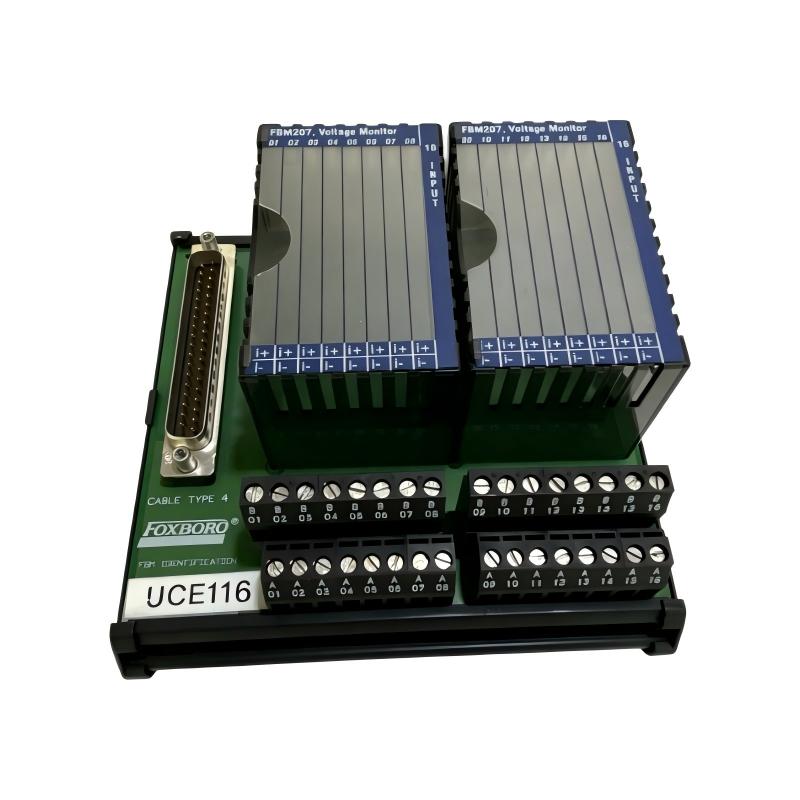

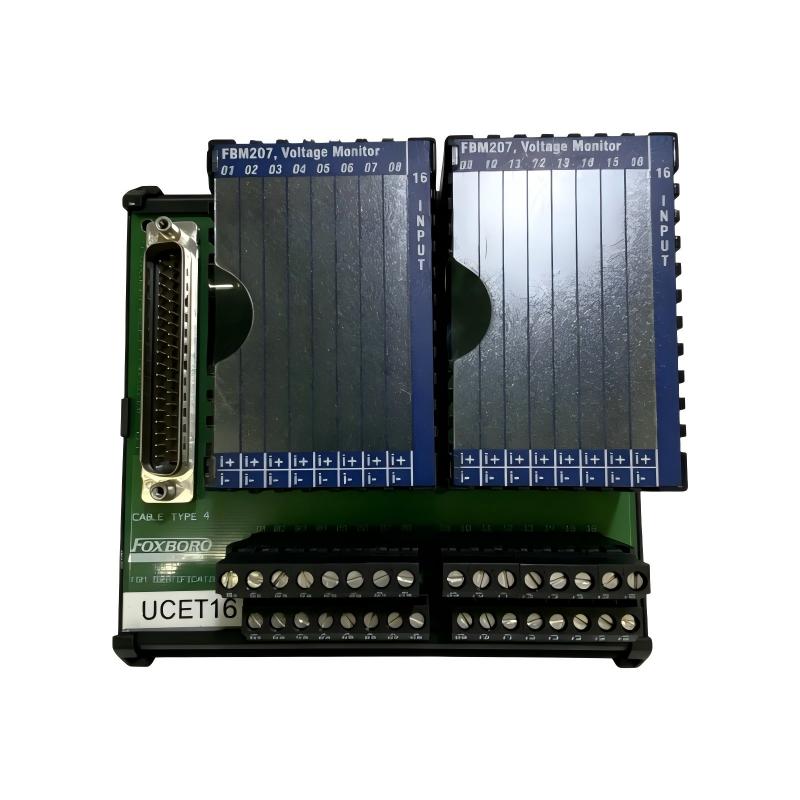

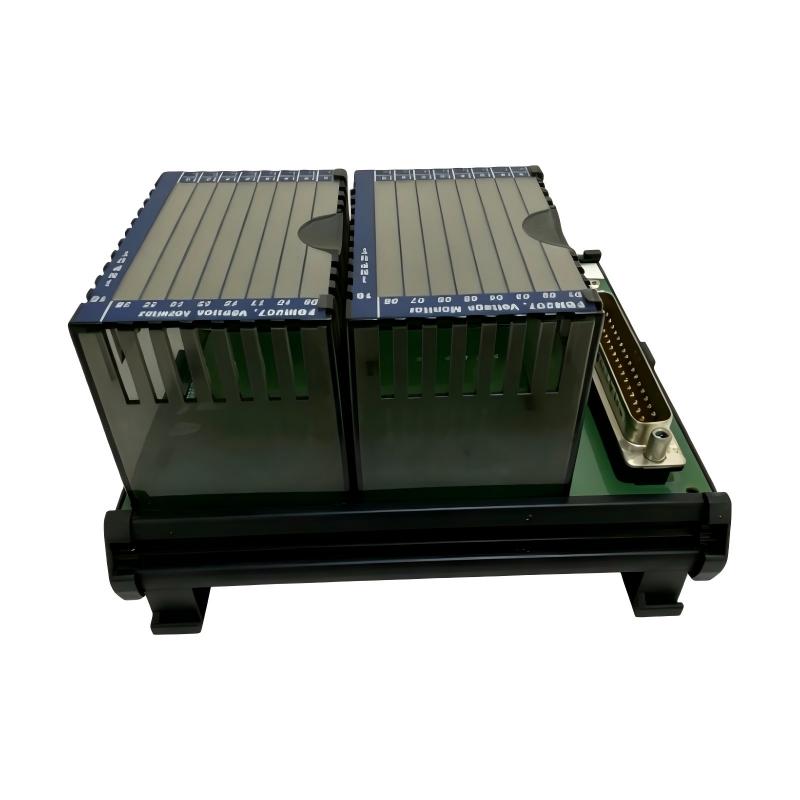

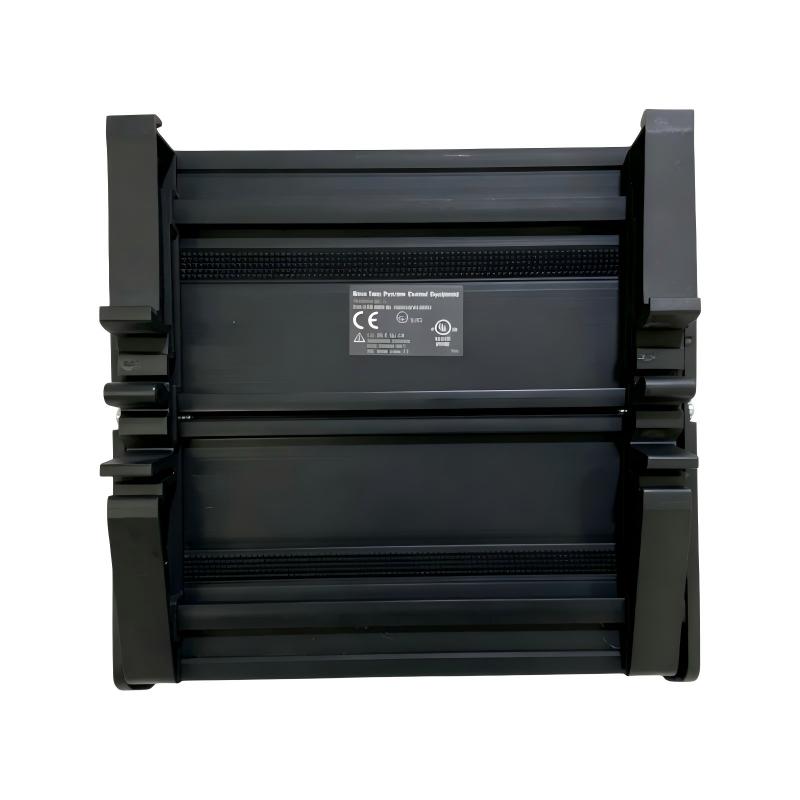

The physical field interface is an often-overlooked part of a reliable process-control installation. The Foxboro FBM207 P0916AL Compressed Terminal Components is designed to provide a practical termination solution for field wiring used with compatible Foxboro automation hardware.
In large industrial facilities, control cabinets can contain extensive amounts of instrumentation wiring. A well-structured terminal arrangement helps keep these circuits identifiable and accessible, which becomes especially valuable when technicians are commissioning new equipment or diagnosing an intermittent field signal.
The FBM207 P0916AL is suited to this practical side of automation engineering. Rather than adding unnecessary complexity, it supports a clean connection architecture around the associated Foxboro I/O equipment.
For maintenance departments and system integrators, the component can be a useful choice when preserving an existing cabinet design is preferable to undertaking extensive wiring changes. Correct part-number matching remains essential when selecting it for replacement or expansion work.
Technical Specifications
Specification
Details
Brand
Foxboro
Model
FBM207 P0916AL
Product Type
Compressed Terminal Components
Component Type
Terminal Component
Primary Application
Industrial Automation
Typical System
Foxboro Process Control / DCS
Main Function
Field Wiring Termination
Installation
Control Cabinet / Instrumentation Panel
Application
Field Circuit Interfacing
Dimensions
127 × 80 × 125 mm
Weight
0.27 kg (0.60 lb)
Intended Use
Foxboro System Maintenance and Integration
Recommended Related Models
Model
Product Type
Application
Foxboro FBM203 P0916AE
Compressed Terminal Components
Field wiring termination
Foxboro FBM203d P0924EX
Terminal Components
Control cabinet field connections
Foxboro FBM204 P0914SY
Isolated I/O Module
Isolated process signal interfacing
Foxboro FBM205 P0914XG
Isolated I/O Module
Industrial process I/O
Foxboro FBM206 P0916CQ
Isolation Pulse Input Module
Pulse signal acquisition
These models are relevant when working with Foxboro field-interface and I/O infrastructure. Selection should be based on the actual system configuration rather than family number alone.
Popular Related Models
Model
Product Type
Typical Application
Foxboro FBM203 P0916AE
Compressed Terminal Components
Field wiring organization
Foxboro FBM203d P0924EX
Terminal Components
Industrial control cabinets
Foxboro FBM204 P0914SY
Isolated I/O Module
Process signal isolation
Foxboro FBM205 P0914XG
Isolated I/O Module
Field signal interfacing
Foxboro FBM206 P0916CQ
Isolation Pulse Input Module
Pulse-based process measurement
For procurement and replacement work, the complete FBM207 P0916AL part number should be specified. The P0916AL suffix is important when identifying the required terminal configuration, so selecting hardware based only on the FBM207 family designation is not recommended.
Applications
The Foxboro FBM207 P0916AL Compressed Terminal Components is intended for industrial control cabinets where field wiring requires a structured and dependable termination arrangement. As part of a compatible Foxboro automation installation, it provides the physical connection infrastructure needed to organize field circuits around the associated I/O equipment.
This type of terminal component is well suited to process industries such as oil and gas, chemical processing, refining, power generation, water treatment, and general manufacturing. In these environments, clear field termination is important not only during commissioning but also throughout the operating life of the plant.
The FBM207 P0916AL can also be considered for replacement and maintenance projects involving existing Foxboro systems. Keeping the terminal configuration consistent with the original installation can make cabinet servicing more straightforward and help reduce unnecessary wiring modifications.
Advantages
Structured field connections — Helps establish an organized termination point for industrial field wiring.
Foxboro system integration — Designed for use in compatible Foxboro automation and process-control architectures.
Efficient cabinet organization — Supports a cleaner wiring layout within industrial control panels.
Maintenance-friendly — Makes field connections easier to inspect, identify, and service.
Compact industrial design — Fits applications where control cabinet space needs to be managed effectively.
Practical replacement solution — Useful for maintenance teams supporting established Foxboro installations.
Improved wiring traceability — Organized termination can simplify circuit identification during troubleshooting.
Suitable for demanding applications — Appropriate for process-control environments where dependable physical connections are essential.
Technical FAQs
1. What is the Foxboro FBM207 P0916AL used for?
The FBM207 P0916AL is a compressed terminal component used to organize and terminate field wiring within a compatible Foxboro industrial control installation.
2. Does the FBM207 P0916AL process electrical signals?
No. The component provides a physical termination interface. Signal processing and control functions are performed by the associated I/O and control-system equipment.
3. Where would this terminal component typically be installed?
It is intended for industrial control cabinets, instrumentation panels, and other suitable enclosures where field wiring must be connected to compatible Foxboro system hardware.
4. Why is proper terminal organization important in a DCS installation?
A well-organized termination system makes field circuits easier to identify and maintain. It can also reduce wiring errors during commissioning and help technicians trace faults more efficiently.
5. Can the FBM207 P0916AL be used in an existing Foxboro system?
It may be suitable when the existing system requires the corresponding terminal configuration. Engineers should verify the complete part number and associated hardware before installation.
6. What information should be checked before ordering a replacement?
The complete model designation, associated I/O hardware, terminal arrangement, field wiring requirements, cabinet configuration, and system documentation should all be reviewed.
7. Can this component be used for a system expansion?
It can be considered for expansion projects where the new configuration requires a compatible terminal arrangement. Compatibility with the associated I/O and control architecture should be confirmed first.
8. What can cause a field circuit to become unreliable after termination?
Common possibilities include loose connections, damaged conductors, incorrect wiring, mechanical stress, contamination, poor conductor preparation, or an issue with the connected field device.
9. How should terminal-related faults be investigated?
Start by checking the physical connection, conductor condition, labeling, and continuity. If the terminal path is correct, continue testing the associated field device and I/O channel.
10. Does replacing a terminal component require changes to the control program?
A terminal component itself generally does not contain control logic. However, any wiring or I/O configuration changes associated with the replacement should be reviewed to ensure the complete system remains correctly configured.
