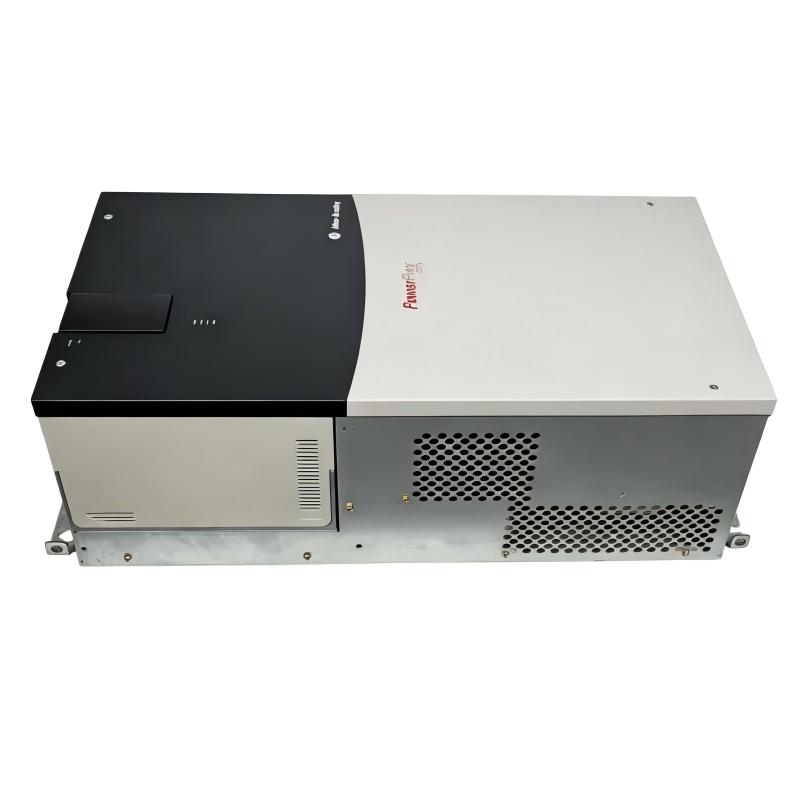

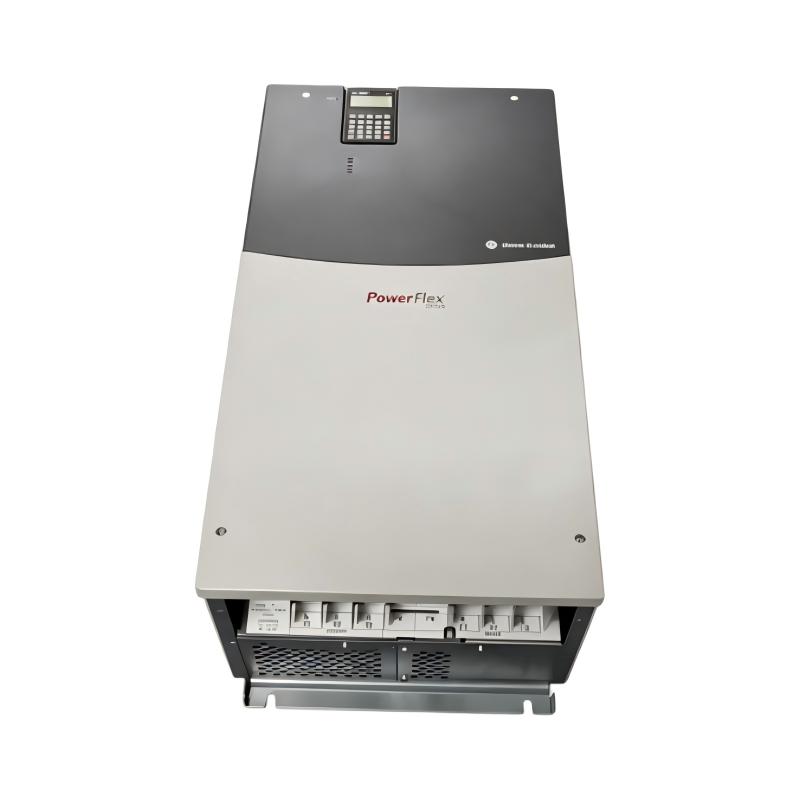

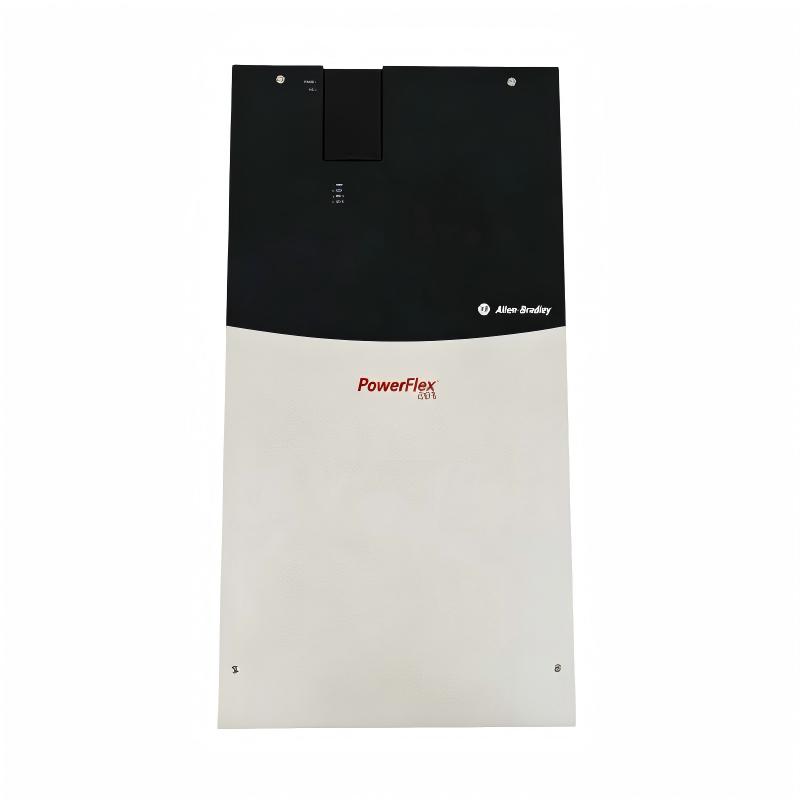

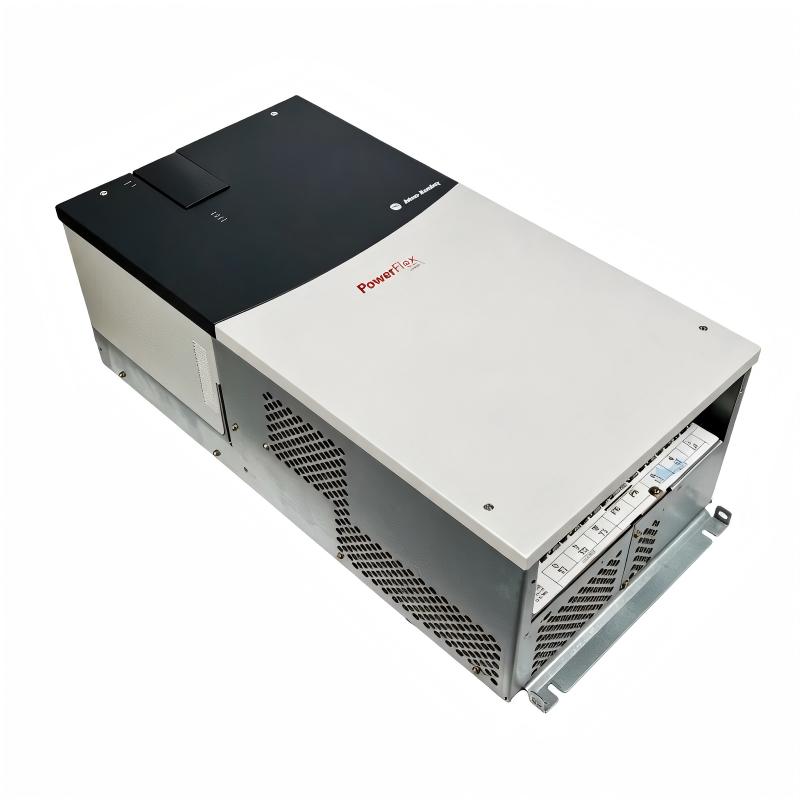

Allen Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive
Allen Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BC205A3NNNANA0 Product Origin:USA Product Dimensions:689.6 x 308.9 x 275.4 mm Product Weight:37.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Motor speed has a direct influence on productivity, energy consumption, mechanical wear, and process stability. The Allen Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive provides a dedicated variable-frequency drive solution for industrial applications where motor operation needs to be controlled rather than simply switched on and off.
The PowerFlex 700 platform is aimed at applications requiring more than basic motor starting. By controlling motor speed and acceleration characteristics, an AC drive can help equipment operate more smoothly and allow machine builders to match motor performance to actual process requirements.
For example, a conveyor may need different speeds during different production stages, while a pump or fan may require variable operation as process demand changes. In these situations, the drive becomes an important part of the machine's overall automation strategy.
The 20BC205A3NNNANA0 is therefore a strong candidate for industrial retrofit, machinery integration, and drive replacement projects where dependable variable-speed motor control is required. Correct parameter setup and proper motor matching remain essential for achieving reliable commissioning and long-term performance.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20BC205A3NNNANA0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
Industrial Motor Speed Control
Application
Industrial Automation
Typical Equipment
Conveyors, Pumps, Fans, Compressors, Mixers
Control Role
Motor Speed and Torque Management
Installation
Industrial Control Cabinet / Electrical Panel
Dimensions
689.6 × 308.9 × 275.4 mm
Weight
37.19 kg (82.00 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
Industrial motor control
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Variable-speed motor applications
Allen Bradley PowerFlex 700
AC Drive
Industrial machine and process control
Allen Bradley PowerFlex 70
AC Drive
General industrial motor control
Allen Bradley PowerFlex 700H
AC Drive
High-performance industrial applications
When selecting a related drive, engineers should compare the motor rating, input power, output requirements, control method, enclosure configuration, communications, and application-specific functions rather than choosing solely by product family.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
Industrial motor control
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Variable-speed machinery
Allen Bradley PowerFlex 70
AC Drive
Pumps, conveyors and machinery
Allen Bradley PowerFlex 700
AC Drive
Industrial process and machine control
Allen Bradley PowerFlex 700H
AC Drive
Demanding industrial drive applications
For procurement or replacement work, the complete 20BC205A3NNNANA0 catalog number should be used. PowerFlex drive variants can differ substantially in their electrical ratings, control features, enclosure configurations, and available options, so matching the complete specification is essential for a successful replacement.
Applications
The Allen Bradley 20BC205A3NNNANA0 PowerFlex 700 AC Drive is designed for industrial motor-control applications that require dependable variable-speed operation, controlled acceleration and deceleration, and flexible integration into automated production systems.
As part of the PowerFlex 700 family, this AC drive is suited to machinery and process equipment where motor speed needs to be adjusted according to production demand. Typical applications include conveyors, pumps, fans, compressors, mixers, material-handling systems, packaging machinery, and other industrial motor-driven equipment.
The drive is particularly valuable in automation systems where accurate motor control can improve process consistency, reduce mechanical stress, and provide operators with greater control over machine performance.
Advantages
Flexible AC motor control — Provides adjustable motor operation for a wide range of industrial machinery.
Process-oriented speed control — Allows motor speed to be adapted to changing production requirements.
Reduced mechanical stress — Controlled acceleration and deceleration can help reduce shock loading on connected equipment.
Energy-conscious operation — Variable-speed control can reduce unnecessary motor operation in suitable pump, fan, and process applications.
Industrial automation integration — Designed for use as part of larger machine and control-system architectures.
Strong PowerFlex platform — Provides a proven drive architecture for demanding industrial applications.
Application flexibility — Suitable for both standalone machine control and integrated automation systems.
Practical maintenance value — Diagnostic and drive-status functions can help engineers identify operating problems more efficiently.
Technical FAQs
1. What is the Allen Bradley 20BC205A3NNNANA0 used for?
The 20BC205A3NNNANA0 is a PowerFlex 700 AC drive used to control the speed and operation of compatible industrial motors.
2. What is the primary advantage of using an AC drive?
An AC drive allows motor speed and operating behavior to be controlled according to the requirements of the machine or process. This can improve process control while reducing unnecessary mechanical stress.
3. What types of equipment can use a PowerFlex 700 drive?
Typical applications include conveyors, pumps, fans, compressors, mixers, material-handling equipment, packaging machinery, and other motor-driven industrial systems.
4. Can the drive be integrated into an automated control system?
Yes. PowerFlex 700 drives are designed for industrial automation environments and can be integrated with compatible control architectures using the appropriate control and communication configuration.
5. What should be configured before commissioning the drive?
Engineers should configure the motor data, command source, reference source, acceleration and deceleration parameters, protection settings, operating limits, and other application-specific parameters required by the motor and machine.
6. What can cause an AC drive to trip during acceleration?
Possible causes include excessive acceleration demand, motor overload, mechanical binding, incorrect motor parameters, unsuitable current limits, or an electrical problem in the motor circuit.
7. How should an overcurrent fault be investigated?
Check the motor and mechanical load first, then inspect motor cabling and connections. The drive's fault history and operating parameters should also be reviewed to determine whether the event occurred during starting, acceleration, steady operation, or deceleration.
8. Why is correct motor data important?
Accurate motor information allows the drive's control algorithms and protection functions to operate appropriately. Incorrect motor parameters can contribute to poor performance, nuisance trips, or excessive motor stress.
9. What maintenance is recommended for the PowerFlex 700?
Maintenance should include checking ventilation, cabinet cleanliness, electrical connections, cooling components, motor wiring, fault history, and operating conditions. Preventive maintenance should follow the equipment manufacturer's applicable procedures.
10. Can a PowerFlex 700 be used as a direct replacement for another Allen Bradley drive?
Not necessarily. Drive replacement requires verification of motor requirements, input power, output characteristics, enclosure arrangement, control method, communication requirements, and application-specific functions. The complete catalog number should be matched before replacement.
