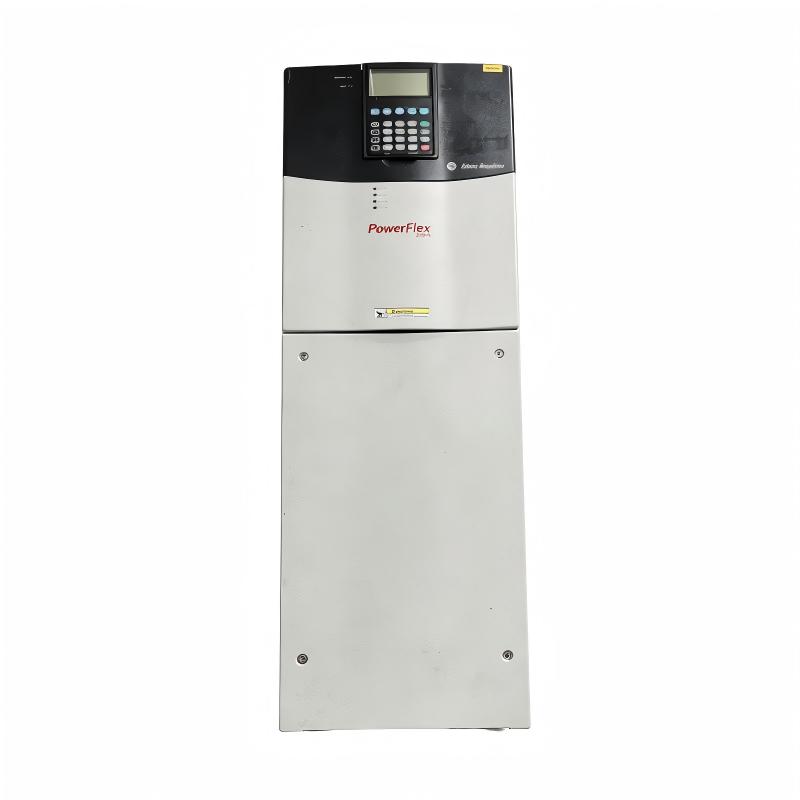

Allen Bradley 20BD077A3ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BD077A3ANNANC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BD077A3ANNANC0 Product Origin:USA Product Dimensions:758.8 x 201.7 x 220 mm Product Weight:24.49 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
In automated production equipment, controlling motor speed accurately can have a direct effect on throughput, product quality, energy use, and mechanical reliability. The Allen Bradley 20BD077A3ANNANC0 PowerFlex 700 AC Drive provides a variable-speed motor-control solution for industrial applications where fixed-speed operation is not sufficient.
Rather than simply supplying power to a motor, an AC drive regulates the motor's operating behavior according to the needs of the machine or process. This makes it possible to establish smoother starts, controlled stopping, and adjustable operating speeds.
The PowerFlex 700 family is particularly relevant to industrial facilities where motor control needs to work alongside a broader automation system. It can be applied to production machinery, material-handling equipment, pumps, fans, compressors, and other applications where repeatable motor performance is important.
For maintenance teams, the 20BD077A3ANNANC0 can also be considered for compatible replacement projects. A properly matched drive can help extend the useful life of existing machinery while avoiding unnecessary changes to the overall control architecture.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20BD077A3ANNANC0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
Industrial Motor Speed Control
Application
Industrial Automation
Typical Equipment
Conveyors, Pumps, Fans, Compressors, Mixers
Control Application
Variable-Speed Motor Operation
Installation
Industrial Control Cabinet / Electrical Panel
Dimensions
758.8 × 201.7 × 220 mm
Weight
24.49 kg (54.00 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Industrial variable-speed motor control
Allen Bradley 20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
General industrial motor control
Allen Bradley PowerFlex 70
AC Drive
Machinery and process applications
Allen Bradley PowerFlex 700
AC Drive
Industrial automation and motor control
Allen Bradley PowerFlex 700H
AC Drive
Demanding industrial drive applications
These models are useful reference points when evaluating Allen Bradley variable-frequency drive solutions. The correct replacement should be selected by comparing the motor rating, supply requirements, control method, communications, installed options, and application load.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20AD5P0A0AYYNNG0
PowerFlex 70 AC Drive
Industrial motor control
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Variable-speed machinery
Allen Bradley 20BD077A3ANNANC0
PowerFlex 700 AC Drive
Industrial motor applications
Allen Bradley PowerFlex 70
AC Drive
Pumps, conveyors and machinery
Allen Bradley PowerFlex 700
AC Drive
Process and machine control
When purchasing or replacing the 20BD077A3ANNANC0, use the complete catalog number rather than selecting a drive based only on the PowerFlex 700 family. Exact electrical ratings, control features, options, and installation requirements should be matched to the existing application.
Applications
The Allen Bradley 20BD077A3ANNANC0 PowerFlex 700 AC Drive is built for industrial motor-control applications where variable-speed operation, controlled acceleration, and dependable process performance are required. It provides a practical way to match motor speed to the actual demands of production equipment rather than operating motors continuously at a fixed speed.
The drive can be used in a wide range of automated machinery and process equipment, including conveyors, pumps, fans, compressors, mixers, material-handling systems, and production machinery. It is also well suited to industrial retrofit projects where existing motors need improved speed control without completely redesigning the surrounding automation system.
For machine builders and plant maintenance teams, the PowerFlex 700 platform offers a useful combination of motor-control capability and integration flexibility for demanding industrial applications.
Advantages
Variable-speed motor control — Allows motor operation to be adjusted to actual process requirements.
Controlled acceleration and deceleration — Helps reduce mechanical shock and improve machine startup and stopping behavior.
Broad industrial applicability — Suitable for many motor-driven machines and continuous-process applications.
Automation system integration — Can form part of a larger Allen Bradley control architecture.
Improved process consistency — Adjustable motor operation can help maintain more stable production conditions.
Maintenance-friendly diagnostics — Drive status and fault information can assist technicians during troubleshooting.
Retrofit potential — Provides a practical solution for upgrading compatible motor-control installations.
PowerFlex platform flexibility — Offers a proven drive family for industrial automation and motor-control requirements.
Technical FAQs
1. What is the Allen Bradley 20BD077A3ANNANC0 PowerFlex 700 used for?
The 20BD077A3ANNANC0 is an AC drive designed to provide variable-speed control for compatible industrial motors and motor-driven equipment.
2. What types of machines can use this drive?
Typical applications include conveyors, pumps, fans, compressors, mixers, material-handling machinery, and other industrial equipment requiring controlled motor speed.
3. Why use a variable-frequency drive instead of direct motor starting?
A variable-frequency drive provides controlled motor acceleration, deceleration, and operating speed. This can improve process control and reduce mechanical stress compared with fixed-speed operation.
4. Can the PowerFlex 700 be integrated with an Allen Bradley PLC system?
Yes, PowerFlex 700 drives are intended for industrial automation architectures and can be integrated with compatible Allen Bradley control systems using the appropriate interface and configuration.
5. What motor information should be entered during commissioning?
Important motor parameters can include rated voltage, current, frequency, speed, power, and other information required by the selected control method. The actual motor nameplate and applicable drive documentation should be used during setup.
6. What can cause a drive to trip during normal operation?
Potential causes include motor overload, excessive current, overheating, input-power problems, mechanical overload, incorrect parameter settings, or faults in the motor and cable system.
7. How should an overvoltage fault be investigated?
Check the incoming supply and operating conditions first. If the fault occurs during deceleration, the motor and load inertia, deceleration settings, and braking arrangement should also be evaluated.
8. Why is motor-drive sizing important?
The drive must be matched to the motor's electrical requirements and the application's load characteristics. Incorrect sizing can lead to overload trips, reduced performance, excessive heating, or unreliable operation.
9. What preventive maintenance should be performed?
Technicians should periodically inspect cooling paths, cabinet cleanliness, electrical connections, motor cables, ventilation components, and fault history. Maintenance intervals should reflect the actual operating environment and site procedures.
10. Can the 20BD077A3ANNANC0 replace another PowerFlex 700 drive?
Only after the complete electrical and functional requirements have been compared. Input power, motor rating, control configuration, enclosure requirements, communications, and installed options should all be checked before replacement.
