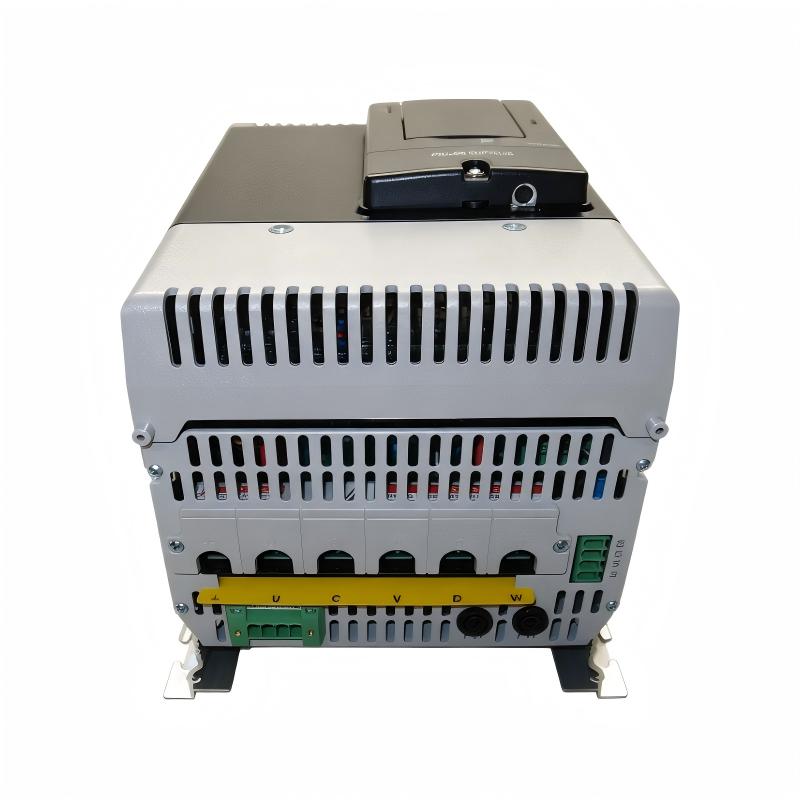

Allen Bradley 20P41AB038RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AB038RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AB038RA0NNN Product Origin:USA Product Dimensions:359 x 267 x 287 mm Product Weight:11.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
DC motors remain important in many industrial machines, particularly in applications where an existing mechanical system has been optimized around DC motor characteristics. The Allen Bradley 20P41AB038RA0NNN PowerFlex DC Drive provides a dedicated drive solution for controlling compatible DC motor systems without requiring an immediate transition to a completely different motor architecture.
This makes the drive especially relevant to industrial retrofit and maintenance projects. Replacing a mature DC motor system with a new AC-based solution can involve mechanical modifications, control-system changes, downtime, and significant engineering costs. Maintaining the existing DC architecture can sometimes provide a more efficient path for extending machine service life.
The PowerFlex DC platform is suited to applications where controlled speed, torque, and dependable machine operation are important. Depending on the application configuration, the drive can form part of a larger automated system in which motor behavior is coordinated with production equipment and supervisory controls.
For plant engineers, the 20P41AB038RA0NNN offers a practical approach to keeping compatible DC motor equipment productive while supporting more controlled and manageable motor operation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20P41AB038RA0NNN
Product Family
PowerFlex DC
Product Type
PowerFlex DC Drive
Drive Category
DC Motor Drive
Primary Function
DC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Web Systems, Material Handling, Machinery
Motor Type
Compatible DC Motor
Installation
Industrial Control Cabinet
Dimensions
359 × 267 × 287 mm
Weight
11.50 kg (25.35 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
DC motor speed and torque control
Allen Bradley 20P41A
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley PowerFlex DC
DC Drive
Industrial motor control
Allen Bradley PowerFlex 70
AC Drive
Variable-speed AC motor applications
Allen Bradley PowerFlex 700
AC Drive
Industrial AC motor control
The PowerFlex DC models are the most relevant when maintaining an existing DC motor installation. PowerFlex AC drive families should only be considered when the motor and mechanical system are suitable for conversion to AC drive technology.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley PowerFlex DC
DC Drive
DC motor applications
Allen Bradley PowerFlex 70
AC Drive
General industrial motor control
Allen Bradley PowerFlex 700
AC Drive
Process and machine control
Allen Bradley 20BD077A3ANNANC0
PowerFlex 700 AC Drive
Variable-speed industrial machinery
For replacement work, the complete 20P41AB038RA0NNN catalog number should be verified against the existing DC motor, field configuration, feedback arrangement, control requirements, and installation conditions. Matching only the PowerFlex DC family is not sufficient to guarantee a suitable replacement.
Applications
The Allen Bradley 20P41AB038RA0NNN PowerFlex DC Drive is designed for industrial applications that require controlled DC motor operation, adjustable speed, and dependable torque management. It is well suited to machinery where precise DC motor control remains important for maintaining production performance and repeatable operating conditions.
Typical applications include conveyors, unwind and rewind systems, material-handling equipment, printing machinery, web-processing lines, extruders, machine tools, and other industrial equipment using compatible DC motors. The drive can also be valuable in retrofit projects where an established DC motor installation needs continued service without replacing the entire mechanical system.
For industrial maintenance teams, the PowerFlex DC platform offers a practical solution for maintaining legacy DC motor applications while providing modern drive-control capabilities within an established automation environment.
Advantages
Dedicated DC motor control — Designed specifically for applications requiring controlled operation of compatible DC motors.
Adjustable motor speed — Allows machine speed to be matched to production requirements.
Torque control capability — Supports applications where consistent motor torque is important to process performance.
Suitable for retrofit projects — Can provide a practical control solution for existing DC motor machinery.
Industrial automation integration — Can operate as part of a broader machine or process-control architecture.
Improved process control — Adjustable DC motor operation can provide smoother and more repeatable machine performance.
Maintenance-oriented solution — Useful for plants that continue to operate established DC motor systems.
Compact installation format — Its relatively compact dimensions can simplify integration into suitable control panels.
Technical FAQs
1. What is the Allen Bradley 20P41AB038RA0NNN used for?
The 20P41AB038RA0NNN is a PowerFlex DC drive designed to control compatible DC motors in industrial automation and machine-control applications.
2. Why would an industrial system still use a DC drive?
Many existing machines were engineered around DC motors because of their speed and torque characteristics. Replacing the complete motor and mechanical system can be costly, so maintaining the existing DC architecture with an appropriate drive can be an effective solution.
3. What applications are suitable for a PowerFlex DC drive?
Applications can include conveyors, web-processing equipment, printing machinery, material handling, unwind/rewind systems, and other machinery requiring controlled DC motor speed and torque.
4. Is the 20P41AB038RA0NNN suitable for speed control?
Yes. DC drives are commonly used where controlled motor speed is required, with the actual operating range and performance determined by the motor, drive configuration, feedback arrangement, and application requirements.
5. What should be checked before commissioning the drive?
Engineers should verify the DC motor nameplate information, armature and field requirements, feedback configuration where applicable, command and reference sources, acceleration and deceleration settings, current limits, and protection parameters.
6. What can cause an armature overcurrent condition?
Possible causes include excessive mechanical load, incorrect current settings, motor faults, wiring problems, mechanical binding, or inappropriate drive configuration.
7. Why is field excitation important for a DC motor?
The motor field establishes the magnetic field required for motor operation. The field configuration and excitation requirements must be correctly matched to the motor and drive.
8. What should be checked if motor speed is unstable?
Check the speed feedback system if used, motor connections, drive parameters, load conditions, and control-loop settings. A damaged feedback device or incorrect configuration can contribute to unstable speed regulation.
9. Can this drive be integrated with a PLC-based control system?
Yes, a compatible PowerFlex DC drive can be incorporated into an industrial control architecture using the available command, reference, status, and communication interfaces appropriate to the installation.
10. What maintenance is recommended for a DC drive installation?
Regular inspection should include cooling airflow, cabinet cleanliness, electrical connections, motor cabling, feedback wiring, fault history, and operating conditions. Preventive maintenance should be performed according to site procedures and the equipment requirements.
