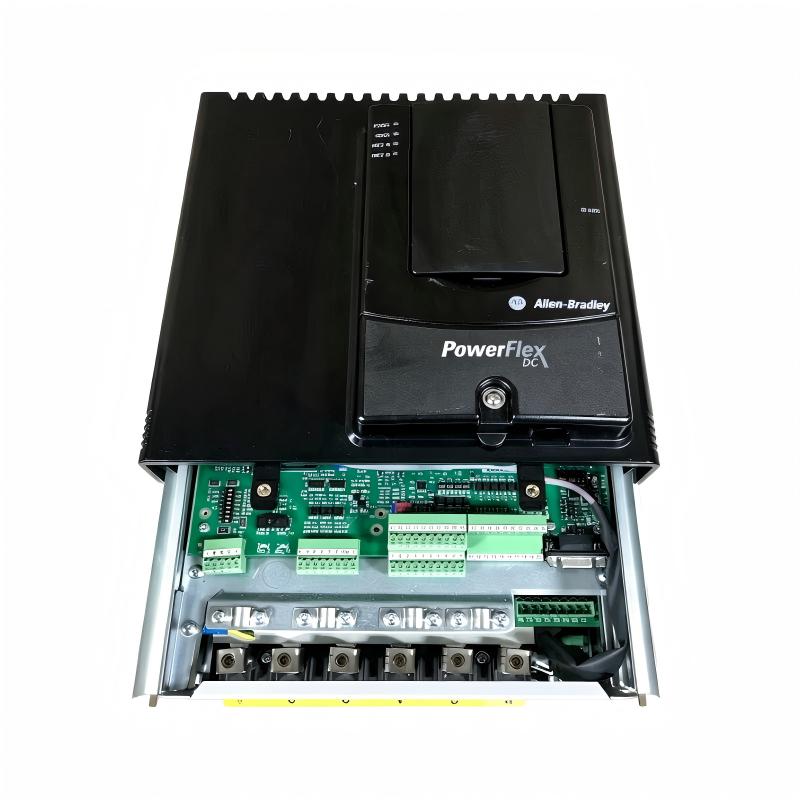

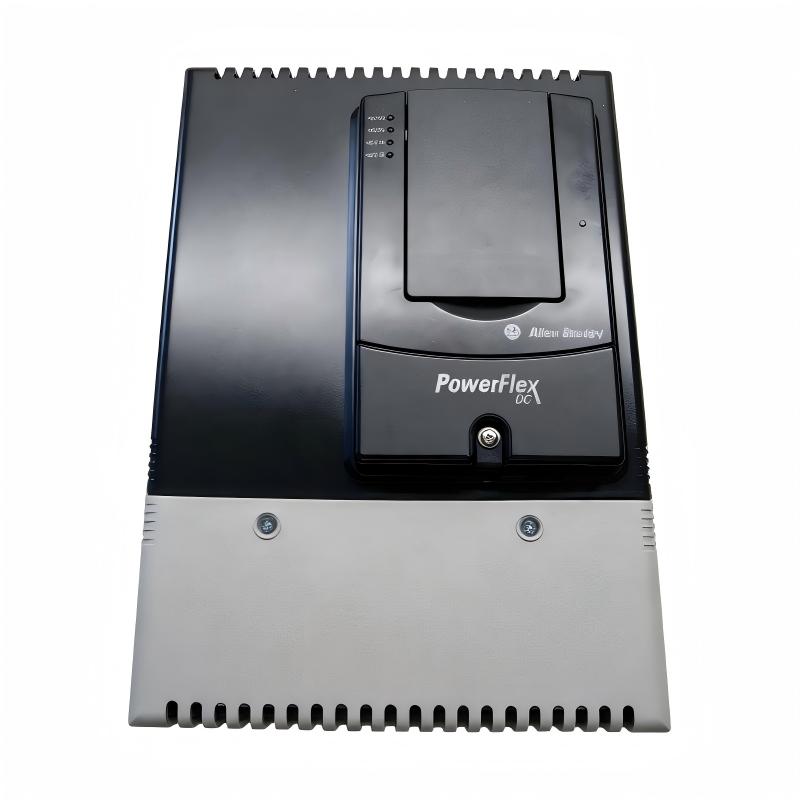

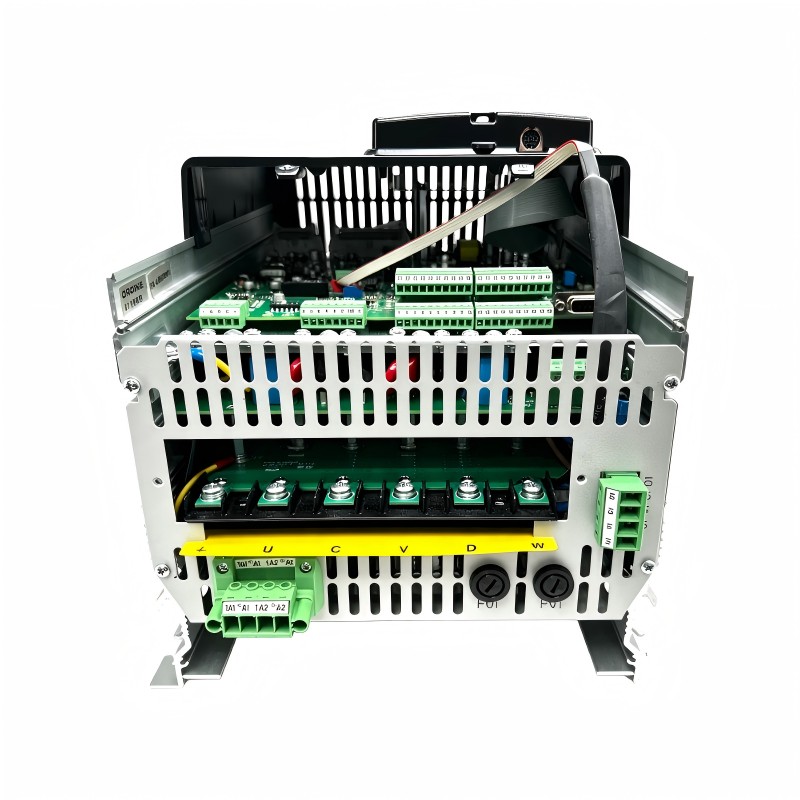

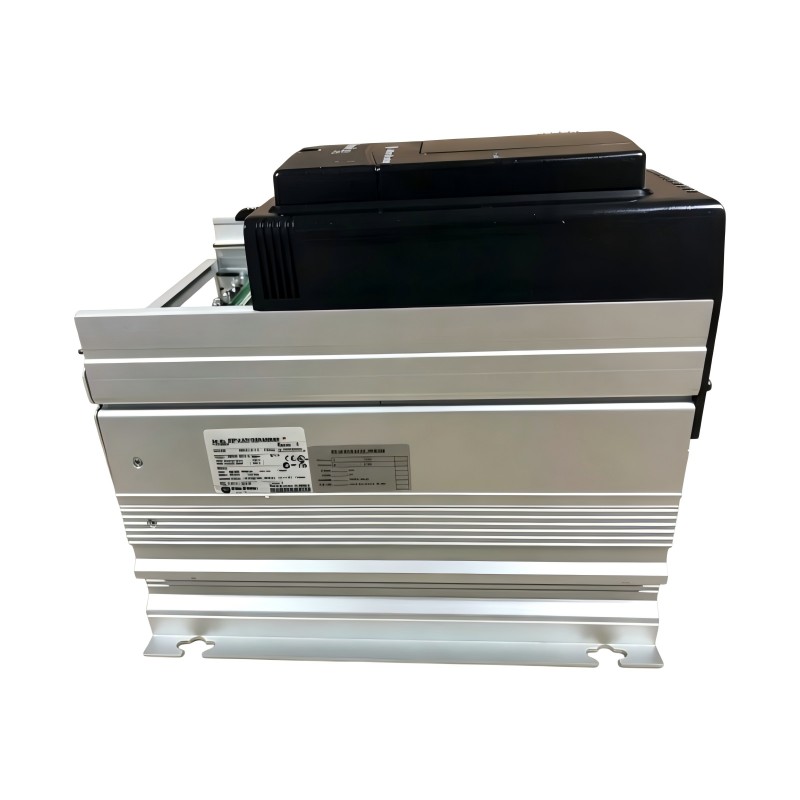

Allen Bradley 20P41AB093RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AB093RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AB093RA0NNN Product Origin:USA Product Dimensions:359 x 267 x 287 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Many production machines continue to use DC motors because their mechanical systems and control strategies were designed around this technology from the beginning. The Allen Bradley 20P41AB093RA0NNN PowerFlex DC Drive provides a dedicated solution for controlling compatible DC motors while helping operators maintain the performance of established industrial equipment.
For a plant considering modernization, retaining a serviceable DC motor can sometimes be more economical than converting an entire machine to AC motor technology. A DC drive replacement can focus the upgrade on the motor-control portion of the system while leaving the mechanical drivetrain and much of the existing machine architecture intact.
This makes the PowerFlex DC family particularly relevant to retrofit applications. Conveyors, web-processing machinery, printing equipment, winding systems, and material-handling machines can benefit from controlled motor speed and torque when these characteristics are essential to production quality.
The 20P41AB093RA0NNN is therefore a useful option for industrial maintenance and replacement projects involving compatible DC motor systems. Correct matching of the drive to the motor and application remains critical for achieving reliable commissioning and stable operation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20P41AB093RA0NNN
Product Family
PowerFlex DC
Product Type
PowerFlex DC Drive
Drive Category
DC Motor Drive
Primary Function
DC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Web Systems, Printing and Material-Handling Machinery
Motor Type
Compatible DC Motor
Installation
Industrial Control Cabinet
Dimensions
359 × 267 × 287 mm
Weight
12.00 kg (26.46 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
DC motor speed and torque control
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
DC motor control
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit and control
These models are relevant when maintaining or expanding compatible PowerFlex DC installations. Selection should be based on the motor's electrical requirements and the specific machine application rather than the product family alone.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20P41AB038RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
Industrial motor applications
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
DC motor speed and torque control
Allen Bradley PowerFlex DC
DC Drive
Industrial DC motor retrofit
For procurement and replacement projects, the complete 20P41AB093RA0NNN catalog number should be verified against the existing motor, armature and field requirements, feedback arrangement, load characteristics, control interfaces, and cabinet installation. This helps prevent compatibility problems during commissioning and ensures the selected drive is appropriate for the intended application.
Applications
The Allen Bradley 20P41AB093RA0NNN PowerFlex DC Drive is designed for industrial equipment that depends on controlled DC motor operation. It is suitable for machinery where adjustable speed, consistent torque response, and dependable motor regulation are important to production performance.
Typical applications include conveyors, printing machinery, web-processing lines, material-handling equipment, extruders, winding and unwinding systems, and other industrial machines built around compatible DC motors.
The drive is also a practical consideration for retrofit and replacement projects. Where an existing DC motor and mechanical transmission remain serviceable, replacing or upgrading the drive can extend equipment life without requiring a complete conversion to a different motor technology.
Advantages
Purpose-built DC motor control — Provides a dedicated platform for compatible DC motor applications.
Adjustable motor speed — Enables machine speed to be coordinated with changing production requirements.
Controlled motor response — Supports applications where predictable acceleration and operating behavior are important.
Well suited to retrofit work — Helps plants maintain existing DC motor machinery without unnecessary system redesign.
Industrial automation integration — Can be incorporated into compatible machine and process-control architectures.
Suitable for demanding machinery — Supports applications where stable motor performance directly affects production.
Maintenance-friendly solution — Provides a practical replacement option for established DC drive installations.
Compact physical format — Supports installation in suitable industrial control cabinets.
Technical FAQs
1. What is the Allen Bradley 20P41AB093RA0NNN PowerFlex DC Drive?
It is a PowerFlex DC drive designed to regulate compatible DC motors in industrial automation and machine-control applications.
2. What is the main purpose of a DC drive?
A DC drive controls the electrical power delivered to a DC motor to regulate operating characteristics such as motor speed and torque according to the machine's requirements.
3. Where is this type of drive commonly used?
Common applications include conveyors, printing systems, web-processing equipment, winding machinery, material handling, extruders, and other machines using compatible DC motors.
4. Is the 20P41AB093RA0NNN suitable for existing DC motor installations?
It can be suitable when the existing motor and drive requirements match the specific drive configuration. The motor's electrical ratings and control arrangement should be verified before installation.
5. What motor parameters should be checked during commissioning?
Engineers should verify armature voltage and current, field requirements, rated motor speed, feedback configuration where applicable, operating limits, and other parameters required by the selected control strategy.
6. What can cause a DC motor to trip the drive during acceleration?
Possible causes include excessive mechanical load, excessive acceleration demand, incorrect current limits, motor faults, mechanical binding, wiring problems, or incorrect drive parameters.
7. What should be checked if the motor runs but does not maintain its commanded speed?
Check the speed reference, feedback device if used, motor and field circuits, load conditions, and drive configuration. The drive's diagnostic information can help identify abnormal operating conditions.
8. Why is field excitation important in a DC motor system?
Field excitation establishes the motor's magnetic field. The field circuit must be correctly configured and matched to the motor for reliable operation and appropriate speed control.
9. Can the drive operate as part of a PLC-controlled machine?
Yes. A compatible PowerFlex DC drive can be incorporated into an automation system through suitable command, reference, status, and communication interfaces.
10. What should be included in preventive maintenance?
Maintenance should include inspection of cooling paths, cabinet cleanliness, electrical connections, armature and field wiring, feedback circuits where applicable, and stored drive diagnostics. The maintenance schedule should reflect actual operating conditions.
