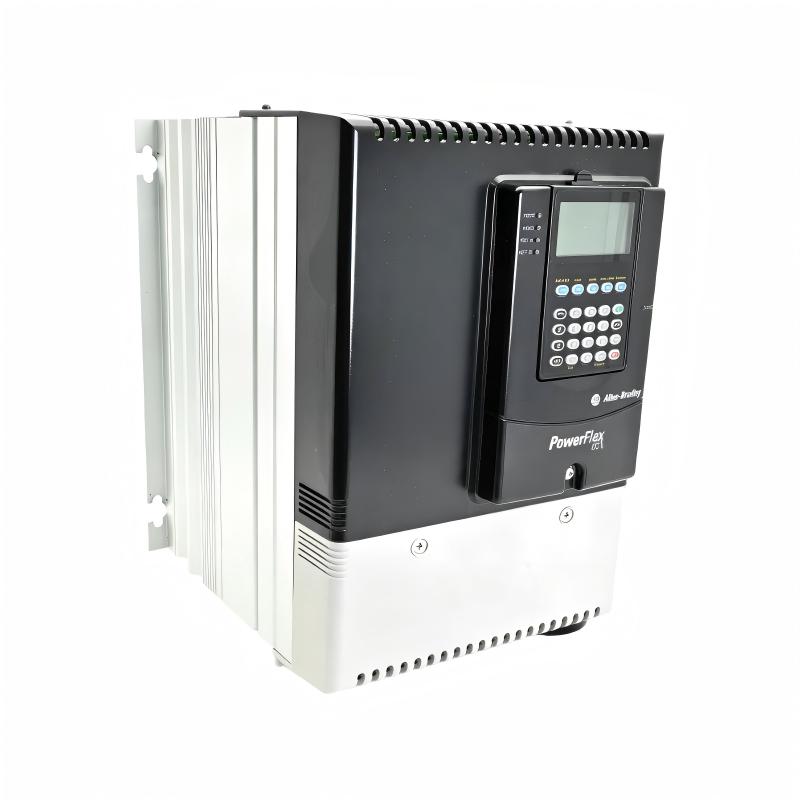

Allen Bradley 20P41AB110RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AB110RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AB110RA0NNN Product Origin:USA Product Dimensions:359 x 267 x 287 mm Product Weight:12 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial facilities often have production equipment that has been operating successfully for many years. When that machinery uses DC motors, replacing the drive does not necessarily mean replacing the complete motor system. The Allen Bradley 20P41AB110RA0NNN PowerFlex DC Drive provides a dedicated control solution for compatible DC motor applications and can be valuable in this type of maintenance strategy.
DC motor systems remain relevant in applications where the machine's mechanical design, production characteristics, or existing control architecture were developed around DC technology. Converting such equipment to AC can involve substantial engineering changes, while a correctly matched DC drive can focus modernization efforts on the motor-control system.
The PowerFlex DC platform is suitable for machinery where speed and torque behavior have a direct influence on production quality. Web handling, printing, conveying, winding, and material-processing applications can all require consistent motor response.
For plant maintenance and automation engineers, the 20P41AB110RA0NNN can therefore serve as a practical component for compatible replacement and retrofit projects. Proper motor matching, parameter configuration, and commissioning remain essential to achieving dependable operation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20P41AB110RA0NNN
Product Family
PowerFlex DC
Product Type
PowerFlex DC Drive
Drive Category
DC Motor Drive
Primary Function
DC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Web Machinery, Printing and Processing Equipment
Motor Type
Compatible DC Motor
Installation
Industrial Control Cabinet
Dimensions
359 × 267 × 287 mm
Weight
12.00 kg (26.46 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley 20P41AB110RA0NNN
PowerFlex DC Drive
DC motor speed and torque control
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit and maintenance
These models are useful reference points for compatible PowerFlex DC applications. Exact drive selection should be based on motor electrical requirements, load characteristics, control architecture, and installed options.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20P41AB055RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
DC motor control
Allen Bradley 20P41AB110RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit projects
When sourcing the 20P41AB110RA0NNN, use the complete catalog number and verify the drive against the existing motor and machine. Armature voltage and current, field excitation, feedback, load characteristics, control interfaces, and installation conditions should all be confirmed before replacement.
Applications
The Allen Bradley 20P41AB110RA0NNN PowerFlex DC Drive is designed for industrial machinery that requires controlled operation of compatible DC motors. It is a practical choice for applications where stable speed regulation, controlled acceleration, and dependable torque response are important to the production process.
Typical applications include conveyors, printing and converting machinery, web-processing systems, material-handling equipment, winding and unwinding machines, extruders, and other industrial equipment built around DC motor technology.
For facilities maintaining established DC motor installations, the PowerFlex DC platform also provides a practical path for drive replacement and modernization. Keeping the existing motor and mechanical system can avoid the cost and downtime associated with a complete AC conversion when the original DC architecture remains suitable for the application.
Advantages
Dedicated DC motor control — Provides a purpose-built solution for compatible industrial DC motor systems.
Precise speed management — Allows motor speed to be adjusted according to machine and process requirements.
Stable torque control — Supports applications where predictable motor response is essential.
Retrofit-friendly architecture — Helps extend the service life of existing DC motor-driven machinery.
Industrial automation integration — Can operate within compatible PLC and machine-control architectures.
Suitable for demanding production equipment — Designed for applications where consistent motor performance matters.
Maintenance practicality — Provides a focused replacement solution without necessarily requiring complete machine redesign.
Compact cabinet format — The physical dimensions support integration into suitable industrial control panels.
Technical FAQs
1. What is the Allen Bradley 20P41AB110RA0NNN PowerFlex DC Drive used for?
The 20P41AB110RA0NNN is a PowerFlex DC drive intended to control compatible DC motors in industrial automation, production machinery, and process applications.
2. What type of motor is required for this drive?
The drive is intended for compatible DC motor applications. The motor's armature, field, current, voltage, and feedback requirements must be matched to the specific drive configuration.
3. Why would a plant choose a DC drive instead of converting to an AC drive?
If the existing DC motor and mechanical system remain suitable, maintaining the DC architecture can reduce the engineering work, mechanical modifications, and downtime associated with a complete AC conversion.
4. What industrial machines can use a PowerFlex DC drive?
Potential applications include conveyors, printing machinery, web-processing systems, winding equipment, material handling, extruders, and other machines requiring controlled DC motor operation.
5. What should be checked before commissioning the 20P41AB110RA0NNN?
Verify the motor nameplate data, armature requirements, field circuit, feedback configuration where applicable, command source, speed reference, acceleration and deceleration parameters, and protection settings.
6. What could cause an armature overcurrent fault?
Possible causes include excessive mechanical loading, a mechanically restricted motor, motor or cable problems, incorrect current parameters, or unsuitable acceleration settings.
7. What can cause unstable motor speed?
Potential causes include incorrect speed-reference configuration, feedback problems, unstable control-loop settings, changing mechanical load, motor faults, or incorrect drive parameters.
8. What should be checked if the motor does not start?
Check the start command, enable conditions, motor connections, armature and field circuits, protective interlocks, drive status, and diagnostic information. The control-system command path should also be verified.
9. Can the drive be incorporated into an automated production line?
Yes. A compatible PowerFlex DC drive can form part of a larger automation system using appropriate command, reference, status, and communication interfaces.
10. How can preventive maintenance improve drive reliability?
Regular inspection of cooling paths, cabinet cleanliness, electrical connections, motor wiring, field circuits, feedback devices, and fault history can help identify developing problems before they cause production interruptions.
