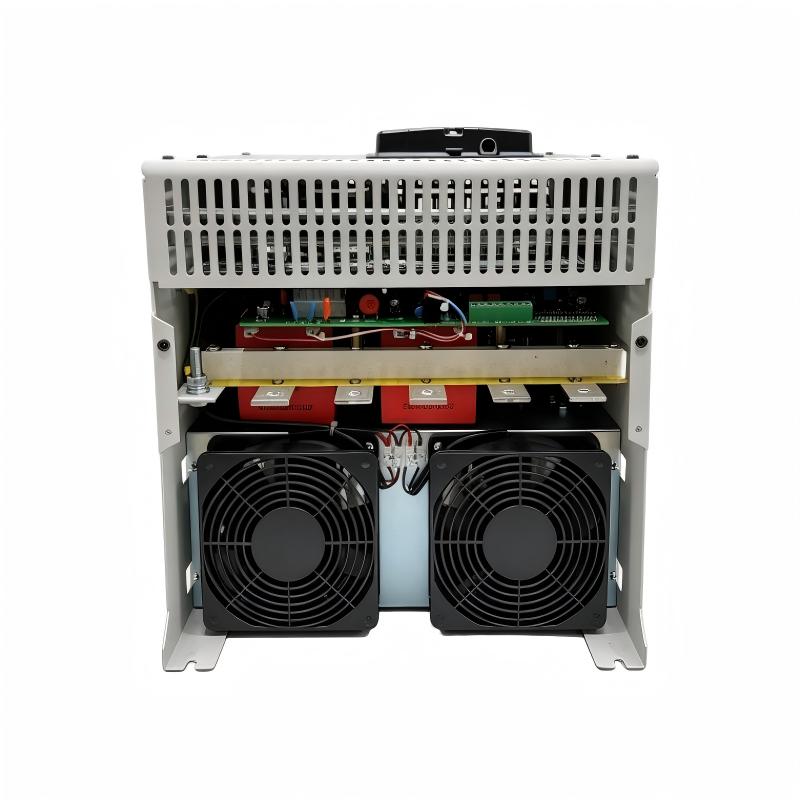

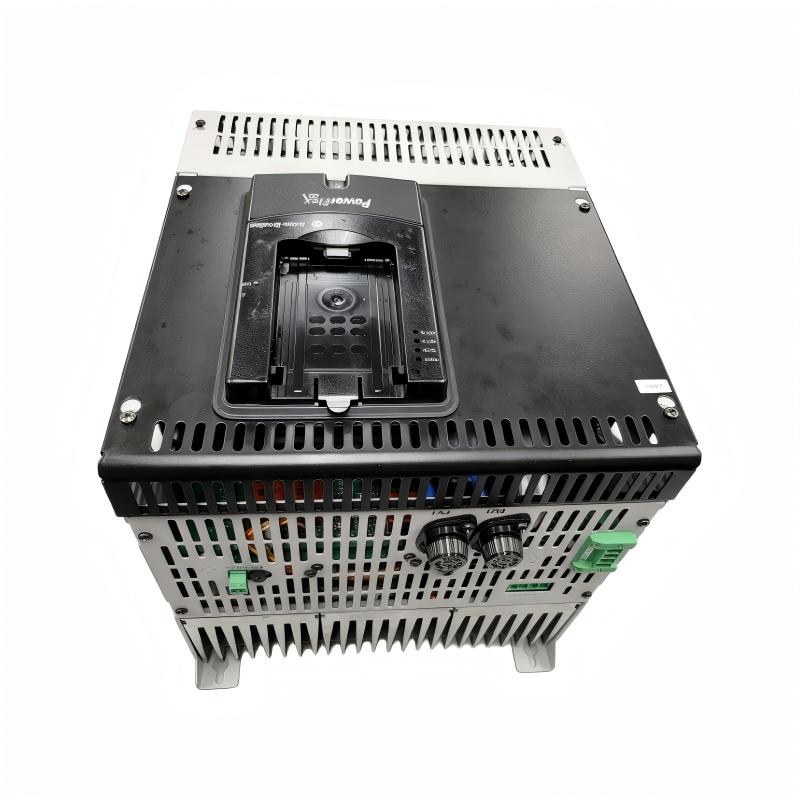

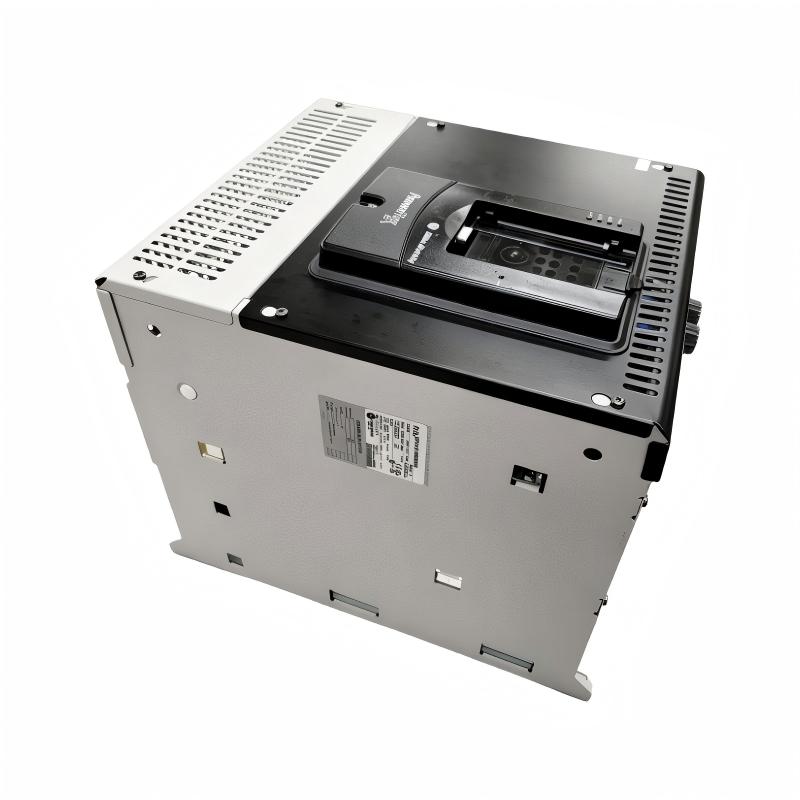

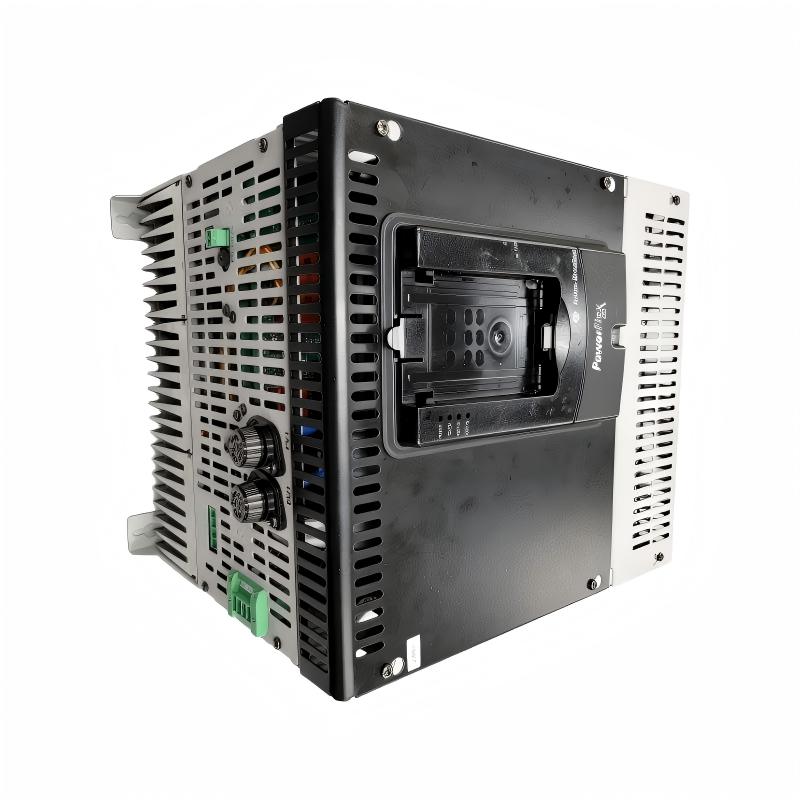

Allen Bradley 20P41AB146RA0NNN PowerFlex DC Driver
Allen Bradley 20P41AB146RA0NNN PowerFlex DC Driver
0.0
Points
Brand:Allen Bradley PLC Item No.:20P41AB146RA0NNN Product Origin:USA Product Dimensions:311 x 388 x 350 mm Product Weight:25.5 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
DC motor systems remain an important part of many established industrial machines. In applications such as web handling, printing, converting, and material processing, the existing motor and mechanical drivetrain may have been optimized over years of production. The Allen Bradley 20P41AB146RA0NNN PowerFlex DC Drive provides a dedicated control solution for maintaining compatible DC motor equipment.
One of the key advantages of a drive-level replacement is that it can focus modernization on the electrical control system rather than requiring a complete machine conversion. This can be particularly valuable when downtime must be minimized and the existing motor remains mechanically and electrically suitable.
The PowerFlex DC platform is intended for applications where controlled speed and torque are essential to machine performance. A properly configured drive can help coordinate motor operation with production demands while providing an organized interface between the motor and the wider automation system.
For industrial maintenance teams, the 20P41AB146RA0NNN is therefore a practical option to evaluate for compatible DC motor replacement and retrofit projects. Correct drive-to-motor matching remains the foundation of reliable operation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20P41AB146RA0NNN
Product Family
PowerFlex DC
Product Type
PowerFlex DC Drive
Drive Category
DC Motor Drive
Primary Function
DC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Web Systems, Printing and Processing Machinery
Motor Type
Compatible DC Motor
Installation
Industrial Control Cabinet
Dimensions
311 × 388 × 350 mm
Weight
25.50 kg (56.22 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley 20P41AB110RA0NNN
PowerFlex DC Drive
DC motor applications
Allen Bradley 20P41AB146RA0NNN
PowerFlex DC Drive
Industrial DC motor control
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit and maintenance
These related models can be useful when evaluating PowerFlex DC equipment for an existing installation. The correct model should always be selected by comparing the complete drive requirements with the motor and machine specifications.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20P41AB073RA0NNN
PowerFlex DC Drive
DC motor control
Allen Bradley 20P41AB093RA0NNN
PowerFlex DC Drive
Industrial motor applications
Allen Bradley 20P41AB110RA0NNN
PowerFlex DC Drive
DC motor speed control
Allen Bradley 20P41AB146RA0NNN
PowerFlex DC Drive
Industrial DC motor applications
Allen Bradley PowerFlex DC
DC Drive
DC motor retrofit projects
For replacement or procurement, the complete 20P41AB146RA0NNN catalog number should be checked against the existing motor, armature and field requirements, feedback arrangement, load characteristics, control interface, and cabinet installation. A family-level match alone is not sufficient for confirming drive compatibility.
Applications
The Allen Bradley 20P41AB146RA0NNN PowerFlex DC Drive is designed for industrial machinery that relies on controlled DC motor operation and requires dependable speed and torque management. It is suited to applications where motor performance directly affects production consistency, material handling, or machine throughput.
Typical applications include conveyors, printing and converting equipment, web-processing systems, winding and unwinding machinery, extruders, material-handling equipment, and other heavy-duty industrial machines using compatible DC motors.
The drive is also a strong candidate for maintenance and retrofit projects. Where an existing DC motor and mechanical transmission remain serviceable, a properly matched PowerFlex DC drive can help extend machine life without forcing a complete transition to an AC motor architecture.
Advantages
Dedicated DC drive architecture — Designed specifically for compatible DC motor applications.
Controlled speed operation — Helps maintain the motor speed required by the production process.
Torque management — Supports machinery where consistent torque response is important.
Retrofit suitability — Provides a practical option for maintaining established DC motor installations.
Industrial automation integration — Can be incorporated into compatible PLC and machine-control systems.
Suitable for production machinery — Well suited to applications requiring repeatable motor behavior.
Maintenance-friendly replacement — Allows drive-level modernization without automatically requiring a complete machine rebuild.
Professional cabinet integration — Designed for installation within appropriate industrial electrical enclosures.
Technical FAQs
1. What is the Allen Bradley 20P41AB146RA0NNN PowerFlex DC Drive used for?
The 20P41AB146RA0NNN is a PowerFlex DC drive designed to control compatible DC motors in industrial automation and production machinery.
2. What applications are suitable for this DC drive?
Typical applications include conveyors, printing and converting machines, web-processing equipment, winding systems, material handling, extruders, and other DC motor-driven machinery.
3. Why would an existing machine retain a DC motor?
A machine may retain its DC motor because the mechanical system, production process, and existing controls were designed around DC technology. Replacing the motor can require substantial engineering and downtime.
4. Can the 20P41AB146RA0NNN be used for retrofit work?
It can be considered for compatible retrofit and replacement projects. The existing motor ratings, field configuration, feedback system, and control requirements must be checked before installation.
5. What motor parameters are important during commissioning?
Engineers should verify armature voltage, armature current, field requirements, rated speed, feedback configuration where applicable, current limits, acceleration and deceleration settings, and other application-specific parameters.
6. What could cause an armature overcurrent fault?
Possible causes include excessive mechanical loading, motor or cable faults, mechanical binding, incorrect current settings, unsuitable acceleration parameters, or problems in the motor circuit.
7. Why might the motor fail to reach its commanded speed?
Possible causes include an incorrect speed reference, excessive load, feedback problems, incorrect field configuration, insufficient motor output, or incorrect drive parameters.
8. What should be inspected if motor speed fluctuates?
Check the speed feedback system where installed, command and reference signals, motor and field connections, load conditions, and drive configuration. Reviewing diagnostic information can help identify the source.
9. Can the PowerFlex DC drive work with a PLC-based control system?
A compatible configuration can be integrated into a PLC or industrial automation system using appropriate command, reference, status, and communication interfaces.
10. What preventive maintenance is recommended?
Inspect cooling paths, cabinet cleanliness, electrical connections, motor and field wiring, feedback circuits, and drive diagnostics. Maintenance intervals should be based on the operating environment and plant procedures.
