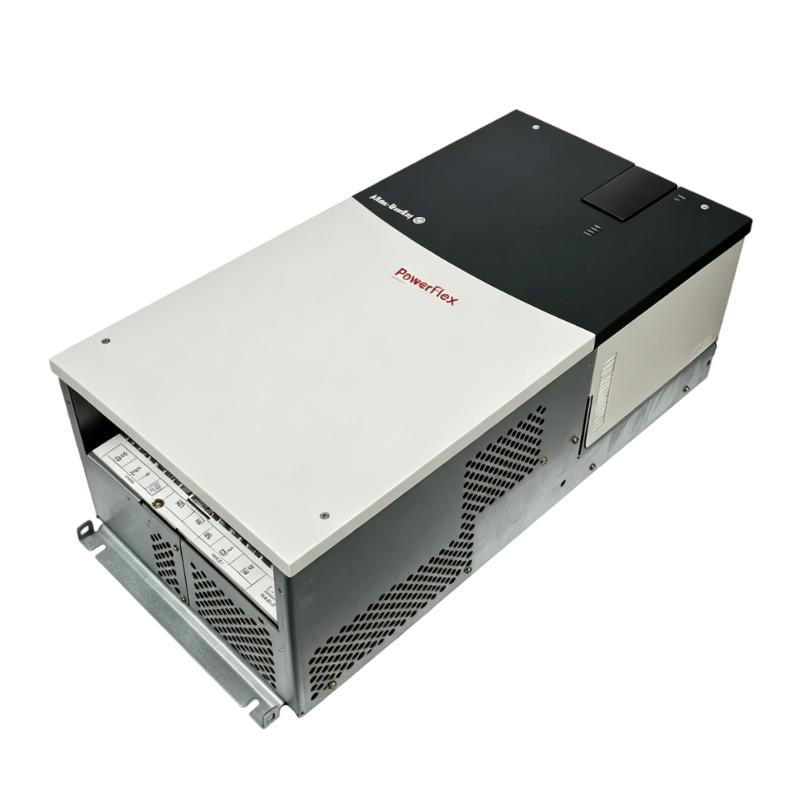

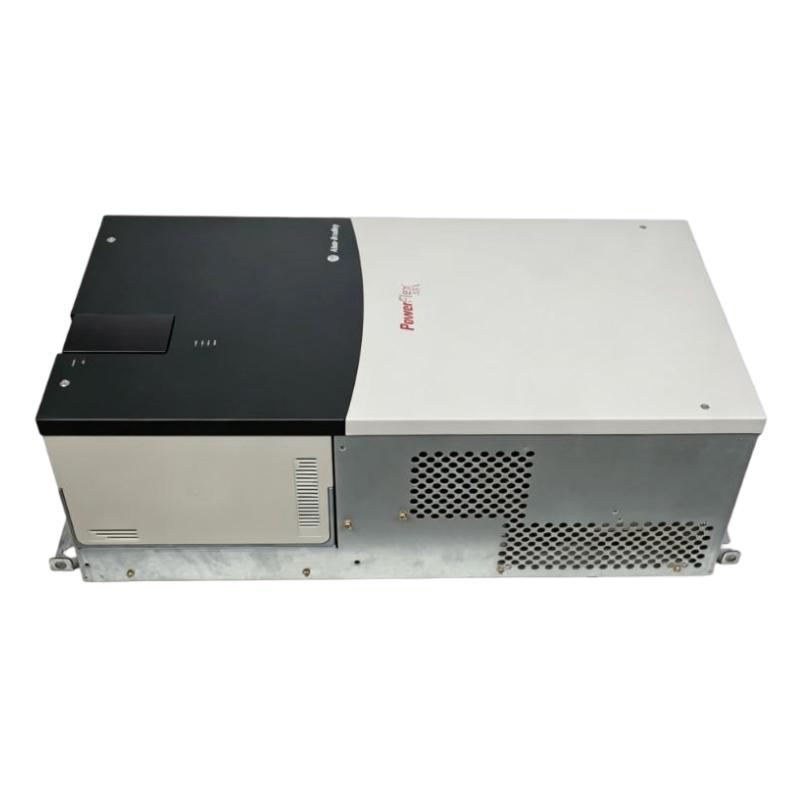

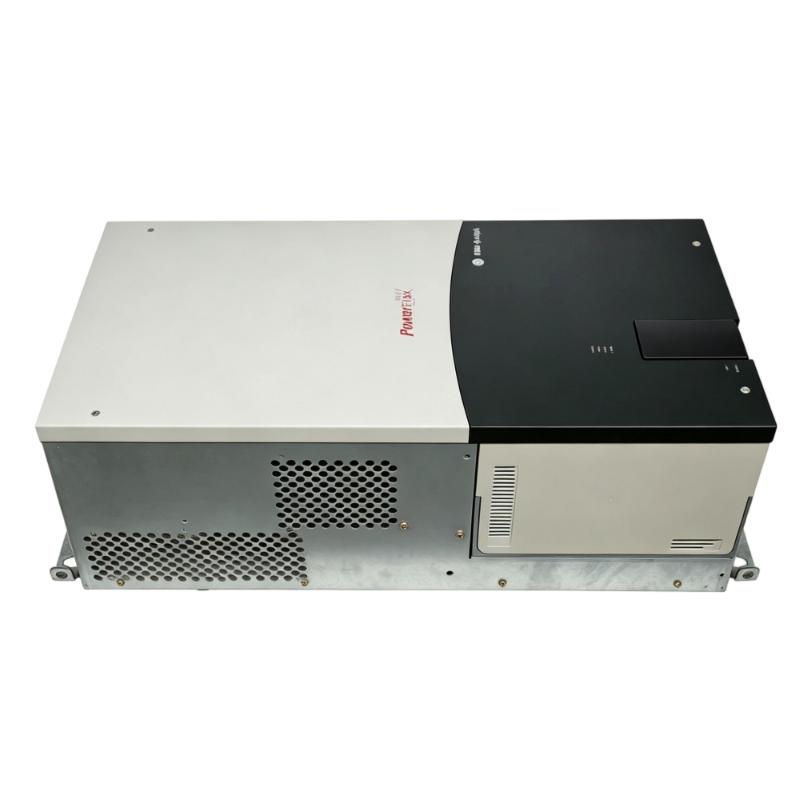

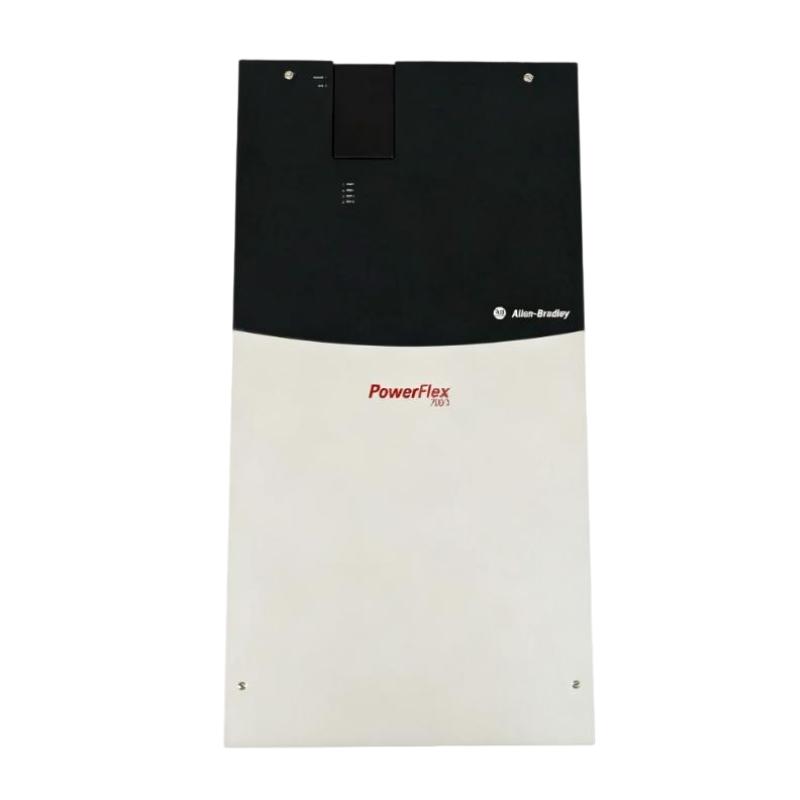

Name: Allen Bradley 20BP205A3ANNANC0 PowerFlex 700 AC Drive
Brand: Allen Bradley PLC
SKU: 19034
Availability: InStock
Rating: 5.0 (1 reviews)

Introduction

Variable-speed motor control is a fundamental requirement in many industrial automation systems. Production equipment rarely operates under identical conditions throughout an entire cycle, and the ability to adjust motor speed can improve process consistency while reducing unnecessary mechanical stress. The Allen Bradley 20BP205A3ANNANC0 PowerFlex 700 AC Drive is designed for this type of industrial motor-control application.

The PowerFlex 700 platform is suitable for a broad range of machinery, from material-handling equipment to process-oriented systems. Instead of operating a motor continuously at a fixed speed, the drive allows motor operation to be coordinated with machine requirements.

This approach is particularly useful for conveyors, pumps, fans, compressors, mixers, and production machinery where controlled acceleration and deceleration are important. It can also simplify the integration of motor control with a larger PLC-based automation system.

For plant engineers and maintenance teams, the 20BP205A3ANNANC0 can be considered when upgrading or replacing compatible PowerFlex equipment. Correct drive selection remains essential, particularly when dealing with high-power motor applications where electrical supply, motor characteristics, load profile, braking requirements, and installation conditions must all be evaluated together.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Model	20BP205A3ANNANC0
Product Family	PowerFlex 700
Product Type	AC Drive
Drive Category	Variable Frequency AC Drive
Primary Function	Industrial AC Motor Speed Control
Application	Industrial Automation
Typical Equipment	Conveyors, Pumps, Fans, Compressors, Processing Machinery
Control Application	Variable-Speed Motor Operation
Installation	Industrial Control Cabinet
Dimensions	850 × 403.9 × 275.5 mm
Weight	71.44 kg (157.50 lb)

Recommended Related Models

Model	Product Type	Application
Allen Bradley 20BC205A3NNNANA0	PowerFlex 700 AC Drive	Industrial variable-speed motor control
Allen Bradley 20BD077A3ANNANC0	PowerFlex 700 AC Drive	Industrial motor applications
Allen Bradley 20BP205A3ANNANC0	PowerFlex 700 AC Drive	Higher-power industrial motor control
Allen Bradley 20AD5P0A0AYYNNG0	PowerFlex 70 AC Drive	General industrial motor control
Allen Bradley PowerFlex 700 Series	AC Drive	Process and machine automation

These models provide useful reference points within Allen Bradley's industrial drive portfolio. Exact replacement selection should be based on the complete electrical rating, motor requirements, load characteristics, control method, and installed options.

Popular Related Models

Model	Product Type	Typical Application
Allen Bradley 20BC205A3NNNANA0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley 20BD077A3ANNANC0	PowerFlex 700 AC Drive	Variable-speed machinery
Allen Bradley 20BP205A3ANNANC0	PowerFlex 700 AC Drive	High-power industrial applications
Allen Bradley 20AD5P0A0AYYNNG0	PowerFlex 70 AC Drive	General AC motor control
Allen Bradley PowerFlex 700 Series	AC Drive	Process and production machinery

When sourcing the 20BP205A3ANNANC0, verify the complete catalog number rather than selecting a drive based solely on the PowerFlex 700 family. Motor rating, input power, control requirements, braking configuration, communications, environmental conditions, and cabinet installation should all be checked before replacement or commissioning.

Applications

The Allen Bradley 20BP205A3ANNANC0 PowerFlex 700 AC Drive is intended for industrial motor-control systems where reliable variable-speed operation and coordinated process control are required. Its PowerFlex 700 platform is suitable for machinery that needs controlled acceleration, deceleration, and motor speed rather than fixed-speed operation.

Typical applications include conveyors, pumps, fans, compressors, mixers, material-handling systems, processing machinery, and production lines with continuously running motor loads. It can also be considered for industrial retrofit projects where an existing motor-control installation requires a capable replacement drive.

For demanding automation environments, the 20BP205A3ANNANC0 provides a practical drive solution for integrating motor control into larger machine and plant automation systems.

Advantages

Flexible AC motor control — Provides adjustable motor operation for a broad range of industrial equipment.
Controlled acceleration and deceleration — Helps reduce mechanical stress during machine starts and stops.
Suitable for process applications — Supports applications where maintaining a consistent motor speed is important.
Industrial automation integration — Can be incorporated into compatible Allen Bradley control architectures.
Versatile machine application — Suitable for conveyors, pumps, fans, compressors, and other motor-driven equipment.
Useful for modernization projects — Can be evaluated for replacing compatible drives in established installations.
Diagnostic capability — Drive status and fault information can assist maintenance personnel with troubleshooting.
Robust PowerFlex platform — Provides a well-established foundation for industrial variable-speed motor control.

Technical FAQs

1. What is the Allen Bradley 20BP205A3ANNANC0 used for?
The 20BP205A3ANNANC0 is a PowerFlex 700 AC drive intended to provide variable-speed control for compatible industrial motors.

2. What types of machines can use this PowerFlex 700 drive?
Potential applications include conveyors, pumps, fans, compressors, mixers, material-handling equipment, and industrial processing machinery.

3. Why use an AC drive instead of starting a motor directly across the line?
An AC drive allows controlled acceleration, deceleration, and operating speed. This can improve process control and reduce mechanical shock compared with uncontrolled direct starting.

4. Can the drive be integrated with an Allen Bradley PLC?
A compatible PowerFlex 700 installation can be integrated into an Allen Bradley automation system through appropriate control and communication interfaces.

5. What parameters should be checked during commissioning?
Motor nameplate information such as voltage, current, frequency, rated speed, and power should be verified. Command sources, speed references, acceleration, deceleration, current limits, and protection settings should also be configured appropriately.

6. What can cause an overcurrent fault?
Potential causes include excessive mechanical load, short circuits, motor or cable faults, aggressive acceleration settings, incorrect motor parameters, or mechanical problems within the driven equipment.

7. Why might a PowerFlex drive trip during deceleration?
A high-inertia load can return energy to the drive during deceleration, potentially producing an overvoltage condition. Deceleration settings, load inertia, braking arrangements, and incoming power conditions should be evaluated.

8. What should be checked if the motor runs at an incorrect speed?
Check the speed reference source, drive scaling, minimum and maximum frequency settings, motor parameters, control mode, and any external PLC or analog reference signals.

9. How can repeated drive overheating be investigated?
Check cabinet ventilation, cooling airflow, ambient temperature, drive loading, switching conditions, fan operation, and accumulated contamination. Persistent overheating should not be treated simply by resetting the drive.

10. What maintenance is recommended for the drive?
Inspect cooling paths, fans, electrical connections, cabinet cleanliness, motor cables, fault history, and operating conditions. Preventive maintenance should be scheduled according to the application and environment.
