Introduction

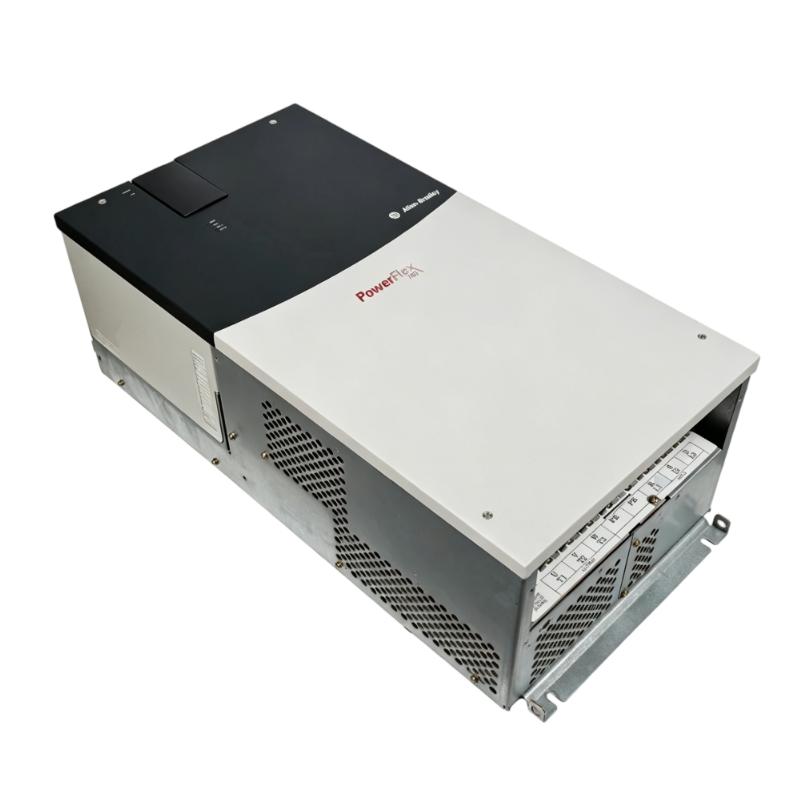

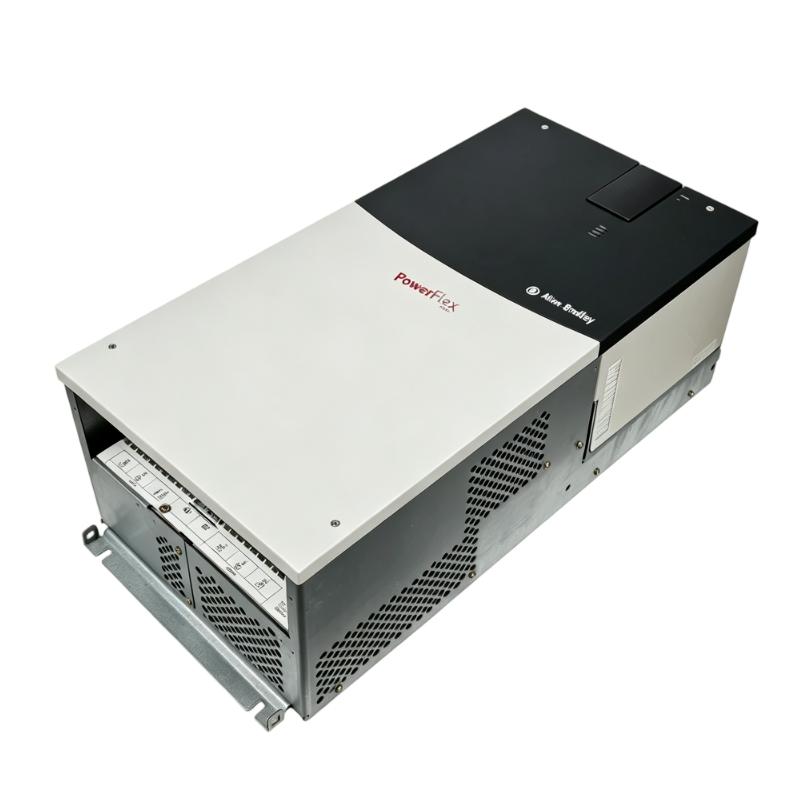

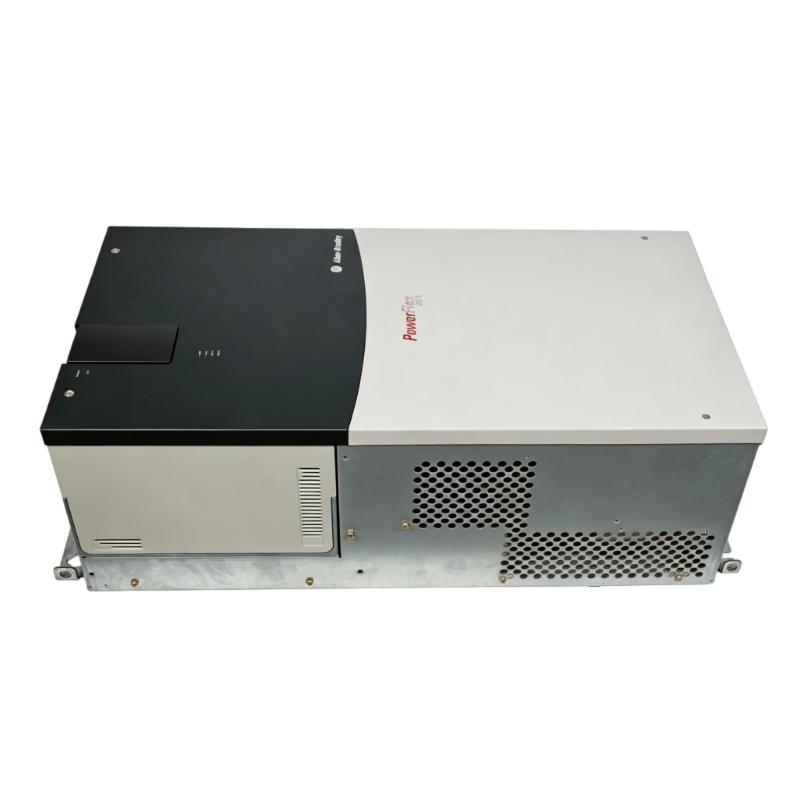

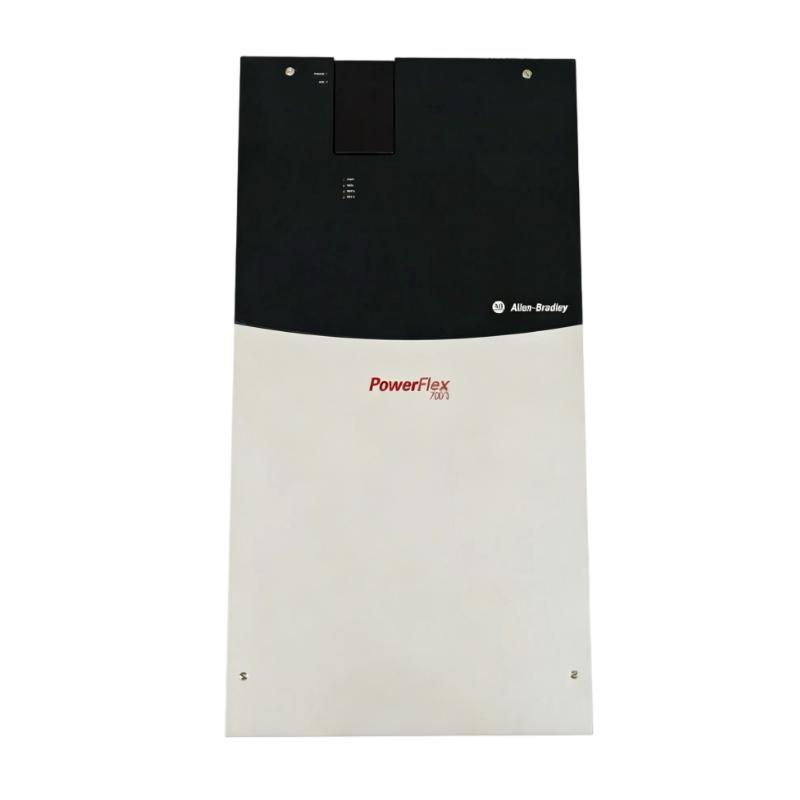

Large industrial machines often require more sophisticated motor control than simple start-and-stop operation can provide. When motor speed must follow process requirements, controlled acceleration and deceleration become important for both equipment protection and production consistency. The Allen Bradley 20BP260A3ANNANC0 PowerFlex 700 AC Drive is designed for this type of industrial variable-speed application.

The PowerFlex 700 platform can be applied across a wide range of motor-driven equipment. Conveyors may require gradual acceleration to prevent material movement problems, while pumps and fans may need adjustable speed to accommodate changing process conditions. Similar requirements exist in compressors, mixers, and material-handling machinery.

For automation engineers, a variable-frequency drive also provides an important connection between the motor and the control system. Properly configured, the drive can receive commands and speed references from the machine-control architecture while returning operating status and diagnostic information.

The 20BP260A3ANNANC0 is therefore well suited to industrial environments where dependable AC motor control is a priority. Because drive selection depends on more than the product family, the motor rating, power supply, load profile, braking requirements, control architecture, and environmental conditions should all be reviewed before installation.

Technical Specifications

Specification	Details
Brand	Allen Bradley
Model	20BP260A3ANNANC0
Product Family	PowerFlex 700
Product Type	AC Drive
Drive Category	Variable Frequency AC Drive
Primary Function	Industrial AC Motor Speed Control
Application	Industrial Automation
Typical Equipment	Conveyors, Pumps, Fans, Compressors, Mixers
Control Application	Variable-Speed Motor Operation
Installation	Industrial Control Cabinet
Dimensions	850 × 403.9 × 275.5 mm
Weight	71.44 kg (157.50 lb)

Recommended Related Models

Model	Product Type	Application
Allen Bradley 20BP205A3ANNANC0	PowerFlex 700 AC Drive	Industrial variable-speed motor control
Allen Bradley 20BP260A3ANNANC0	PowerFlex 700 AC Drive	Industrial motor applications
Allen Bradley 20BC205A3NNNANA0	PowerFlex 700 AC Drive	Industrial AC motor control
Allen Bradley 20BD077A3ANNANC0	PowerFlex 700 AC Drive	Variable-speed machinery
Allen Bradley 20AD5P0A0AYYNNG0	PowerFlex 70 AC Drive	General industrial motor control

These related models can be useful when evaluating Allen Bradley drive solutions for industrial machinery. The correct replacement or alternative should be determined from the motor and application requirements rather than the family name alone.

Popular Related Models

Model	Product Type	Typical Application
Allen Bradley 20BC205A3NNNANA0	PowerFlex 700 AC Drive	Industrial motor control
Allen Bradley 20BD077A3ANNANC0	PowerFlex 700 AC Drive	Variable-speed machinery
Allen Bradley 20BP205A3ANNANC0	PowerFlex 700 AC Drive	Industrial motor applications
Allen Bradley 20BP260A3ANNANC0	PowerFlex 700 AC Drive	High-power industrial motor control
Allen Bradley 20AD5P0A0AYYNNG0	PowerFlex 70 AC Drive	General AC motor control

For procurement and replacement work, the complete 20BP260A3ANNANC0 catalog number should be checked against the existing installation. Motor electrical ratings, incoming power, control method, braking requirements, communications, enclosure conditions, and application load characteristics should all be verified before commissioning.

Applications

The Allen Bradley 20BP260A3ANNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications that require dependable variable-speed operation and coordinated control of larger motor-driven equipment. It is particularly suitable for machinery where acceleration, deceleration, operating speed, and process response need to be managed rather than left to fixed-speed operation.

Typical applications include heavy-duty conveyors, pumps, fans, compressors, mixers, material-handling systems, production machinery, and industrial processing equipment. The drive can also be evaluated for modernization projects where an existing PowerFlex installation requires replacement or capacity-specific upgrading.

For industrial facilities, the PowerFlex 700 platform offers a practical way to integrate motor speed control with a wider automation system while giving maintenance personnel access to drive operating and diagnostic information.

Advantages

Industrial variable-speed control — Provides controlled operation for compatible AC motors across demanding applications.
Controlled machine acceleration — Helps reduce mechanical shock during motor startup.
Managed deceleration — Supports smoother stopping and improved process handling.
Suitable for heavy industrial equipment — Well suited to larger motor-driven machinery when correctly matched.
Automation system integration — Can operate within compatible Allen Bradley control architectures.
Process-oriented performance — Adjustable motor operation can help maintain consistent production conditions.
Maintenance support — Drive diagnostics can assist technicians when investigating abnormal operation.
PowerFlex 700 platform — Provides a flexible foundation for industrial AC motor applications.

Technical FAQs

1. What is the Allen Bradley 20BP260A3ANNANC0 PowerFlex 700 used for?
The 20BP260A3ANNANC0 is an AC drive designed to provide variable-speed control for compatible industrial motors and machinery.

2. What applications are suitable for this drive?
It can be considered for conveyors, pumps, fans, compressors, mixers, material-handling equipment, and other industrial machinery requiring controlled AC motor operation.

3. Why is controlled acceleration useful in industrial machinery?
Controlled acceleration allows the motor to reach operating speed progressively, which can reduce mechanical shock, belt stress, coupling stress, and sudden process disturbances.

4. Can the drive be integrated into a PLC-controlled system?
Yes. A compatible PowerFlex 700 configuration can be incorporated into an industrial automation architecture using appropriate command, status, reference, and communication interfaces.

5. What motor information is needed during commissioning?
Motor voltage, current, frequency, rated speed, power, and other nameplate information should be verified. The drive's control mode, speed reference, acceleration, deceleration, and protection parameters should also be configured appropriately.

6. What could cause an overcurrent trip?
An overloaded machine, motor or cable fault, mechanical binding, incorrect motor parameters, excessive acceleration demand, or unsuitable drive configuration can contribute to an overcurrent condition.

7. Why can an overvoltage fault occur during deceleration?
When a high-inertia load decelerates, energy can flow back toward the drive's DC bus. If the returned energy exceeds the system's ability to absorb it, an overvoltage condition can occur.

8. What should be checked if the motor speed is unstable?
Check the speed reference, motor parameters, control mode, external command signals, mechanical load, and drive configuration. If the issue occurs only under certain loads, the mechanical system should also be inspected.

9. How should repeated drive overheating be investigated?
Inspect cabinet ventilation, cooling airflow, fan operation, ambient temperature, drive loading, installation clearance, and accumulated dust or contamination. Persistent overheating requires identifying the underlying cause rather than repeatedly resetting the drive.

10. What maintenance is appropriate for a PowerFlex 700 installation?
Inspect cooling components, electrical terminals, motor cables, cabinet ventilation, environmental conditions, and drive diagnostic history. Maintenance frequency should be based on operating conditions and plant procedures.
