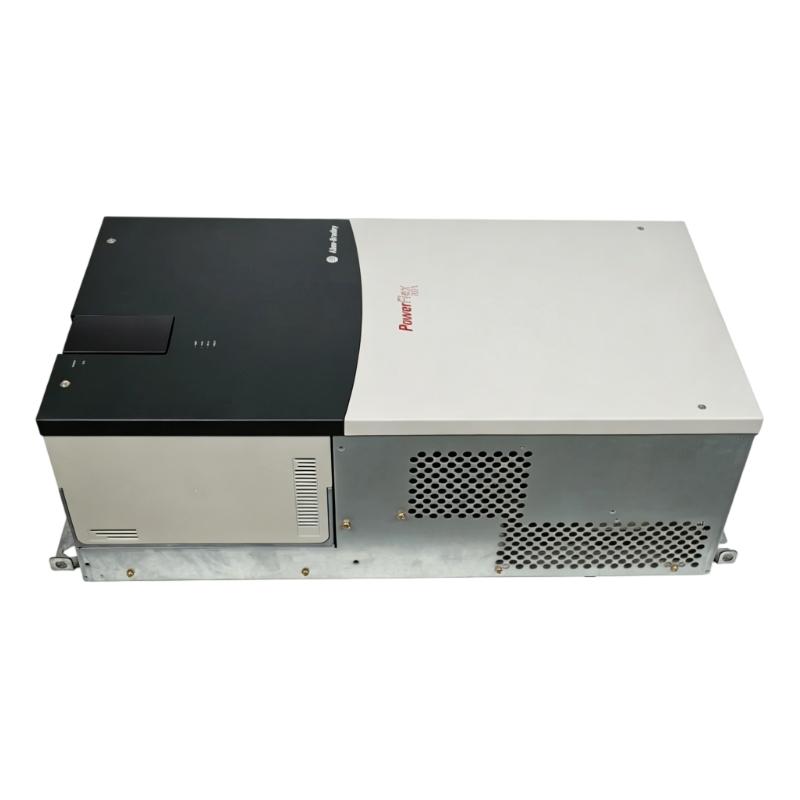

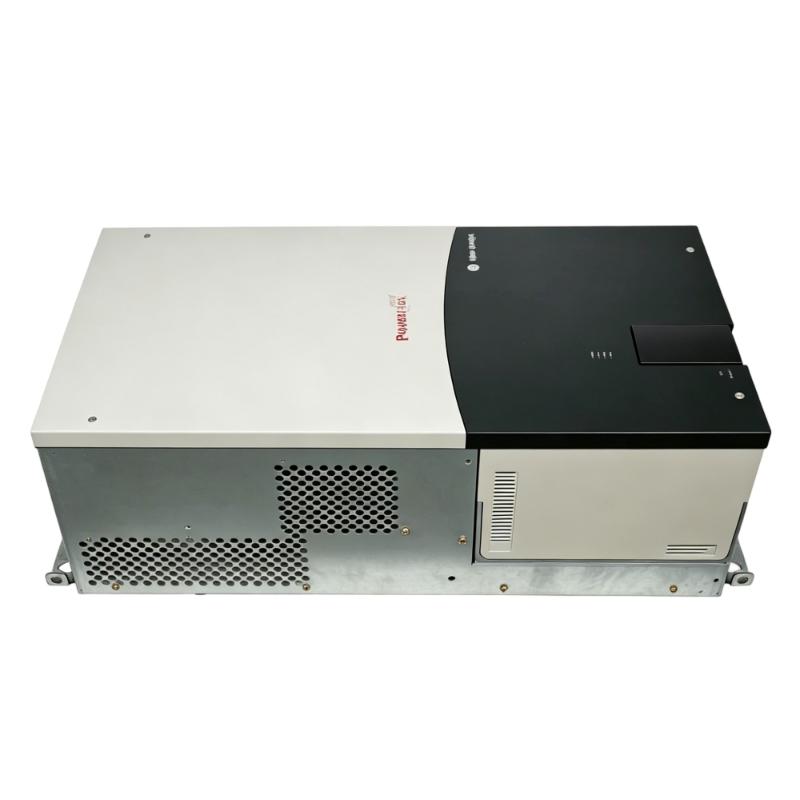

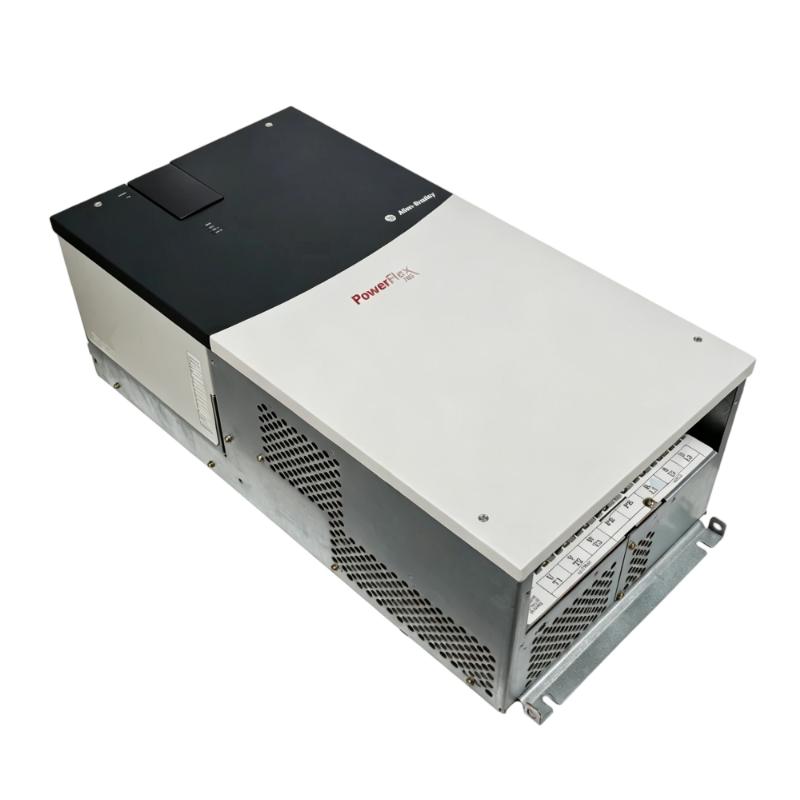

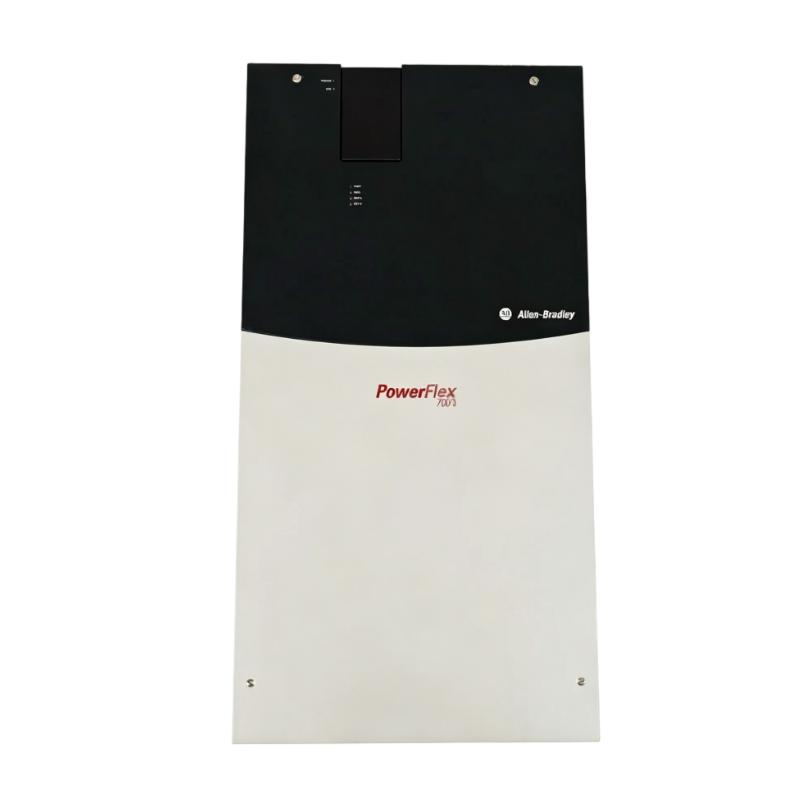

Allen Bradley 20BP292N0NNNNNC0 PowerFlex 700 AC Drive
Allen Bradley 20BP292N0NNNNNC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BP292N0NNNNNC0 Product Origin:USA Product Dimensions:1498.6 x 409.3 x 509.3 mm Product Weight:147 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Large industrial motors are often central to production processes, and their control requirements can be considerably more demanding than those of small machine motors. The Allen Bradley 20BP292N0NNNNNC0 PowerFlex 700 AC Drive is intended for substantial industrial installations where variable-speed operation and controlled motor performance are important.
Applications such as large conveying systems, pumps, fans, compressors, and processing machinery can benefit from adjustable motor speed. Rather than forcing the motor to operate continuously at one fixed point, the drive can coordinate motor operation with changing production requirements.
Controlled acceleration and deceleration are also valuable in high-capacity machinery. Large rotating masses can place considerable stress on couplings, belts, gearboxes, shafts, and other mechanical components if they are started or stopped abruptly. Appropriate drive configuration can help make these transitions more controlled.
The 20BP292N0NNNNNC0 is also relevant to industrial automation architectures in which motor control must communicate with a broader control system. For replacement and modernization projects, engineers should evaluate the complete application rather than selecting a drive based solely on its PowerFlex 700 designation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20BP292N0NNNNNC0
Product Family
PowerFlex 700
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
Industrial AC Motor Speed Control
Application
Industrial Automation
Typical Equipment
Large Conveyors, Pumps, Fans, Compressors, Processing Machinery
Control Application
Variable-Speed Motor Operation
Installation
Industrial Control Cabinet
Dimensions
1498.6 × 409.3 × 509.3 mm
Weight
147.00 kg (324.08 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20BP205A3ANNANC0
PowerFlex 700 AC Drive
Industrial variable-speed motor control
Allen Bradley 20BP260A3ANNANC0
PowerFlex 700 AC Drive
High-power industrial motor control
Allen Bradley 20BP292N0NNNNNC0
PowerFlex 700 AC Drive
Large industrial motor applications
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Industrial AC motor control
Allen Bradley 20BD077A3ANNANC0
PowerFlex 700 AC Drive
Variable-speed machinery
These models are useful reference points within the PowerFlex drive range. Actual compatibility depends on motor ratings, input power, application load, control requirements, braking configuration, and installed options.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20BC205A3NNNANA0
PowerFlex 700 AC Drive
Industrial motor control
Allen Bradley 20BD077A3ANNANC0
PowerFlex 700 AC Drive
Variable-speed machinery
Allen Bradley 20BP205A3ANNANC0
PowerFlex 700 AC Drive
Industrial motor applications
Allen Bradley 20BP260A3ANNANC0
PowerFlex 700 AC Drive
High-power motor control
Allen Bradley 20BP292N0NNNNNC0
PowerFlex 700 AC Drive
Large industrial motor systems
For procurement or replacement, the complete 20BP292N0NNNNNC0 catalog number should be verified carefully. Because this is a large-format drive, engineers should also evaluate incoming power, motor requirements, enclosure arrangement, cooling and ventilation, braking needs, communications, installation clearances, and the actual load profile before commissioning.
Applications
The Allen Bradley 20BP292N0NNNNNC0 PowerFlex 700 AC Drive is intended for large industrial motor-control systems where dependable variable-speed operation, controlled acceleration, and stable process performance are essential. Its PowerFlex 700 architecture makes it suitable for demanding equipment that requires more than basic motor starting and stopping.
Typical applications include large conveyors, pumps, fans, compressors, material-handling systems, processing machinery, production lines, and other high-capacity motor-driven equipment. It can also be considered for industrial modernization projects where a compatible high-power drive is required to maintain established automation infrastructure.
For plant engineers, the 20BP292N0NNNNNC0 offers a substantial drive platform for applications where motor control, system integration, and long-term operational reliability are important purchasing considerations.
Advantages
High-capacity industrial drive solution — Designed for demanding AC motor-control applications.
Variable-speed operation — Allows motor speed to be coordinated with actual process requirements.
Controlled acceleration and deceleration — Helps minimize sudden mechanical loading on large equipment.
Suitable for continuous industrial processes — Supports applications where stable motor operation is critical.
Automation integration — Can be incorporated into compatible Allen Bradley control architectures.
Large-system applicability — Appropriate for substantial motor-driven equipment when correctly specified.
Diagnostic support — Drive operating and fault information can assist maintenance teams.
PowerFlex 700 platform flexibility — Provides a proven architecture for industrial variable-speed control.
Technical FAQs
1. What is the Allen Bradley 20BP292N0NNNNNC0 used for?
The 20BP292N0NNNNNC0 is a PowerFlex 700 AC drive designed for variable-speed control of compatible industrial motors.
2. What types of equipment can use this drive?
Potential applications include large conveyors, pumps, fans, compressors, processing machinery, material-handling equipment, and production systems requiring controlled AC motor operation.
3. Why is variable-speed control important for large industrial motors?
Adjusting motor speed to match process demand can improve operational control and reduce unnecessary mechanical stress compared with continuously operating equipment at a fixed speed.
4. Can this drive be integrated with an Allen Bradley PLC?
A compatible PowerFlex 700 configuration can be integrated into a PLC-based automation system using the appropriate control and communication interfaces.
5. What should be verified before commissioning?
Engineers should confirm motor nameplate data, incoming power requirements, control mode, speed reference, acceleration and deceleration settings, current limits, protection parameters, braking requirements, and communication configuration.
6. What can cause an AC drive to trip on overcurrent?
Possible causes include excessive load, motor or cable faults, mechanical binding, short circuits, incorrect motor parameters, or acceleration settings that demand excessive current.
7. Why can large motors produce overvoltage faults during deceleration?
Large rotating loads can return substantial energy to the drive during deceleration. If this regenerative energy cannot be adequately managed, the DC bus voltage may rise and trigger protection.
8. What should be investigated if the motor cannot reach its commanded speed?
Check the speed reference, drive limits, motor parameters, load conditions, control mode, incoming power, and any external PLC or analog reference signals.
9. What environmental factors are important for a large PowerFlex installation?
Ambient temperature, ventilation, cabinet airflow, dust, humidity, electrical clearance, and overall enclosure conditions should be evaluated because poor environmental conditions can affect drive reliability.
10. What preventive maintenance is recommended?
Inspect cooling equipment, ventilation paths, electrical connections, motor cabling, cabinet cleanliness, fault history, and operating conditions. Maintenance should be planned according to the actual duty and environment.
