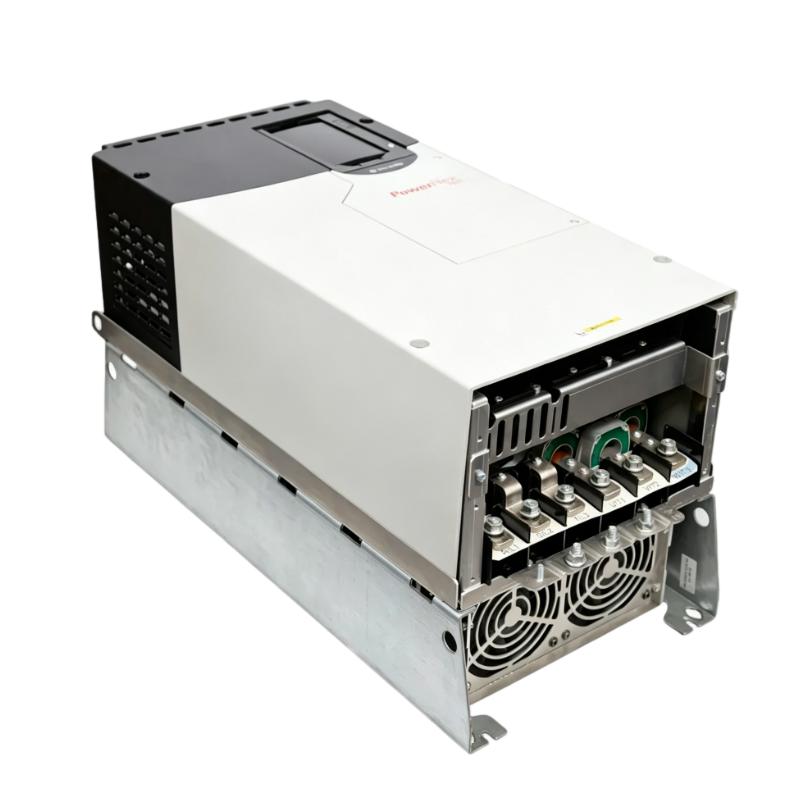

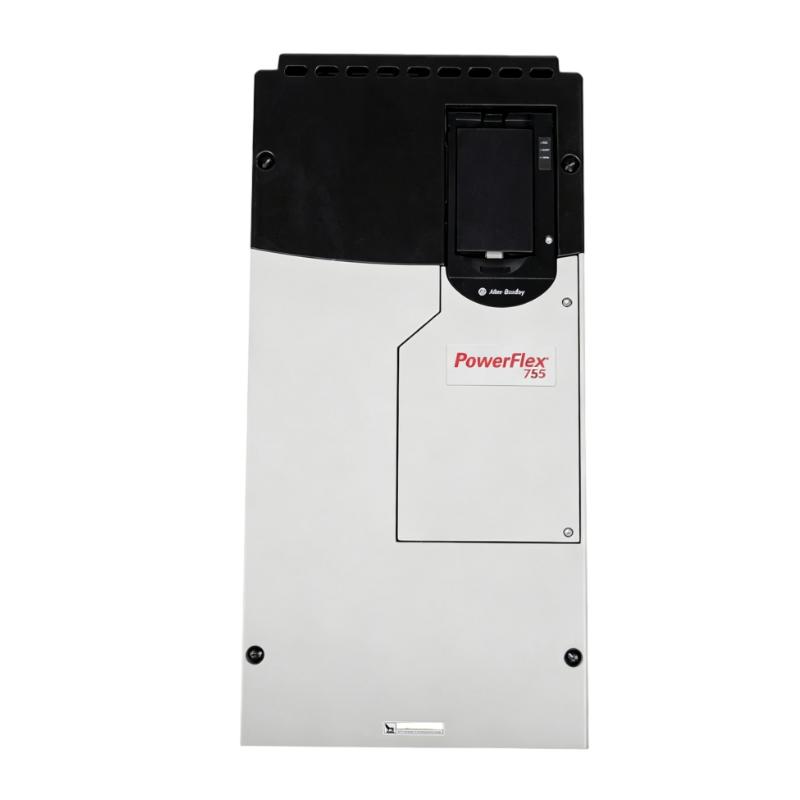

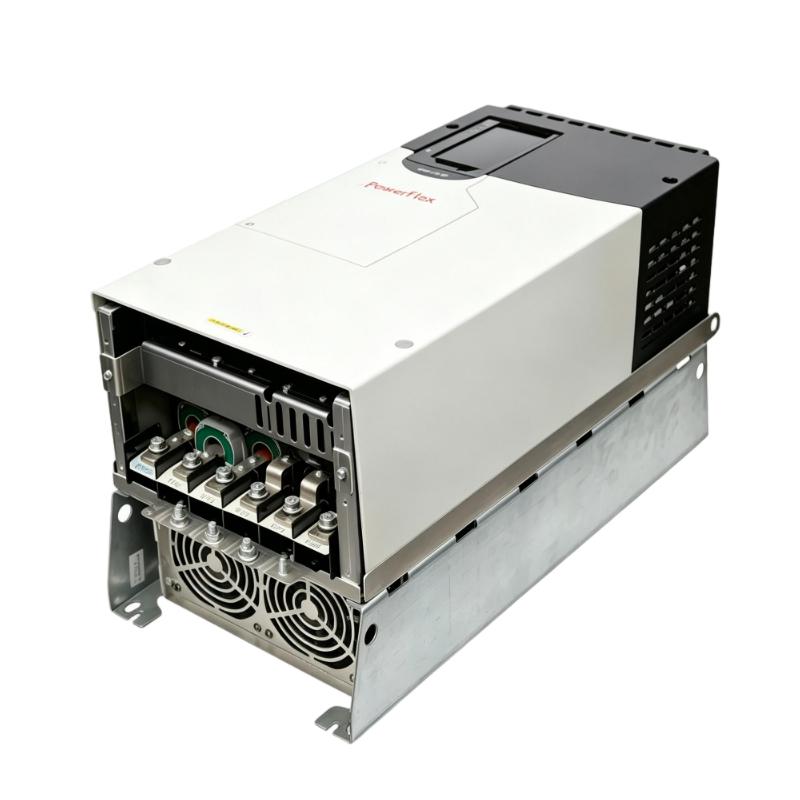

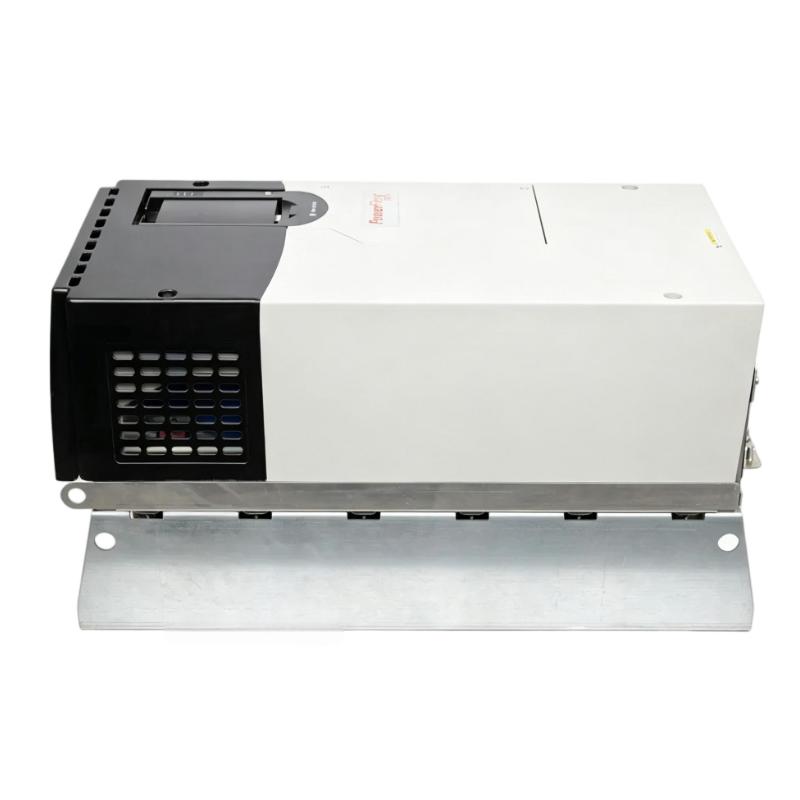

Allen Bradley 20G1AGD248AN0NNNNN PowerFlex 755 AC Drive
Allen Bradley 20G1AGD248AN0NNNNN PowerFlex 755 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20G1AGD248AN0NNNNN Product Origin:USA Product Dimensions:1614 x 464.7 x 609.4 mm Product Weight:162 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Modern industrial machinery increasingly depends on variable-speed drives that can do more than regulate motor frequency. Production equipment may require coordinated acceleration, precise speed control, torque management, feedback processing, and communication with a higher-level automation system. The Allen Bradley 20G1AGD248AN0NNNNN PowerFlex 755 AC Drive is designed for applications with these types of requirements.
The PowerFlex 755 platform is well suited to larger automated systems where motor performance has a direct influence on production quality and machine throughput. Conveyors, pumps, fans, compressors, extruders, and material-processing equipment can all benefit from controlled motor operation when the drive is properly matched to the application.
A major consideration in a PowerFlex 755 installation is the complete system architecture. The drive does not operate independently; motor characteristics, feedback devices, PLC or motion-control commands, communication networks, braking equipment, and mechanical load all affect system performance.
For industrial maintenance and modernization projects, the 20G1AGD248AN0NNNNN can provide a capable PowerFlex 755 solution for compatible applications. Careful catalog-number verification and drive-to-motor matching remain essential before commissioning.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
20G1AGD248AN0NNNNN
Product Family
PowerFlex 755
Product Type
AC Drive
Drive Category
Variable Frequency AC Drive
Primary Function
Industrial AC Motor Speed and Torque Control
Application
Industrial Automation
Typical Equipment
Conveyors, Pumps, Fans, Compressors, Extruders, Process Machinery
Control Application
Variable-Speed Motor Operation
Installation
Industrial Electrical / Drive Cabinet
Dimensions
1614 × 464.7 × 609.4 mm
Weight
162.00 kg (357.15 lb)
Recommended Related Models
Model
Product Type
Application
Allen Bradley 20G1AGD248AN0NNNNN
PowerFlex 755 AC Drive
Industrial motor control
Allen Bradley PowerFlex 755 Series
AC Drive
Advanced industrial automation
Allen Bradley PowerFlex 753 Series
AC Drive
General industrial motor control
Allen Bradley PowerFlex 700 Series
AC Drive
Industrial variable-speed applications
Allen Bradley Kinetix Drive Series
Servo Drive
Precision motion applications
These related products can be considered when selecting a drive for industrial automation. The appropriate model depends on motor requirements, control strategy, load profile, feedback needs, communications, braking, and installation conditions.
Popular Related Models
Model
Product Type
Typical Application
Allen Bradley 20G1AGD248AN0NNNNN
PowerFlex 755 AC Drive
Advanced industrial motor control
Allen Bradley PowerFlex 755 Series
AC Drive
High-performance automation
Allen Bradley PowerFlex 753 Series
AC Drive
Industrial variable-speed control
Allen Bradley PowerFlex 700 Series
AC Drive
Process and production machinery
Allen Bradley Kinetix Drive Series
Servo Drive
Precision machine motion
When sourcing the 20G1AGD248AN0NNNNN, verify the complete catalog number against the motor and application requirements. Particular attention should be given to incoming power, motor ratings, control mode, feedback, braking, communications, cabinet ventilation, installation clearances, and physical handling because the drive weighs 162.00 kg (357.15 lb).
Applications
The Allen Bradley 20G1AGD248AN0NNNNN PowerFlex 755 AC Drive is designed for demanding industrial motion and motor-control applications where precise speed regulation, dependable torque response, and flexible system integration are important. The PowerFlex 755 platform is particularly well suited to larger automated machinery and production systems that require advanced drive control rather than basic variable-speed operation.
Typical applications include conveyors, pumps, fans, compressors, material-handling systems, extruders, mixers, process machinery, and production lines with substantial motor loads. It is also a strong candidate for modernization projects where an existing industrial drive system needs a capable PowerFlex 755 replacement.
Advantages
Advanced AC motor control — Provides flexible control for demanding industrial motor applications.
PowerFlex 755 platform — Designed for sophisticated drive and automation requirements.
Precise speed and torque management — Supports applications where consistent motor response matters.
Flexible system integration — Suitable for incorporation into larger Allen Bradley automation architectures.
Broad application range — Useful for conveyors, pumps, fans, compressors, and process equipment.
Controlled acceleration and deceleration — Helps reduce mechanical stress during machine transitions.
Built-in diagnostic support — Drive status and fault information can assist maintenance teams.
Industrial modernization potential — Can provide a practical upgrade path for compatible automation systems.
Large-drive capability — Appropriate for substantial motor-control installations when correctly specified.
Technical FAQs
1. What is the Allen Bradley 20G1AGD248AN0NNNNN used for?
The 20G1AGD248AN0NNNNN is a PowerFlex 755 AC drive intended for industrial variable-speed motor-control applications.
2. What machines can use a PowerFlex 755 drive?
Potential applications include conveyors, pumps, fans, compressors, extruders, mixers, material-handling equipment, and process machinery requiring controlled AC motor operation.
3. What makes the PowerFlex 755 suitable for advanced automation?
The platform is designed for applications that require more sophisticated motor control and integration with industrial automation systems than a basic variable-speed drive.
4. Can this drive be integrated with Allen Bradley control systems?
Yes, compatible PowerFlex 755 configurations can be incorporated into Allen Bradley automation architectures using appropriate control and communication interfaces.
5. What should be verified before commissioning the 20G1AGD248AN0NNNNN?
Verify motor voltage, current, frequency, rated speed, power, incoming supply, control mode, reference source, acceleration and deceleration settings, protection parameters, feedback requirements, and communication configuration.
6. What can cause an overcurrent fault?
Possible causes include excessive load, mechanical binding, motor or cable faults, incorrect motor parameters, short circuits, or acceleration settings that are too aggressive.
7. Why can a drive trip during rapid deceleration?
A high-inertia load can regenerate energy into the drive during deceleration. If the resulting DC bus voltage becomes excessive, the drive may trigger an overvoltage protection event.
8. What should be checked when the motor speed is unstable?
Inspect the speed reference, motor parameters, control mode, feedback where applicable, mechanical load, external control signals, and drive configuration.
9. How can excessive drive temperature be diagnosed?
Check cabinet ventilation, cooling airflow, fan operation, ambient temperature, drive loading, installation clearances, and contamination around cooling paths.
10. What maintenance is recommended for a PowerFlex 755 installation?
Inspect cooling components, electrical connections, motor cables, cabinet conditions, ventilation, environmental conditions, and diagnostic records. Preventive maintenance should be adapted to the actual operating environment.
