Brand:Siemens Item No.:6AG1132-6HD01-7BB1 Product Origin:Germany Product Dimensions:20 × 73 × 58 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Digital output modules form the connection between a PLC control program and many of the physical actions performed by an automated machine. When a controller needs to energize a valve, activate an indicator, command a relay, or switch another discrete field device, the output module provides the electrical interface between software logic and the machine.

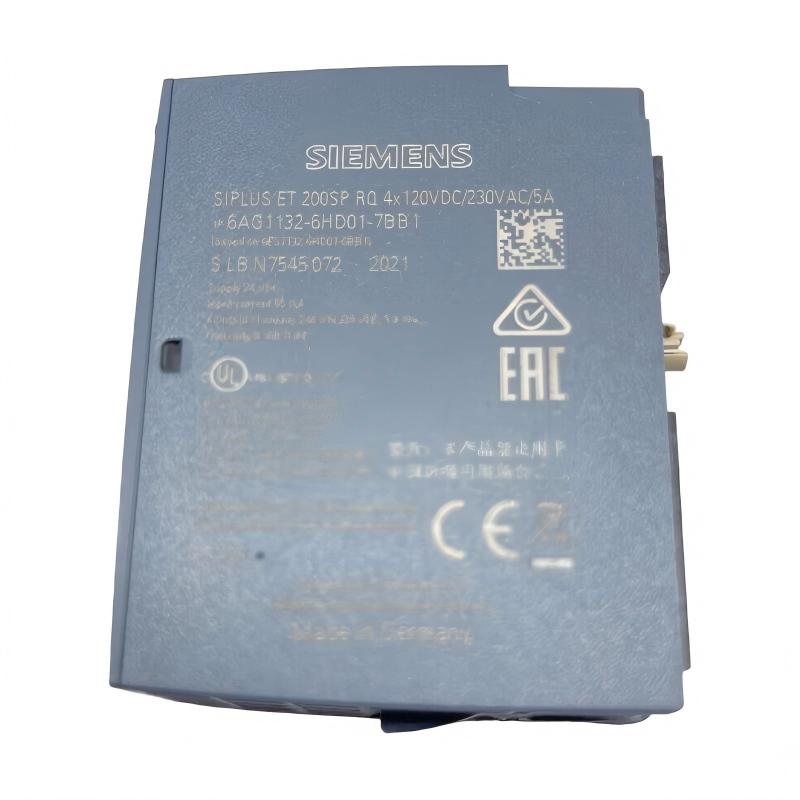

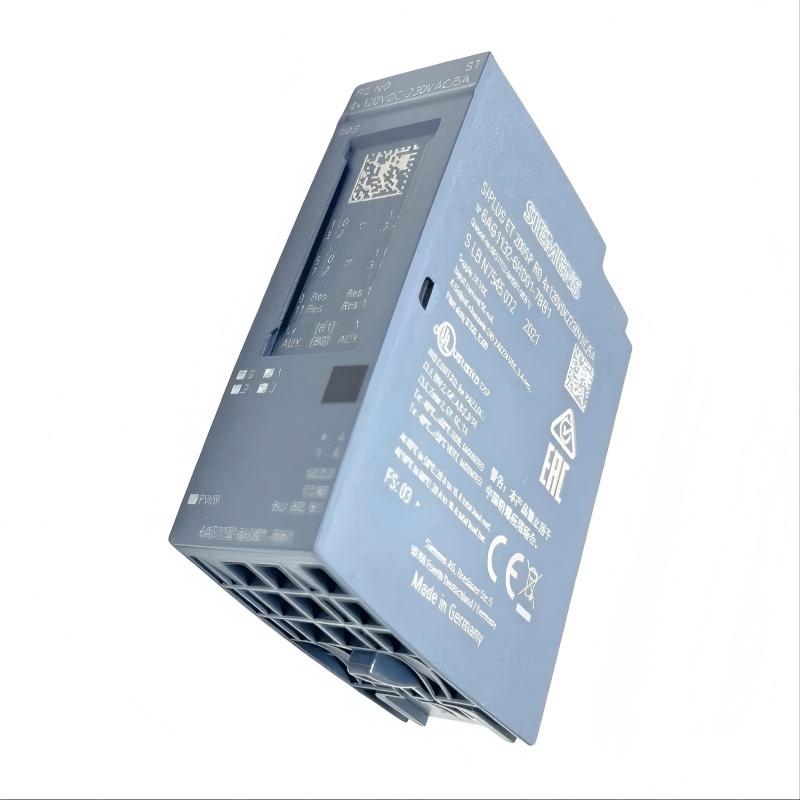

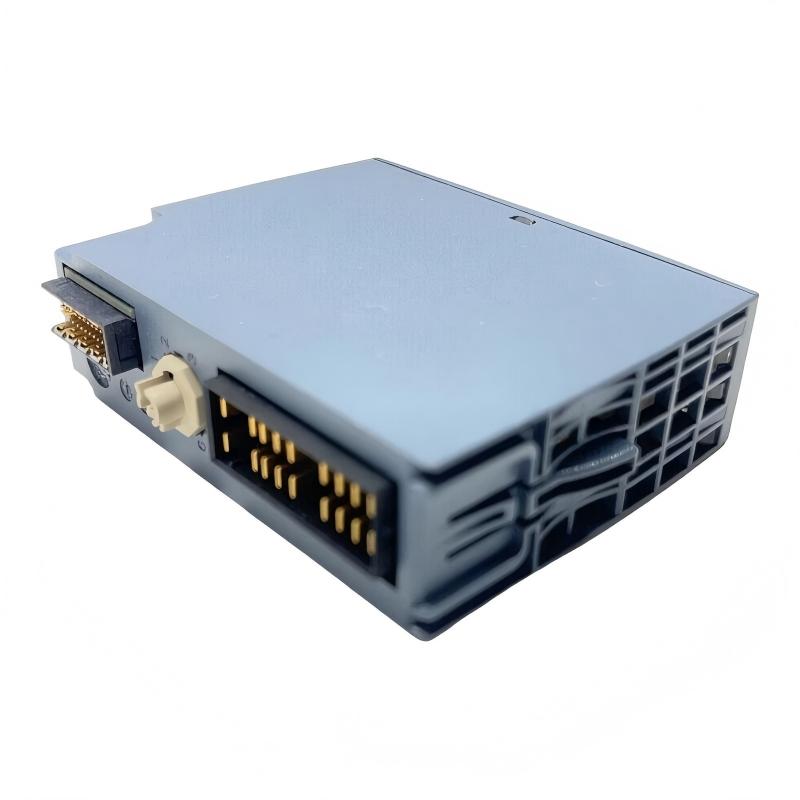

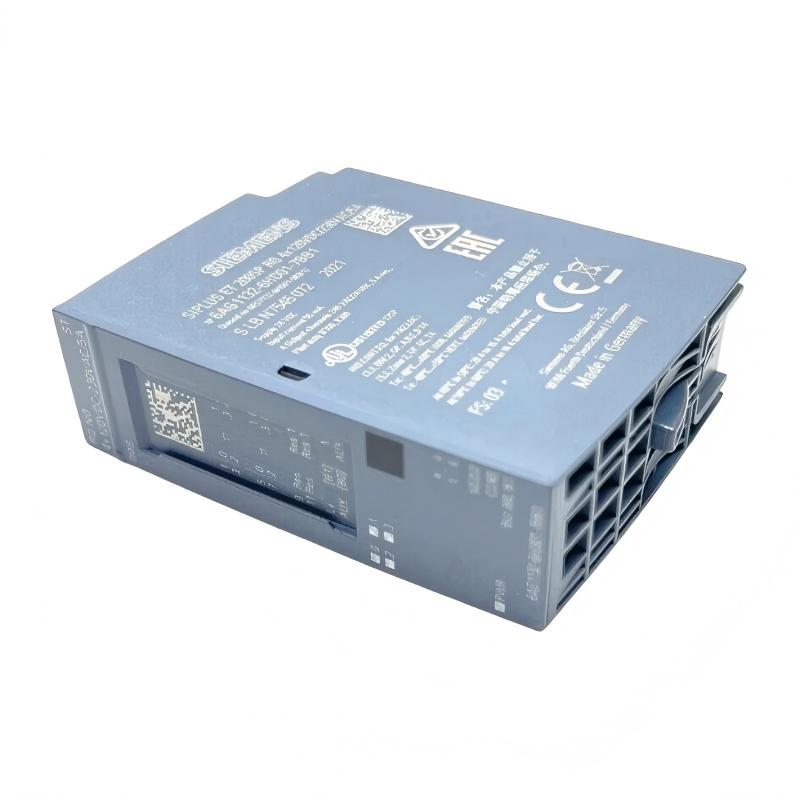

The Siemens 6AG1132-6HD01-7BB1 Digital Output Module is designed for this role within a compatible Siemens automation environment. Its compact 20 × 73 × 58 mm form factor is especially attractive for control panels where available DIN-rail or module space is limited.
In practical automation projects, dependable digital outputs are important because a single failed output can affect machine sequencing, interlocks, actuator control, or production availability. Correct load selection and wiring are therefore just as important as the PLC configuration itself.
For machine builders, panel manufacturers, and maintenance teams, the 6AG1132-6HD01-7BB1 offers a compact approach to digital output expansion. When used with compatible Siemens hardware and correctly configured field wiring, it can help maintain a clean and dependable PLC I/O architecture.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1132-6HD01-7BB1
Product Type
Digital Output Module
I/O Function
Digital Output
Application
Industrial PLC Automation
Typical Use
Machine and Process Control
Installation
Industrial Control Cabinet
Dimensions
20 × 73 × 58 mm
Weight
0.04 kg (0.09 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1132-6HD01-7BB1
Digital Output Module
PLC digital output control
Siemens 6AG1131 Series
Digital Input Module
Digital field signal acquisition
Siemens 6AG1132 Series
Digital Output Module
PLC actuator control
Siemens ET 200S I/O Modules
Distributed I/O Module
Distributed automation
Siemens ET 200SP I/O Modules
Distributed I/O Module
Compact distributed I/O
These related Siemens I/O products can be evaluated when designing or expanding a PLC-based automation system. Exact compatibility should be confirmed against the installed controller, I/O station, bus architecture, firmware, and electrical requirements.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1132-6HD01-7BB1
Digital Output Module
Industrial digital output control
Siemens 6AG1132 Series
Digital Output Module
Machine automation
Siemens 6AG1131 Series
Digital Input Module
Field signal monitoring
Siemens ET 200S Series
Distributed I/O
Industrial distributed control
Siemens ET 200SP Series
Distributed I/O
Compact PLC I/O systems
When sourcing the Siemens 6AG1132-6HD01-7BB1, verify the complete part number and confirm compatibility with the existing Siemens controller and I/O architecture. Before commissioning, check the output electrical characteristics, field supply, connected load, wiring, terminal assignment, and PLC configuration to ensure reliable operation.
Applications
The Siemens 6AG1132-6HD01-7BB1 Digital Output Module is designed for industrial automation systems that require reliable switching of digital field devices from a PLC-based control architecture. Its compact form factor makes it particularly useful in control cabinets where installation space is limited and high-density I/O is desirable.
Typical applications include machine automation, conveyor systems, packaging equipment, assembly lines, material-handling systems, process control panels, and distributed automation installations. It can be used where PLC output signals need to interface with compatible actuators, relays, contactors, indicators, and other digital field devices.
For system integrators and maintenance engineers, the module provides a compact I/O expansion option that can help build organized, space-efficient automation panels.
Advantages
Compact digital I/O solution — Suitable for space-constrained control cabinets.
Reliable output switching — Designed to provide controlled digital signals to connected field devices.
Efficient panel utilization — Small dimensions support high-density automation cabinet layouts.
PLC system integration — Suitable for use within compatible Siemens automation architectures.
Flexible machine applications — Useful for packaging, assembly, conveying, and general machine control.
Simplified I/O expansion — Provides additional digital output capability where the automation system requires it.
Maintenance-friendly design — Compact modular construction can simplify replacement within compatible systems.
Industrial automation suitability — Appropriate for applications requiring dependable PLC-to-field-device signal control.
Technical FAQs
1. What is the Siemens 6AG1132-6HD01-7BB1 used for?
The 6AG1132-6HD01-7BB1 is a digital output module intended to provide discrete output signals from a compatible Siemens automation system to field devices.
2. What types of devices can a digital output module control?
Depending on the module's electrical specifications and circuit design, digital outputs can be used with compatible actuators, relays, contactors, indicator devices, valves, and other discrete field loads.
3. Why is output-channel protection important?
Protection helps prevent an abnormal field load or wiring condition from damaging the output circuitry and can contribute to more reliable operation of the automation system.
4. What should be checked before wiring the module?
Verify the module's electrical output characteristics, field supply requirements, load compatibility, wiring arrangement, terminal assignment, and the requirements of the connected field devices.
5. Can the module be used in a distributed automation architecture?
Its suitability depends on the specific Siemens system and hardware configuration. The module should be installed within an automation architecture that supports its particular I/O and communication arrangement.
6. What can cause a digital output to remain inactive?
Possible causes include an incorrect PLC program state, missing field power, wiring problems, an output protection condition, an incompatible load, configuration errors, or a module fault.
7. Why might an output repeatedly switch off?
Repeated output shutdown can be associated with an overloaded channel, short circuit, unsuitable field device, wiring fault, insufficient power, or an application-level control condition.
8. How can an output-channel problem be diagnosed?
Check the PLC diagnostic information, output status, field supply, wiring, connected load, terminal assignment, and module status. Testing the field circuit independently can help distinguish a module issue from an external wiring or load problem.
9. Can the digital outputs directly drive every type of actuator?
No. The connected device must remain within the module's specified electrical limits. Higher-current or electrically incompatible loads may require an intermediate relay or suitable interface component.
10. What maintenance is recommended for a digital output module?
Inspect wiring terminals, field connections, supply conditions, cabinet temperature, contamination, and diagnostic status. Loose terminals and unsuitable field loads should be corrected promptly.
