Brand:Siemens Item No.:6AG1134-4GB01-2AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial controllers depend on accurate field information to make effective control decisions. While digital signals can indicate simple states such as ON or OFF, many important process variables continuously change. Temperature, pressure, flow, and level are typical examples where an analog measurement is needed.

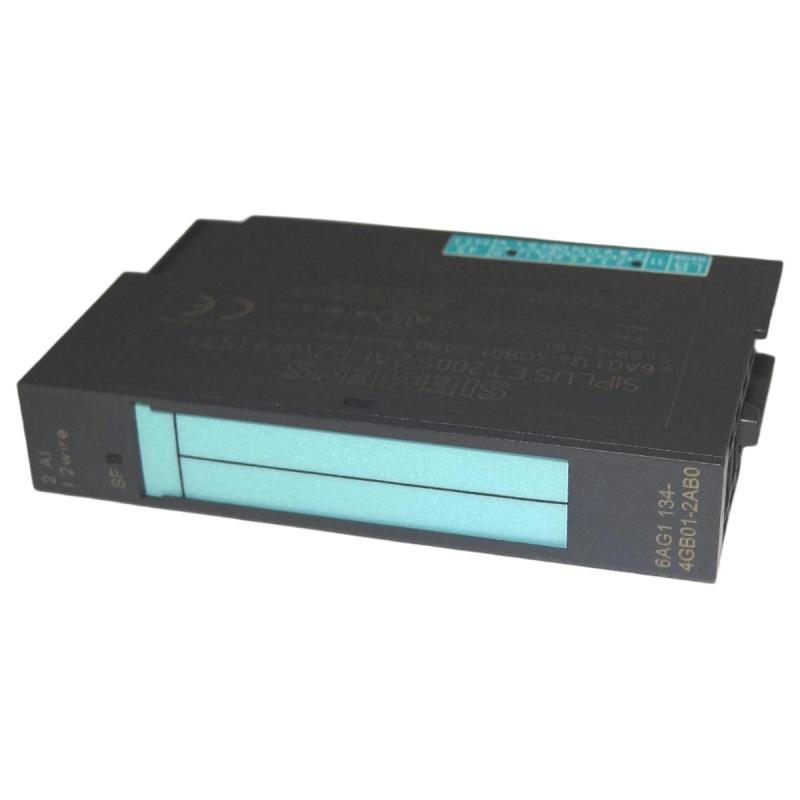

The Siemens 6AG1134-4GB01-2AB0 Analog Input Module provides an interface for acquiring compatible analog field signals within a Siemens automation environment. Its compact design makes it attractive for machine builders and system integrators who need to maximize I/O density without significantly increasing cabinet size.
At 15 × 81 × 52 mm, the module occupies very little physical space, while its 0.04 kg (0.09 lb) weight makes it easy to handle during installation and replacement. For maintenance teams, this can be particularly useful when working with densely populated control cabinets.
Successful analog measurement depends on the complete signal chain. The field instrument, cable, grounding, input configuration, PLC scaling, and control logic must work together. A correctly selected module alone cannot compensate for incorrect signal wiring or an improperly configured transmitter.
For compatible Siemens automation systems, the 6AG1134-4GB01-2AB0 provides a compact solution for expanding or maintaining analog measurement capability.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-4GB01-2AB0
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Temperature, Pressure, Flow, Level and Process Monitoring
Installation
Industrial Control / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.04 kg (0.09 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-4GB01-2AB0
Analog Input Module
Analog process signal acquisition
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1131 Series
Digital Input Module
Digital field signal acquisition
Siemens 6AG1132 Series
Digital Output Module
Discrete actuator control
Siemens ET 200 Series
Distributed I/O Module
Industrial distributed automation
These related Siemens products can be considered when developing a mixed analog and digital I/O system. Exact compatibility should be confirmed with the installed controller, I/O station, signal requirements, and automation architecture.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-4GB01-2AB0
Analog Input Module
Industrial process measurement
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1131 Series
Digital Input Module
Machine and process monitoring
Siemens 6AG1132 Series
Digital Output Module
Digital actuator control
Siemens ET 200 Series
Distributed I/O Module
Industrial automation
For procurement or replacement, verify the complete 6AG1134-4GB01-2AB0 part number against the existing Siemens automation architecture. Before commissioning, confirm the field signal characteristics, sensor compatibility, wiring, grounding, channel configuration, PLC scaling, and diagnostic status to achieve dependable measurement performance.
Applications
The Siemens 6AG1134-4GB01-2AB0 Analog Input Module is designed for industrial automation systems that need to collect continuously varying signals from field instruments and deliver those measurements to a compatible Siemens control system. It is well suited to applications where process conditions must be monitored accurately for control, alarming, sequencing, or data acquisition.
Typical applications include temperature, pressure, flow, level, and other analog process measurements used in machine automation, process control, production equipment, and distributed I/O systems.
With dimensions of just 15 × 81 × 52 mm, the module is particularly suitable for compact automation cabinets and high-density I/O arrangements. Its lightweight construction also makes it convenient for planned replacement and maintenance work.
Advantages
Continuous signal acquisition — Allows compatible analog process values to be monitored by the automation controller.
Compact construction — Helps conserve valuable control-panel space.
High-density I/O installation — Suitable for applications requiring multiple signal interfaces in a confined area.
Process measurement capability — Useful for monitoring changing variables such as temperature, pressure, flow, and level.
Siemens automation integration — Designed for use within compatible Siemens control architectures.
Machine and process flexibility — Can support a wide range of analog measurement tasks when correctly configured.
Maintenance-friendly format — Lightweight construction simplifies handling during service.
Efficient cabinet design — Provides analog I/O functionality without requiring a large physical footprint.
Technical FAQs
1. What is the Siemens 6AG1134-4GB01-2AB0 used for?
The 6AG1134-4GB01-2AB0 is an Analog Input Module used to acquire compatible analog signals from field devices for processing within a Siemens automation system.
2. Why are analog inputs important in industrial automation?
Many industrial variables change continuously rather than between two discrete states. Analog inputs allow the controller to receive information representing those changing process conditions.
3. What field devices can be connected to an analog input?
Depending on the module's electrical specifications, compatible transmitters and sensors can provide process signals representing temperature, pressure, flow, level, and other variables.
4. What should be verified before wiring an analog sensor?
Confirm the sensor's output signal type and range, module input characteristics, wiring arrangement, field power requirements, channel configuration, and grounding method.
5. Why does PLC scaling matter?
The analog module receives an electrical signal rather than a direct engineering-unit value. PLC scaling converts the acquired signal into a usable process value such as °C, bar, or liters per minute.
6. What can cause an analog channel to read an unexpected value?
Potential causes include incorrect wiring, an incompatible signal range, incorrect channel configuration, transmitter problems, grounding issues, damaged cables, or incorrect PLC scaling.
7. Why might an analog signal fluctuate?
Signal noise, electromagnetic interference, poor shielding or grounding, unstable instrumentation, damaged cabling, or unsuitable installation practices can cause measurement instability.
8. How can an inaccurate process value be diagnosed?
Compare the PLC measurement with an appropriate reference instrument, verify the field signal electrically, inspect wiring, confirm channel configuration, and check the transmitter itself.
9. What is the purpose of electrical isolation in analog systems?
Isolation can help prevent unwanted current paths and differences in electrical potential between field equipment and control equipment. Its necessity depends on the overall system architecture.
10. What preventive maintenance should be performed?
Inspect signal terminals and cables, check connected instruments, review controller diagnostics, verify cabinet conditions, and periodically validate critical process measurements against a suitable reference.
