Brand:Siemens Item No.:6AG1134-4GB52-2AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Reliable process information is one of the foundations of effective industrial automation. A controller cannot regulate a process accurately if the temperature, pressure, flow, level, or other measurement entering the system is incorrect. Analog input modules provide the electrical interface needed to bring these continuously changing field signals into the control system.

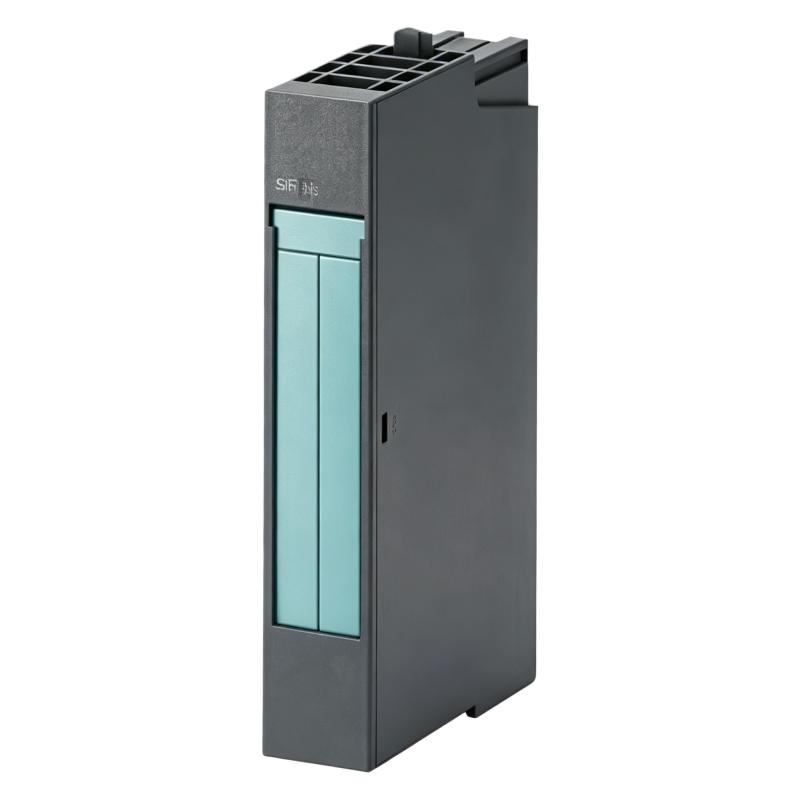

The Siemens 6AG1134-4GB52-2AB0 Analog Input Module is designed for this role within a compatible Siemens automation architecture. Its compact 15 × 81 × 52 mm dimensions make it suitable for installations where control cabinet space and I/O density are important design considerations.
At only 0.04 kg (0.09 lb), the module is also easy to handle during installation and replacement. This can be particularly useful for maintenance teams working in densely populated automation panels.
The quality of an analog measurement depends on the entire signal chain rather than the I/O module alone. The field sensor or transmitter, cable, power supply, shielding, grounding, module configuration, and PLC scaling must all be correctly coordinated.
For machine builders, process engineers, and system integrators, the 6AG1134-4GB52-2AB0 offers a compact approach to analog signal acquisition. When correctly matched with the surrounding Siemens automation hardware and field instrumentation, it can contribute to a clean and dependable control architecture.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-4GB52-2AB0
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.04 kg (0.09 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Analog process signal acquisition
Siemens 6AG1134-4GB01-2AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Analog field signal acquisition
Siemens 6AG1131 Series
Digital Input Module
Digital field signal monitoring
These related Siemens modules can be evaluated when expanding an automation system with analog and digital signal acquisition. The final selection should be based on the required signal characteristics, controller compatibility, I/O architecture, and field instrumentation.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Industrial process measurement
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-4GB01-2AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1131 Series
Digital Input Module
Machine and process monitoring
When sourcing the Siemens 6AG1134-4GB52-2AB0, verify the complete part number and confirm compatibility with the installed Siemens automation architecture. Before commissioning, carefully check the field signal type, transmitter requirements, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status.
Applications
The Siemens 6AG1134-4GB52-2AB0 Analog Input Module is designed for industrial automation systems that need to acquire and process continuous field signals. It is well suited to control architectures where measurements from sensors and transmitters must be brought into the PLC for monitoring, process regulation, alarm handling, and operational analysis.
Typical applications include process automation, machine control, temperature and pressure monitoring, flow and level measurement, production equipment, and distributed I/O systems. Its compact construction is particularly valuable in control cabinets where high I/O density and efficient use of panel space are important.
For automation integrators and maintenance teams, the 6AG1134-4GB52-2AB0 provides a practical way to expand or maintain analog signal acquisition within a compatible Siemens control environment.
Advantages
Continuous analog signal acquisition — Allows changing field values to be processed by the automation controller.
Compact footprint — Supports efficient control-panel and I/O-station layouts.
Industrial automation integration — Suitable for compatible Siemens control architectures.
Process measurement support — Useful for monitoring continuously changing process variables.
High-density installation — Helps accommodate more I/O functionality in limited cabinet space.
Lightweight module design — Weighing only 0.04 kg, it is convenient to handle during maintenance.
Flexible system expansion — Can be considered when additional analog measurement capability is required.
Service-friendly construction — Compact modular design supports practical replacement strategies.
Technical FAQs
1. What is the Siemens 6AG1134-4GB52-2AB0 used for?
The 6AG1134-4GB52-2AB0 is an Analog Input Module intended to acquire compatible analog field signals for processing by a Siemens automation system.
2. What types of applications require analog input signals?
Applications involving continuously changing variables such as temperature, pressure, flow, level, and other process measurements commonly require analog inputs.
3. What should be checked before connecting an analog transmitter?
Verify the transmitter's signal type and range, module input characteristics, wiring arrangement, field power requirements, channel configuration, and grounding method.
4. Why is analog signal scaling necessary?
The input module receives an electrical representation of a physical measurement. PLC scaling converts this raw signal into a meaningful engineering value that can be used by control logic and operator interfaces.
5. What could cause an analog channel to show a constant value?
Possible causes include incorrect wiring, missing transmitter power, an open circuit, incorrect channel configuration, an unsuitable signal type, or a malfunctioning field instrument.
6. Why can analog readings become unstable?
Electrical noise, electromagnetic interference, grounding problems, poor shielding, damaged cables, unstable transmitters, or incorrect configuration can cause fluctuating measurements.
7. How should an analog measurement error be investigated?
Compare the PLC value with a suitable reference instrument, measure the field signal, inspect the wiring, verify the module configuration, and test the field transmitter.
8. What happens if the transmitter's signal range does not match the input configuration?
The PLC may interpret the field signal incorrectly, resulting in inaccurate engineering values, unexpected limits, or diagnostic conditions. The transmitter and input configuration should therefore be matched correctly.
9. Why is cable shielding important for analog signals?
Analog signals can be sensitive to electrical interference. Appropriate shielding and grounding practices can reduce unwanted noise and improve measurement stability.
10. What maintenance should be performed on an analog input installation?
Inspect terminals, field wiring, transmitter connections, cabinet conditions, and diagnostic information. Critical measurement channels should also be periodically checked against suitable reference equipment.
