Brand:Siemens Item No.:6AG1134-4JB51-7AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Accurate analog measurements are essential in many industrial automation systems. A controller may need to know the actual temperature of a process, the pressure inside a vessel, the flow through a pipeline, or the level of a tank before it can make an appropriate control decision. The analog input module is the hardware interface that brings this information into the automation system.

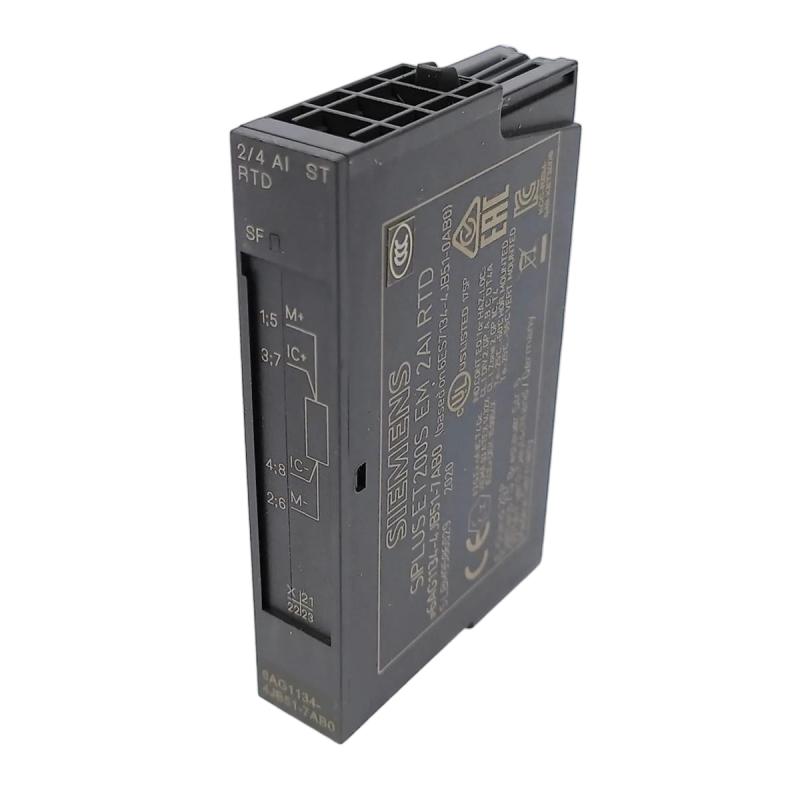

The Siemens 6AG1134-4JB51-7AB0 Analog Input Module is designed for compatible Siemens automation applications requiring analog signal acquisition. Its compact 15 × 81 × 52 mm size allows efficient installation in control cabinets where available space is limited.
At only 0.04 kg (0.09 lb), the module is also convenient for technicians to install, remove, and replace during service operations. This is particularly useful in dense I/O assemblies where access to individual modules can be restricted.
In practice, analog accuracy depends on the entire measurement chain. Correct transmitter selection, field wiring, shielding, grounding, module configuration, and PLC scaling all contribute to dependable process information. A well-designed installation can reduce measurement noise and make troubleshooting considerably easier.
For system integrators, machine builders, and maintenance departments, the 6AG1134-4JB51-7AB0 can provide a compact analog I/O solution for compatible Siemens automation systems.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-4JB51-7AB0
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.04 kg (0.09 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Process signal acquisition
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Analog process monitoring
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Industrial analog signal acquisition
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Process measurement
These related Siemens analog modules can be considered when expanding an existing I/O system or evaluating compatible replacement hardware. Selection should be based on the required signal characteristics, controller architecture, field instrumentation, and system configuration.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Industrial process measurement
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4FB01-2AB0
Analog Input Module
Machine and process automation
When sourcing the Siemens 6AG1134-4JB51-7AB0, verify the complete part number and match the module with the existing Siemens automation architecture. Before commissioning, confirm the field signal type, transmitter compatibility, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status.
Applications
The Siemens 6AG1134-4JB51-7AB0 Analog Input Module is intended for industrial automation systems that need to acquire continuously changing field signals and make those values available to a compatible Siemens control system. It is suitable for applications where analog measurements are used for process supervision, machine control, alarm handling, and production monitoring.
Typical applications include process instrumentation, machine automation, temperature and pressure monitoring, flow and level measurement, production lines, and distributed I/O installations. Its compact footprint makes it particularly useful when a control cabinet requires a high concentration of I/O hardware without unnecessary use of panel space.
For automation integrators and maintenance teams, the module provides a practical option for expanding or replacing analog input functionality in compatible Siemens systems.
Advantages
Reliable analog signal acquisition — Provides an interface for compatible continuous field measurements.
Compact form factor — Helps maximize available space inside industrial control cabinets.
Efficient I/O density — Suitable for installations with multiple signal modules.
Process measurement support — Useful for monitoring changing industrial variables.
Siemens automation integration — Designed for use within compatible Siemens control architectures.
Lightweight construction — The 0.04 kg module is easy to handle during installation and maintenance.
Flexible automation applications — Suitable for both machine and process-control environments.
1. What is the Siemens 6AG1134-4JB51-7AB0 used for?
The 6AG1134-4JB51-7AB0 is an Analog Input Module intended to acquire compatible analog signals for use by a Siemens industrial automation system.
2. Why would an automation system require an analog input?
Analog inputs allow a controller to monitor continuously changing physical conditions instead of only detecting discrete ON/OFF states.
3. What types of field signals can an analog input module handle?
The supported signal types depend on the module's specific electrical characteristics. Compatible instrumentation can represent variables such as temperature, pressure, flow, level, or other process conditions.
4. What should be confirmed before connecting an analog transmitter?
Check the transmitter output, signal range, input characteristics, wiring method, field power, channel configuration, and grounding requirements.
5. Why must the PLC value be scaled correctly?
The electrical signal acquired by the module represents a physical process value. Proper scaling converts that signal into an engineering value that the PLC and HMI can interpret correctly.
6. What could cause an analog channel to produce an incorrect reading?
Incorrect wiring, an incompatible signal range, transmitter problems, grounding issues, damaged cables, incorrect configuration, or improper PLC scaling can all affect the measurement.
7. Why might an analog value fluctuate even when the process is stable?
Electrical noise, electromagnetic interference, inadequate shielding, poor grounding, unstable field instrumentation, and cable problems can introduce unwanted signal variations.
8. How should an analog input be tested during troubleshooting?
Verify the actual field signal with suitable test equipment, inspect the wiring and terminals, check the field transmitter, review PLC diagnostics, and compare the controller value with an independent reference.
9. Can any analog transmitter be connected to this module?
No. The transmitter's output must match the electrical input characteristics supported by the module. Signal compatibility should be confirmed before connection.
10. What preventive maintenance is appropriate for analog I/O?
Inspect terminals, field wiring, sensor and transmitter connections, cabinet conditions, and diagnostic information. Important measurement channels should also be periodically verified against suitable reference instruments.
