Brand:Siemens Item No.:6AG1134-4LB02-2AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.045 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Industrial automation depends on accurate field measurements. A PLC cannot effectively regulate a process if the information representing temperature, pressure, flow, level, or another continuously changing variable is inaccurate. Analog input modules provide the essential interface between these physical measurements and the controller.

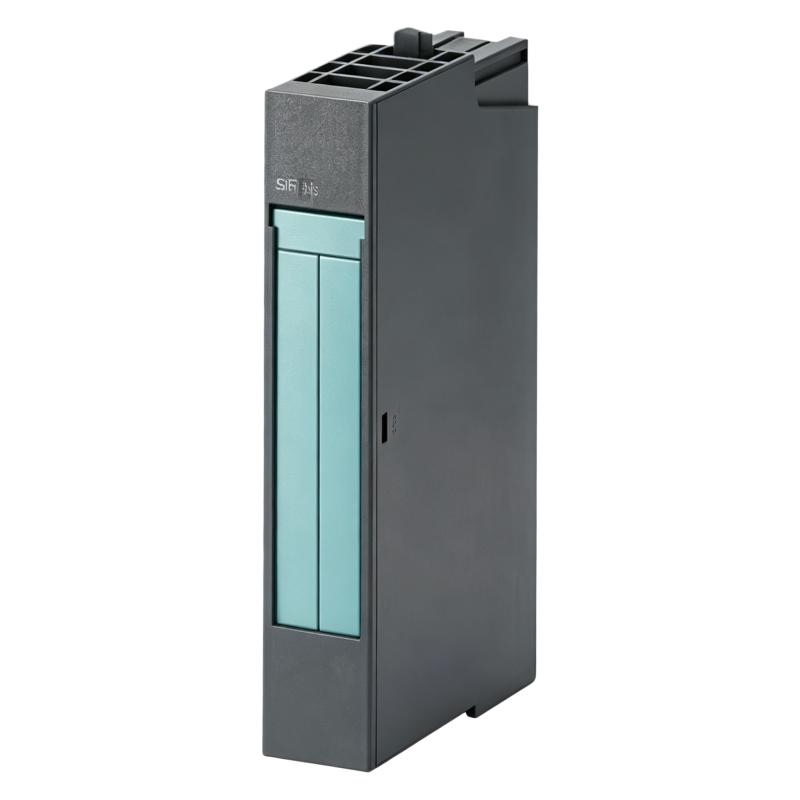

The Siemens 6AG1134-4LB02-2AB0 Analog Input Module is designed for compatible Siemens automation applications where analog signals need to be acquired and processed. It can form part of a larger measurement system used for process supervision, machine control, alarming, and data acquisition.
The module measures just 15 × 81 × 52 mm, allowing it to fit efficiently into compact control cabinets and dense I/O arrangements. Its supplied weight of 0.045 kg (0.10 lb) also makes it easy to handle during panel assembly, replacement, and routine maintenance.
Reliable analog measurement is not determined by the module alone. The field transmitter, signal cable, power supply, grounding, shielding, input configuration, and PLC scaling all need to be correctly coordinated. When these elements are engineered as a complete signal chain, the automation system can obtain more consistent and useful process information.
For machine builders, system integrators, and maintenance engineers, the 6AG1134-4LB02-2AB0 offers a compact option for maintaining or expanding analog measurement capability within a compatible Siemens automation environment.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1134-4LB02-2AB0
Product Type
Analog Input Module
I/O Function
Analog Signal Acquisition
Primary Function
Industrial Process Measurement
Application
PLC and Industrial Automation
Typical Use
Process Monitoring and Machine Control
Installation
Industrial Control / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.045 kg (0.10 lb)
Recommended Related Models
Model
Product Type
Application
Siemens 6AG1134-4LB02-2AB0
Analog Input Module
Industrial analog signal acquisition
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Process measurement
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Analog process monitoring
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Analog field signal acquisition
These related Siemens modules can be evaluated when expanding or maintaining a mixed analog I/O architecture. Final selection should be based on signal characteristics, controller compatibility, field instrumentation, channel requirements, and the complete automation topology.
Popular Related Models
Model
Product Type
Typical Application
Siemens 6AG1134-4LB02-2AB0
Analog Input Module
Industrial process measurement
Siemens 6AG1134-4JB51-7AB0
Analog Input Module
Analog signal acquisition
Siemens 6AG1134-4GD00-2AB0
Analog Input Module
Process monitoring
Siemens 6AG1134-4GB52-2AB0
Analog Input Module
Industrial analog measurement
Siemens 6AG1134-4GB11-2AB0
Analog Input Module
Machine and process automation
When sourcing the Siemens 6AG1134-4LB02-2AB0, verify the complete part number and confirm compatibility with the installed Siemens automation system. Before commissioning, check the field signal characteristics, transmitter requirements, wiring, shielding, grounding, channel configuration, PLC scaling, and diagnostic status to ensure dependable analog signal acquisition.
Applications
The Siemens 6AG1134-4LB02-2AB0 Analog Input Module is designed for industrial automation systems that need to collect continuously varying signals from compatible field devices. It can serve as the interface between process instrumentation and a Siemens control system, allowing measured values to be used for monitoring, regulation, alarms, sequencing, and production analysis.
Typical applications include machine automation, process control, temperature monitoring, pressure measurement, flow and level supervision, production equipment, and distributed I/O installations.
Its compact 15 × 81 × 52 mm footprint makes it a practical choice for control cabinets where installation density matters. With a weight of only 0.045 kg, it is also convenient to handle during panel assembly and maintenance.
Advantages
Continuous analog measurement — Brings compatible variable field signals into the automation controller.
High-density I/O design — Suitable for systems containing multiple measurement channels or modules.
Process monitoring capability — Supports applications involving continuously changing process conditions.
Siemens automation compatibility — Intended for integration into suitable Siemens control architectures.
Lightweight construction — At 0.045 kg, the module is easy to handle during service and replacement.
Flexible industrial use — Suitable for machine-control and process-automation applications.
Maintenance-friendly format — Compact modular construction supports efficient I/O servicing.
